Broadlink 2018 New Design S2 HUB Security Suit Security Alarm Detector Motion Sensor Remote Control For Home Automatio

Broadlink S2


BroadLink Product Highlights

LOGO

Welcome To BroadLink Official Store :D



Find intelligent life, Make life simple



* This cost-effective kit comes with 4 components: The HUB, a door sensor, a motion sensor (PIR) and a key fob remote.



* Connected with these smart sensors, the HUB will push notifications to keep you informed on what's happening when you're not around - depending on what you've programmed it to monitor.



* HUB supports a maximum of 16 sensors, with plenty of room for you to DIY the perfect smart home system.



* Broadlink smart motion sensor, you can monitor movement and intrusion, notification will be sent to keep you informed about what is happening around your house.



* Program your daily life, trigger Auto Home mode, connect to your smart compatible light, music player and water heater, your house is ready for you.



* The door sensor detects windows are opened or closed, can be set to send notifications ans send signals to activate other smart devices.



*Three steps to connect APP, it is easy to control the  temperature change. Support Apps for Android and IOS. Using Broadlink App, you can control your devices anywhere,anytime.





BroadLink Product Photos

e-catalog-Broadlink-16_02

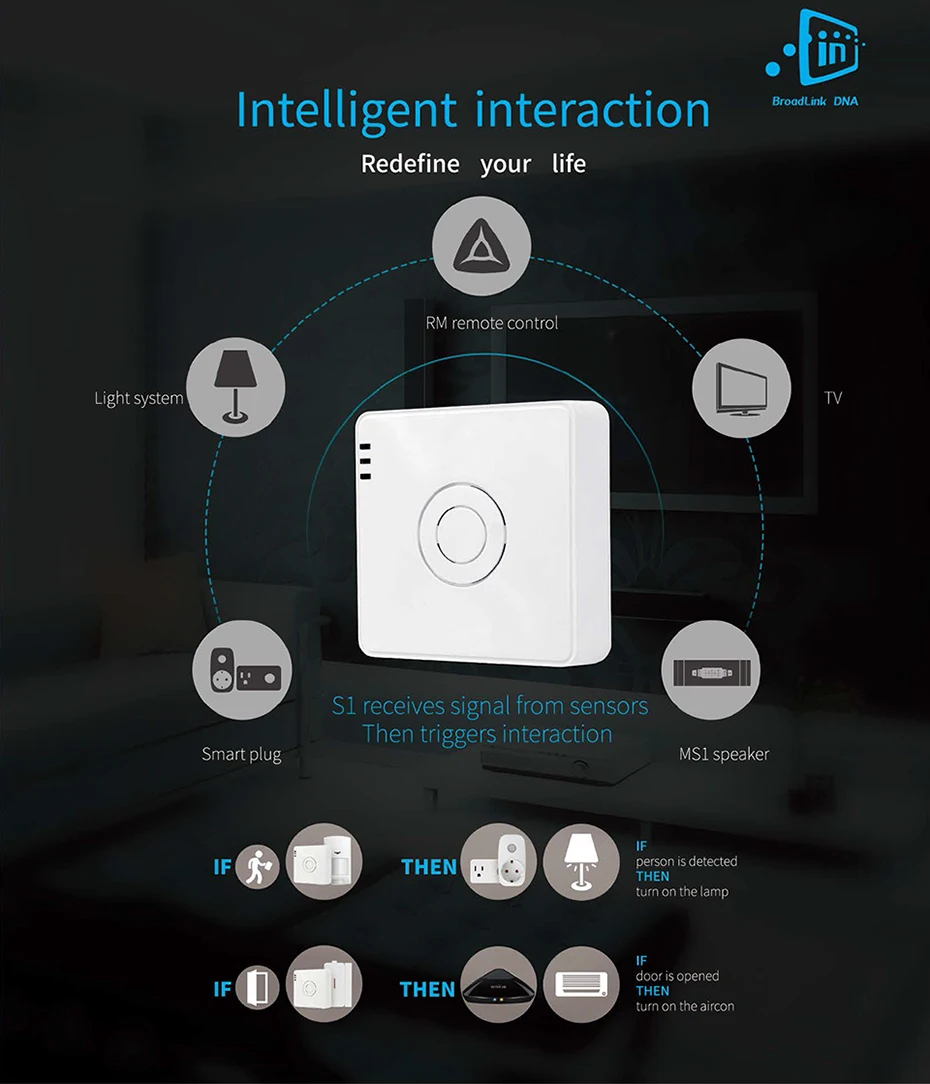

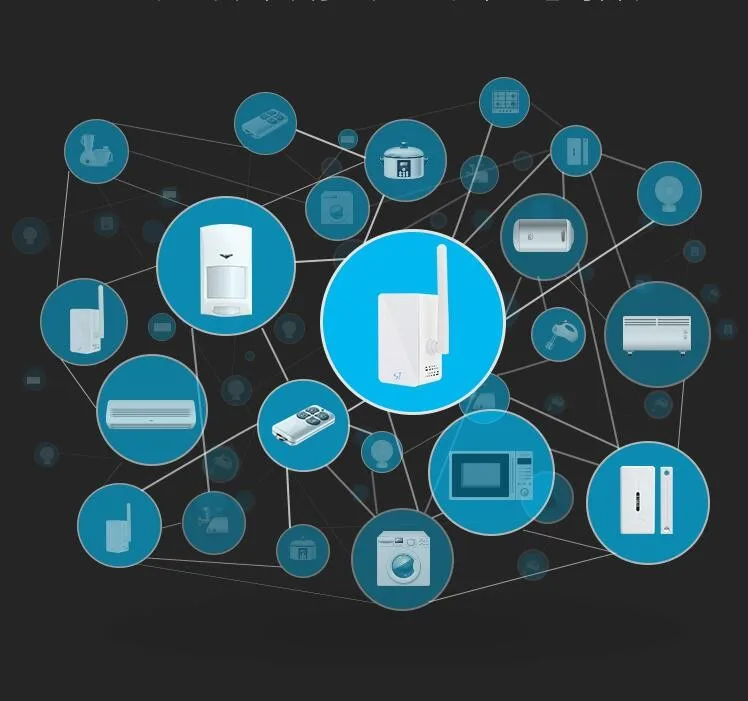

Intelligent interaction | Redefine your life
S2 HUB receives signal from sensors, then triggers interaction



HTB1DNLvRVXXXXa1XpXXq6xXFXXXR

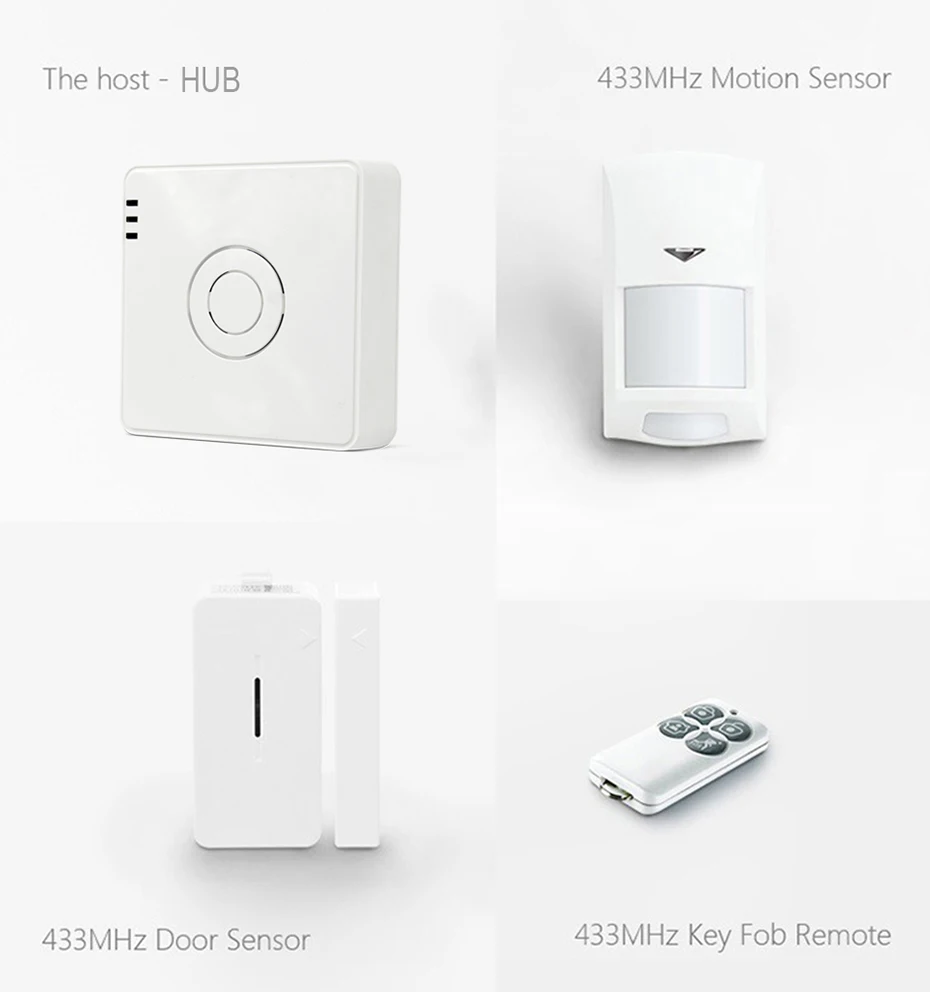

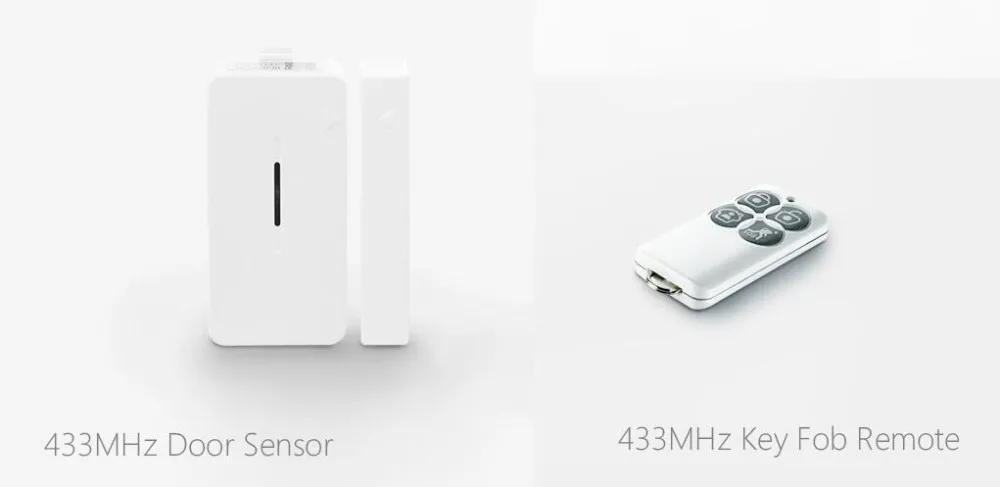

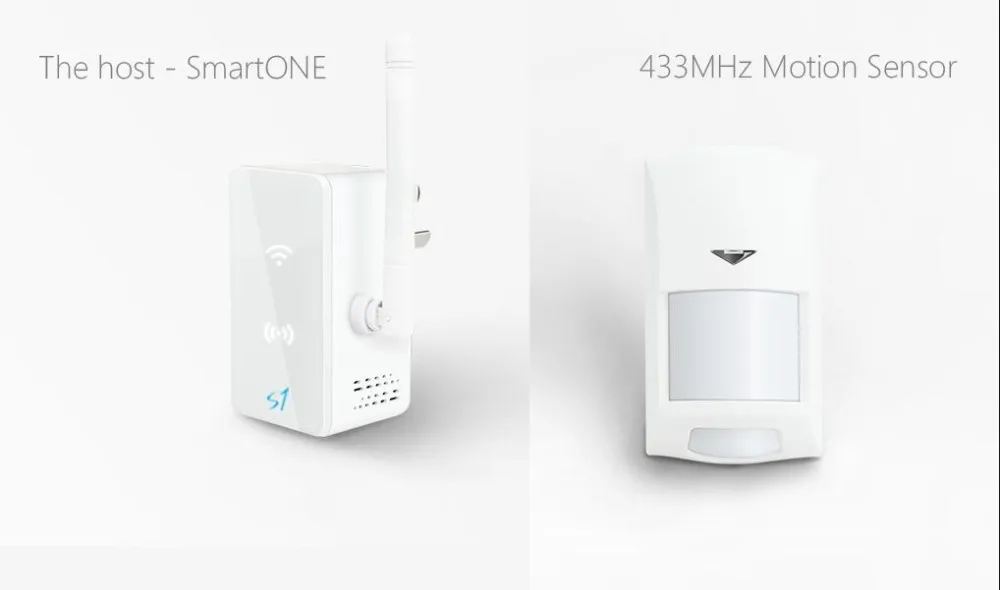

The Host-Hub | 433MHz Motion Sensor | 433MHz Door Sensor | 433MHz Key Fob Remote



1



Take care of the people you love
The motion sensor detects movement within its coverage area and notifies you with APP


2



Keep an eye on your house
The door sensor detects when windows are opened or closed, and can be set to send notifications
when this happens - or send signals to activate other smart devices.



3

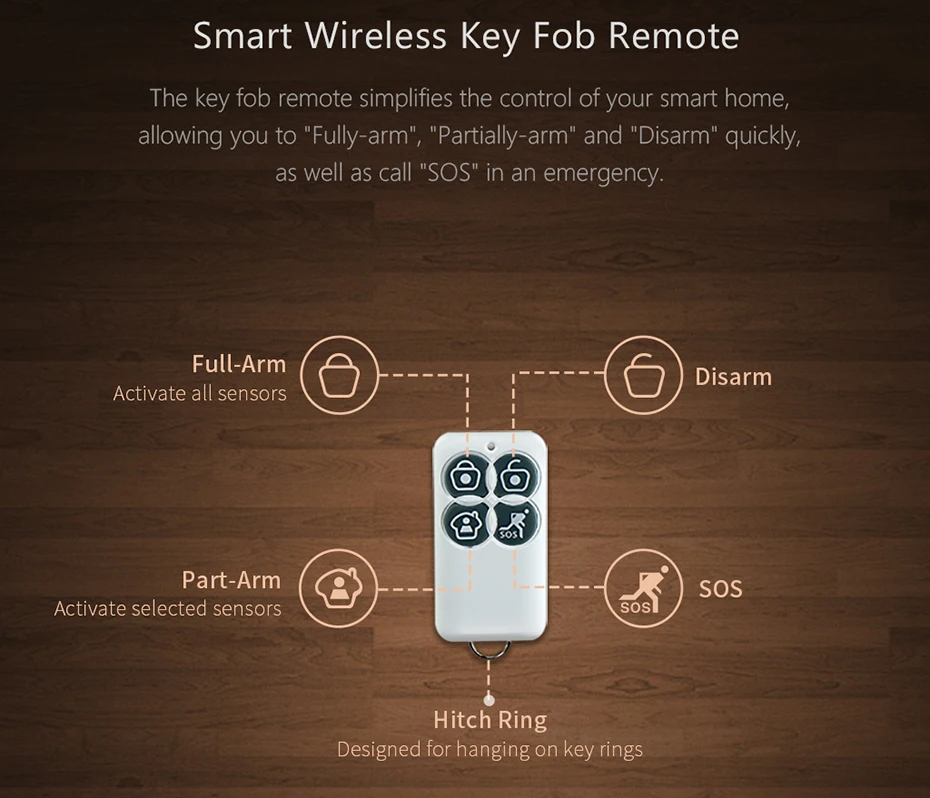

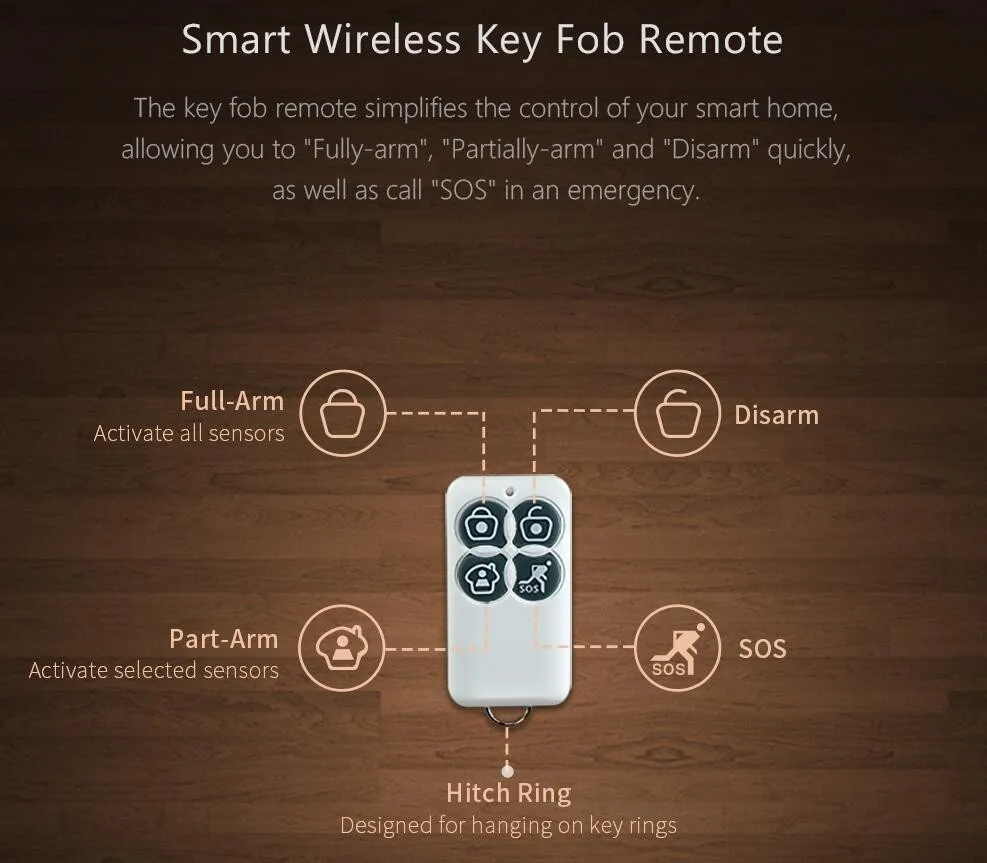

Smart Wireless Key Fob Remote
The key fob remote simplifies the control of your smart home, allowing you to "Fully-arm", "Partially-arm"
and "Disarm" quickly, as well as call "SOS" in an emergency.



4-2

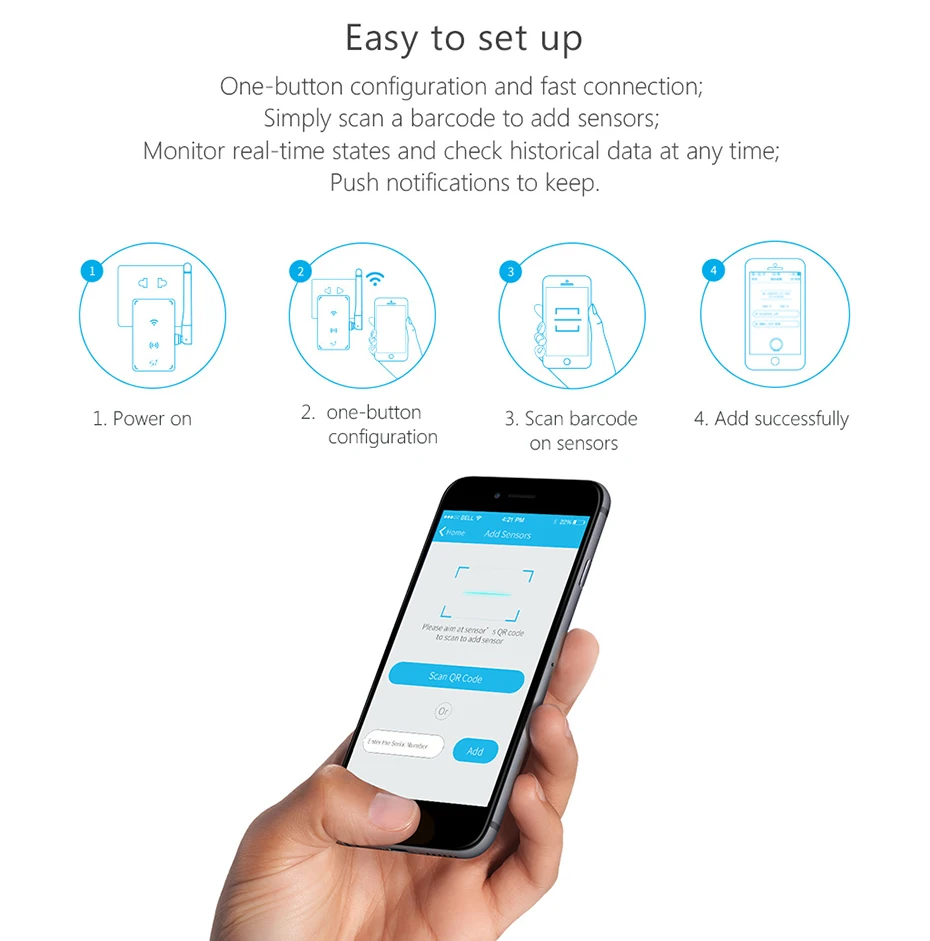

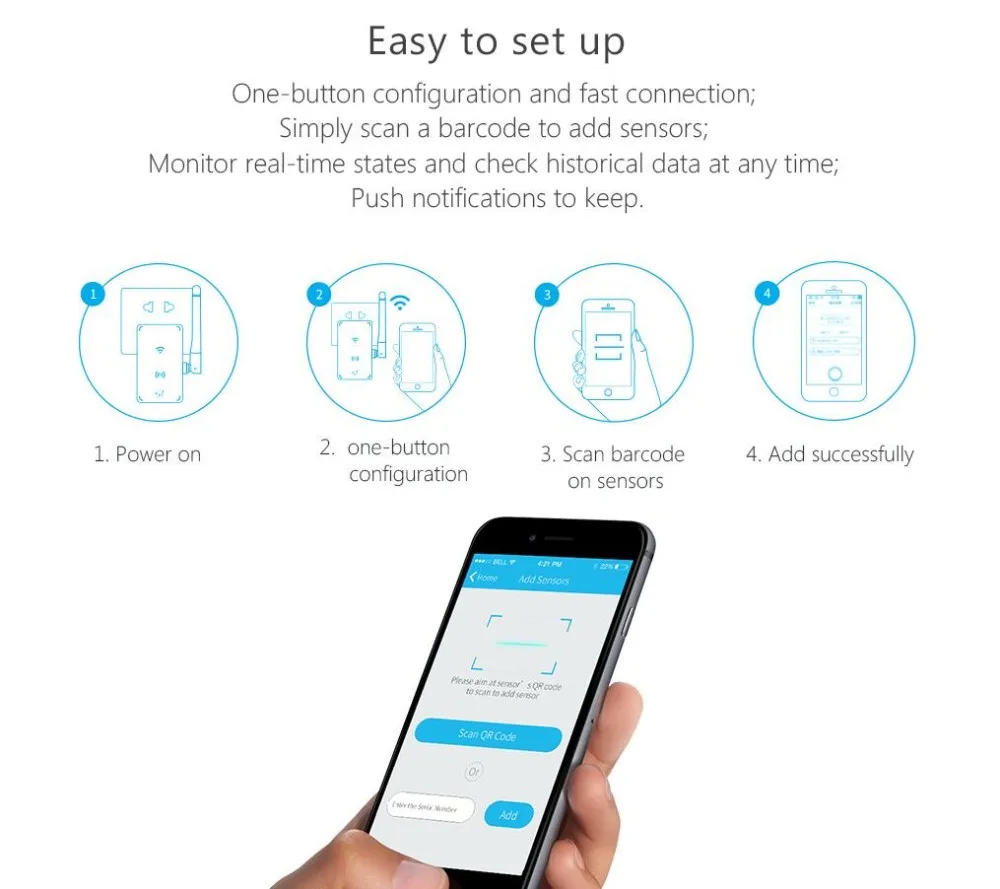

Easy to set up
One-button configuration and fast connection; Simply scan a barcode to add sensors; Monitor real-time states and
check historical date at any time; Push notifications to keep.

1.  Power on      2. One-button configuration      3. Scan barcode on sensors      4. Add successfully


5

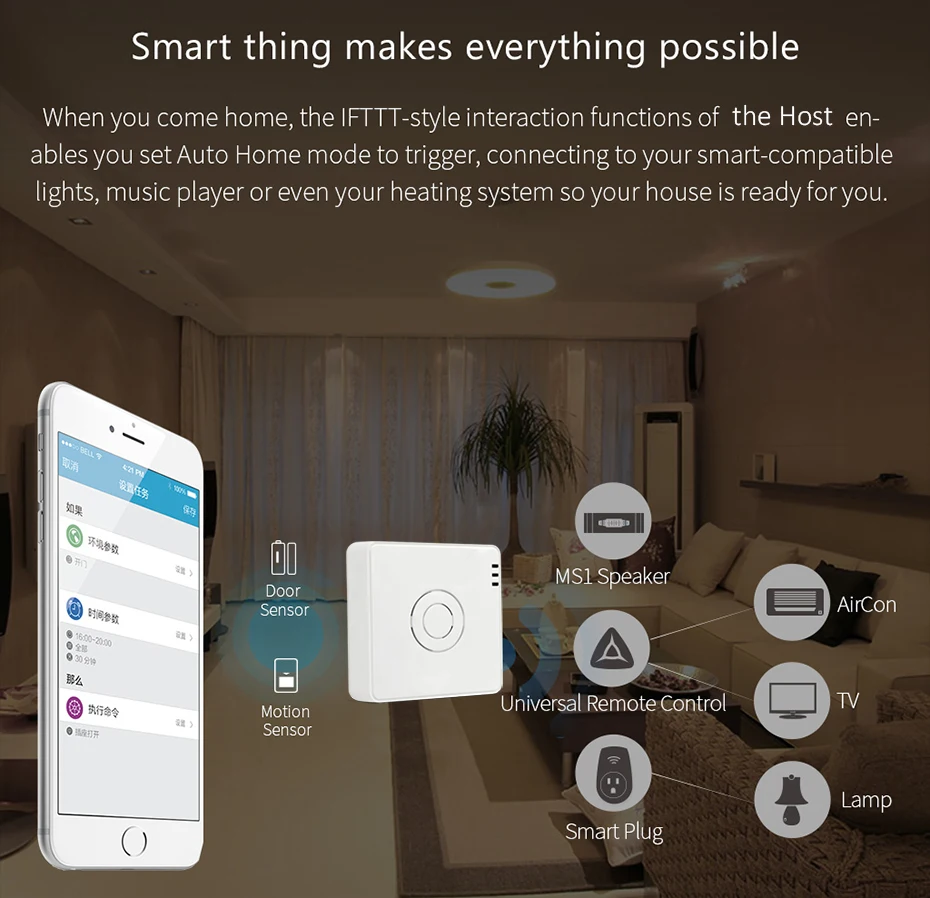

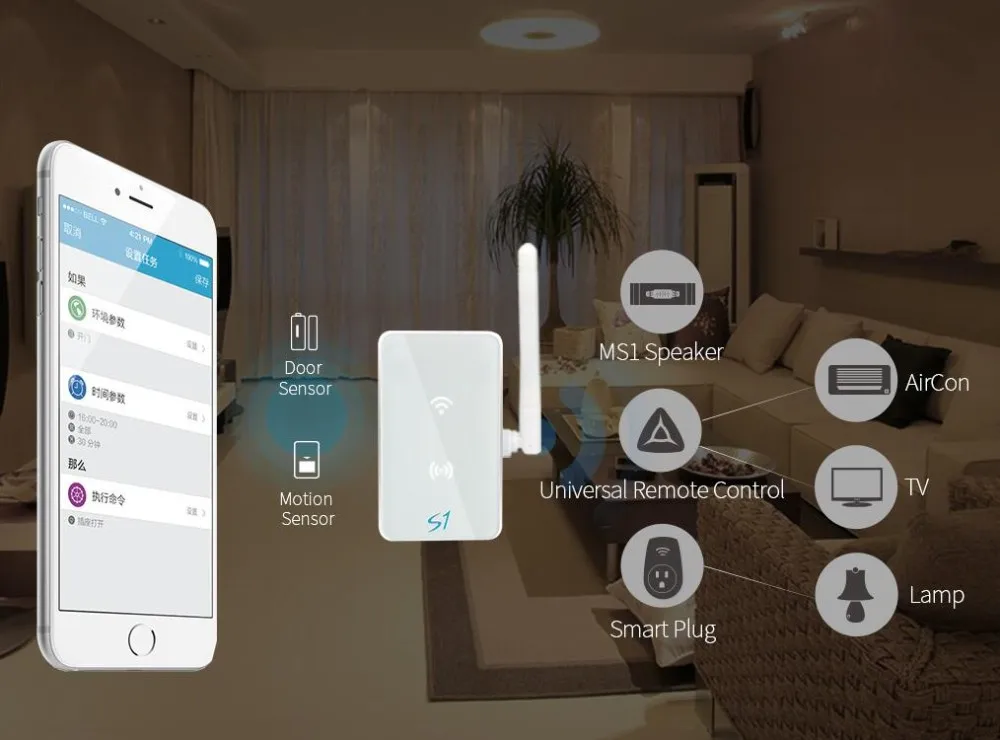

Smart thing make everything possible
when you come home, the IFTTT-style interaction functions of the Host enables you set Auto Home mode to trigger,
connecting to your smart-compatible lights, music player or even your heating system so your house is ready for you.


7



Take Home in your pocket



011

002

0222

003330999

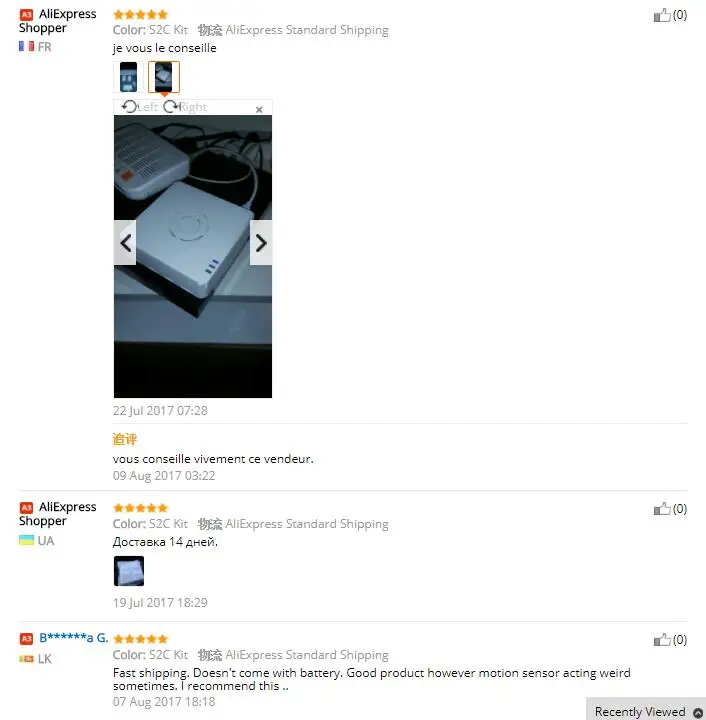

Buyer Feedback Rating

S2

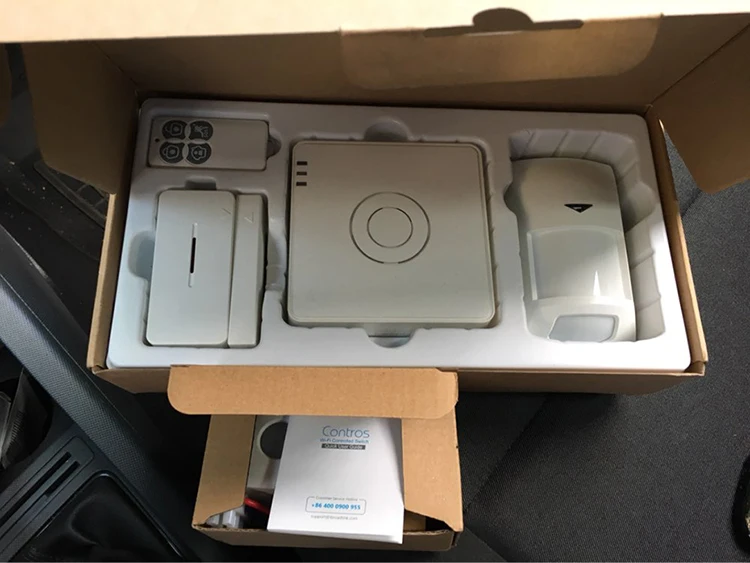

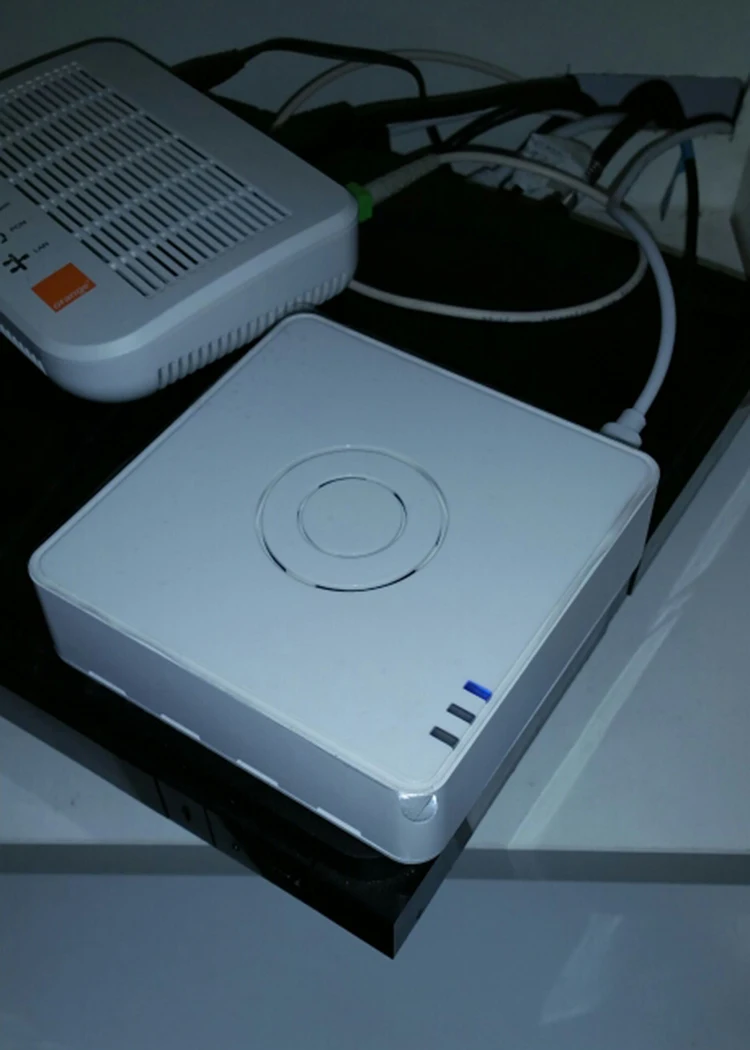

Buyer Show

HTB1AB92SpXXXXbZXFXXq6xXFXXXL

UTB8tqu_XHPJXKJkSafSq6yqUXXau UTB8Hca9XSbIXKJkSaefq6yasXXaA



BroadLink Product Description

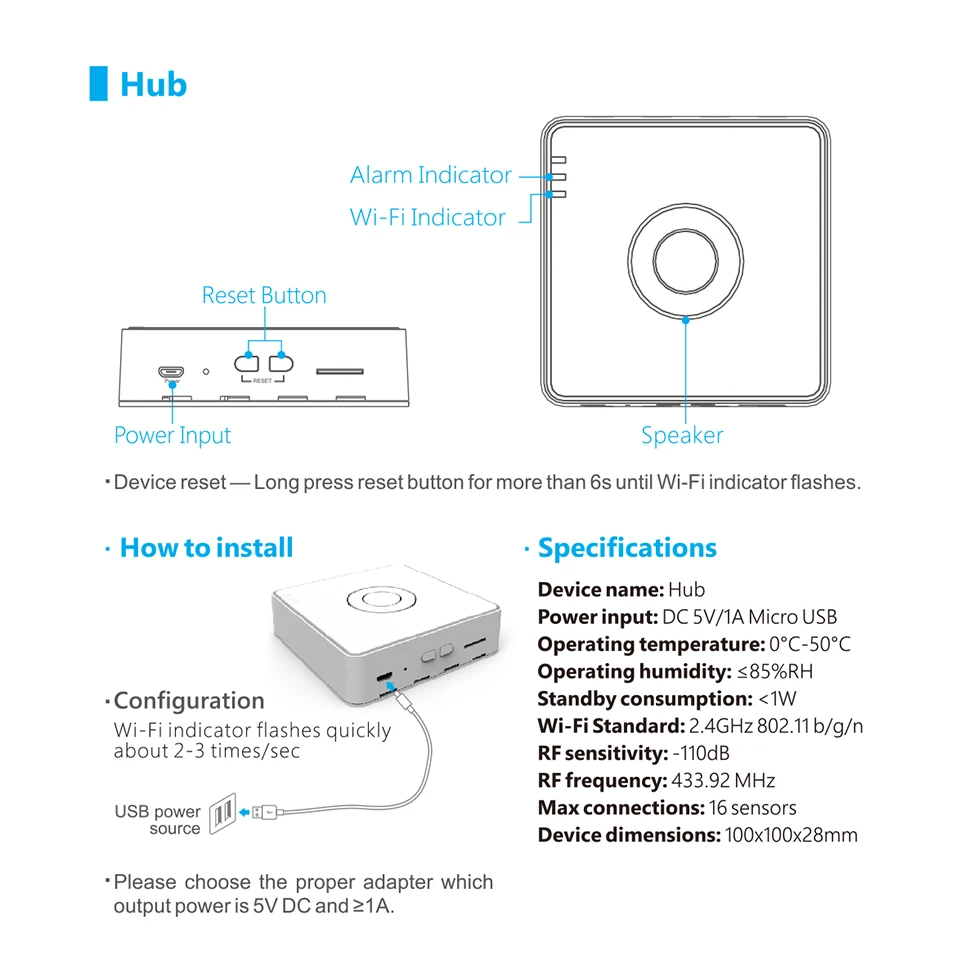

HUB
Device name: HUB
Max. connections: 16 sensors
Material: Environmentally friendly ABS
Power input: DC 5V/1A Micro USB
Operating temperature: 0℃-50℃
Operating humidity: ≤85%RH
Standby consumption: <1W
Wi-Fi standard: 2.4GHz 802.11b/g/n
RF sensitivity: -110dB
RF frequency: 433.92MHz
Device dimensions: 100*100*28mm

MOTION SENSOR
Device name: Motion sensor
Power input: 3V battery (2 x AAA) ( NOT INCLUDED)
Detection range: ≤12m@25℃ (typical)
Operating humidity: ≤85%
Operating temperature: 0℃-50℃
Operating consumption: ≤15mA
Standby consumption: ≤15uA
RF range: 30m (line-of-sight)
Effective angle: 90°
RF frequency: 433.92MHz
Installation height: 2.2 – 2.7m
Device dimensions: 50*77*19mm

DOOR SENSOR
Device name: Door sensor
Power input: 3V battery (2 x AAA) (NO INCLUDED)
Auto-report: Synchronize with hub every 60 mins with status
Operating humidity: ≤85%
Operating temperature: 0℃-50℃
Operating consumption: ≤15mA
Standby consumption: ≤9uA
RF range: 30m (line-of-sight)
Supported alerts: Burglary, tampering, low battery
RF frequency: 433.92MHz
Device dimensions: 50*77*19mm

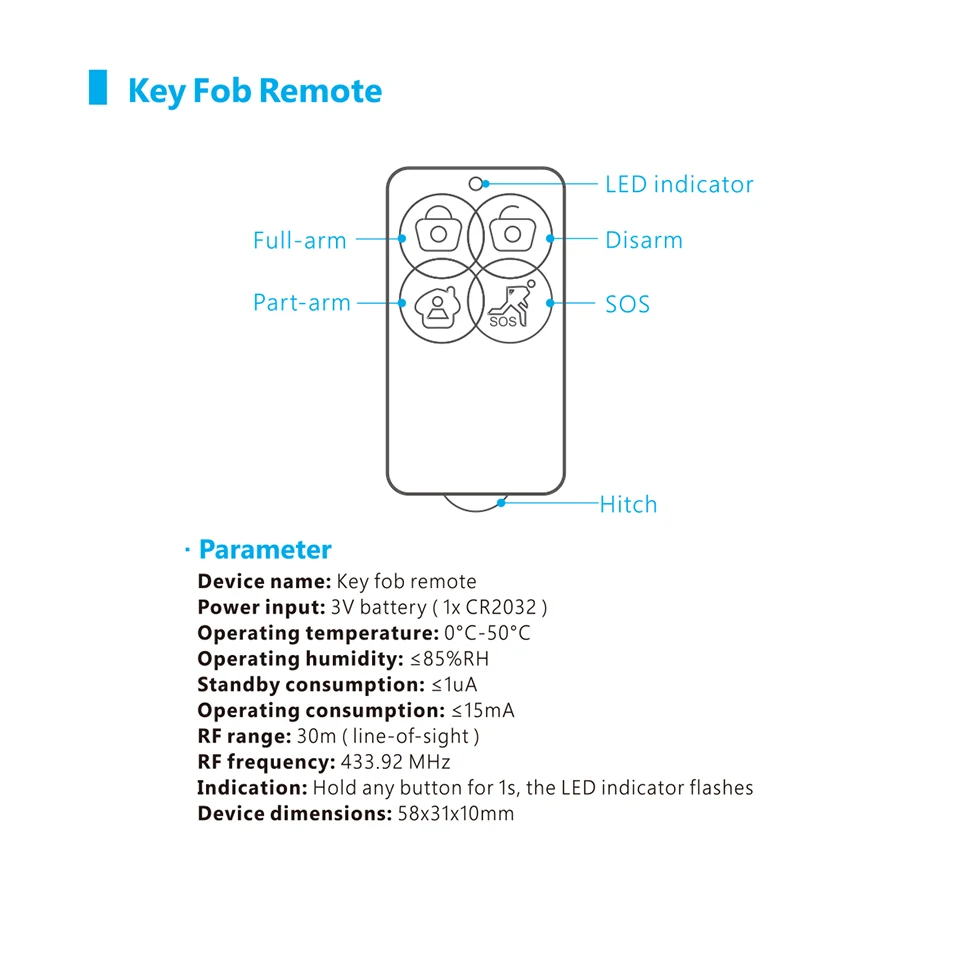

KEY FOB REMOTE
Device name: Fob Key Remote
Power input: 3V battery (1 x CR2032) (NOT INCLUDED)
RF frequency: 433.92MHz
Operating humidity: ≤85%
Operating temperature: 0℃-50℃
Operating consumption: ≤15mA
Standby consumption: ≤1uA
RF range: 30m (line-of-sight)
Device dimensions: 58*31*10mm
Indication: Hold and button for 1s, the LED indicator flashes

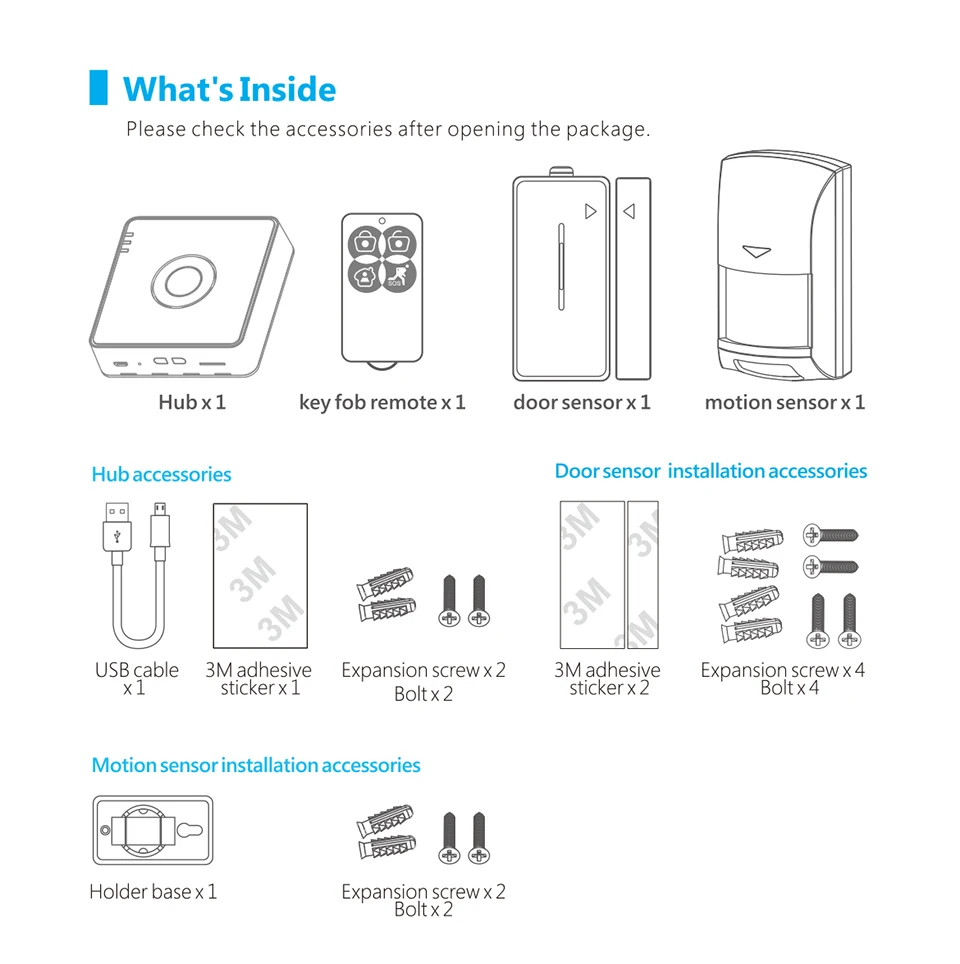

PACKAGE CONTENTS

 Hob *1
Door Sensor *1
Motion Sensor(PIR) *1
Key Fob Remote*1



Welcome to "BroadLink"  Brand Community



Our Team

959



Our philosophy: Let thousands of households at a low cost to enjoy the convenience of smart home.

To create a new smart home appliance platform, so that "BroadLink inside" home appliances a key online,

to achieve real "people and things interconnected."



BroadLink DNA

452



All things interconnected, interactive exchange

Join BroadLink DNA to achieve cross-brand, cross-category appliances interoperability, data sharing.

LOGO

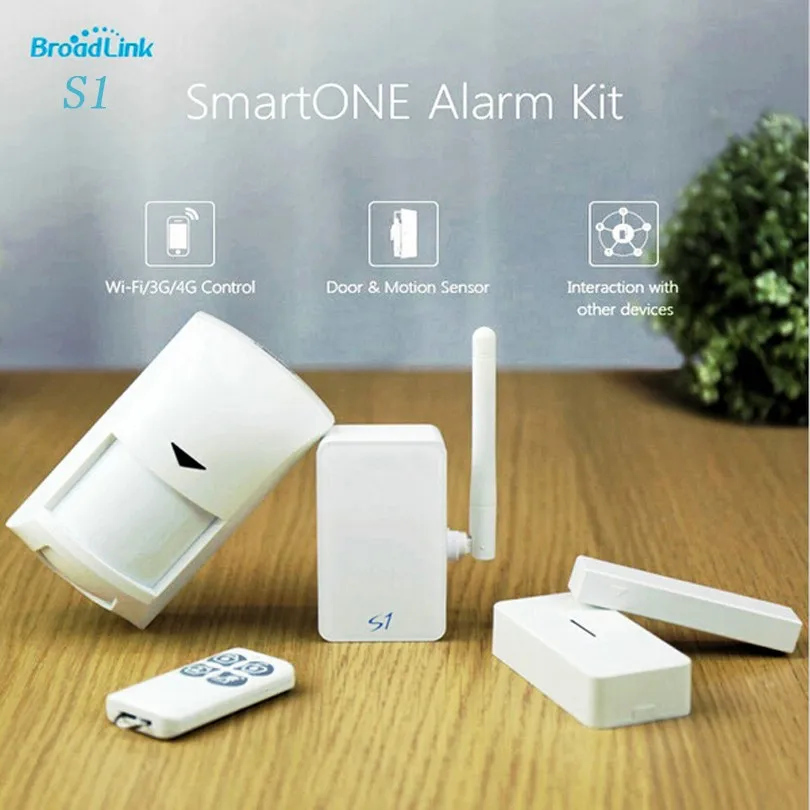

Broadlink S1
