Item Descriptions:

Product introduction

● Connect RS - 232C device to PC USB port! ● Supports measurement control devices such as PLC ● Programs developed for RS - 232C can be used ● Communication sample program provided ● Maximum DTE communication speed 230K ● Communication status is good

Understand communication monitor LED ● Windows / MacOS / PDA compatible ● Ideal for slate PC ● Windows 7, Windows Vista, Windows XP, Windows 2000, Windows Me, Windows 98SE, Windows Server 2008, Windows Server 2008 R2, Windows Server 2003, Windows

Server 2003 R2, ※ Windows compatible with both 32 bit / 64 bit, Mac OS X 10.0.4 or later, Windows Mobile 6.0, Windows Mobile 5.0, Windows Mobile 2003 SE, Windows Mobile 2003 ● Use our company REX - CFU 2 (USB host CF card)

Connected operation confirmed PDA

From Amazon

RS-232C device can be connected to USB port

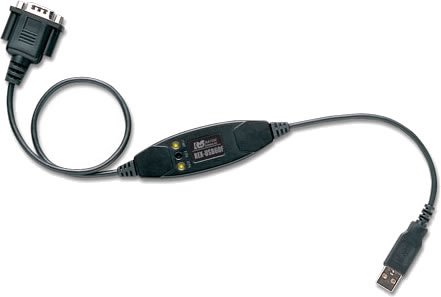

Just by connecting REX - USB60F to the USB port, RS - 232C equipment can be used even on personal computers without RS - 232C ports.

Barcode scanner, magnetic card reader, modem, RF-ID tag reader etc. Can be connected, eliminating shortage of RS-232C port caused by incorporating POS system etc.

The connector adopts D-Sub 9 pin (male).

If you use a separately commercially available conversion connector, you can also connect a D - Sub 25 - pin device.

Quick & Easy connection unique to USB

Because it corresponds to Plug & Play, it automatically recognizes this product and RS - 232C device, it is easy to install.

It also supports hot plugs that allow you to insert and remove devices while turning on the PC.

For a USB connection, you do not have to turn off the computer every time you connect the device.

Furthermore, since this product operates with the bus power supply from the USB port, external power source such as AC adapter is unnecessary.

Can allocate and change virtual COM port

By virtue of the attached original driver, it can be virtually recognized as COM (RS-232C) port connection.

It does not occupy PC IRQ resources, it just assigns a virtual COM port to an empty COM port.

Changing the COM port number is possible on the device manager screen.

Software designed for the COM port can also be used as it is without rewriting.

Maximum DTE communication speed 230K

Supported up to the maximum DTE communication speed 230 K by the original serial communication driver.

It enables higher speed communication than the standard COM port to PC / AT compatible machine.

Communication monitor LED which understands the communication state well

Power supply uses bus power from the USB port.

The POWER LED lights up if 5 V is normally supplied from the USB bus.

REX - USB60F The body has a transmit / receive LED in addition to a POWER LED.

The flow of data can be easily monitored.

Windows / MacOS / PDA compatible

It corresponds to both Windows and MacOS platform.

In addition, RS - 232C device can be connected to Pocket PC 2003 and Windows Mobile 2003 SEE PDA with USB port.

Environmentally friendly RoHS compliant

REX-USB 60F is an environmentally friendly product that does not use six chemical substances such as lead which is restricted by the RoHS directive.

You can also use it for industrial products for export with confidence.

Lightweight, smart design that is convenient to carry

Weight is only 55 g.

Its shape is smart and compact, so it is convenient to carry with portable equipment.

Features:

• Please enter model number Confirm this is compatible:
• 4949090600010

Product information:

Shipping Weight: 181 g

Package Dimensions: 4.39 x 14.20 x 16.00 cm
