Item Descriptions:

Product introduction

Linear PCM recorder pursuing high sound quality design and ease of use

From Amazon

High sound quality Condensed microphone and analog circuit in compact body

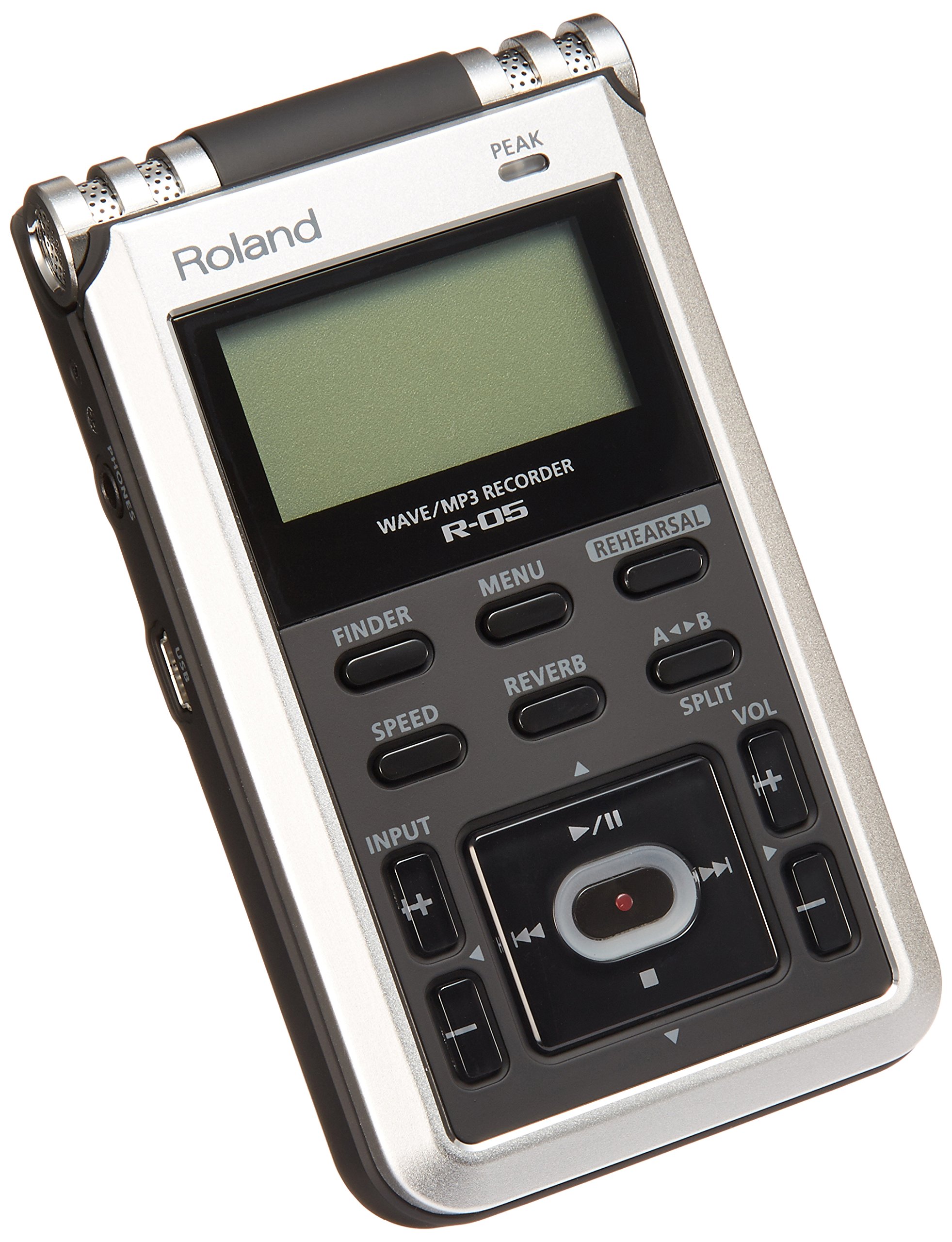

R - 05 is a WAVE / MP3 recorder of high sound quality designed by condensing full functions into a small body.

Aluminum body with high rigidity and excellent portability, it supports recording in various applications regardless of location.

R - 05 supports recording with linear PCM of 24 bit / 96 kHz.

In addition to being able to record studio-level high-quality sound, it is also effective for long-time recording by MP3 (MPEG-1 Audio Layer 3) format.

The main body built-in microphone is equipped with a back electret type condenser microphone.

By adopting omnidirectional microphone with flat characteristic, rich low frequency feeling can be obtained.

In addition, it is possible to obtain a rich stereo feeling with a proprietary microphone housing structure.

It is designed to be resistant to vibrations, ranging from recording of delicate acoustic instruments to field recording that makes use of portability, it can be used extensively.

Furthermore, it is equipped with a dedicated analog circuit "IARC (Isolated Adaptive Recording Circuit)".

In addition to optimizing the input level to the A / D converter, it is a circuit design that supports thorough high-quality recording such as high-level SN ratio with exact noise countermeasures.

Equipped with rehearsal function that can adjust the recording level automatically

R - 05 is equipped with a "rehearsal function" that allows easy adjustment of the optimum level even for those unfamiliar with recording.

By pressing the "REHEARSAL" button on the main unit, you can automatically adjust the level by playing / playing the sound you want to record.

Easy operation, anyone can record with optimal level setting.

Built-in various functions useful for recording

Equipped with various functions useful for recording.

Prevent recording mistakes and support comfortable recording.

The limiter circuit which suppresses the input level even with sudden loud volume and prevents sound crack is installed.

It is powerful for recording on a sound source with a wide dynamic range.

Of course, it also features auto / gain control that automatically controls the input level during recording.

Recording at a stable level is possible even with a source with large volume change.

With the "pre-recording" function, it is possible to record from 2 seconds before pressing the record start button.

Recording can be done without missing recorded sound sources that are difficult to start recording.

Also equipped with an "automatic recording start function" that allows you to start recording at the set time and the specified input level.

For example, even in situations where it is difficult to do the recording start operation itself, such as live stage recording recording, recording starts automatically with the contents preset in R - 05.

It also supports simultaneous recording of WAV format and MP3 format.

After doing high quality sound recording with WAV, even in the situation of converting to MP3 for sending to a band member by MP3, it is possible to omit the troublesome converting work.

Of course, after performing the high sound quality recording with WAV, it is possible to convert it to MP3 with the R - 05 body.

You can select the recording method and format according to the recording style and the situations on the spot.

Various editing of recorded data can be done only on the main body

R - 05 realizes diverse editing work with only the main body without using a personal computer etc.

"Divide function" allows you to split files at arbitrary points.

Even with live recording for a long time, you can separate the files for each song later.

The "combine function" allows you to combine two files, and you can integrate conference record memos divided into several files into one file for management.

Also, R-05 is equipped with "trim function".

It is possible to trim the start point and the end point of the file and delete the extra part.

In addition, the split function that functions during recording corresponds to two types, automatic splitting by file size and input level setting, and manual splitting by split button.

Various file editing according to the purpose can be done.

It supports long-term recording by battery drive

R-05 is compatible with long-term continuous use by battery drive.

With two alkaline AA batteries, you can record for over 16 hours and play for over 30 hours.

Also supports SDHC cards up to 32 GB as recording media.

For MP3 (128 kbps) 500 hours or more, even at the highest sound quality of 24 bits / 96 kHz, it is possible to record for about 15 hours for a long time.

Easy-to-understand user interface with Japanese display

For R - 05, menu display and file name display correspond to Japanese.

Various operations became easier to understand.

In addition, the frequently used functions are equipped as dedicated switches in the main body.

Simple and direct operation possible.

Equipped with a tripod hole in the main body.

Special window screen included

R-05 is equipped with a tripod hole in the rear panel of the main unit.

In addition to being able to attach directly to a general-purpose camera tripod, setting to a general microphone stand is also possible if you use a microphone stand adapter (OP-MSA 1: sold separately).

It can be fixed with the optimum setting for the sound source.

Also included is a dedicated windscreen that reduces blowing by wind and breath.

Exercise power in outdoor recording etc.

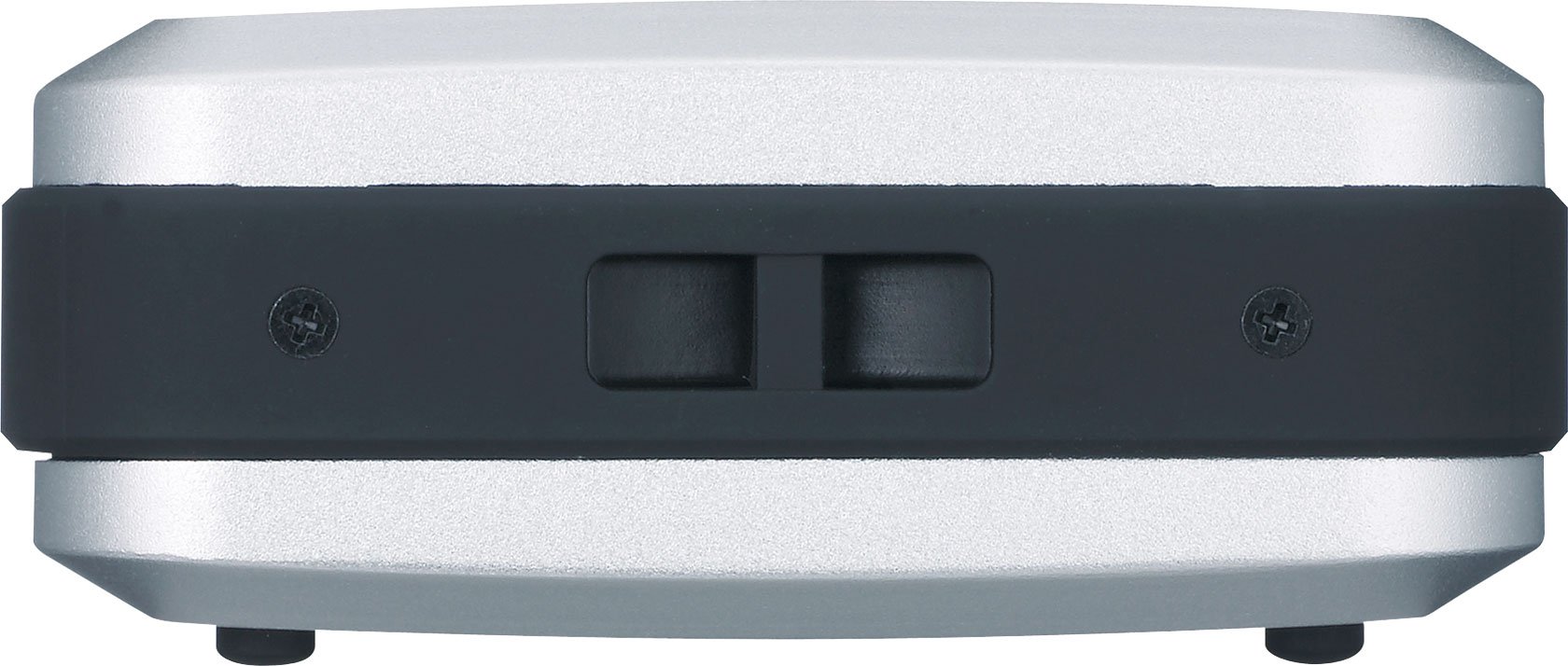

Rear Panel / Site Panel

Recorder section

Number of tracks

2 (stereo)

Signal processing

AD / DA conversion = 24 bits, 44.1 / 48 / 88.2 / 96 kHz

Data type [When recording] * Stereo only

○ Sampling frequency = 44.1 / 48 / 88.2 / 96 kHz, Number of bits = 16/24 bits ○ MP3 (MPEG-1 Audio Layer 3): sampling frequency = 44.1 / 48 kHz, bit rate = 64/96/128/160

/ 192/224/320 kbps ○ Wave + MP3: sampling frequency = 44.1 / 48 kHz, number of bits = 16 bits fixed, bit rate fixed = 128 kbps

Data type [during playback]

○ Sampling frequency = 32 / 44.1 / 48 / 88.2 / 96 kHz, Number of bits = 16/24 bits ○ MP3 (MPEG-1 Audio Layer 3): sampling frequency = 32 / 44.1 / 48 kHz, bit rate = 32 to 320 kbps

Or VBR (Variable Bit Rate)

Storage media

SD card * Supports SDHC standard

Recording time (Unit: minutes)

format

Card capacity

2 GB

4 GB

8 GB

16 GB

32 GB

WAV

24 bit / 96 kHz

55

110

220

450

900

24 bit / 88.2 kHz

60

120

240

490

980

24 bit / 48 kHz

110

220

440

900

1800

24 bit / 44.1 kHz

120

240

480

980

1950

16 bit / 96 kHz

80

160

320

670

1350

16 bit / 88.2 kHz

88

176

352

735

1470

16 bit / 48 kHz

166

332

664

1350

2700

16 bit / 44.1 kHz

180

360

720

1470

2950

MP3

320 kbps

797

1540

3080

6450

12,950

128 kbps

1993

3990

7980

16, 180

32, 350

WAV + MP3

16 bit + 128 kbps / 48 kHz

152

305

610

1240

2490

16 bit + 128 kbps / 44.1 kHz

165

330

660

1345

2690

Output

Audio input

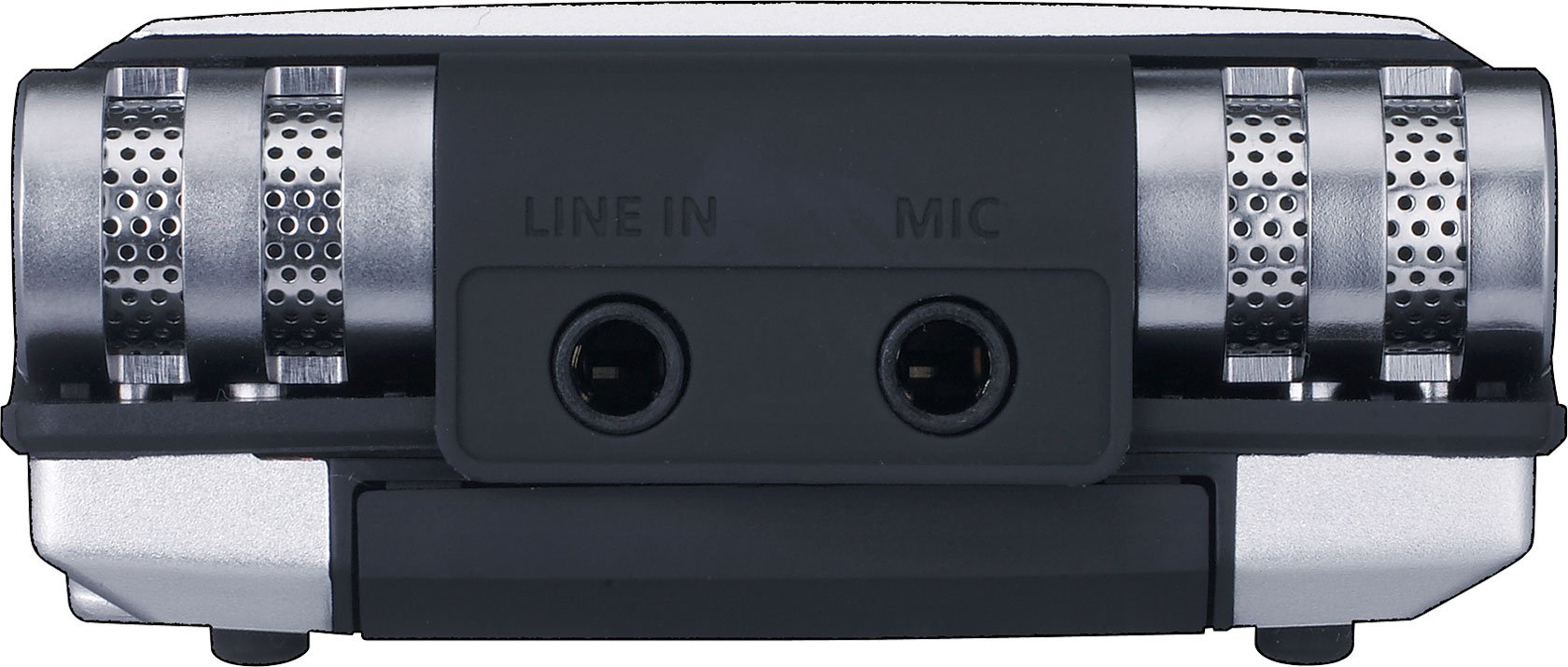

Built-in microphone (stereo), microphone input terminal (stereo mini type, plug-in power correspondence), line input * microphone, line simultaneous use not possible (line input priority)

Audio output

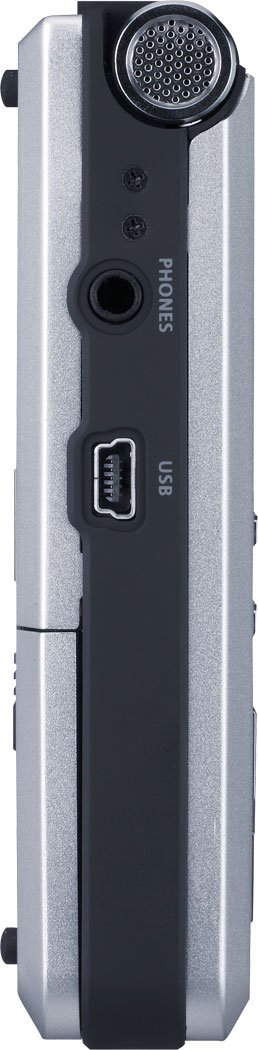

Headphone jack (stereo mini type)

Specified input level (variable)

Microphone input = -33 dBu (MIC GAIN H, default input level), microphone input = -15 dBu (MIC GAIN L, default input level), line input = - 7 dBu (default input level) * 0 dBu = 0.775

Vrms

Input impedance

Microphone input (MIC GAIN H) = about 7 kΩ, microphone input (MIC GAIN L) = about 5 kΩ, line input = about 8 kΩ

Output level

20 mW + 20 mW (at 16 Ω load)

Recommended load impedance

16 Ω or more

Frequency characteristic

20 Hz to 40 kHz

USB interface

Mini B type terminal * USB 2.0 / 1.1 mass storage device class compatible

effect

Reverb

4 types (Hall 1, Hall 2, Room, Plate)

Variable speed reproduction

Speed ​​of 50% to 150%

* Only during playback, except at 88.2 / 96 kHz playback * Reverb and variable speed playback can not be used simultaneously

Other

display

128 x 64 dot graphic display

Power supply

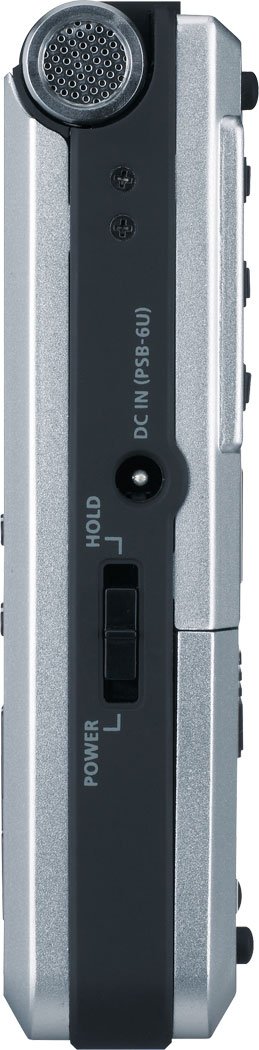

USB → DC power cable (not included), AA size battery × 2 (alkaline dry battery or nickel hydrogen battery)

Current consumption

290 mA (maximum)

Continuous usable time when using alkaline batteries (It depends on usage condition)

Continuous playback = 30 hours or more, continuous recording = 16 hours or more

accessories

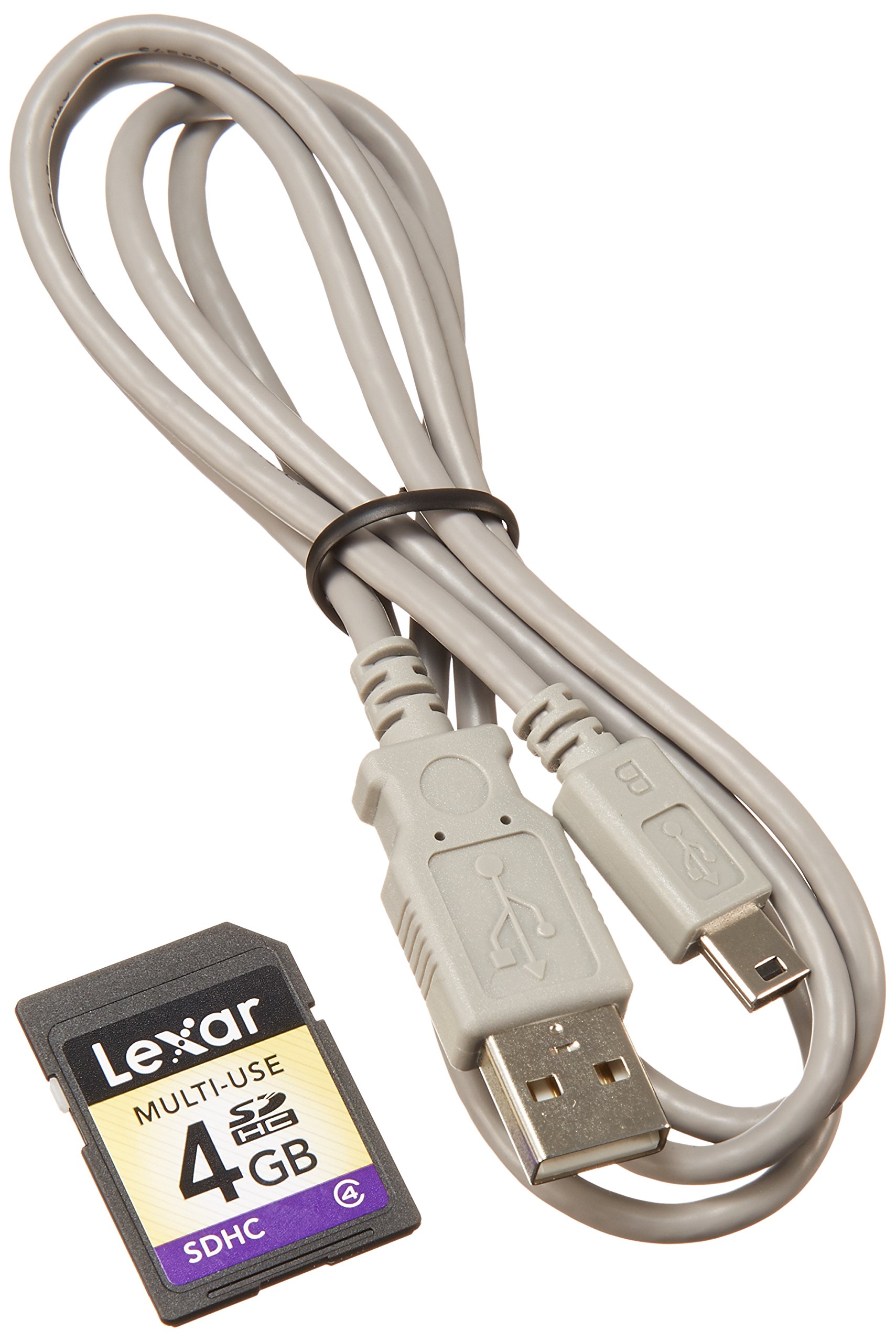

Instruction manual, Easy start guide, SD card, USB cable, wind screen, dry battery (AA x 2)

Optional items

USB → DC power cable (UDC - 25)

Operating condition (Windows)

Supported OS

Microsoft Windows 7 / Windows Vista / Windows XP Home / Windows XP Professional

Supported computer

Windows compatible computer equipped with USB port

Operating conditions (Macintosh)

Supported OS

Mac OS X 10.2 or later * All Japanese version

Supported computer

Macintosh series equipped with USB ports as standard

External dimensions / mass

Width (W)

60 mm

Depth (D)

103 mm

Height (H)

25 mm

mass

140 g

Features:

• Please enter model number Confirm this is compatible:
• Built-in microphone and analog circuit with high sound quality design
• Equipped with a rehearsal function to automatically adjust the optimum recording level
• Equipped with various functions to prevent recording mistakes
• Various editing of recorded data can be performed only with R-05 main unit
• It supports long-term recording by battery drive

Product information:

Shipping Weight: 521 g

Package Dimensions: 9.19 x 12.60 x 18.80 cm
