DESKRIPSI

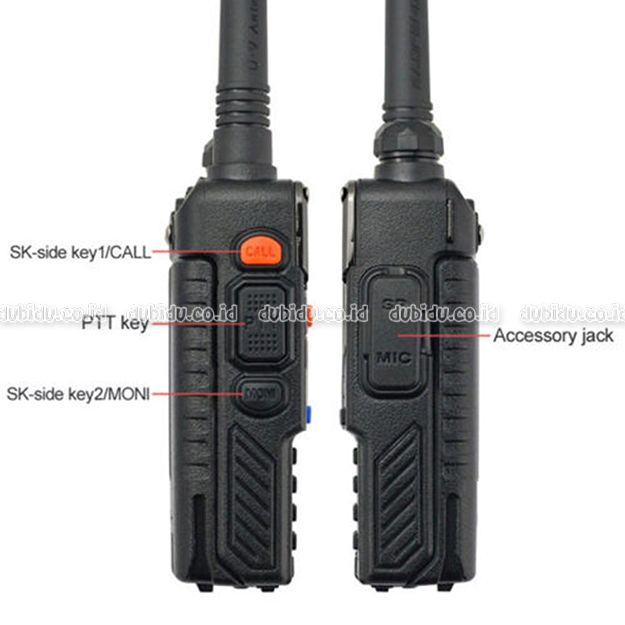

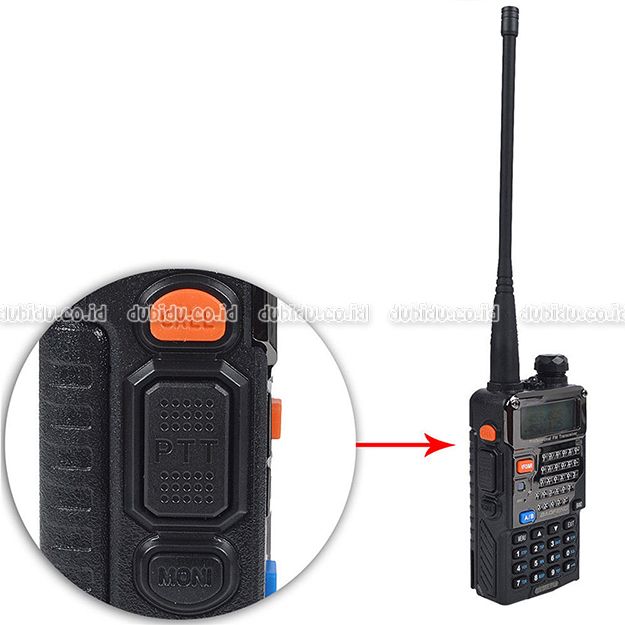

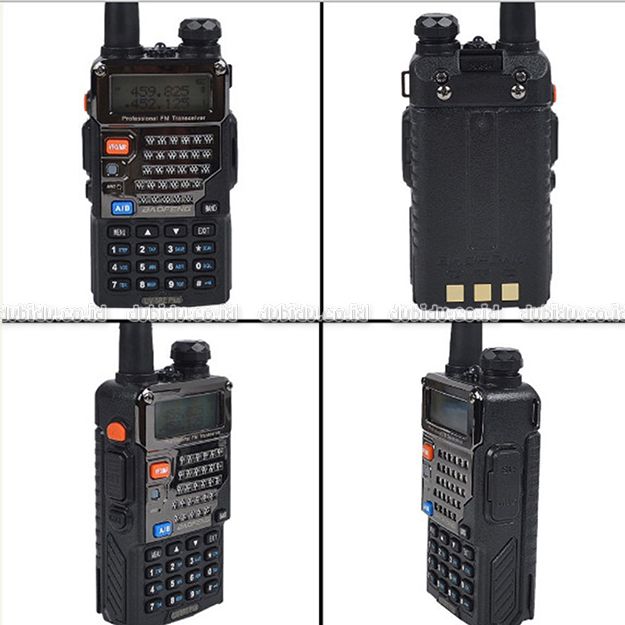

Baofeng Walkie Handy Talkie (HT) UV5RE/UV-5RE Plus 2nd Gen Dual Band merupakan HT Baofeng UV-5RE Plus dengan berbagai fitur seperti FM radio, PTT (Push To Talk), Emergency Alarm, Built In Black LED, Torch LED Light. Handy Talkie ini didesain menarik dengan berbagai fitur. Baofeng UV-5RE Plus siap menemani aktivitas outdoor Anda.

The transcevier is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.

Frequency Range: 136-174 / 400-479.995 MHz.

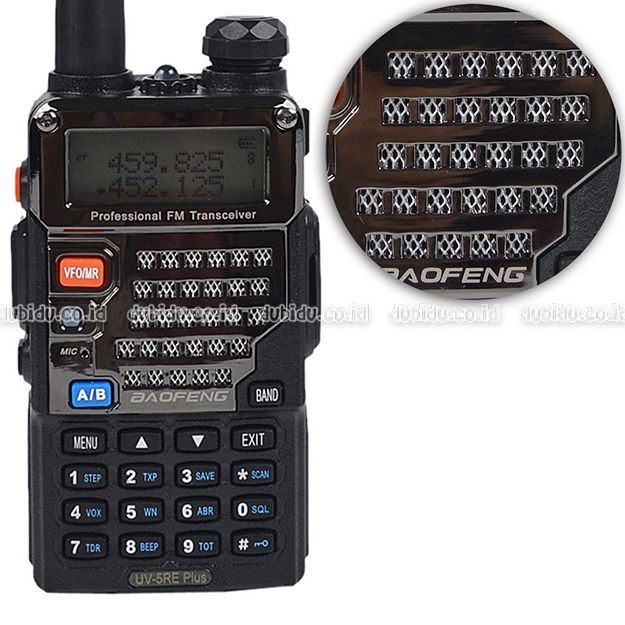

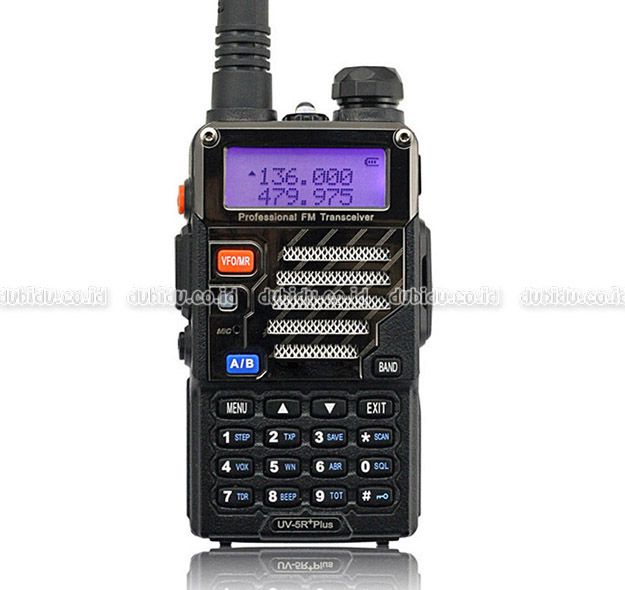

With full high two colors LED definition display, the screen exquisite clarity.
Upgrade the frame material. Metallic, more durable and more fashionable.

Frequency Range: 136-174 / 400-520MHz

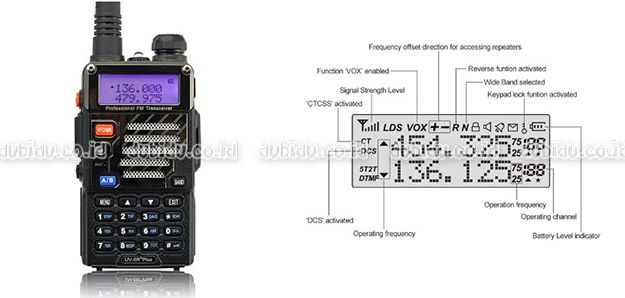

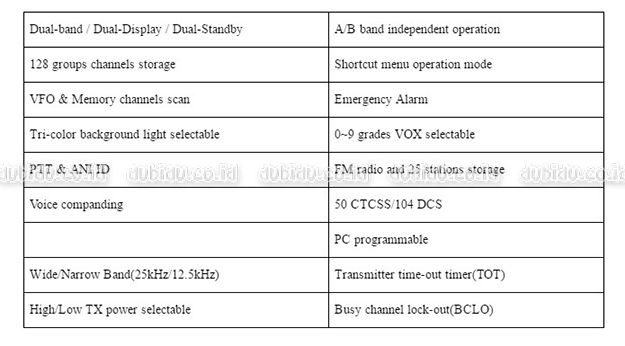

Dual-Band Display, Dual Freq. Display, Dual-Standby

Output Power: 4 /1Watts

50 CTCSS and 104 CDCSS

Built-in VOX Function

FM Radio (65.0MHz-108.0MHz)

Hight /Low RF Power Switchable

25KHz/12.5KHz Switchable

Channel Step: 2.5/5/6.25/10/12.5/25KHz

General Frequency Range:65-108MHz(FM Receive only) 136-174MHZ and 400-520HZ (TX/RX)

Frequency Stability: 2.5ppm

Antenna High gain DualBand antenna

Antenna Impedance:50O

Operating Voltage:DC 7.4V

Mode of operation:Simple or semi-duplex

Dimension(W * H * D):100 x 52 x 32 mm

Weight 250g(including battery, antenna)

Output power:4W / 1W (Max 5W)

Modulation Mode:16kFF3E / 11kFF3E

Maximum deviation:<5kHz(Wide) / <2.5kHz(Narrow)

Spurious Radiation:<7W

Adjacent Ch. power:<=-65dB(Wide) /<= -60dB(Narrow)

Pre-emphasis characteristics:6dB

CTCSS/DCS deviation:0.50.1kHz(Wide) / 0.30.1kHz(Narrow)

Intermediation sensitivity:8-12mv

Intermediation distortion:<10%

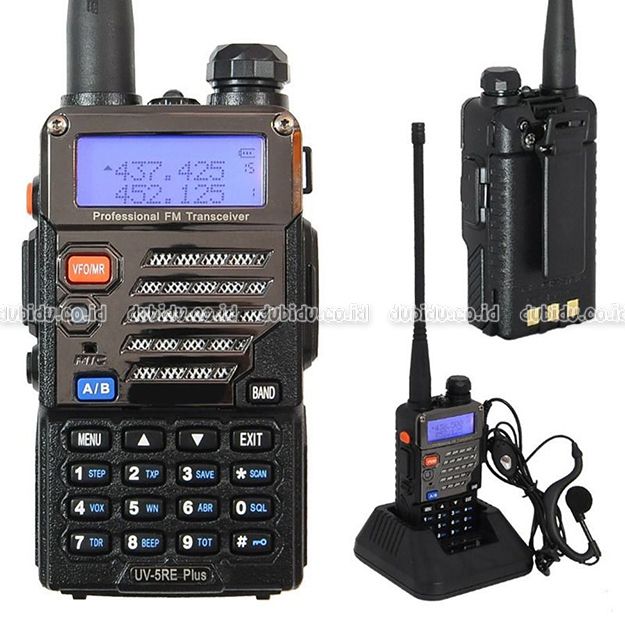

1x UV-5RE Plus (VHF 136-174, UHF 400-520Mhz)

1x 7.4V 1800mah Battery Pack

1x Dual Band Antenna

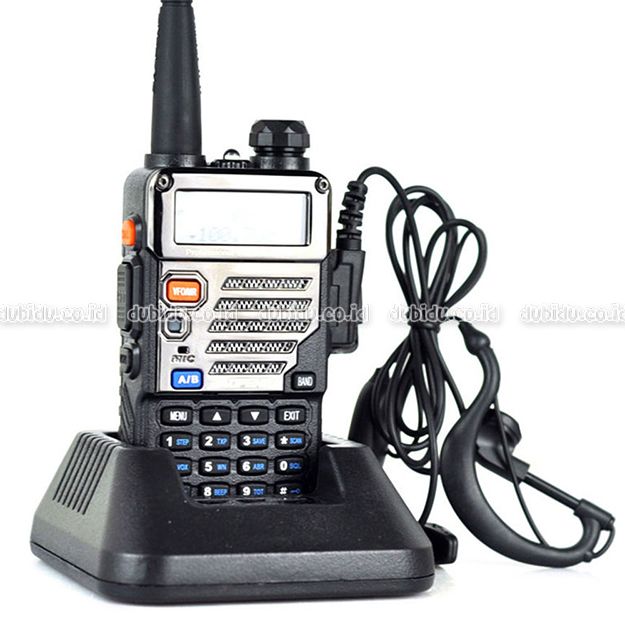

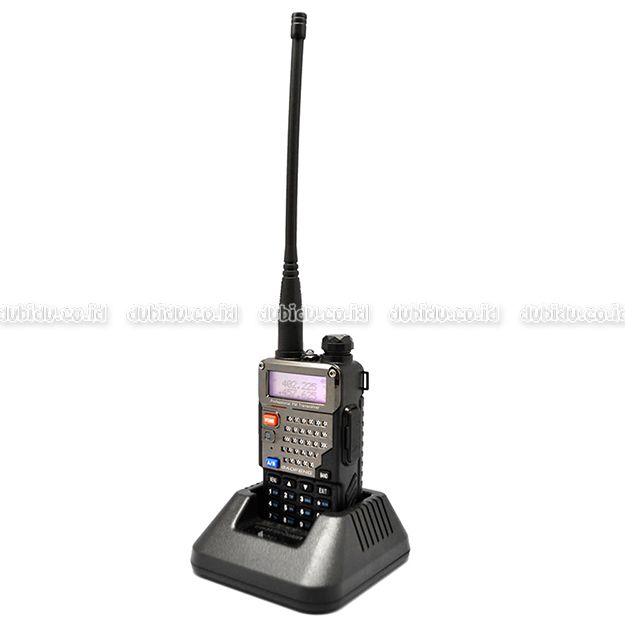

1x Desktop Charger ( 100V ~ 240V )

1x FREE PTT earpiece with mic
