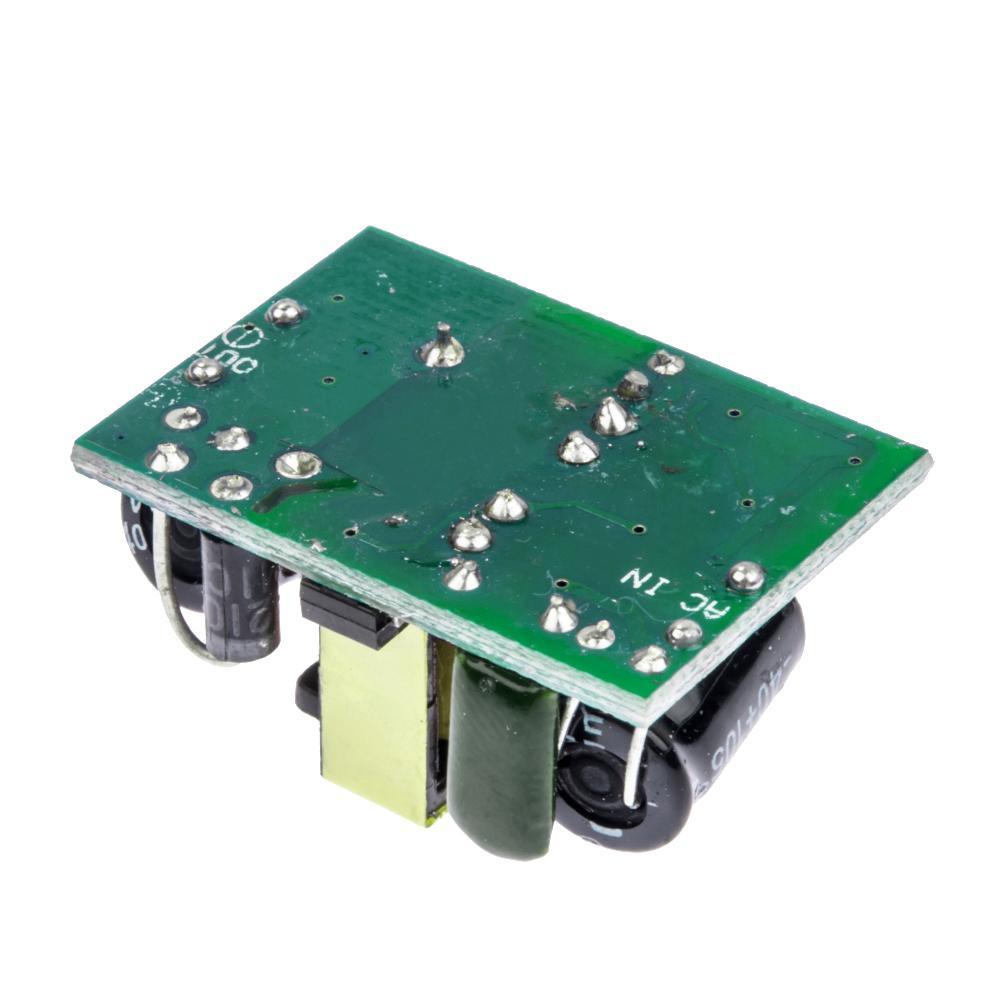

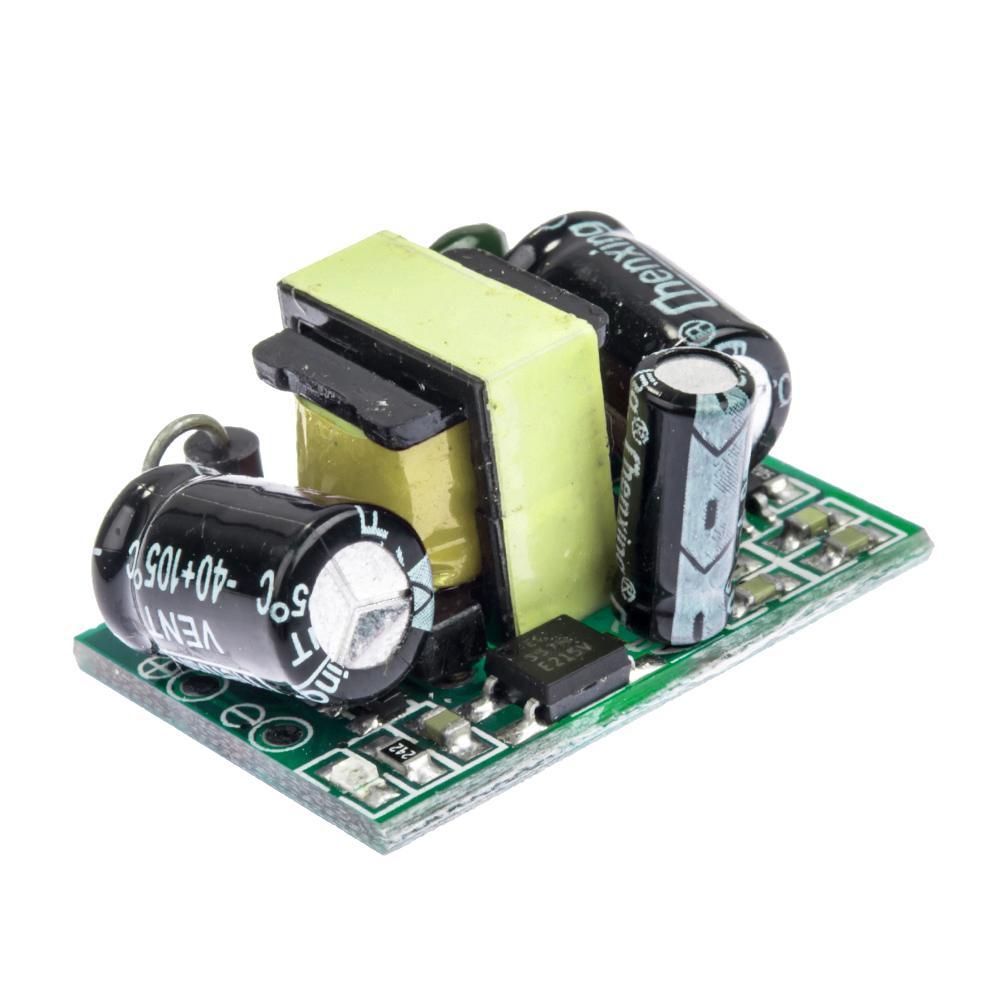

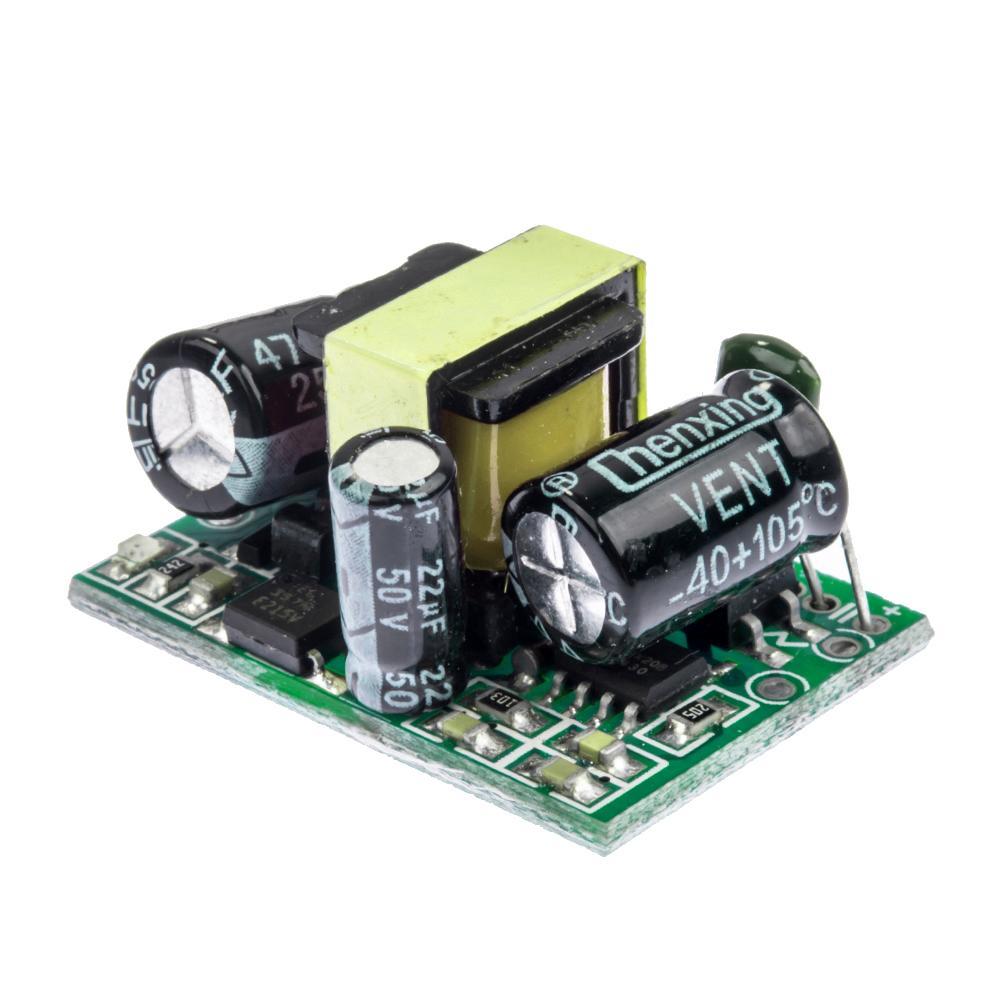

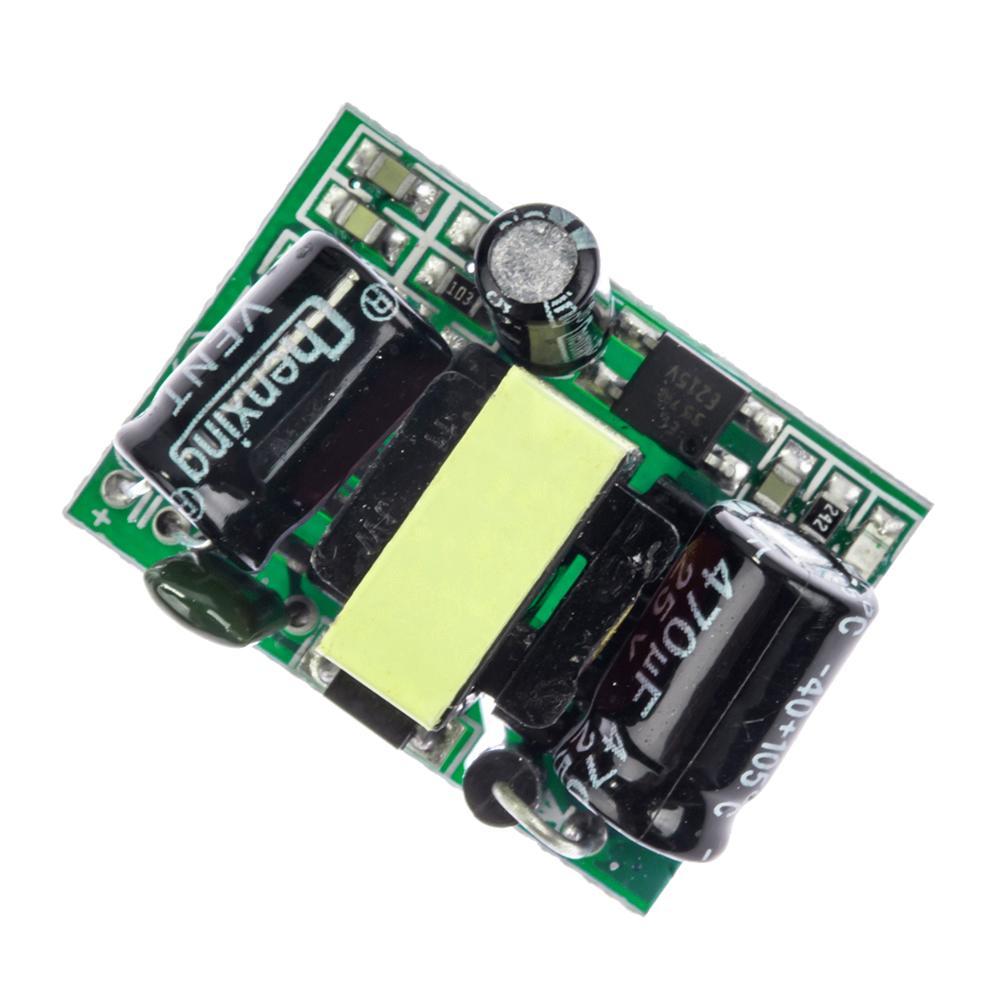

Product details of SuperCart AC-DC Power Supply Buck Converter Step Down Module 5V 700mA 3.5w New for Arduino

Dear Buyer,Thanks for You Purchase ,If You Are Satisfied with Our Product ,Could You Please Leave Us 5 Star Feedback ? That's Very Important for Us ,Thank You Very Much .

Product Details:

Step Down Module

Condition: New

With temperature protection, over current protection and short circuit protection, high and low voltage isolation, AC85 ~ 265 v wide voltage input, ac/dc current , 431 precision voltage stability DC5V output

Input voltage: AC 85 ~ 265 v 50/60 hz or DC 100~ 370 v

Imput current: 0.0273A(AC110V) 0.014A(AC220V)

Input Inrush Current: 20A

Output voltage: DC 5V (+ / - 0.2 V)

Output current 700 mA

Power 3.5 W

Operating temperature -20~60℃

Relative humidity 40-90%RH

Output 5V, min current 0a, max current 700mA, peak current: 800mA, output range: 4.8~5.2v, ripple wave: 60mV

Output power:0-4W(DC current)

Output efficiency: 80%

Switch machine overshoot: MAX 10%

Output voltage rise time: MAX 100MS

Output over voltage: 4.8-5.2V, recovery:Lock, restart after recovery

Output over power protection: yes,recovery:Lock, restart after recovery

Short-circuit protection: yes, automatic recovery after problem solved

Temperature protection: yes,recovery:Lock, restart after recovery

Overcurrent protection: yes,recovery:Lock, restart after recovery

Size: 3 x 2 x1.8cm

Color is shown as pictures

PLS NOTE that due to lighting effects, monitor"s brightness/ contrass settings ect, there could be some slight differences in the color tone of the pictures and the actual item!

Specifications of SuperCart AC-DC Power Supply Buck Converter Step Down Module 5V 700mA 3.5w New for Arduino

• 1 x Step Down Module
