Product Description
Specification
Max Range: 50 miles / 97 km
Frequency : VHF(170-240Mhz) \ UHF(470-862Mhz)
VSWR : ≤2.0 : 1
Impedence : 75 Ω
LNA Gain : 25dB
Connectors : F Male or IEC Male
Cable : 1.5C-2V / Black L=3M
Polarization ： Linear
Operation Temperature : -45 ~ 85℃
Storage Temperature : -45 ~ 85℃

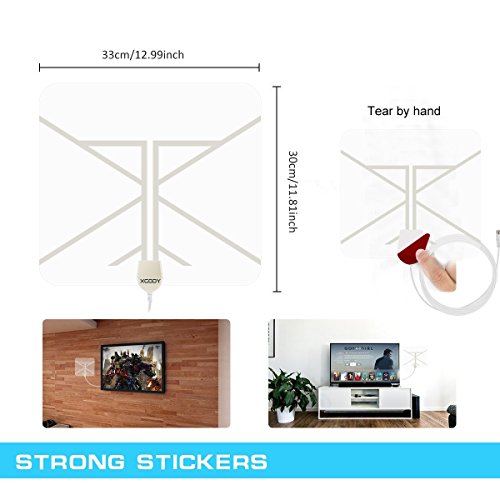

Leaf Size :330*300*0.5MM
Box Size:330*337*25MM
Weight:0.355KG
Voltage: 5V
Power Supply Connector : USB

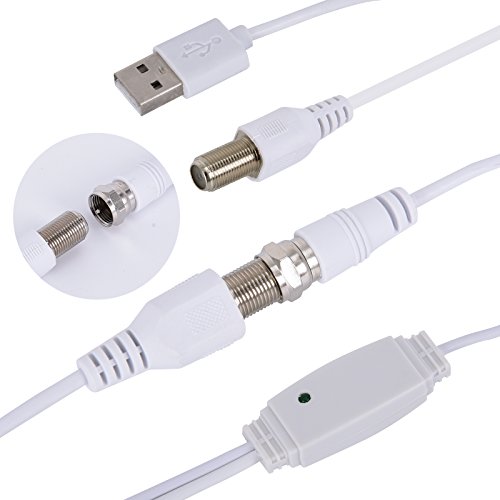

Signal Booster: F Type Coaxial Female to F Type Coaxial Male

Features:
Receive up to 1080p HD content from local broadcasting towers and stations for free
A maximum signal range of up to 50 miles / 97km allows for great signal distances
Amplify the antenna with the signal booster for stronger signals

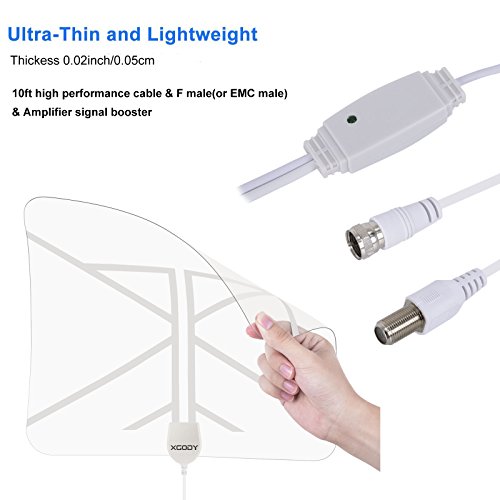

The ultra-thin design allows the antenna to fit into the design of the entertainment area
Reach optimal placement areas for the best signal capture with the 10ft / 3m cable

Installation

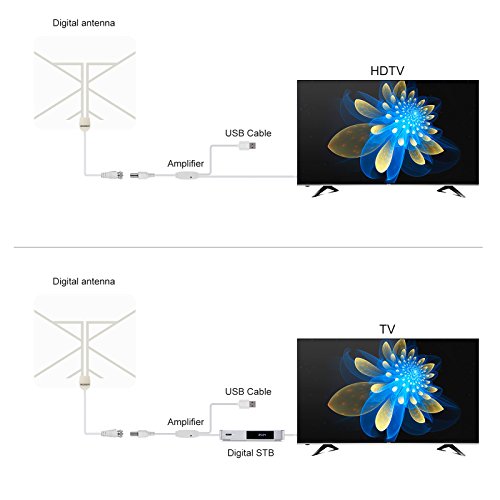

1. It can be installed in 3 simple steps: just connect the coaxial cables and AC adapter, position the antenna, scan for channels on your TV, and enjoy.
2. Paper-thin design delivers full 1080p HD to any digital-ready television. The combination of its unobtrusive design and powerful reception capabilities make the Leaf a top choice in
any home. There are no exposed or distracting antenna parts.The Leaf can be easily hidden behind a picture, bookshelf, or television.
Package:

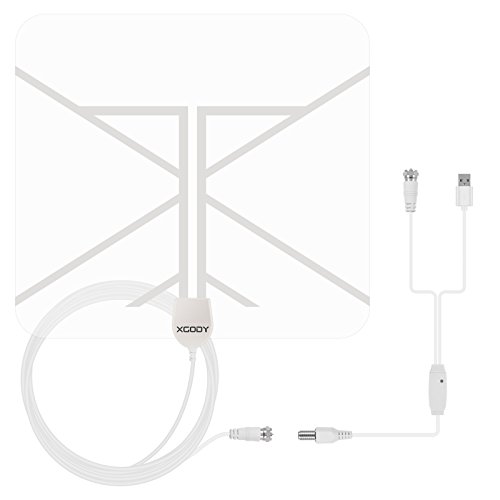

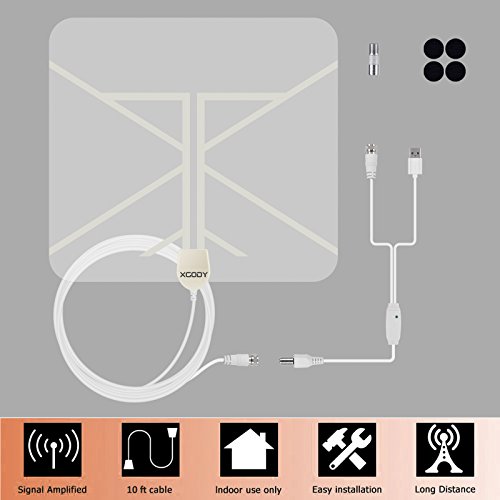

1x HDTV digital antenna
1x Signal amplifier (with coaxial cables USB interface)
2x 3M double-faced adhesive paste
1x User manual
please note: without adapter in the package
