Item Descriptions:

size:

4 inputs 2 outputs

Product Specifications:

Size: 85 (W) x 192 (D) x 26 (H) mm

Weight: 450 g

Power supply: DC 5 V 1A

Power consumption (maximum): 5 W

Operating temperature: 0 ° C to 40 ° C / 32 ° F to 104 ° F

Storage temperature: -20 ° C to 60 ° C / -4 ° F to 140 ° F

Storage humidity: 20 to 90% RH (noncondensing)

Video band: 2.97 Gbps

Resolution: Up to 4 K × 2 K @ 30 Hz, 1080 P @ 120 Hz, 1080 P 3D @ 60 Hz

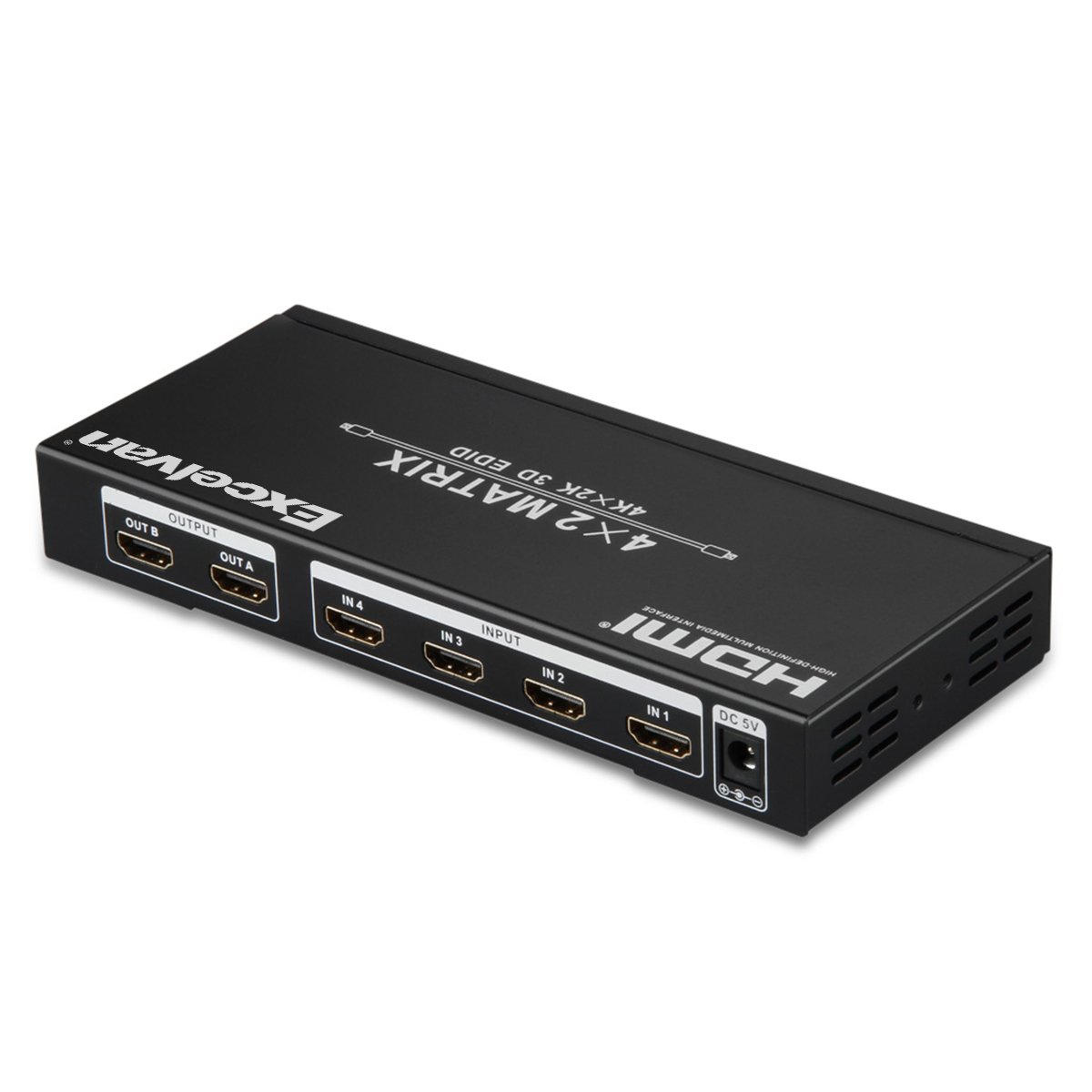

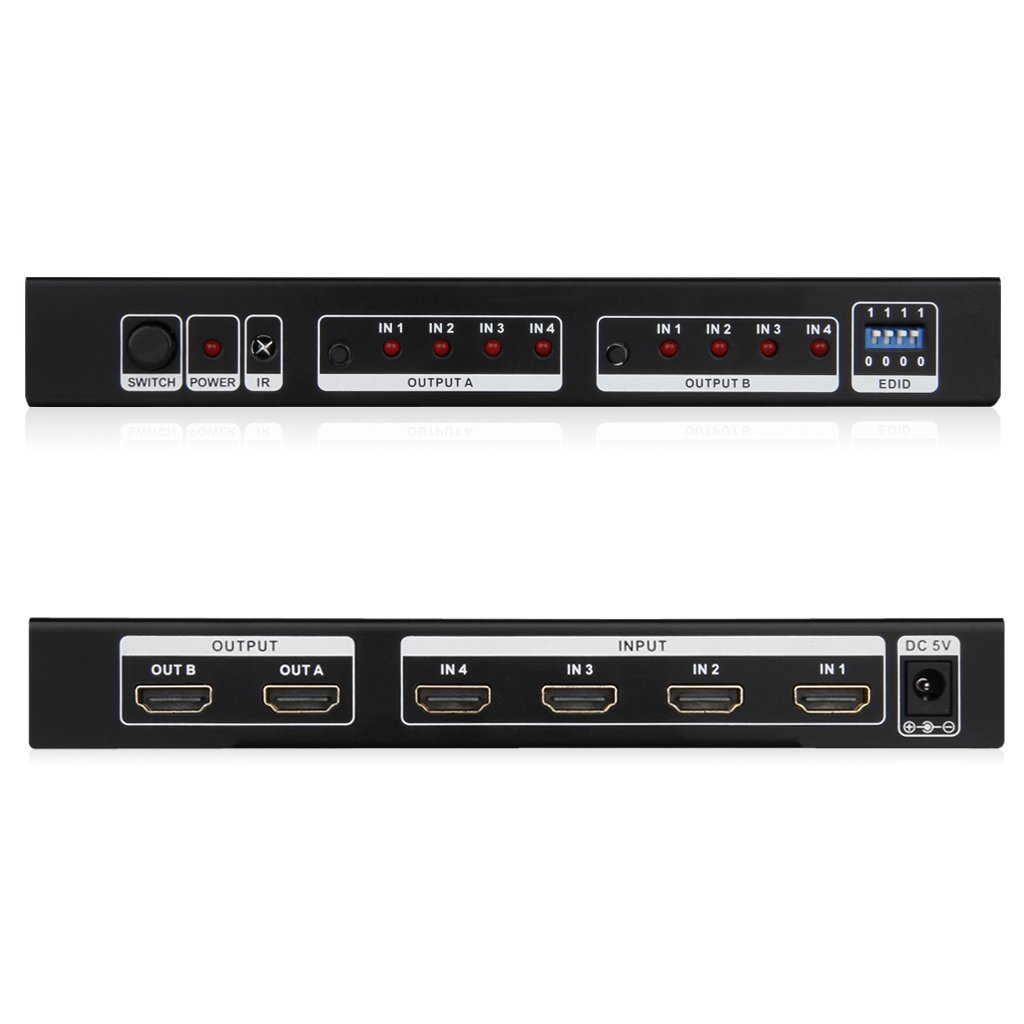

Input port: 4 x HDMI female

Output port: 2 x HDMI female

Full color measurement: sYCC 601, Adobe RGB, Adobe YCC 601, xvYCC ESD protection human body model: ± 8 kV (air gap discharge), ± 4 kV (contact discharge)

Applicable equipments: Video equipment with HDMI output terminal as standard equipment, home game machine, personal computer

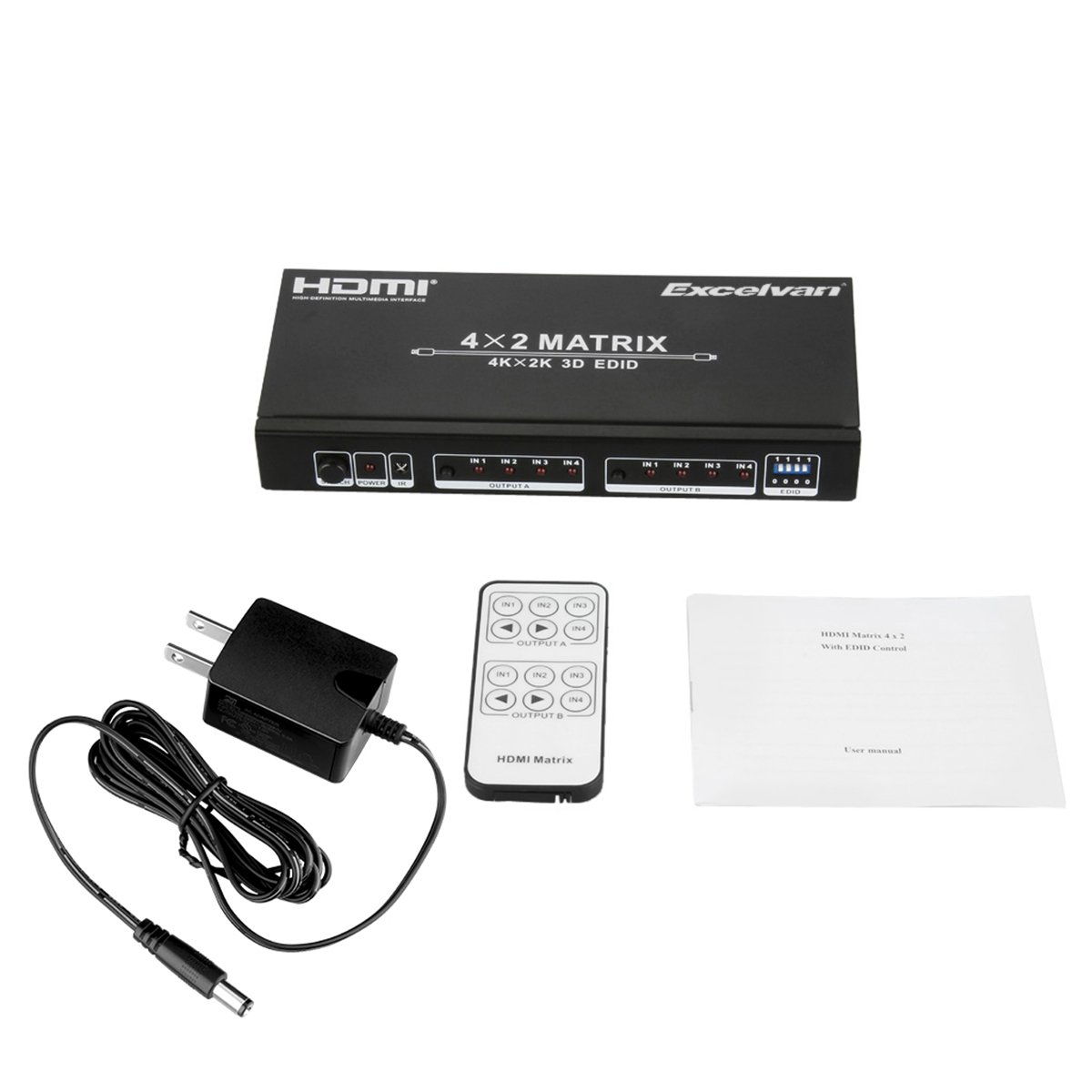

Accessory: Main unit, instruction manual, remote control, DC power supply adapter (JP) (DC 5 V 1A) ※ ※ HDMI cable is not included.

Please prepare separately.

In case

Product warranty: 12 months after purchase

※ ※ HDMI cable is not included.

Please prepare separately.

4 input 2 output compatible HDMI distributor

In case

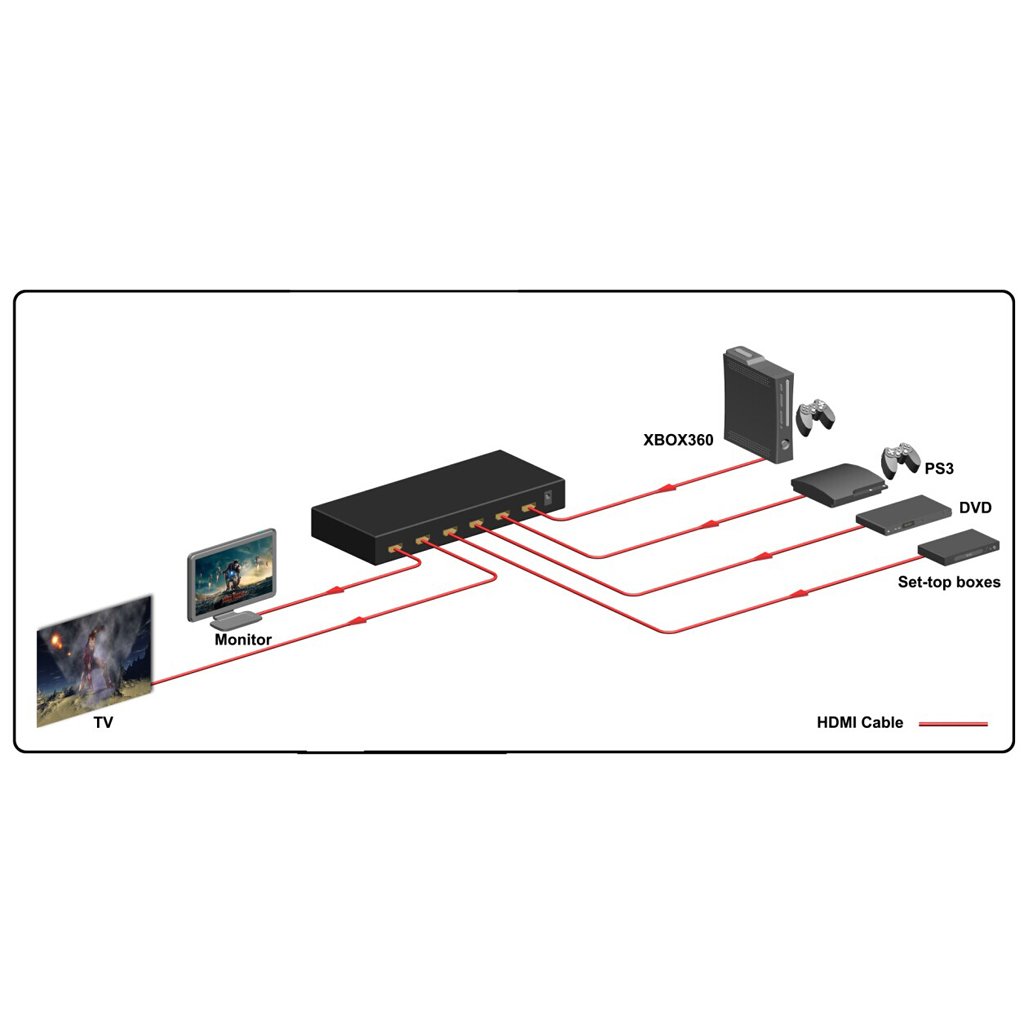

2 HDMI terminals 2 TV · You can connect 4 HDMI devices on the monitor and switch them freely.

The HDMI standard supports Ver1.4b which supports 3D signals and so on.

1080P resolution full high vision

It is compatible with full high definition high definition image with maximum resolution of 1080 P, so you can enjoy it with high image quality.

Equipped with EDID function

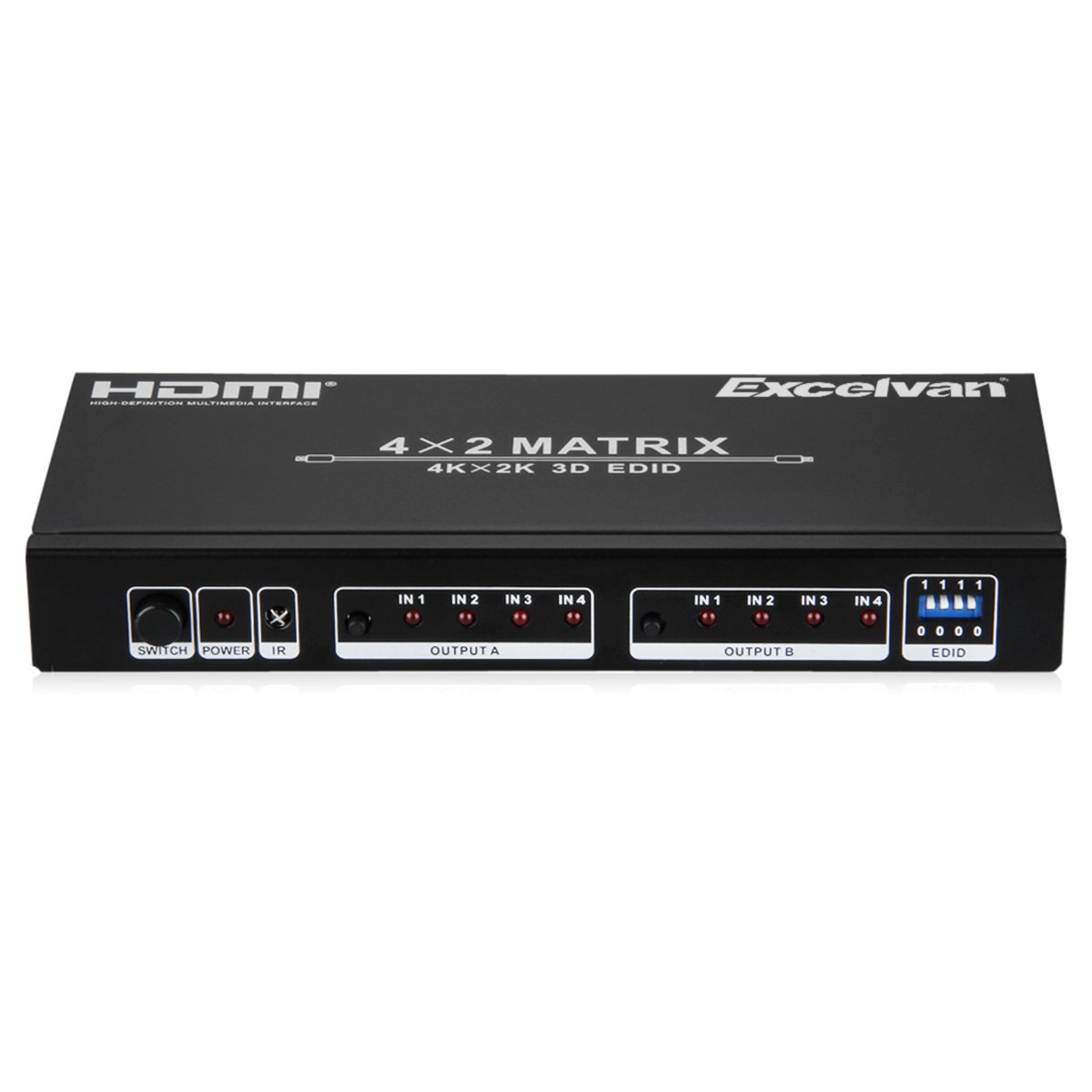

Assuming a case where two televisions with different resolutions are connected to the output of this unit, equipped with "resolution priority switch" that can individually give priority to the EDID resolution of "video", "audio".

Features:

• Please enter model number Confirm this is compatible:
• Matrix changeover switch A switch that can output simultaneously from HDMI equipment to two monitors such as a television and a projector.
• Furthermore, it is a matrix type that can output from each device to separate monitors.
• Up to four HDMI devices can be connected, and input devices can be switched and selected.
• It is convenient to save time and effort to reconnect cable.
• An HDMI selector that can output images and sounds of devices with up to four HDMI output terminals, such as personal computers and game machines, by switching to a TV or projector with two HDMI input terminals.
• Matrix type that can output video and audio of different equipment to two screens, also supports full high vision video and 3D video.
• Ideal for use in living rooms with many HDMI equipment such as HDD recorder, PC, game machine.
• Frame contains packing in all 3D format to TMDS clock of 297 MHz · 3D video is supported.
• Supports deep color to 48 bits per pixel.
• It corresponds to HDMI Ver.
• It also supports 3D signals, 1080p full HD, lossless digital audio and so on.
• All HDMI ports are gold-plated, they are resistant to rust and prevent signal deterioration.
• It is very profitable because it can be used for a long time with high quality.
• Also, since the direction of the HDMI port is the same direction, wiring routing is very beautiful.
• Even if you use the port full, it is easy to use without getting involved.

Product information:

Shipping Weight: 671 g

Package Dimensions: 6.50 x 23.49 x 25.50 cm
