Product Description
Please note:

1.If Incoming audio＞2CH,RCA L/R Output audio couldn't work.
2.If Audio format≥5.1CH,RCA L/R Output audio couldn't work.
3.The HDMI Output signal＝HDMI Iutput signal,
The unit does not change incoming video and audio formats. HDMI output signals (audio and video) are identical to the HDMI input signals (audio and video).

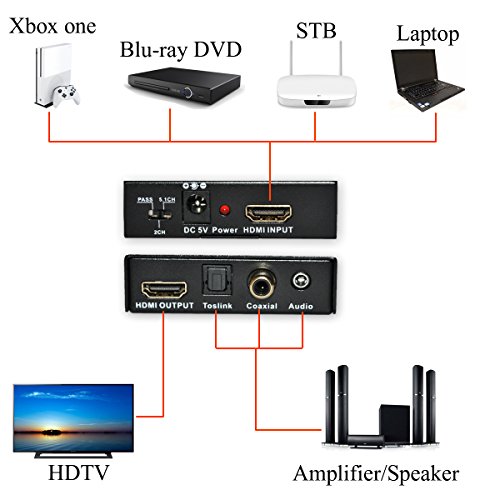

Operational principle:

By contact a HDMI Input convert to a HDMI,Toslink,Coaxial and Audio output.
The HDMI source Imput devices likes: Roku, Chromecast, Blu-ray/ DVD/ HD player, cable/satellite box, Amazon Fire TV, Apple TV, PS3/4, Xbox, HD camera, HD DVR, etc.
By connecting them,we could convert to a HDMI image and audio sync-output.

Specifications:

HDMI version:HDMI 1.4
HDMI resolution:up to 4096*2160
Support video format: 8/10/12 bit deep color
Support audio format:DTS-HD/Dolby trueHD/DTS/Dolby-AC3/DSD
Max bandwidth:300MHz
Max baud rate:3 Gbps
Input cable distance:(1080p resolution)≤15m, (4K resolution)≤10m AWG26 HDMI standard cable Output cable distance:(1080P resolution)≤15m,(4K resolution)≤10 AWG26 HDMI standard cable
Max working current:1A
Power adapter format: input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
Dimension (L x W x H):65x88x24 (mm)
Weight:130g
