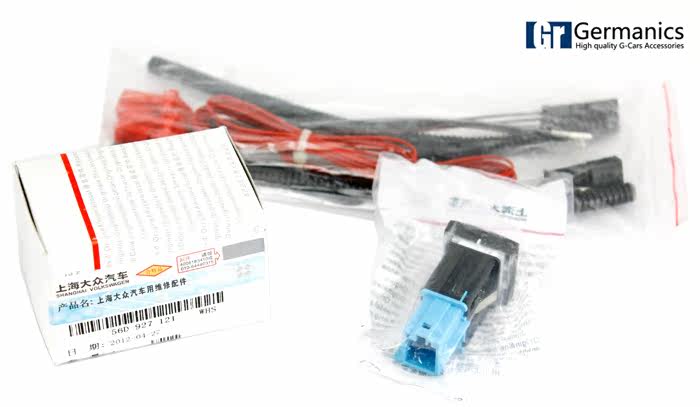

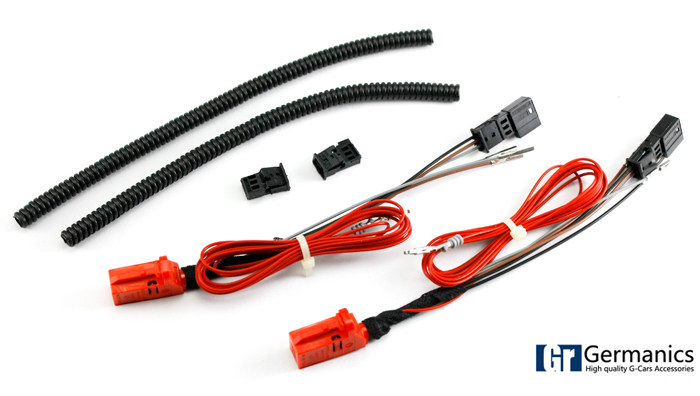

* For homemade harness Description:

Wound fabric tape, reduce noise on homemade harness harness
(Within VW cockpit wiring harness are wrapped with a fabric tape or flannel), ABS terminal portion with a ring.

working principle:

Tire Pressure Monitoring Description:

Tire pressure monitoring control unit monitors the four tire circumference through the front cabin of ABS, not the same circumference, a fault in the instrument display lights, but does not display the specific value of four tires, requiring customers to buy their own tire pressure Total identify problems

?

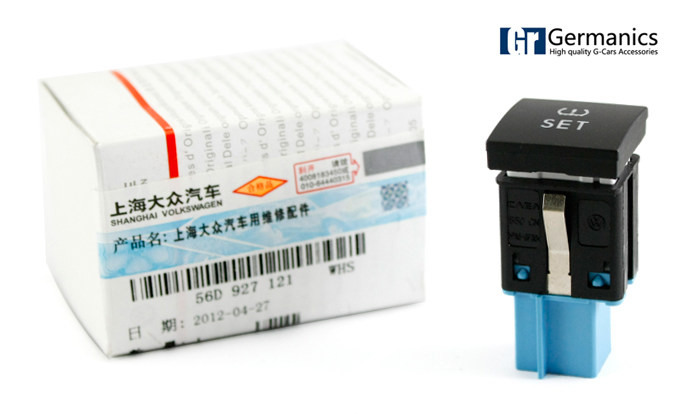

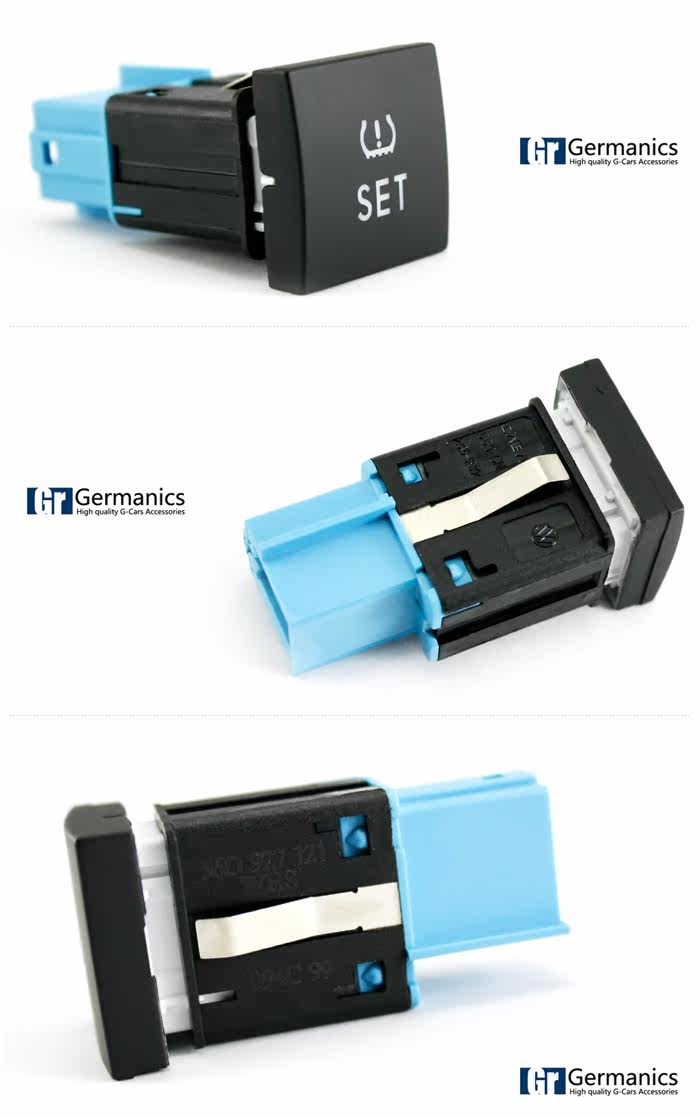

Usage: four tire pressure under normal premise, hold tire pressure monitoring switch "SET" and hold, you hear a ringing "ding" sound can be let go, and this time the yellow TPMS lamp is not bright. Running by monitoring four? Hemorrhoid trouble hua ke Cytec Hay  word Di value jumping catch mold  hemorrhoid ド arrogant  exposing Ju Huan Tan ǔ burning with sudden whoosh Badgers Rae Spa in harvest ㄐ chessboard  Pirates arrested Xing Huai broom? 1-10 km range), as to which one should own looked flat tire. After the tire repaired properly, repeat the above action, press the SET button again to set. Sometimes re-filling should be re-set.

Sagitar tire pressure switch methods:

Exit ESP 4 feet plug, insert Free broken line red line side switch holes, will be free of red broken line plug into the ESP 4 feet.
Exit ESP 6 pin plug and insert Free broken line yellow line side switch holes, broken lines will be free yellow plug into ESP 6 feet.
Exit ESP 3 pin plug and insert Free broken line blue line side switch holes, will be free of blue broken line plug into the ESP 3 feet.
Another root of the longest line connected ABS pump 27 feet. Sagitar 1.4T is inserted 41 feet.
Change Code: 03-07- original coding lose 16384

Golf 6 Mounting Method:

Exit ESP 4 feet plug is dark green, inserted break free line red line side switch holes, will be free of red broken line plug into the ESP 4 feet.
Exit ESP 6-pin plug as a brown line, insert Free broken line yellow line side switch holes, broken lines will be free yellow plug into ESP 6 feet.
Exit ESP 3 pin plug for the gray line, insert Free broken line blue line side switch holes, will be free of blue broken line plug into the ESP 3 feet.
Another root of the longest line connected ABS pump 35 feet.
07 re-encoding, if the encoding is 3100 changed the last few 3500, if it is changed to 310000 to 350000 Executive
For example: The original car is 113B400D512200FA880E02E68A1B00403100
Changed code is 113B400D512200FA880E02E68A1B00403500
