Product Features
Play as the technology Playvision HD-M610 is a HDMI to CVBS signal converter, you can convert HDMI digital signal to AV (CVBS) composite video signal and the FL / FR stereo audio signals, allowing customers to HDMI high-definition audio and video signal conversion become a regular TV, VHS video player green, DVD recorders, etc. can receive CVBS signal (standard definition 480i, 576i,) support NTSC / PAL are two different formats
Product Features:
1. Connect the HDMI signal through SCALE DOWN video processing conversion 576I, 480I (PAL / NTSC) video signal output;
2. Automatic identification HDCP, HDMI brought to the front KEY (HDCP) forcibly lifted;
3. Connect the HDMI digital audio, digital-analog chip processing after DAC AUDIO turn into analog stereo;
4. Using the most advanced video processing technology, the image's brightness, contrast and color enhancement processing;
5. After CVBS effect converted through full brightness (unlike the generation before the CVBS HDMI to CVBS signal has hazy sense)
1. No power, MINI volume (small)
A new generation of low-power digital chip processing, 24 hours non-stop work, the heat is not, job stability
2. Using 3D compensation technology; effectively eliminate jitter and tailing now fast moving pictures
4. Using the Scaler video processing technology: the HD signal through HDMI Scaler Down convert CVBS output
5. Using DAC technology;

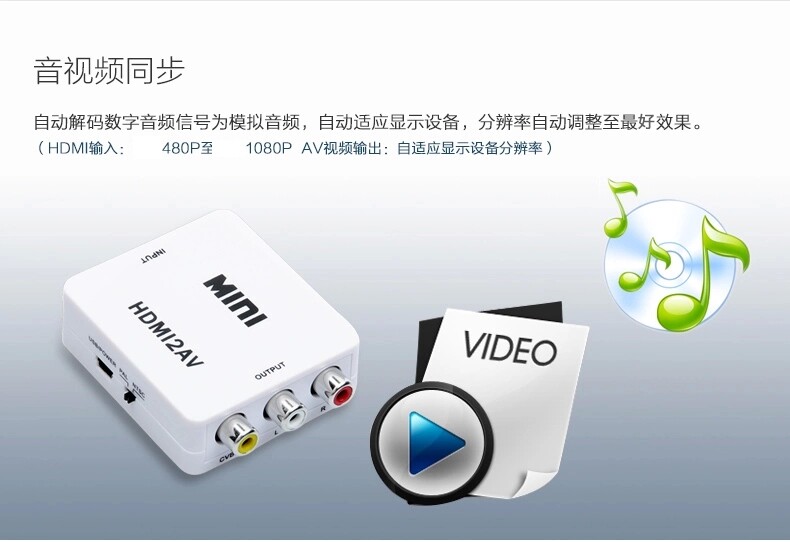

HDMI digital audio signal input through the DAC digital to analog chips, converted into an analog audio
2. Using 3D compensation technology; effectively eliminate jitter and tailing now fast moving pictures
4. Using the Scaler video processing technology: the HD signal through HDMI Scaler Down convert CVBS output
5. Using DAC technology;
HDMI digital audio signal input through the DAC digital to analog chips, converted into an analog audio
2. Product Specification

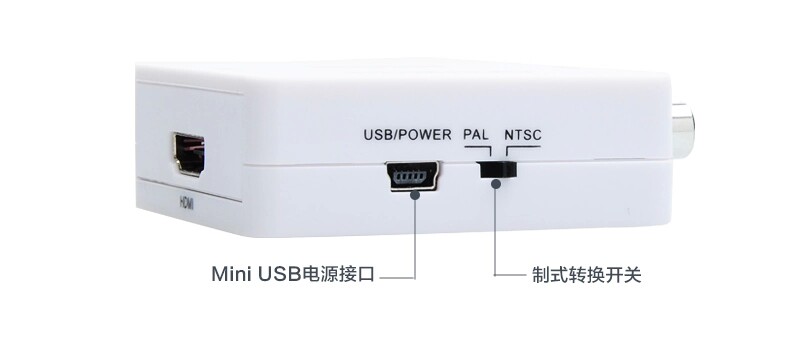

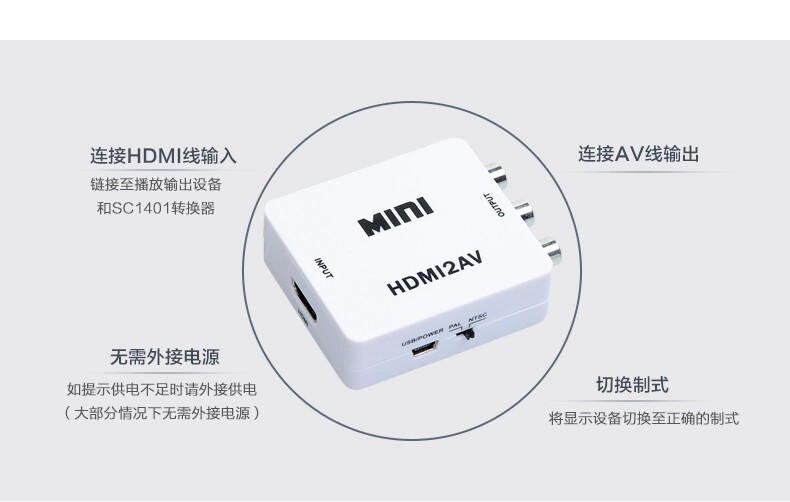

1) Hardware conversion, plug and play, no software driver 2) compatible HDMI1.3 / 1.4 version 3) Supports NTSC and PAL standard two outputs 4) a set of HDMI inputs; a set of AV outputs; a set of stereo output;
A. Input Terminal: -------------- HDMI x 1 channel input;
B. video output terminal: ------------ VIDEO x 1 output
C. analog audio output terminal --------- L / R x 1 output
5) HDMI input formats: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
Compatible with DVI mode: 800x600,1024x768,1280x720,1280x1024,1920x1080 / @ 60hz and other types of models
AV Video output: 480I, 576I (optional)
Audio output: left and right channels (L / R)
Dimensions: 66 (D) x55 (W) x20 (H) mm
3, the application platform:
1) KTV DreamWorks
Will get back HD HDMI signal, access VOD system, converting ordinary AV signal transmission to facilitate the receipt of each small TV
2) important conference system can be used for display platform
HD HDMI signal HD camera after camera after converter to convert, and then through the acquisition card to the computer system, to facilitate remote remote transmission meetings
3) the level of civilian industry:
SPIDERS HD player, DVD, set-top boxes, and PS3, XBOX360 Blu-ray machine, after conversion to connect to regular TV viewing AV interface
HDMI to HDMI HD AV signal converter to use on regular TV.
HDMI input signal formats: 480i / 60Hz, 480p / 60Hz, 576i / 60Hz, 576p / 60Hz, 720p50 / 60Hz, 1080i50 / 60Hz, 1080p50 / 60Hz.
Output signal: CVBS (1.0Vpp), S-Video (Y: 1.0Vpp, C: 0.3Vpp).
Output video format: PAL, NTSC.
The output video signal impedance: 75 ohms.
Compatible with HDCP protocol.
Power: DC5V.
1) Hardware conversion, plug and play, no software driver 2) compatible HDMI1.3 / 1.4 version 3) Supports NTSC and PAL standard two outputs 4) a set of HDMI inputs; a set of AV outputs; a set of stereo output;
A. Input Terminal: -------------- HDMI x 1 channel input;
B. video output terminal: ------------ VIDEO x 1 output
C. analog audio output terminal --------- L / R x 1 output
5) HDMI input formats: 480P, 576P, 720P, 1080I, 1080P @ 60Hz
Compatible with DVI mode: 800x600,1024x768,1280x720,1280x1024,1920x1080 / @ 60hz and other types of models
AV Video output: 480I, 576I (optional)
Audio output: left and right channels (L / R)
Dimensions: 66 (D) x55 (W) x20 (H) mm
3, the application platform:
1) KTV DreamWorks
Will get back HD HDMI signal, access VOD system, converting ordinary AV signal transmission to facilitate the receipt of each small TV
2) important conference system can be used for display platform
HD HDMI signal HD camera after camera after converter to convert, and then through the acquisition card to the computer system, to facilitate remote remote transmission meetings
3) the level of civilian industry:
SPIDERS HD player, DVD, set-top boxes, and PS3, XBOX360 Blu-ray machine, after conversion to connect to regular TV viewing AV interface
HDMI to HDMI HD AV signal converter to use on regular TV.
HDMI input signal formats: 480i / 60Hz, 480p / 60Hz, 576i / 60Hz, 576p / 60Hz, 720p50 / 60Hz, 1080i50 / 60Hz, 1080p50 / 60Hz.
Output signal: CVBS (1.0Vpp), S-Video (Y: 1.0Vpp, C: 0.3Vpp).
Output video format: PAL, NTSC.
The output video signal impedance: 75 ohms.
Compatible with HDCP protocol.
Power: DC5V.
