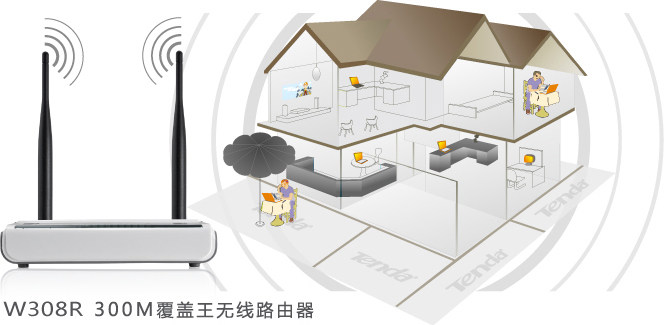

覆盖超广

W308R覆盖范围可达1000平方米，让信号没有死角，完全可以满足家庭用户的上网需求。

卓越的性能

采用802.11n先进技术，无线传输速率高达300Mbps

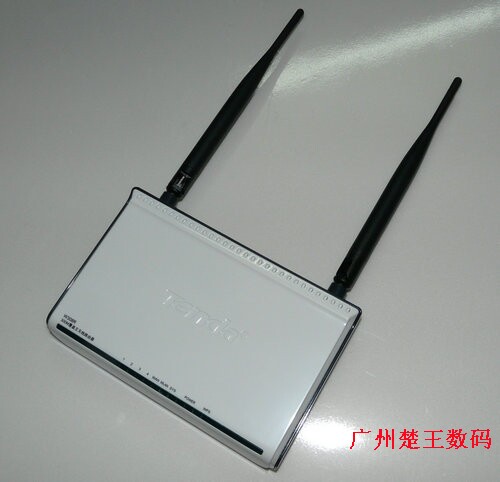

W308R采用11N无线技术，高智能5dBi外置双天线设计，使得无线传输速率高达300Mbps，可以满足更多的无线客户端接入，在无线客户端数量相同时能够为每个客户端提供更高的无线带宽，使在线影视、网络游戏、视屏聊天等高带宽要求的网络应用更加流畅，也使局域网内数据传输更加高效。

丰富的功能

强有力的Qos管理

W308R支持Qos，具有IP带宽控制功能。可以根据不同用户上网需求分配每台电脑的带宽，避免个别用户使用BT、迅雷等P2P下载软件占用过多带宽而影响其他用户正常使用网络。

无IP带宽控制功能

有IP带宽控制功能

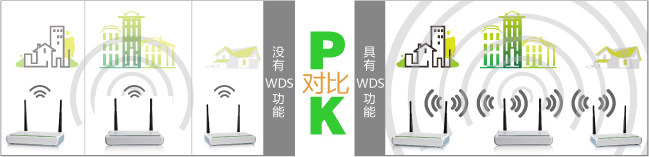

强大的无线信号放大功能

W308R还支持WDS，具有无线放大和中继功能。可以实现两台或者多台无线路由器之间无线桥接，扩展无线覆盖范围。

W308R具有强大的上网控制功能，支持URL过滤与MAC地址过滤等功能，能够对指定网站及网页进行过滤，让你能够放心上网。

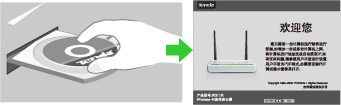

一键设定

简单安装无线路由器

同时，W308R配备了为非专业人士开发的“一键安装”光盘，广大用户可以通过光盘或者IE设定安装，让安装不再纷繁复杂，实现快速设置，三步即可上网。

多级安全保障

W308R支持64/128位WEP数据加密、WPA、WPA2、WPA/WPA2混合等多种加密与安全机制；内置防火墙，可防黑客攻击，支持隐藏无线SSID功能和基于MAC地址访问控制，可以保护用户信息数据安全，保障无线网络不被侵犯或者盗用。

The main features

1，5dBi high gain omni-directional antenna， the signal is strong， wide coverage.

2， support WISP function， operators can access a wireless hotspot.

3， a powerful Internet control functions， support for URL filtering and MAC address filtering and other functions

4， support for QoS bandwidth control function， can effectively control the designated computer to download or upload speed BT， Thunder， etc..

5， the use of advanced IEEE802.11n technology， wireless transmission rates of up to 300Mbps

Product Features

Support for IEEE 802.11n， IEEE 802.11g， IEEE 802.11b， IEEE 802.3 and IEEE 802.3u standards

5dBi high-gain omni-directional antenna， the signal is strong， wide coverage.

Wireless transmission rates up to 300Mbps

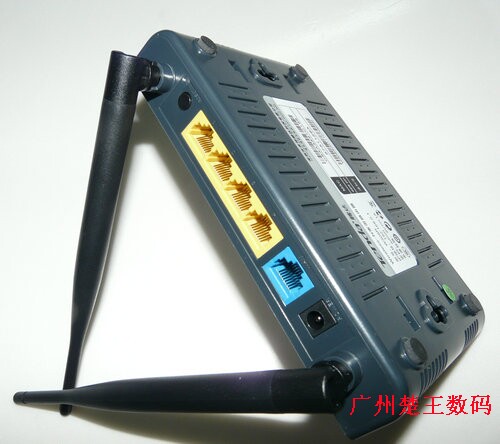

Provides a 10 / 100M adaptive Ethernet (WAN) interfaces， and WAN connections

Provides four 10 / 100M adaptive Ethernet (LAN) interface， connected to the LAN

Support port automatically recognizes cross / straight (Auto MDI / MDIX)

Support xDSL / Cable MODEM， residential broadband fixed IP， dynamic IP broadband community

Wireless AP， Router， 4-port switch and firewall Four

Support WISP function， operators can access a wireless hotspot

Support for WPA， WPA2， WPA & WPA2 mixed variety of encryption and security mechanism that can effectively prevent rub network.

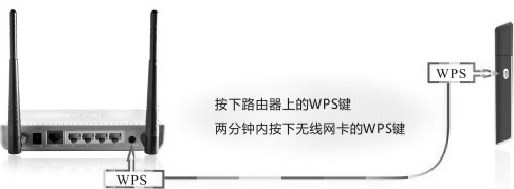

Support WPS a key encryption

Support SSID stealth mode and access control based on MAC address

Support WMM， keep your voice， video more smoothly

Supports the Simple Network Time Protocol (SNTP)

Supports Universal Plug and Play (UPnP)， DDNS function

Support WDS Wireless Network Expansion

Supports virtual server， DMZ host

Provides system log， you can record the router using state

Products

Hardware Specifications

Power supply

Input voltage range (VAC) 220V

Output voltage (VDC) 9V == 1A

Maximum power consumption 6W

Temperature

Operating temperature 0 ℃ ~ 40 ℃

Storage temperature -40ºC to 70ºC

Humidity

Operating humidity 10% to 90% RH non-condensing

Storage humidity 10% to 90% RH non-condensing

Indicator (indicated)

POWER lit， indicates that the power supply is normal

SYS flashing， indicating that the system is working properly

Steady indicates normal WAN connection， flashes to indicate data transmission

WLAN Flashing indicates data transfer in progress

Steady indicates a normal LAN connection， flashes to indicate data transmission

WPS WPS feature is not turned off， said， blinking being negotiated key， steady indicates that negotiation is completed

Transmission medium

Five lines ■ Support

UTP cable ■ Support

Six lines ■ Support

Software case

WAN access

■ Support for dynamic acquisition

Static designated ■ Support

PPPoE ■ Support

Wireless function

On / off SSID broadcasting ■ Support

Modify channel ■ Support

WMM ■ Support

WPS ■ Support

WPA-PSK / WPA2-PSK ■ Support

Wireless Client Filtering ■ Support

DHCP Server

■ stand by

Port Mapping

■ stand by

Security

Port filtering ■ Support

URL filtering ■ Support

■ support MAC address filtering

Static Routing

■ stand by

System Log

■ stand by

The default setting

PPPoE WAN port connection

6 After the wireless SSID Tenda + MAC address

Channel AutoSelect
