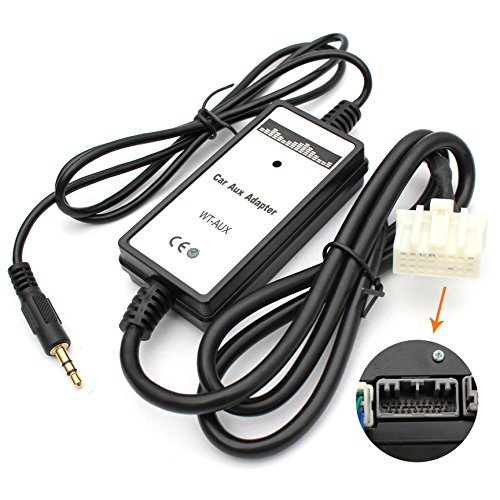

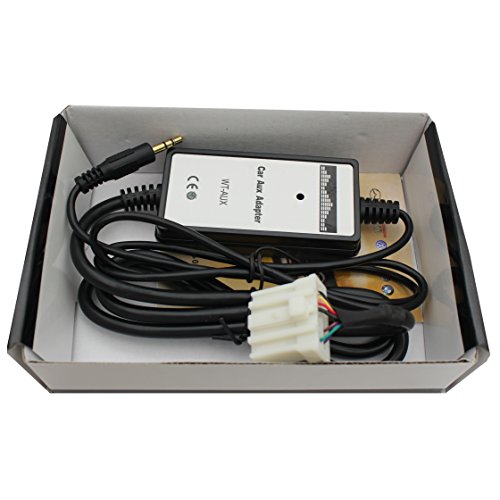

mazda aux，Yomikoo Car AUX MP3 Player Radio Car Digital Music Cd Changer AUX In Adapter 3.5mm Aux interface for Mazda 2004-2008 M3 2003-2008 MX5 2002-2011 MPV 2002-2008 Premacy









Product Description


Please make sure the connector before you place this order

Compatible with: Mazda

2004-2008 Mazda 3 ，

2003-2008 Miata/MX5(non Bose)

2002-2006 SPD，

2002-2003 Protégé，

2002-2006 Tribute，

2002->2008 Premacy，

1999-2003 Mazda 323 ，

2002-2011 MPV

2003-2006 B-Series Pickup

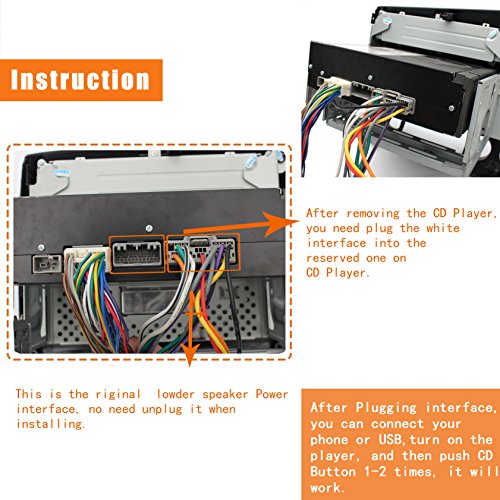

Installation Instruction: 1. Turn off car engine and remove key from ignition， if your radio use a security code， make sure that you have the code before unplugging the radio.

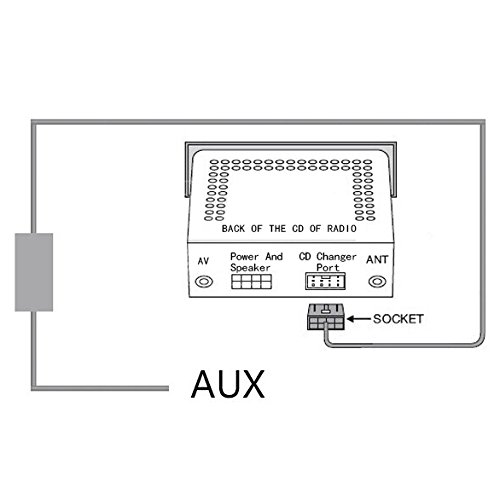

2. Unmount the radio from the dash and find CD changer port at the back of radio.

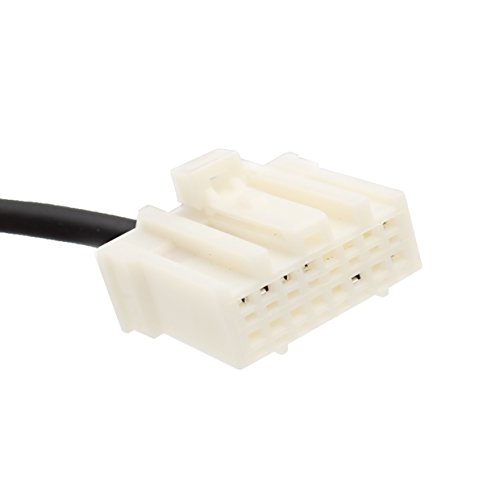

3. Plug the IPOD AUX Adapter connector to CD changer port.(For Audi/V.W/Skoda/Seat radio，connect the GND cable to the shield of the radio)

4. For IPOD/Iphone user，connector IPOD/Iphone via IPOD AUX Adapter 30P connector. once the unit is installed just power on the car radio and ipod，you can Press CD button then you can enjoy the IPOD Music ，keep Ipod changed and ready to go.

5. For Auxiliary device such as PSP，MD.MP3.mobile etc， It will start play music.

voltage Input:12V DC

Signal-to-noise:90dB

Max.current:35MA

total harmonic distortion:0.01%

requency response:20HZ-20KHZ

working temperature :-30C-80C

Product Features:Connect through the car CD player directly，Non-destructive installation.

Control sthe music play and volume by Car radio panel or the steering wheel.

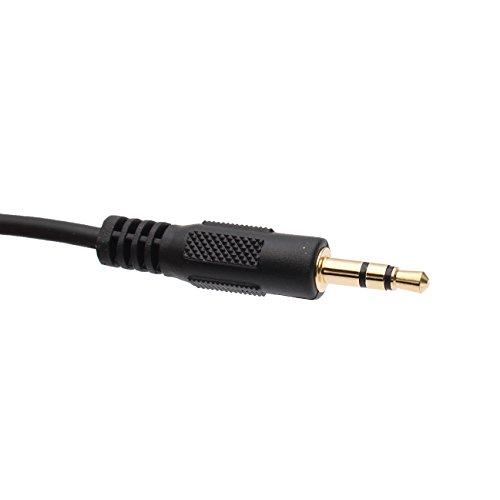

Support 3.5mm AUX audio input.

high quality MP3/WMA decoder， let the music more pretty.

with no Signal interference，no need to install baterry.

Smart design，easy to install and use.

Note:all products are guaranteed against manufacturing defects for a period 3 months from purchase

Feature

Direct Connection via CD changer Port with CD quality sound
3.5mm Aux interface for listening music，USB interface for charger
Control music files from your car radio panel or steering wheel
Not compatible with Navigation radios. Not compatible with MX5 with Bose Sound System
Support 3.5mm jack input for Iphone ，Samsung，HTC，Ipad.
Brand : Yomikoo
Item model num : YMK020
MPN(PartNumber) : YMK020
EAN : 0714491786120
