注意：此款转接卡仅适用于B-key或B/M-key的无线网卡接口,不适用于B-key或B/M-key的SSD接口

注意: 此款转接卡只可以插NGFF网卡，不可以插SSD

此款为无线网卡转接卡而已，不是3G无线上网卡，单插SIM卡时是不可以上网的，要同时插上带3G功能WIFI网卡才支持上网.

一、描述：

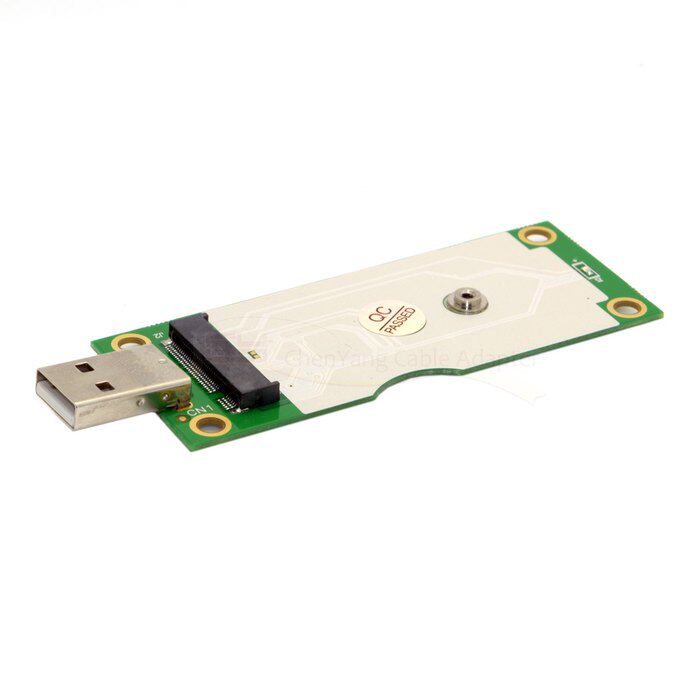

NGFF(M.2)  Key B USB转接卡是专为台式机/笔记本电脑设计，将无线M.2卡模块转化为USB端口。



使用时先将M.2卡模块（Socket 2 SSIC-base WWAN）如GSM、HSPA(3.5G)、GPS、LTE卡到这个转接卡适配器，然后将此卡插入到电脑的USB端口。



二、特点：

1、支持USB接口的M.2卡（Socket 2 SSIC-base WWAN），如2G GSM, GPRS, 3G,CDMA, WLAN,WWLAN, HSPA MODEM , GPS, 4G WiMAX, LTE，迷你卡插入到台式机或笔记本电脑，例如华为MU736 / ME936 / ME906V，Sierra Wireless Airprime EM7305等模块。



2、安装方便、不需要安装驱动，但是须确保M.2卡模块已经安装了软件驱动程序。



3、支持30 * 42类型的NGFF（M.2）Key B卡。

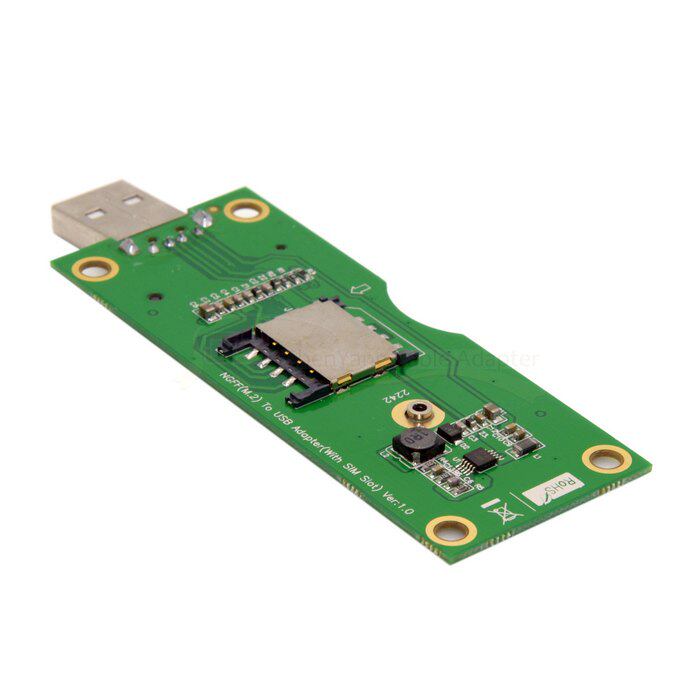

4、支持6位/ 8位SIM卡连接器。



5、不需要外加电源。



6、支持热插拔。



7、支持任何操作系统，比如Windows, WinCE, Linux & iMAC等等。





三、包装内容：



1 、NGFF(M.2) Key B转SIM 8PIN转接卡------1片



2、螺丝刀------1把



3、M2螺丝------3颗





NGFF(M.2) to USB Adapter With SIM card Slot for WWAN/LTE/4G Module

Description

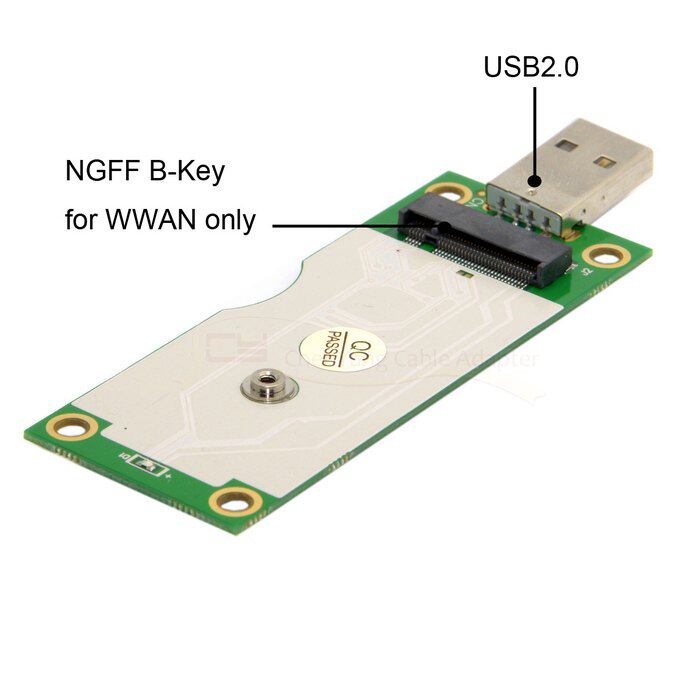

The NGFF(M.2) Key B to USB adapter is designed for desktop/Laptop PCs that convert  wireless M.2 Card to USB port.
     You can insert your M.2 card (Socket 2 SSIC-base WWAN) such as GSM, HSPA(3.5G), GPS, LTE cards to this adapter then plug to USB port

Features:

Supports USB interface of M.2 Cards (Socket 2 SSIC-base WWAN) such as 2G GSM, GPRS, 3G,CDMA, WLAN,WWLAN, HSPA MODEM , GPS, 4G WiMAX, LTE, Mini Card to desktop/Laptop  PC, such as, HUAWEI MU736/ME936/ME906V, Sierra Wireless Airprime EM7305

 Easy installation & no driver required, but make sure you have installed the software drivers for your M.2 card.

Support 30*42 type NGFF(M.2)  Key  B card

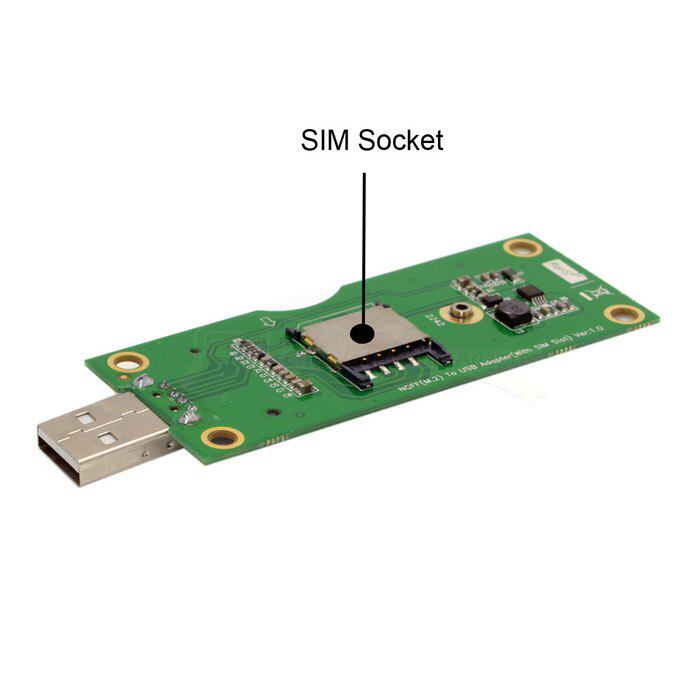

 Support SIM 6pin/8pin card connector.

 No additional power required

 Supports Plug & Play and Hot-Swapping

. Supports any OS, like Windows, WinCE, Linux & iMAC etc

Package Content:

1x NGFF(M.2) to USB Adapter

1x Screw Driver

2x M2 Screw



Note: This adapter is only applicable to the B-key or B / M-key wireless card interface, not applicable to the B-key or B / M-key SSD interface



Note: This adapter can only be inserted NGFF card adapter, you can not plug SSD

This is a wireless card adapter only, not a 3G wireless network card, single-SIM card is not available on the Internet, to be inserted at the same time with 3G-enabled WIFI network card to support the Internet.

First, the description:

The NGFF (M.2) Key B USB Adapter is designed for desktop / laptop computers and converts wireless M.2 card modules into USB ports.

When using, connect the M.2 card module (Socket 2 SSIC-base WWAN) such as GSM, HSPA (3.5G), GPS, LTE card to this adapter and then insert this card into the USB port of the computer.

Second, characteristics:
1. Socket 2 SSIC-base WWAN, such as 2G GSM, GPRS, 3G, CDMA, WLAN, WWLAN, HSPA MODEM, GPS, 4G WiMAX, LTE, Mini Card inserted into the desktop or Laptops, such as Huawei MU736 / ME936 / ME906V, Sierra Wireless Airprime EM7305 and other modules.

2, easy to install, do not need to install the driver, but be sure to M.2 card module has a software driver installed.

3, support 30 * 42 type NGFF (M.2) Key B card.

4, support 6/8 SIM card connector.

5, do not need extra power.

6, support hot swap.

7, support for any operating system, such as Windows, WinCE, Linux & iMAC and so on.


Third, the packaging content:

1, NGFF (M.2) Key B switch SIM 8PIN adapter ------ 1 piece

2, screwdriver ------ 1 put

3, M2 screws ------ 3


NGFF (M.2) to USB Adapter With SIM card Slot for WWAN / LTE / 4G Module
Description
The NGFF (M.2) Key B to USB adapter is designed for desktop / Laptop PCs that convert wireless M.2 Card to USB port.
     You can insert your M.2 card (Socket 2 SSIC-base WWAN) such as GSM, HSPA (3.5G), GPS, LTE cards to this adapter then plug to USB port
Features:
Supports USB interface of M.2 Cards (Socket 2 SSIC-base WWAN) such as 2G GSM, GPRS, 3G, CDMA, WLAN, WWLAN, HSPA MODEM, GPS, 4G WiMAX, LTE, Mini Card to desktop / as, HUAWEI MU736 / ME936 / ME906V, Sierra Wireless Airprime EM7305
 Easy installation & no driver required, but make sure you have installed the software drivers for your M.2 card.
Support 30 * 42 type NGFF (M.2) Key B card
 Support SIM 6pin / 8pin card connector.
 No additional power required
 Supports Plug & Play and Hot-Swapping
Supports any OS, like Windows, WinCE, Linux & iMAC etc
Package Content:
1x NGFF (M.2) to USB Adapter
1x Screw Driver
2x M2 Screw
