Simple operation manual network cameras



Note：1.Before click the setting button, please turn the phone volume up to the maximum, and put the phone close to the camera.
2.As shown in figure 2, if the SSID is empty, that mobile phone not connected router WIFI, please put the phone to connect to the wireless router WIFI.

3.If the phone connection is 5.8 GHZ frequency band, is not a key to WIFI configuration; Need to phone to switch to 2.4 GHZ frequencies, can be a key to WIFI configuration;













Thank you for making us Qoo10 Best 1!




 Qoo10 Power Seller! Best Selling Product TOP 1!


1.Customer service guarantee,  7 days for free exchange, Singapore local warranty, any quality problems just sent the item to our Singapore service center. Real local seller, SG Warranty!
2.ready stocks in Singapore welcome to self-collection.



 Service center address:
12 Arumugam Road, Lion Building B
#02-07,
Singapore 409958
(next to MacPherson MRT)
Office Hour: Tue-Fri 1200-1900,Sat 1000-1300
Close on Sun,Mon and PH

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------





****************************


       2018 New Version






Wireless 960p  Night Vision  high technology











****************************

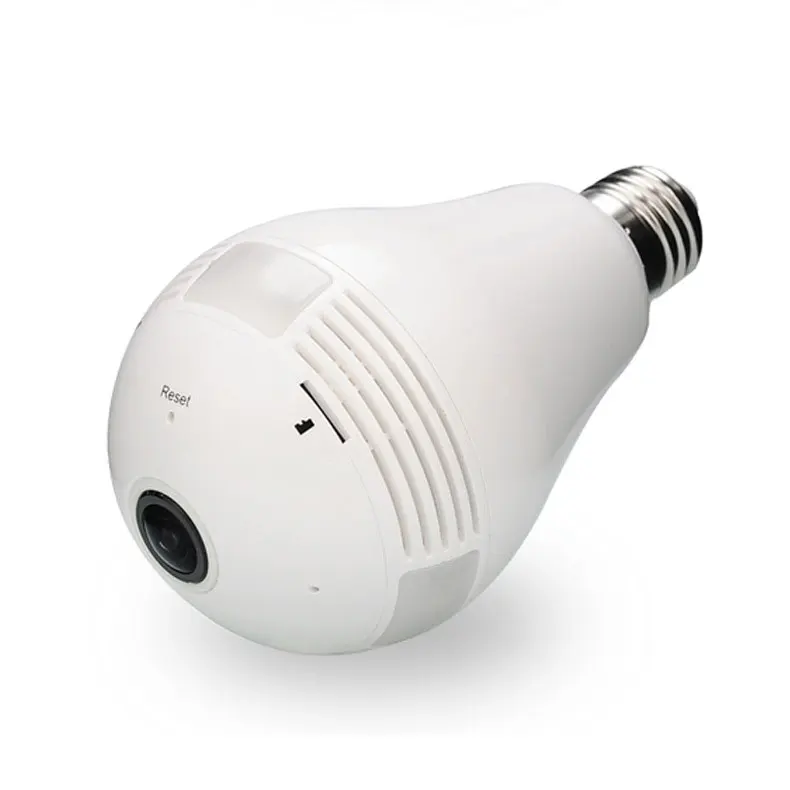

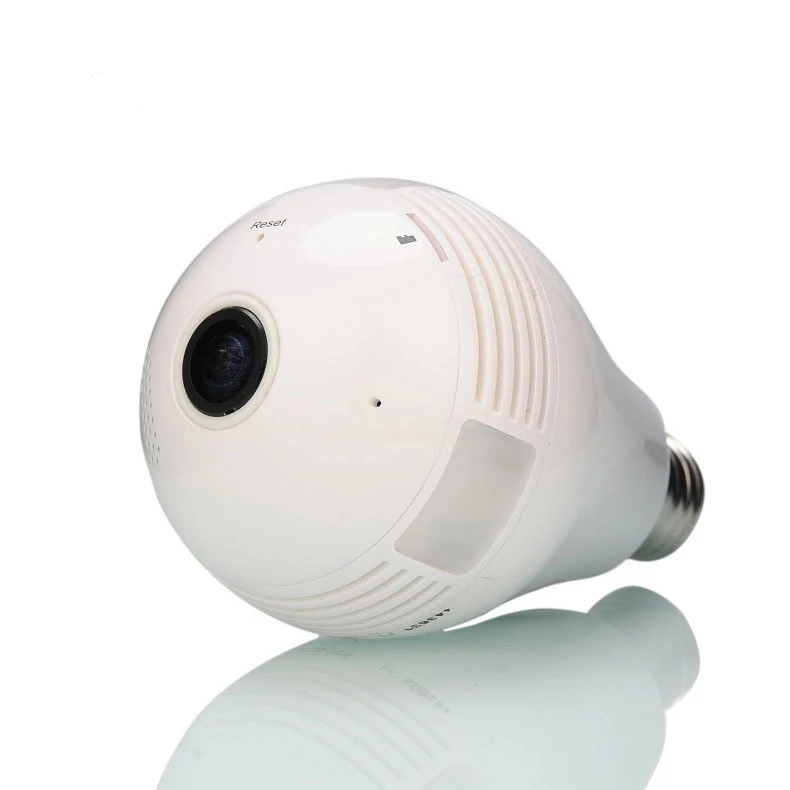

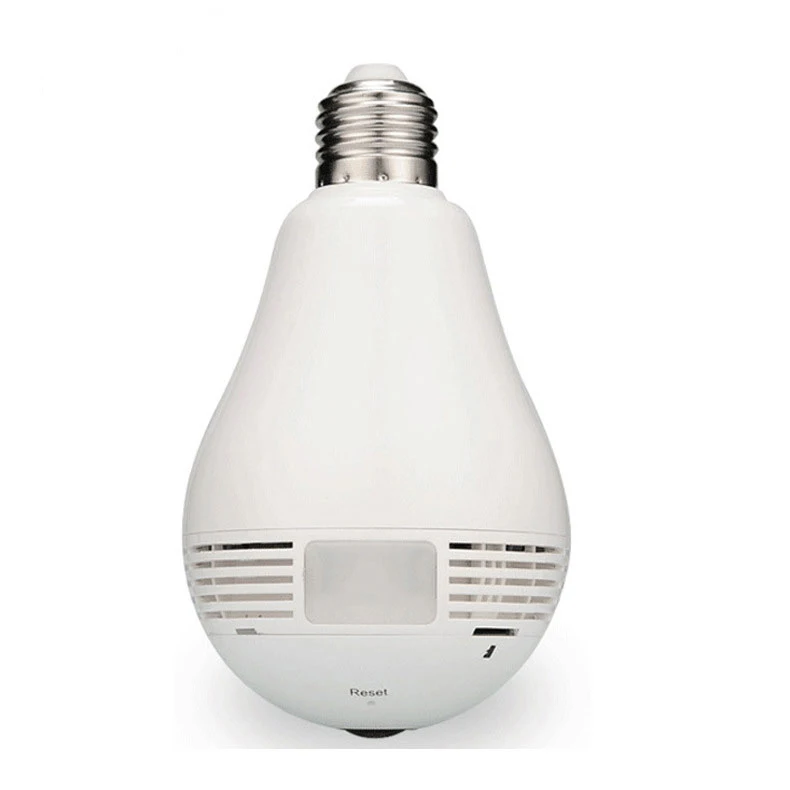

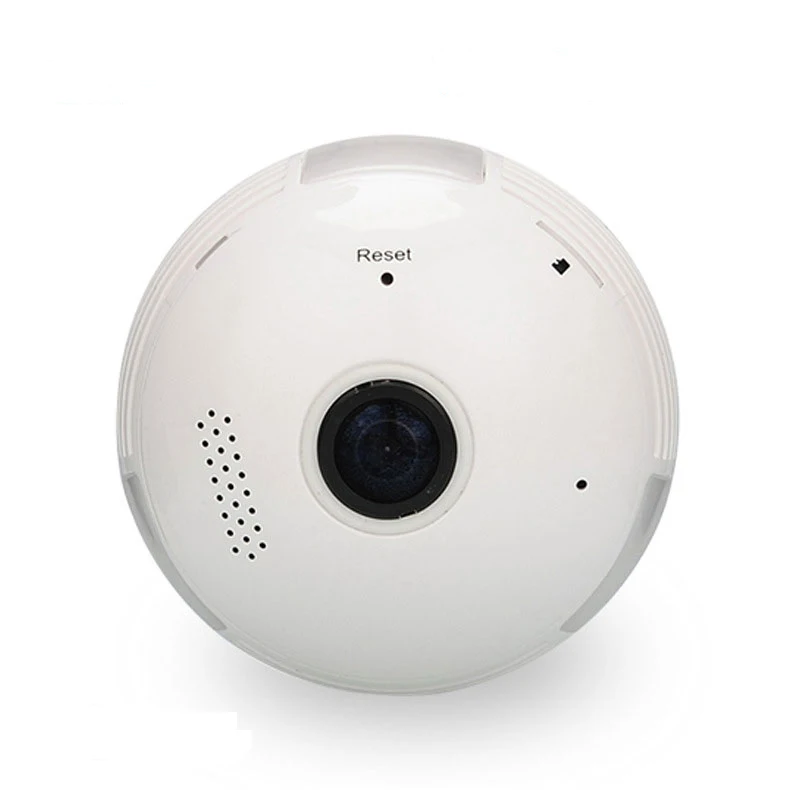

    360 Degree Bulb Light Wifi IP Camera

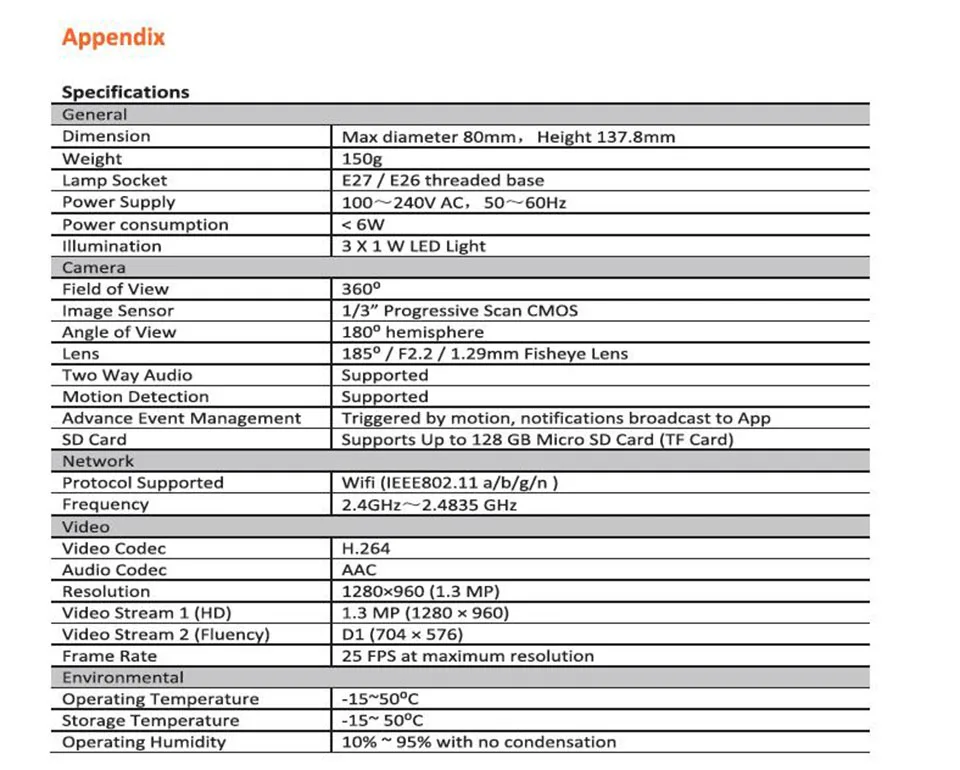

Item specifics
  • Brand Name:TTVXO
  • IR Distance(m):10m
  • Technology:Infrared
  • Alarm Action:Local Alarm
  • Power Supply(V):AC110~240V
  • Video Compression Format:MPEG4,H.264
  • Model Number:BKW0015
  • Sensor:CMOS
  • Supported Operating Systems:No
  • Storage:None
  • Viewing Angle (Degree):360°
  • is_customized:Yes
  • Connectivity:WiFi
  • Supported Mobile Systems:Android,iOS
  • Power Consumption(W):DC5V,<1A
  • High Definition:3.0 Megapixels
  • Dimensions (L x W x D)(mm):71mm*71mm*35mm
  • Lens (mm):1.44mm
  • Color:White
  • Power Supply:Normal
  • Minimum Illumination(Lux):1/2.5" Low illumination CMOS sensor
  • Wall Bracket:Ceiling
  • Installation:Embedded
  • Network Interface:Wi-Fi/802.11/b/g
  • Type:IP Camera
  • Sensor Brand:SONY
  • Special Features:Light
  • Style:bulb
  • Audio Output:Two-way audio
Product Description

Product Features

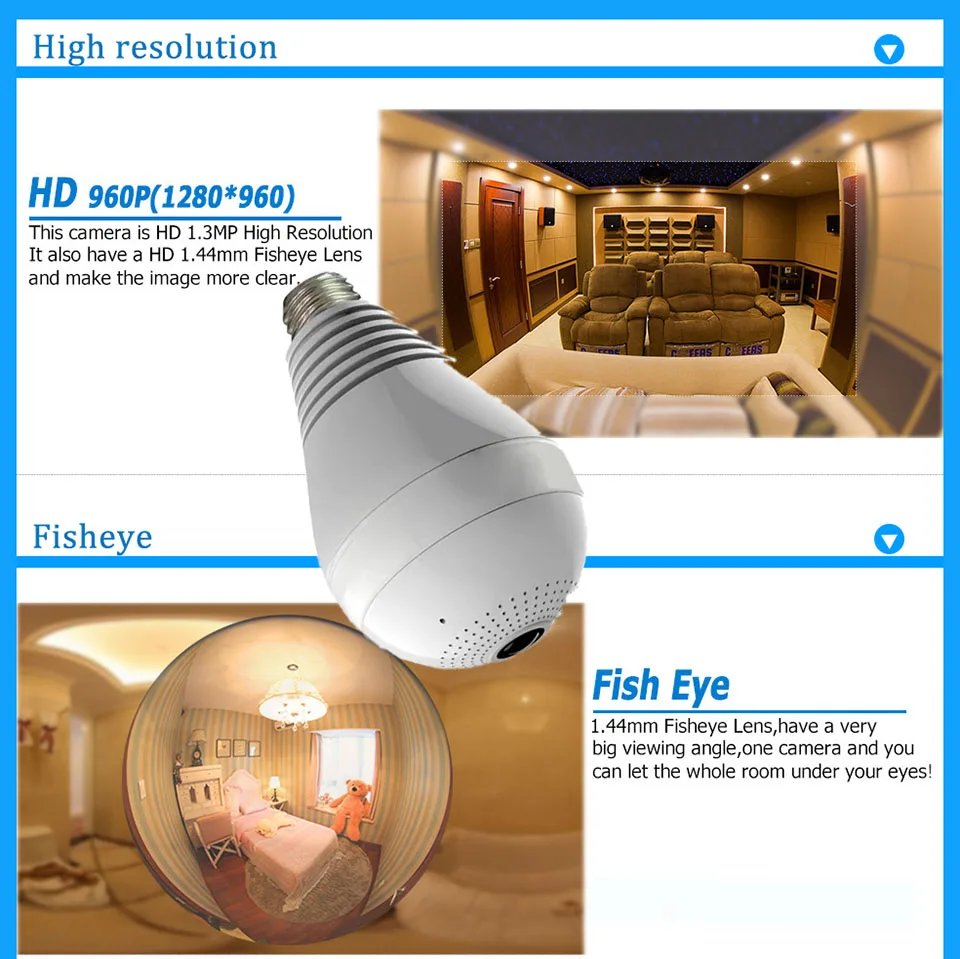

Resolution: 1280X920P (3.0MP)
Power supply: AC100-240V
Power port: E27/E26 port
Built-in Lens: 1.44mm, 360° fisheye lens
viewing angle: 360°
Audio: Two-way intercom
Sensor: SONY CMOS IMX238LQJ
Operating temperature: -5-40℃
Video frame rate: Maximum 25 frame
Lens: PUWELL fisheye lens L013F1222MP3IR
Audio input and output: Input: Built-in microphone; output: built-in speaker
IR: By photo resistor sensor switch, LED lights night vision 10 meters, (optional IR-CUT automatic switching)
Local storage: TF card, minimum support 8G, maximum support 128G
Alarm action: Mobile client push Screenshots
Connection requirement: WiFi/Showmo Cloud Account/Support IOS 8.0 or Android 4.0 above phone or tablet

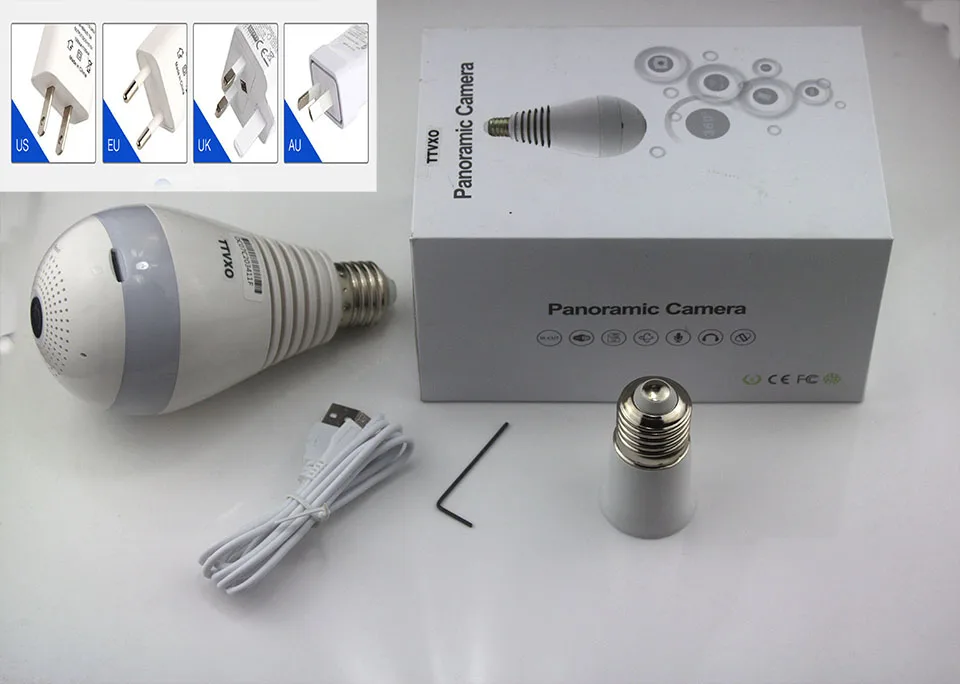

Package Contents:
1x WiFi Light Bulb Camera
1x Reset Pin
1x User Instruction

TB2Wpcgtm0jpuFjy0FlXXc0bpXa_!!2885109511HTB1pTLXOXXXXXaUXFXXq6xXFXXXgtongyong960-1tongyong960-2

TB2tT.HtbFkpuFjy1XcXXclapXa_!!2885109511TB2CAcutbRkpuFjSspmXXc.9XXa_!!2885109511TB2SIbqtbBkpuFjy1zkXXbSpFXa_!!2885109511TB2L_.HtbFkpuFjy1XcXXclapXa_!!2885109511960-2960-4960-3QQ20171125163904QQ20171125163913QQ20171125163926QQ20171125164014QQ20171125164021









Note: This item is export set for export only.

after you link up with camera, you can set up the camera in the setting, motion detection/sd card etc.

Note: the camera is export set and without safety mark 3 pin plug. Singapore buyer may buy additional usb charger with micro usb cable to power up the camera.
