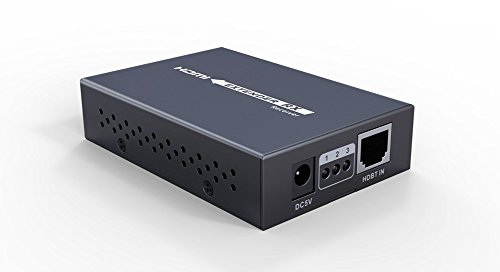

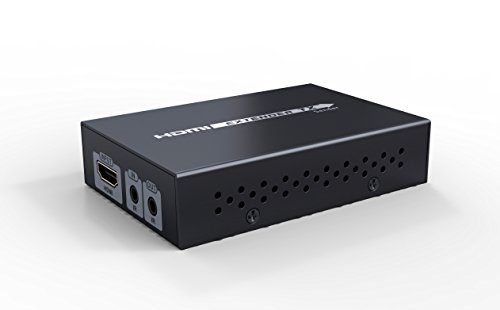

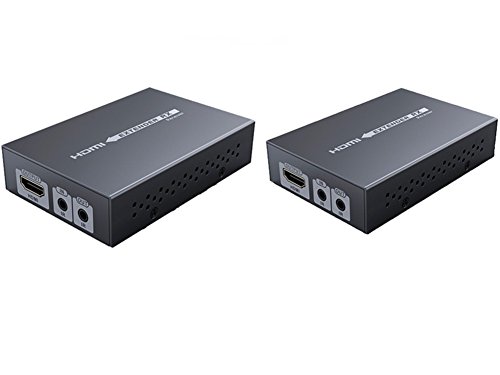

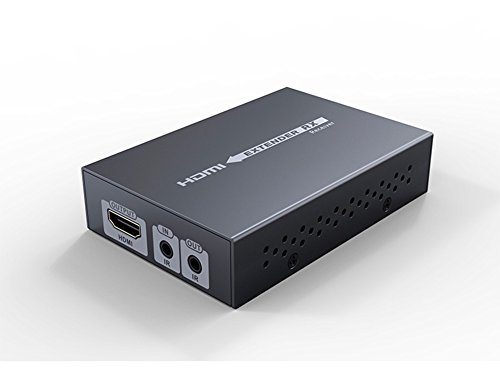

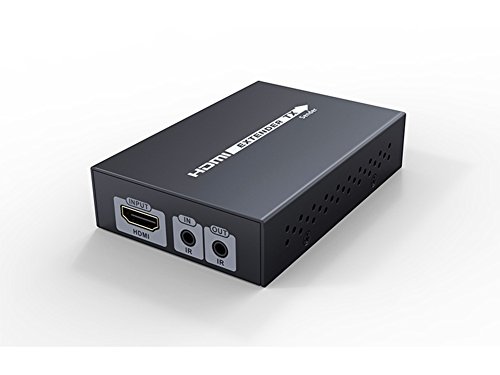

E-SDS 196ft HDBaseT HDMI Extender over Single CAT5E/6/7 Cable with Bi-directional IR Remote Support 4Kx2K， 3D， 1080P， HDCP CV0013[Product Information]- Enter your model numberto make sure this fits.
- Support 4K@60Hz HDR， HDMI 2.0，CEC and HDCP2.2.Use single UTP/STP RJ45 CAT 5E/6/6A/7 Ethernet cable to substitute HDMI cable to achieve much longer transmission distance and reduce cost (follows the standard of IEEE568B).Please use hdmi cable less than 5 meters.
- Long transmisTransmission distance: CAT5E/6: 196ft/60m for up to 1080P@60Hz 36bit; 115ft/35m for 1080P@60Hz 48bit， 1080P@60Hz 3D， 4kx2k 30Hz/60Hz; Use CAT6A/7: 230ft/70m for up to 1080P@60Hz 36bit; 131ft/40m for 1080P@60Hz 48bit， 1080P@60Hz 3D， 4kx2k 30Hz/60Hz
- Support resolutions: 480i， 480p， 576i， 576p， 720p， 1080i， 1080p; 3D; 4kx2k/30Hz and 4k/60Hz; Support audio format: uncompressed audio output such as LPCM， and compressed audio output like DTS-HD， Dolby True HD.DVI signal doesn't have audio.
- Bidirectional IR signal: allows for convenience remote control at both source or display location
- Plug and Play.Note:Don't support one to many connection and ARC.It can't work with AV receiver.Do not hot plug when it is working.There is only one power adapter and it should pulg in the receiver side.
