Note:

• Leaves us message to let us know that kind of adapter you need when order. So that we can ship out the exact plug suit for your country.
• 2-channels remote can control 2 motors. If you would like control 2 curtains by one 2-channels remote. Just need order 'curtain only' &'curtain with one 2-channels remote'.
• 5-channels remote can control 4 motors. If you would like control 4 curtains by one 5-channels remote. Just need order Three 'curtains only & 'curtain with one 5-channels remote'.
• 15-channels remote can control 14 motors. If you would like control 14 curtains by one 15-channels remote. Just need order Thirteen  'curtains only'  & 'curtain with one 5-channels remote

Suit for:

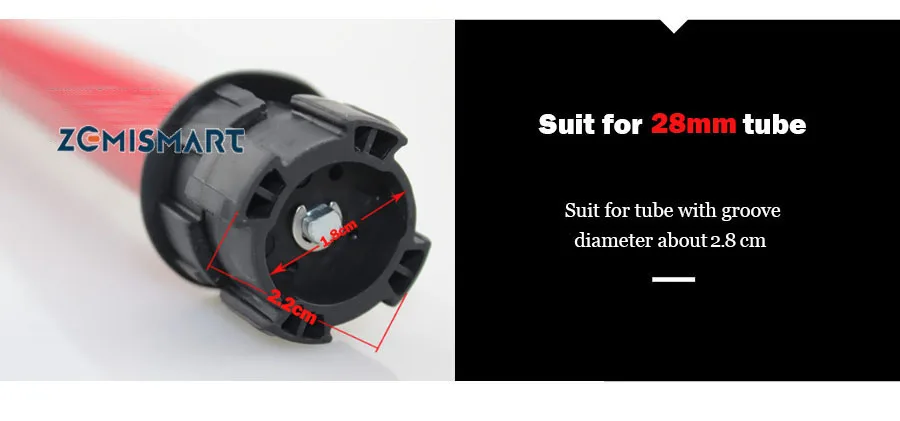

• Suit for 28mm tube of roller blinds.
• Support weight: About 2kg.
• Support tube's lenght: Within 2m.

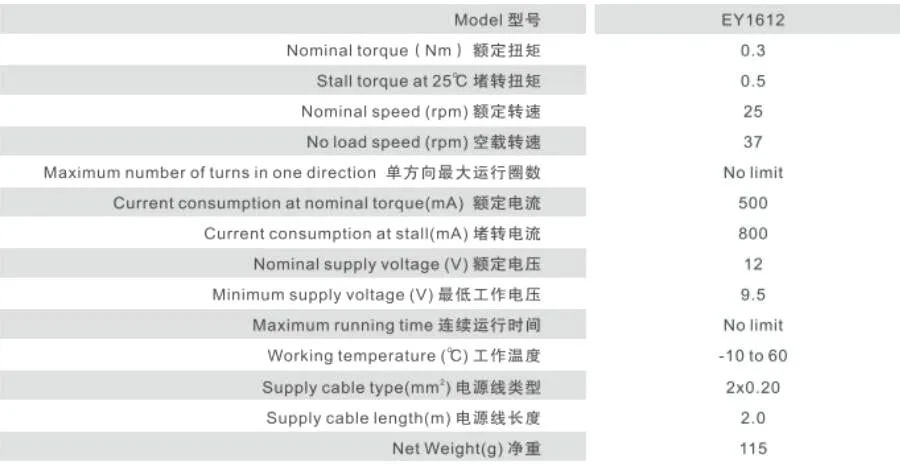

MotorSpecifications:

• Brand Name:zmlink
• Compatibility:30mm tube

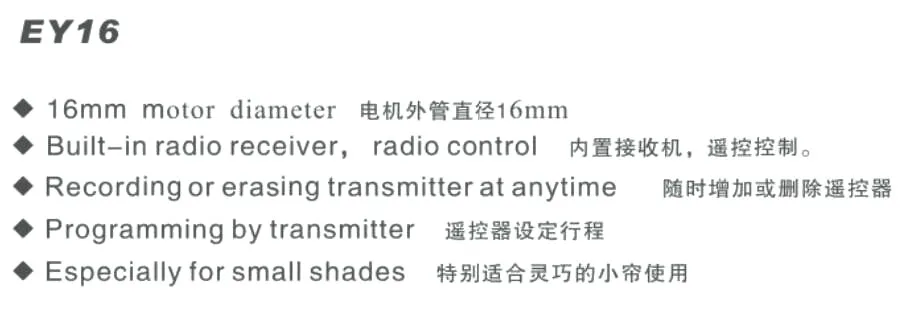

• Model Number:EY16
• Material:metal,plastic

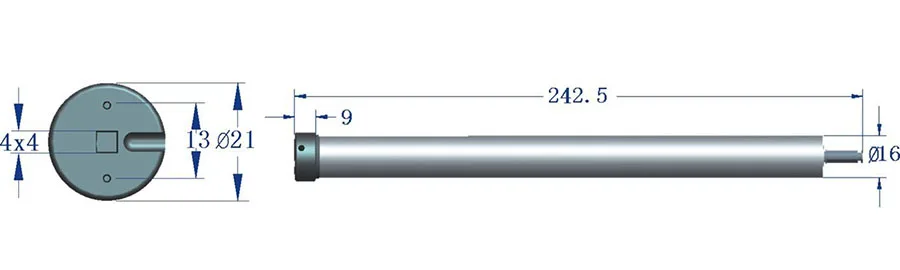

• Size:24.25x1.6x1.6cm
• Weight:0.150kg
• Color:Red,White
• Voltage:DC 12
• Current:0.3A
• Torque:0.4Nm
• Rev:25r.p.m
• Diameter:16mm
• Application:Roller curtains

Remote Specifications:

• Model:BF-301
• Size:12x4.5cm
• Freq:433.92MHz
• Battery:CR2430 3V button battery(not included)

Package listing：

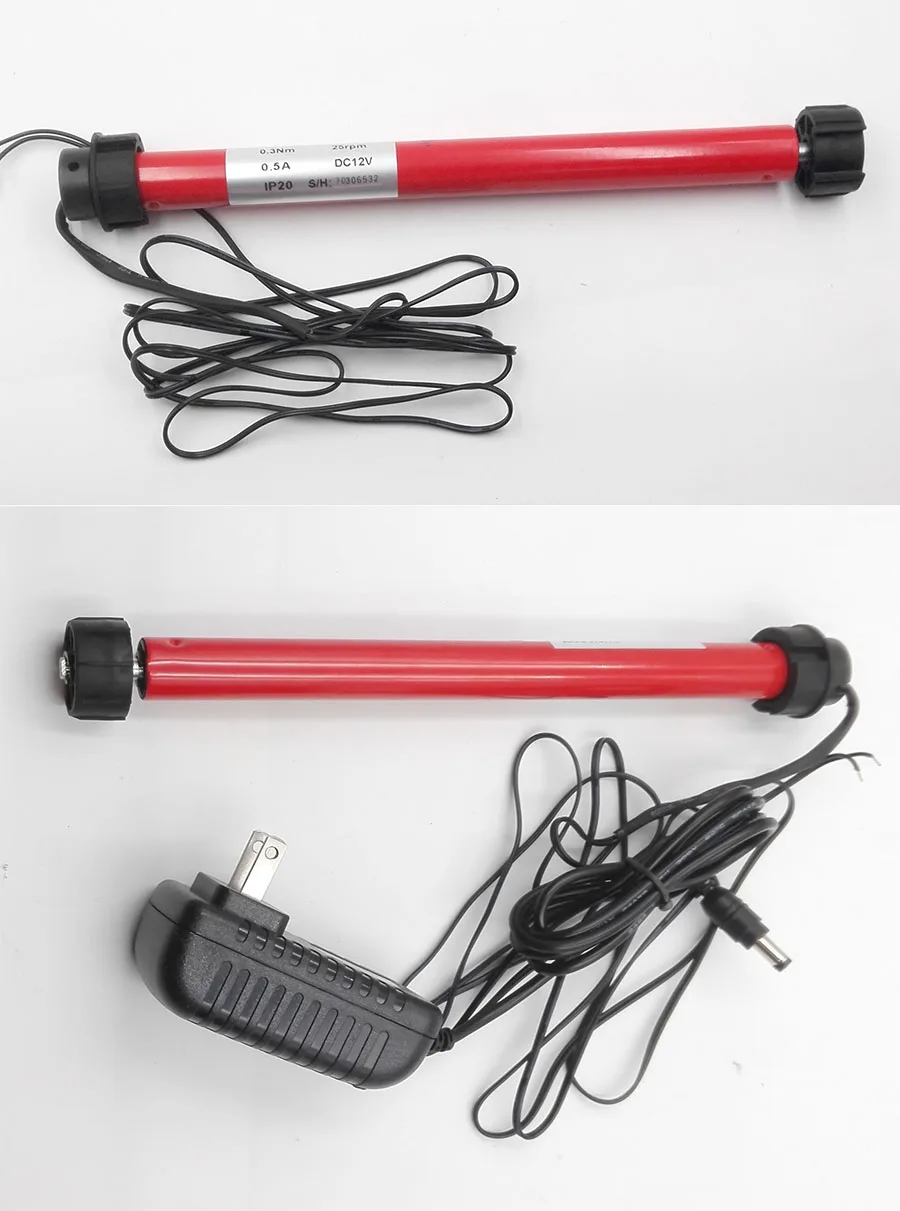

• Motor *1
• Remote as your choice
• 1 x adapter
• 1 x Manual
• ​Pls be kindly be advised that package comes without tracket, so make sure you have curtain bracket alreaday
