Item Descriptions:

Elegoo industry - clever and funny DIY electronics and robot kit

Want to learn electronics and programming, but need help, welcome to Elegoo!

Elegoo MEGA 2560

Starter kit is easy to use for customers growing from beginner to professional

We provide electronic prototype of open source hardware and software.

The Elegoo starter kit aims to make customers fast and easy to learn electronics and programming.

At first this kit was designed for operation based on the 33 creativity and comfortable courses recorded on CD and official website, but it was designed for all customers up to beginners without the experience of electronic and programming

It is a wonderful kit for beginners.

Let's go to Arduino's journey easily and comfortably, including all the equipment that the starter set wants!

Starter Kit: Anyone can learn about electronics and programming using this kit.

Thanks to the Elegoo MEGA 2560 starter kit, electronic science is not as difficult as you imagine.

For professional engineers, electronic experts and Arduino experienced users, you can use this kit to do a lot of testing and experiments.

On the other hand, it is felt that electronic beginners are more interesting than electronic thought by just trying little by little according to the instruction manual of goods.

I think that this kit is a wonderful gift for those who are absorbed in electronics, programming and robot technology.

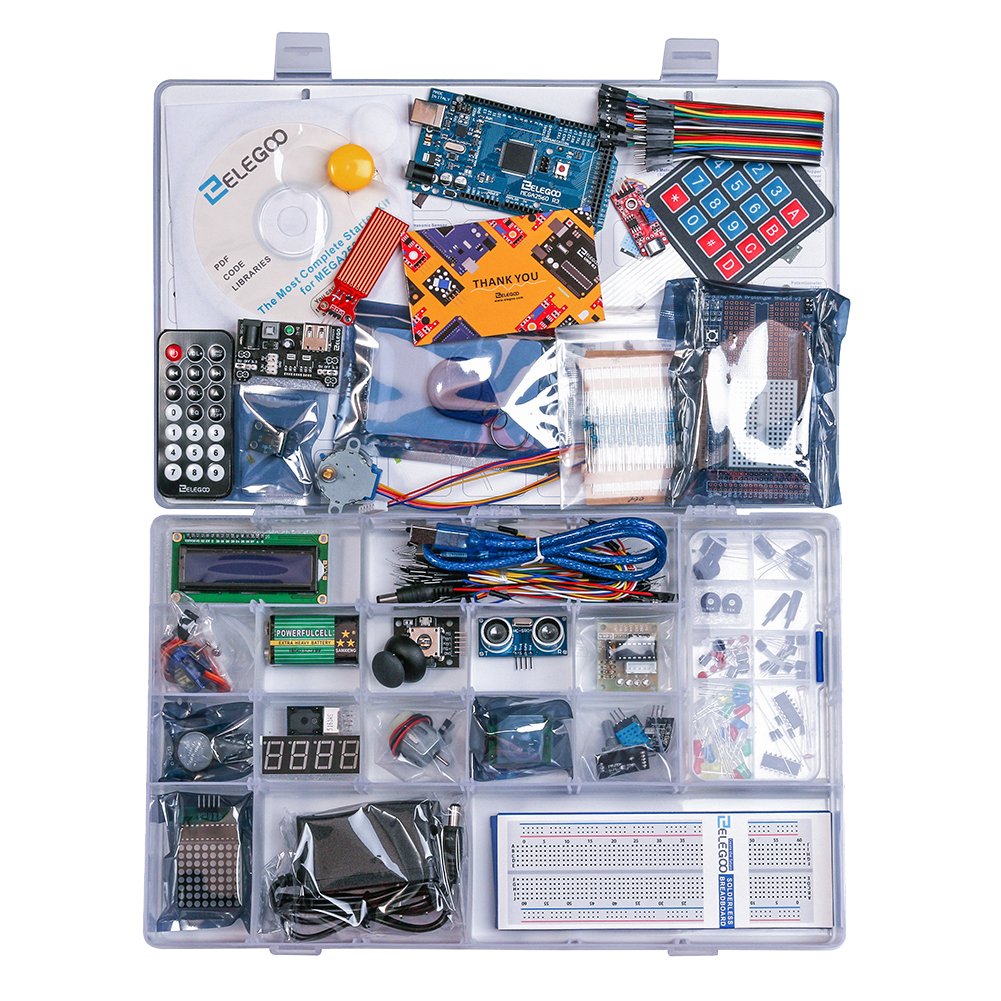

The most perfect introduction kit, high quality electronic components and electronic sensors

For the MEGA 2560 starter kit, the most important is the MEGA 2560 controller board and expansion board.

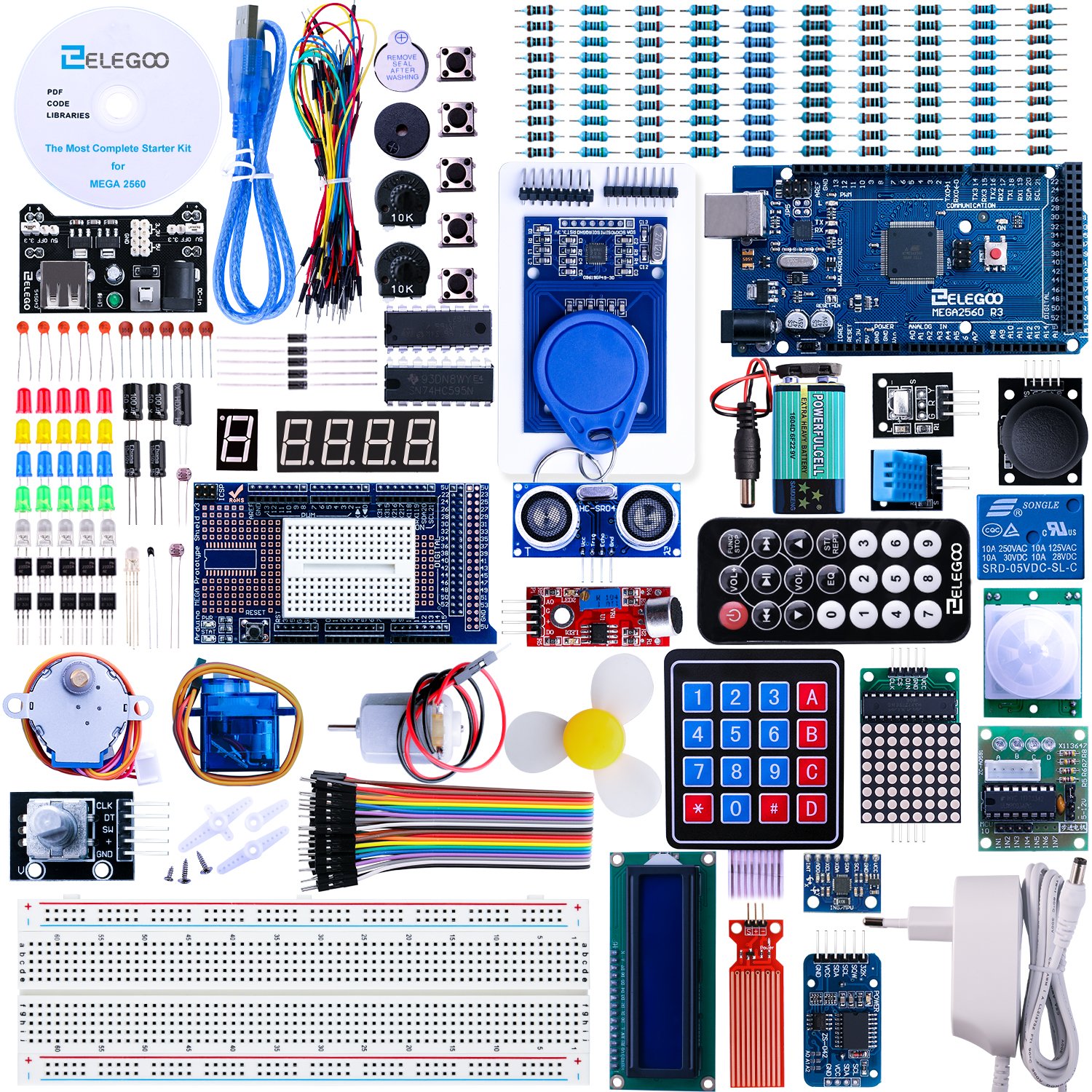

Besides, we offer over 60 kinds of parts and sensors from small parts such as LED diodes, resistors, potentiometers to large parts such as LCD 1602, RFID module, 830 tie point breadboard etc.

Even if there are so many components, we will never be concerned about quality.

We refrain from product quality at our own factory and produce our own products under high standards and strict quality control.

74HC595

Shift register and

LED

74 HC 595 is a deserializer which has eight inputs and three inputs and can input data once.

This chip will be a bit slower to drive the LEDs (you can change the LEDs about 500,000 times instead of 8,000,000 times per second), but it is certainly worth faster than humans can detect!

The 74HC595 shift register is a chip considered to be eight memory locations, and each position can be specified as 1 or 0.

To set these values ​​on or off, use the "data" and "clock" pins of the chip.

In case

LCD 1602

Display module

The LCD 1602 module is equipped with LED backlight and displays two lines of 16 characters on each line.

You can see the pixels that make up the shape of each letter on the display.

The display is blue and only white, it is for displaying letters.

Aligning the display at the top of the breadboard helps to identify the pin, especially if the first row of the breadboard is the top row of the board, without counting the pin count too much.

Do not forget the long yellow lead that connects the pot slider to pin 3 of the display.

"Pot" is used to control the contrast of the display.

DC Motors and L293D Transistor

In this project we will learn how to control small DC motors using useful chips UNO R3 and L293D transistors.

Actually, you can control two motors independently.

In this lesson we only use half of the chip, but the right pin is mostly for controlling the second motor.

L293D is a 4 times high current half H driver designed to supply 1A bidirectional drive current at 4.5V to 36V voltage.

The L293D provides 600 mA bidirectional drive current with a voltage of 4.5 V to 36 V and also to voltage loads in inductive loads such as relays, solenoids, DC and bipolar stepping motors, and other high current / positive power applications

It is applied.

Features:

• MEGA 2560 is an Arduino kit with over 200 components, completely for beginners, high quality

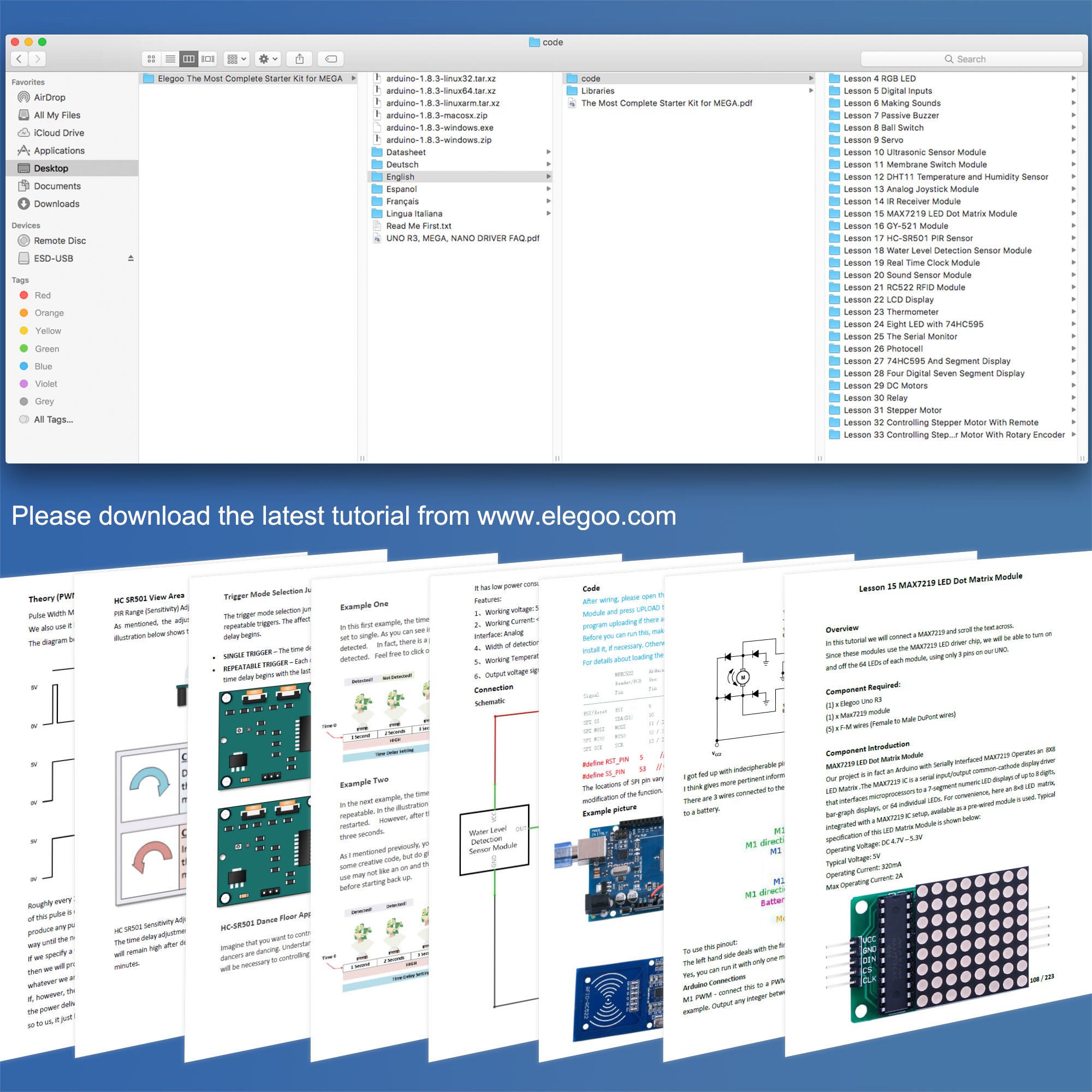

• Free PDF tutorials are included on CD (less than 35 lessons)
• LCD 1602 module and GY - 521 sensor module (with pin headers) (You do not need to solder them yourself)

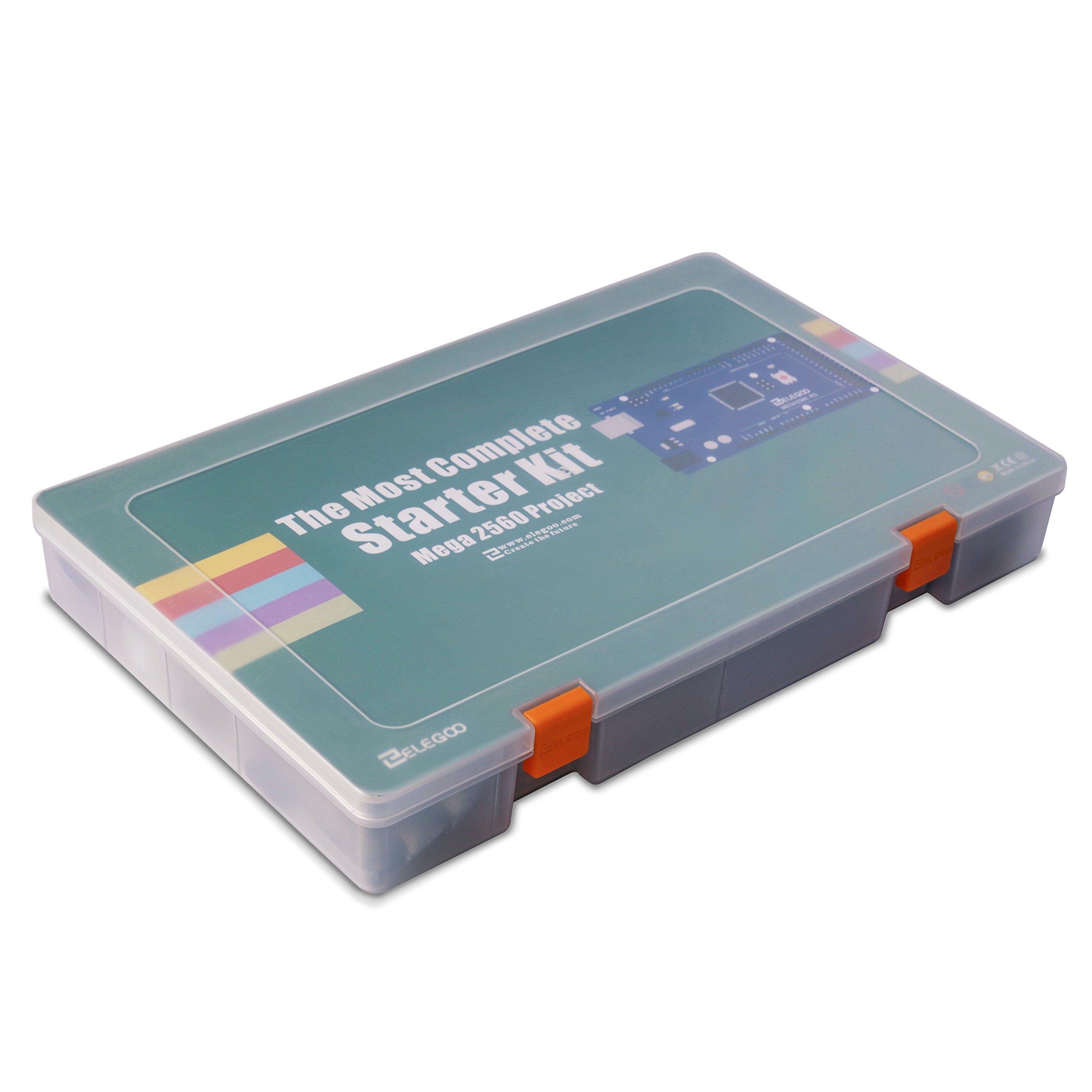

• It is a wonderful box that wraps LED, IC, button, diode and so on.

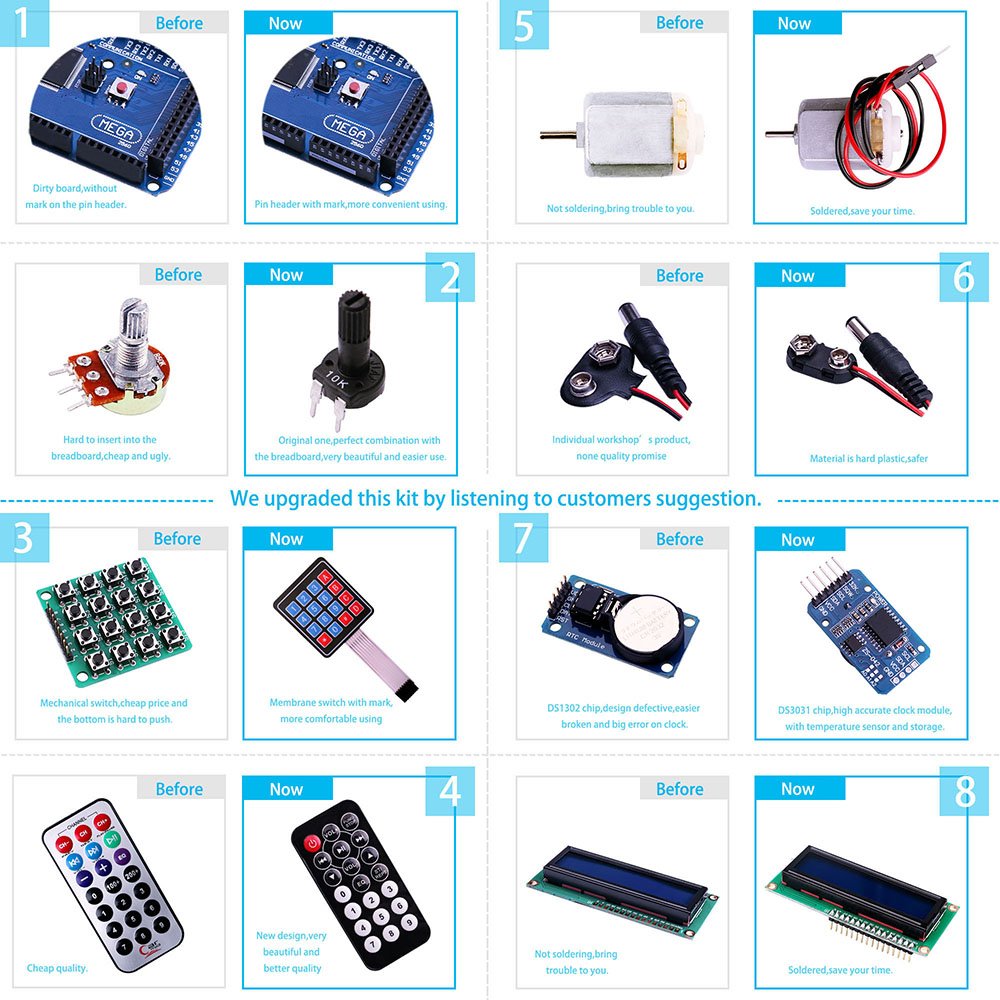

• We care about customer's feelings and improve product function.

Product information:

Shipping Weight: 1061 g

Package Dimensions: 6.10 x 26.19 x 37.31 cm
