Product Description


H2O DMX PRO

The American DJ H2O LED Pro is a multi-colored simulated water flowing effect with DMX-512 control and a bright, 50W LED source. The unit produces almost no heat, requires very little power (54W max), and can be used all night long. The LED is rated at 30,000 hours of use. This popular effect now offers professional features such as: full DMX control of the glass wheel, color wheel and dimming, 4-Button DMX Display, and the ability to operate in 2 different modes (DMX and Master/Slave). It also can be operated from the easy-to-use UC3 controller. The unit comes equipped with two interchangeable lenses (34- and 52-degree) that can be changed out depending on how wide of a beam is required for your event. Users can daisychain up to 6 units together not only through the XLR DMX links, but also through the IEC In/Out power links.

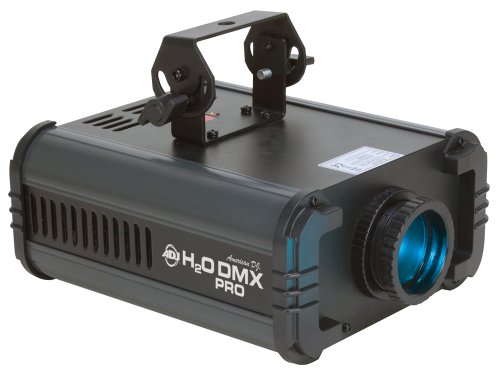

Angle View
View larger

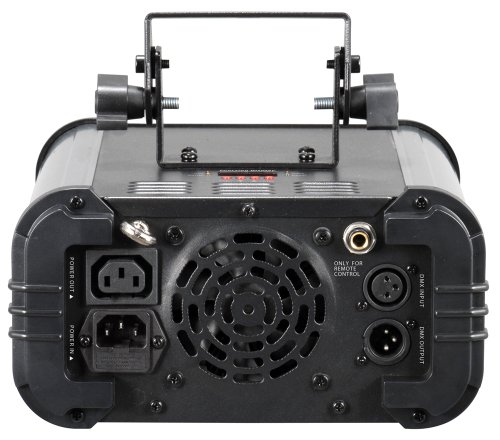

Rear View
View larger

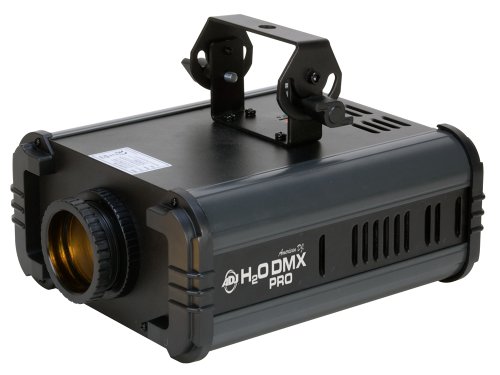

Angle View
View larger
FX Shot
View larger
FX Shot
View larger
FX Shot
View larger

There are many applications for the H2O LED Pro. Water flowing effects can add a unique visual dimension to nightclubs, bars, restaurants, shows, music performances, and even displays and special events. The H2O LED Pro can be used with or without fog.

Specifications:

  • Bright 50W LED source simulated water flowing effect
  • Designed to project on walls, ceilings, or floors with or without fog ? great for mood or background lighting
  • 3 DMX Channels (Dimming, Glass Wheel, Colors)
  • 2 operation modes: DMX Master/Slave
  • Digital DMX Display with 4-button menu for easy navigation
  • Equipped with 2 glass effect wheels and 1 independent dichroic color wheel
  • 6 dichroic colors: Orange, Green, Blue, Yellow, Purple, and White
  • High-tech plastic molded ends protect unit during transport and day-to-day use
  • 0-100% Dimming (via DMX)
  • Manual focusing lens
  • Beam angle: 34 or 52 degrees (Includes 2 replaceable lenses to change beam angle)
  • Includes hanging bracket
  • Run all night ? units stays cool ? no duty cycle
  • IEC In Out to Daisychain Power (Connect up to 5 H2O DMX PRO)
  • 1/4” input for optional UC3 remote control (sold separately)
  • Fan cooled
  • Safety hook on rear panel
  • Power consumption: 54W
  • LUX @ 3M: 1800 (34-degree lens), 1100 (52-degree lens)
  • Long life 50W LED Source (30,000 hr. rating)
  • Multi-voltage operation: AC 120-240V 50/60Hz (IEC Plug)
  • Dimensions (LxWxH): 11.5” x 8.75” x 4.75” / 292 x 236 x 121 mm
  • Weight: 9 lbs. / 4 kg.
