Item Descriptions:

Wireless audio transmitter transmitter receiver

Long-lasting battery: Compatible with DC 5 V, long lasting lithium ion battery is adopted,

For full charge you can use continuously for 6 ~ 8 hours, size: 51 * 27 * 11 mm.

Bluetooth 3.0: Compatible with HD audio decoding,

Bluetooth 3.0 with A2DP 3.0 You can enjoy high quality music wirelessly.

It is small and stylishly designed.

Black rubber oil surface has a red button,

Add translucent lamp shade, high quality and good touch.

In case

With the palm size, it is a mini size that you can easily carry around in your pocket.

Also, since it comes with a 3.5 mm audio connector, it will not get in the way even if connected to the device.

High quality and good touch feeling.

Compatible devices: Bluetooth headphones, Bluetooth speakers, TV, PC, Ipod, PDA, MP3 / MP4,

Media player, Walkman, Diskman, car stereo etc etc etc correspond.

Specification:

● Bluetooth version: V 3.0

● Bluetooth profile: A2DP, AVRCP

● Working distance: within 10 m

● Working time: about 8 hours (Tx) / about 6 hours (Rx)

Charging time: 1 - 2 hours

Weight ●: 11.6 g

● Charge input voltage: DC 5V

Battery: Lithium ion battery

● Size: 51 * 27 * 11 mm

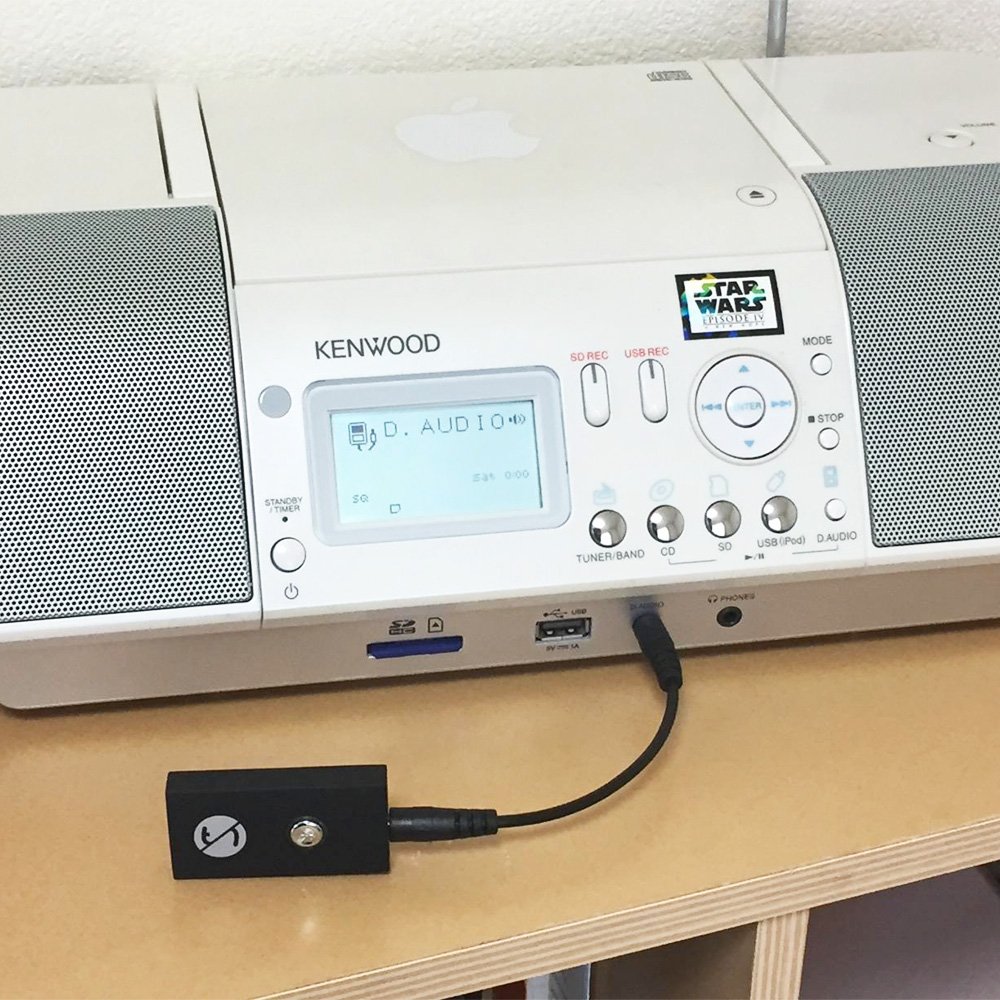

In case of receiver:

3.5 mm stereo mini cable with no bluetooth function Connect speakers and audio and connect with bluetooth function such as smartphone or iPad with this product, sound can be played.

please note:

① Pairing mode lasts for 2 minutes, and if you do not connect with the device within this time, it enters standby mode.

If pairing succeeds for 5 minutes, this product turns off automatically.

② Applies to equipment of 3.5 mm audio output jack.

If the bluetooth function has one of both the speaking device and the receiving device, apply.

You can use it while charging, but just in case, you should not use it while charging.

In the case of transmitter:

3.5mm stereo mini cable with no bluetooth function Connect a device such as a computer, MP3, or TV to receive sounds shipped from this product with bluetooth devices such as Bluetooth speakers, earphones etc.

please note:

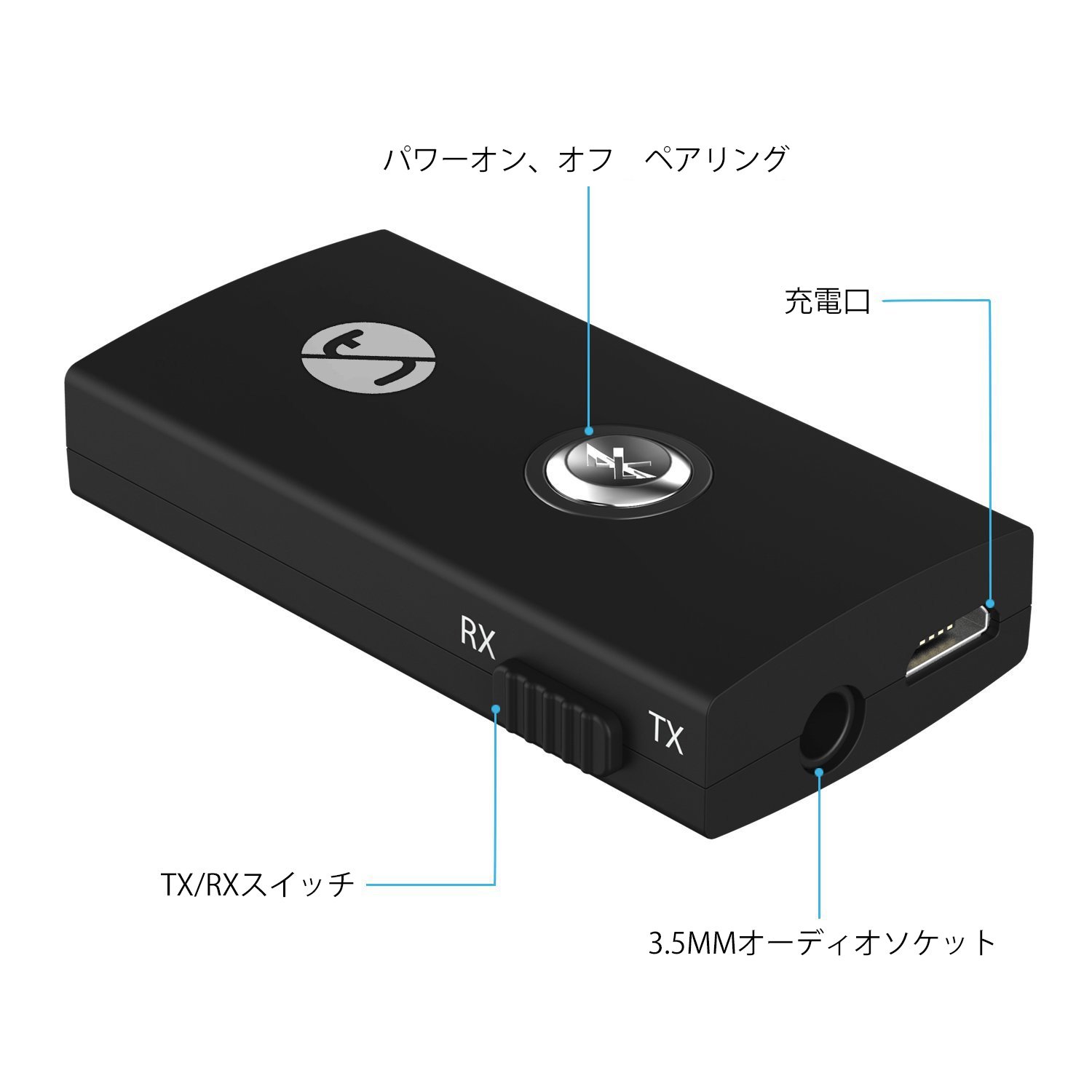

① When selecting the desired mode "TX" / "RX", switch the switch to the corresponding position and then turn on this product.

② Transmission distance is determined by the performance of the Bluetooth device that communicates, the amount of each power source, and the surrounding environment.

③ If you have any questions or problems about the product, please contact us by e - mail.

Products can adopt high quality materials and extend the service life.

Especially because it adopts black rubber oil surface and CSR chip, durability is more excellent.

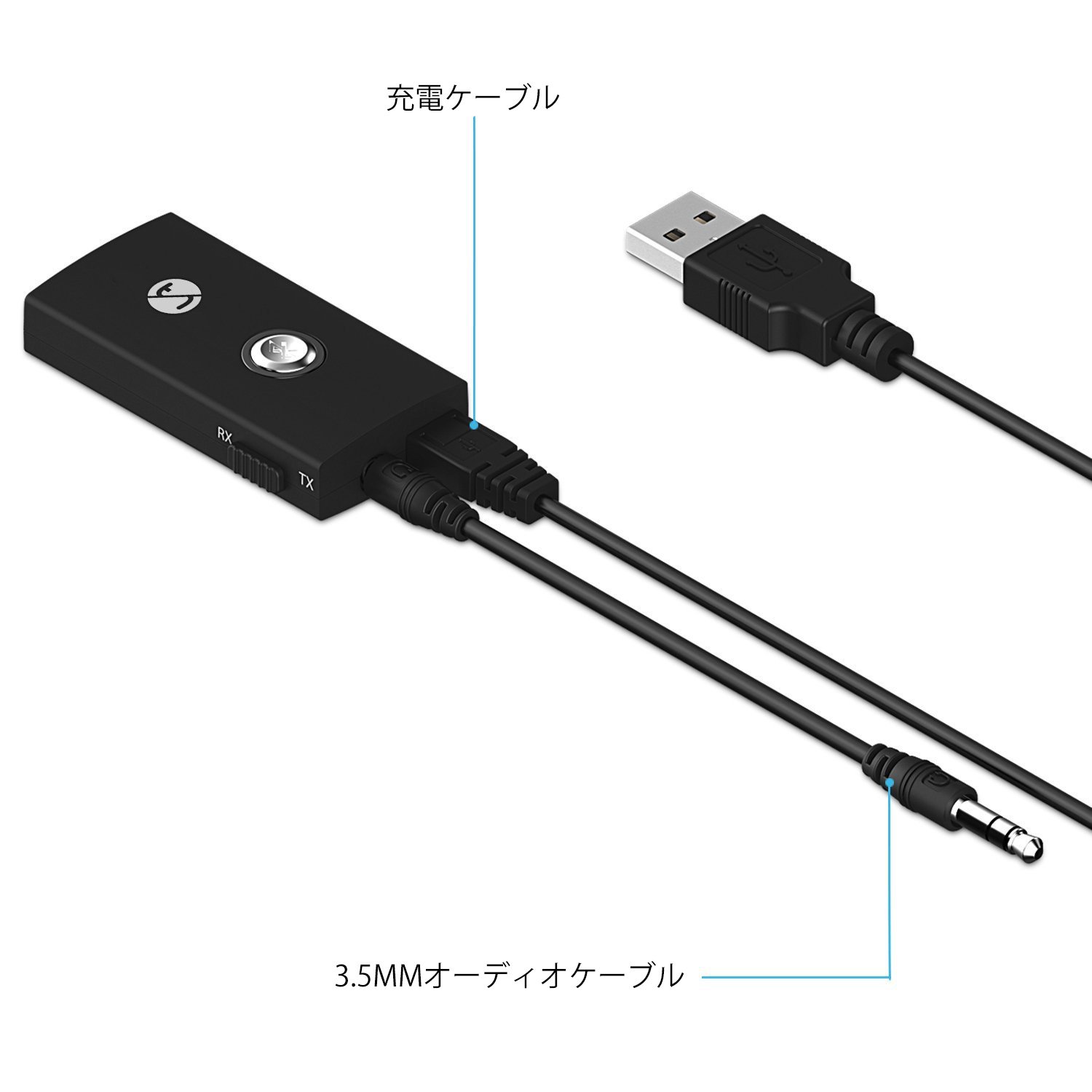

Package Contents

● 1 Bluetooth transmitter

● 1 USB charging cable

● 3.5 mm plug (male) - (male) cable × 1 piece

● Instruction manual × 2 formula (Japanese handling instructions available)

Features:

• Please enter model number Confirm this is compatible:
• Transmitter & receiver: Transmitter: Stereo audio is possible to be a Bluetooth compatible device.
• Receiver: Normal headphones, speakers, etc. can receive Bluetooth signals.
• Compatible equipment: Since it is a stereo mini plug connection type, it is applied to equipment with 3.5 mm audio output jack.
• Examples: Bluetooth headphones, Bluetooth speakers, TV, PC, Ipod, PDA, MP3 / MP4, Media player, Walkman, Diskman, Car stereo, etc. correspond.
• Pairing: TX mode is transmitter.
• RX mode is a receiver.
• RX mode: Push and hold the power button for about 6 - 7 seconds and pair until the red LED lamp and the blue LED lamp blink alternately.
• TX mode: Push and hold the power button for about 6 - 7 seconds and pair until the blue LED lamp blinks.
• Be sure to switch modes before starting the main unit.
• Switching in the ON state is not recognized.
• Bluetooth 4.0: Compatible with HD audio decoding, Bluetooth 4.0 with A2DP 4.0 Wireless high quality music can be enjoyed.
• Long-lasting battery: Compatible with DC 5 V, long-life Li-ion battery, can be continuously used for 6 to 8 hours in the case of full charge, size: 51 * 27 * 11 mm.
• Attention: Please charge when you first use, this product can be guaranteed quality.
• When there is radio interference in the middle and the outside, contact failure or power supply shortage.
• After charging, please remove the cable, insert it again, pair it.
• If you have any questions, please do not hesitate to contact us anytime.

Product information:

Shipping Weight: 58 g

Package Dimensions: 1.80 x 8.79 x 11.99 cm
