Item Descriptions:

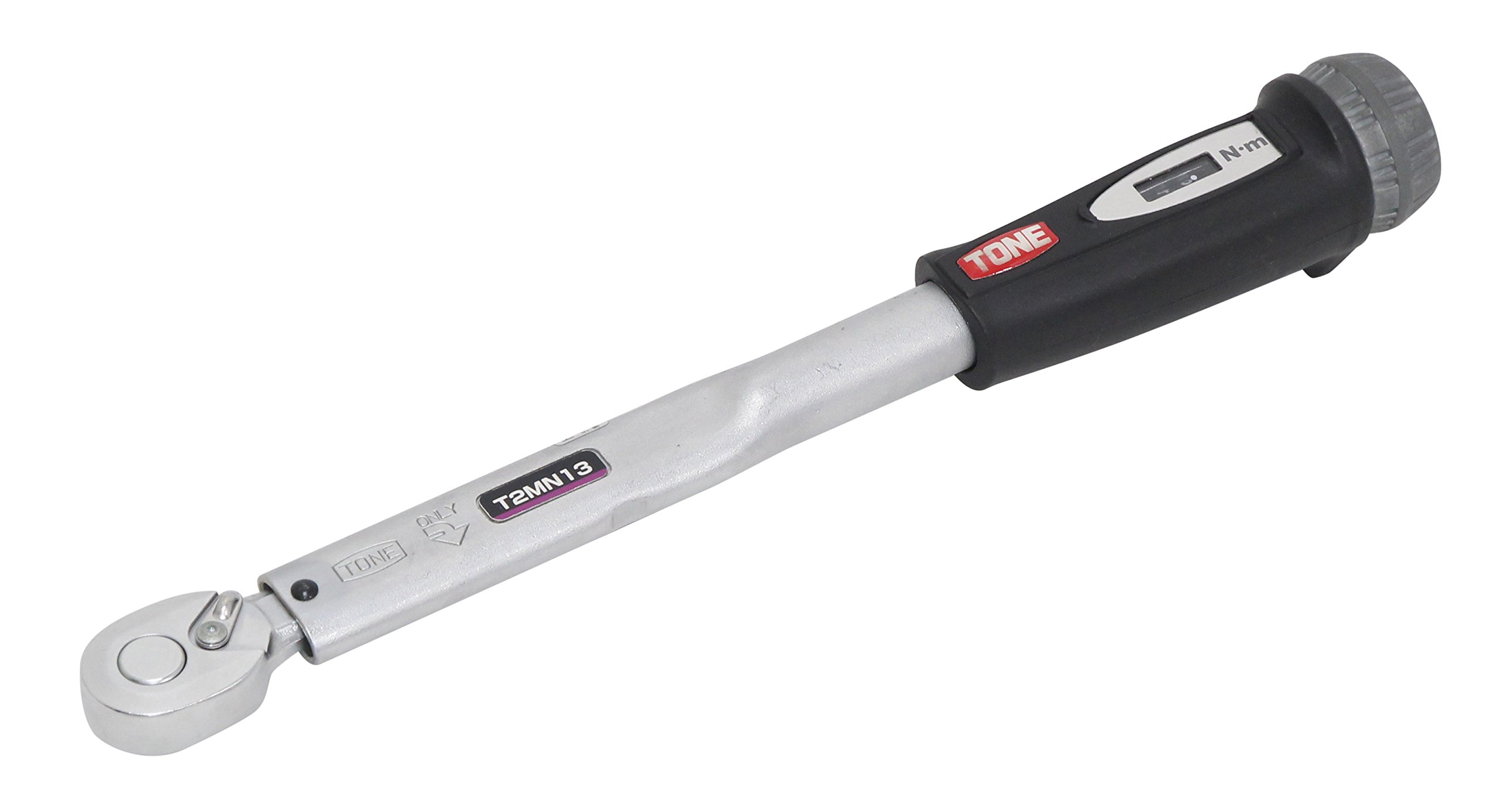

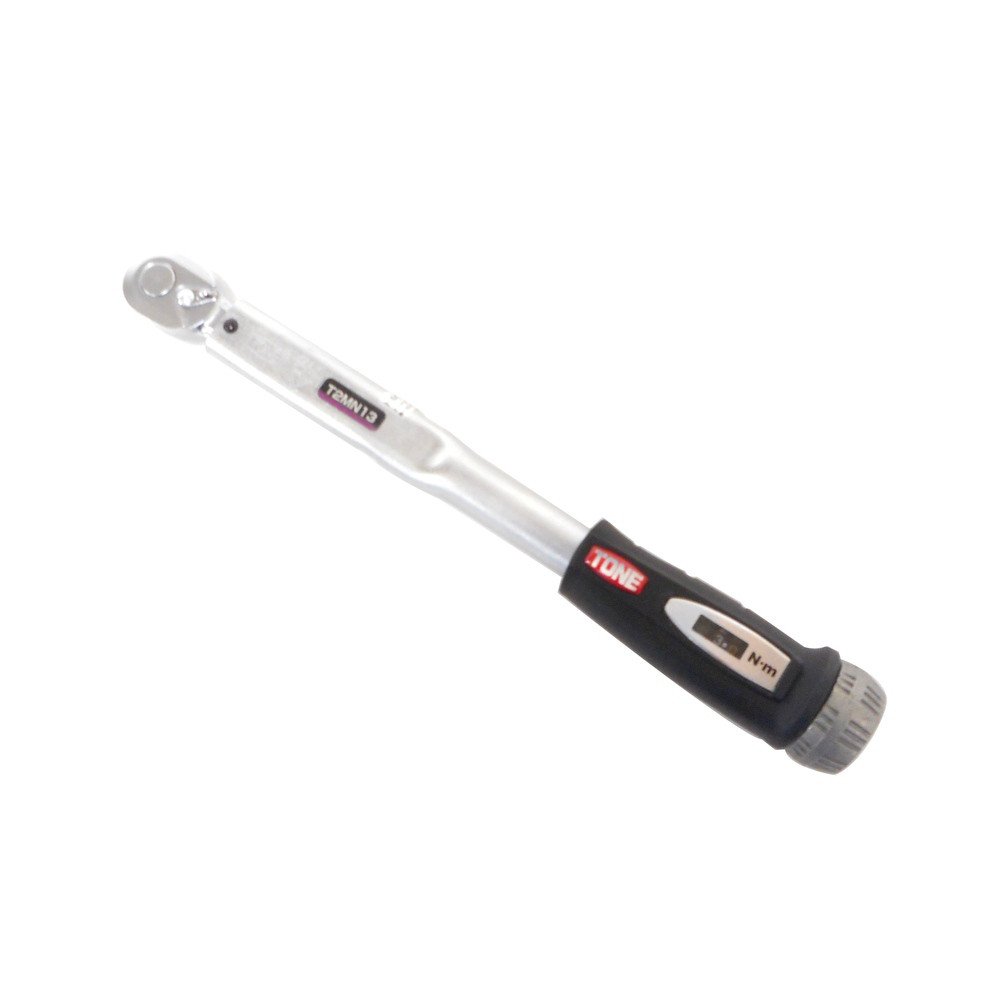

Product description

● Tightening work with preset torque value can be confirmed by "click" sound and hand feel.

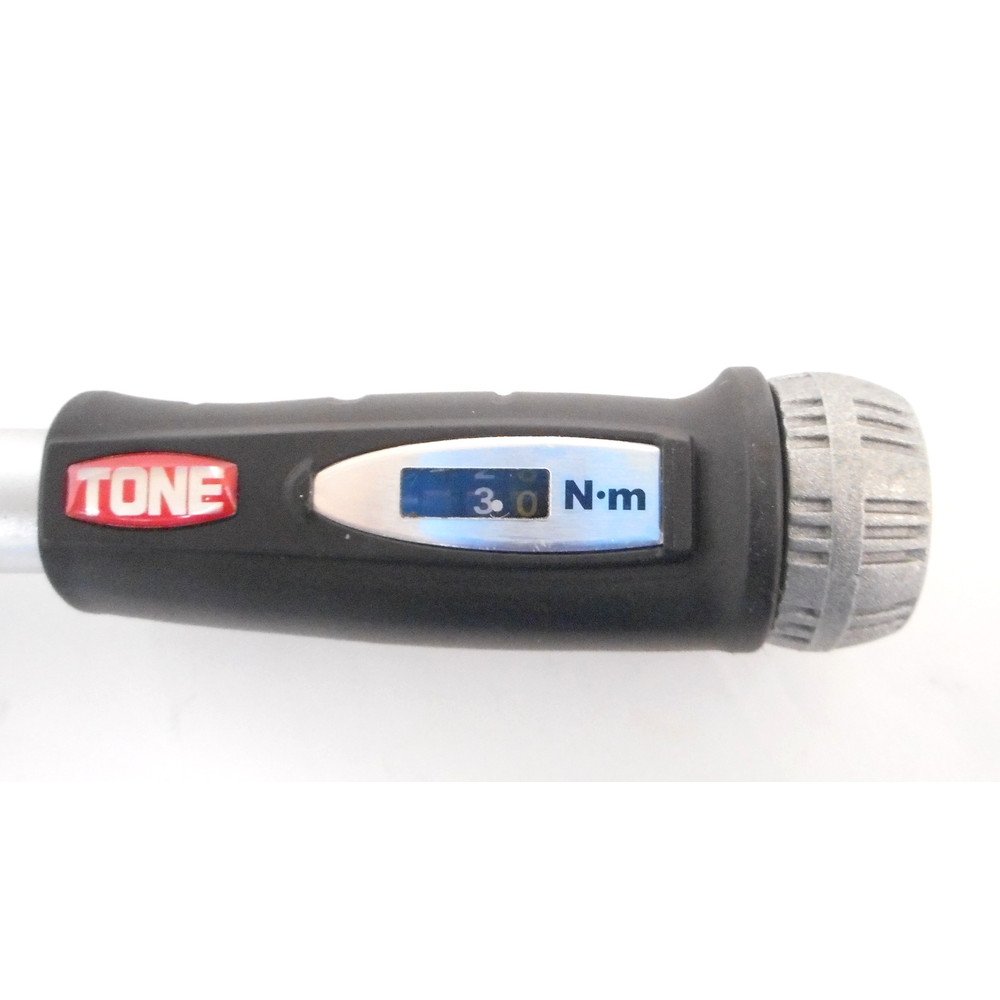

● In the digital display of the mechanical mechanism, the numerical value directly becomes the setting torque, and the set mistake drastically decreases.

● Torque adjustment range (N · m): 3 to 13 ● Minimum scale (N · m): 0.2 ● Insertion angle (mm): 6.35 ● Head width (mm): 24 ● Total length (mm): 253 ● Torque

Accuracy: ± 3% ● Load direction: right ● For assembly, maintenance and inspection at places where torque setting is required such as complex, electric installation, automobile, heavy equipment, aircraft, etc.

From Amazon

● Torque wrench that presets the desired torque value from among the torque values ​​in the torque capability range.

Torque management is easy and only by confirming the set value, there is no need to read the conventional main scale / minor scale.

Notice when you reach the set torque with a clicking sound or a light shock to the hand.

In the digital display of the mechanical mechanism, the numerical value directly becomes the setting torque value, and the setting mistake drastically decreases

Show all product descriptions

Features:

• Capability range: 3 to 13 N · m
• 1 scale: 0.2 N · m
• Horn drive: 6.35 mm
• Total length: 254 mm
• Head width: 24 mm
• Torque accuracy: ± 3%
• Torque load direction: clockwise rotation only
• Hand force at maximum torque: 71 N
• (Reference) Applicable bolt: normal M6 ~ M8, high force: M5 ~ M6

Product information:

Shipping Weight: 630 g

Package Dimensions: 7.39 x 9.80 x 30.91 cm
