Item Descriptions:

Confirm early morning hypertension for two people

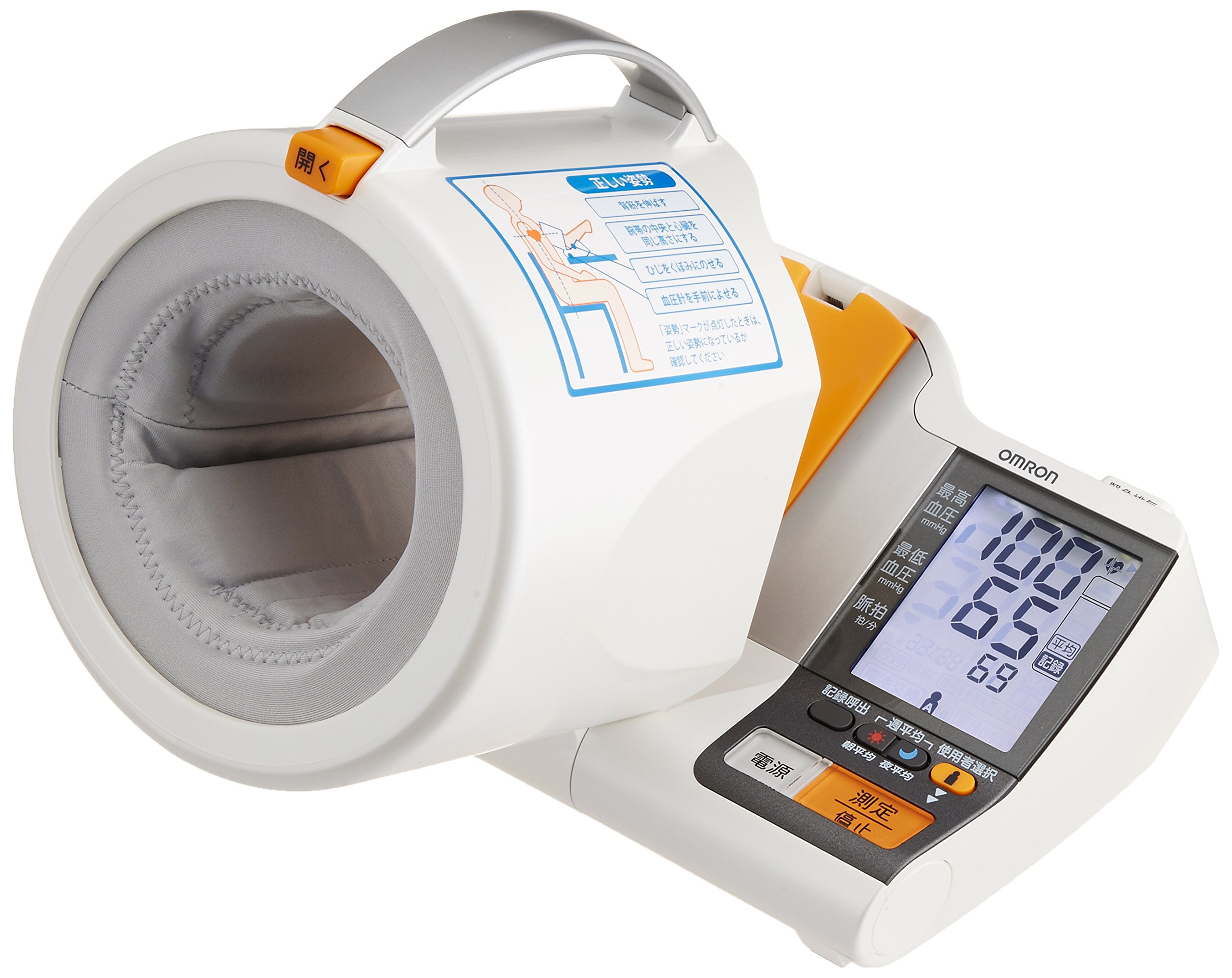

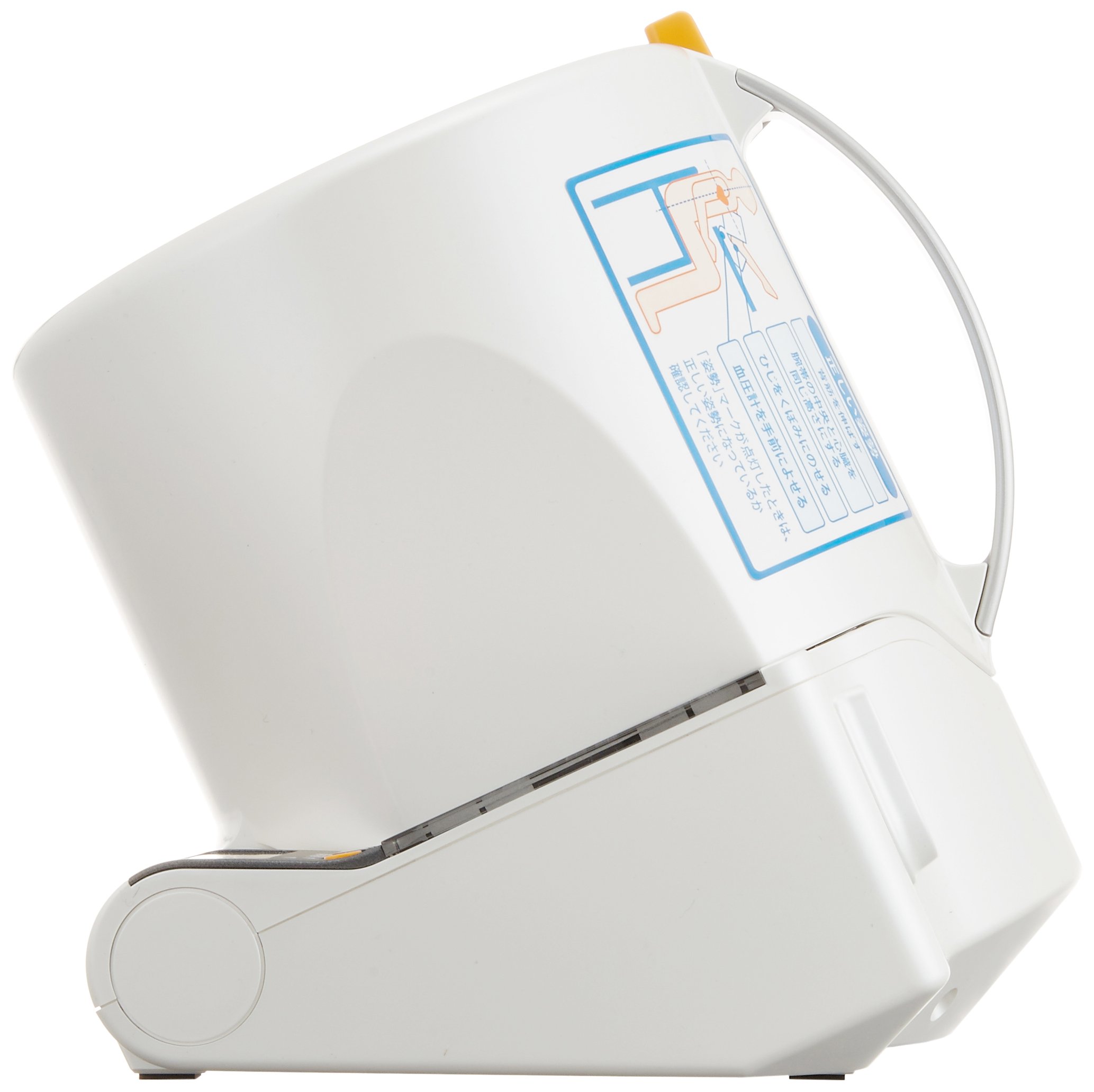

Product Name: Omron Digital Automatic Blood Pressure Monitor HEM-1010

Contraindication / Prohibition:

[Contraindication / Prohibition]

(It is a precaution for proper use of sphygmomanometer.)

(1) Self-judgment of measurement results, treatment is dangerous so please follow the guidance of a doctor.

(2) Please do not use for infants and those who can not express their intention by themselves.

(3) Do not use those other than 170 to 320 mm around the upper arm.

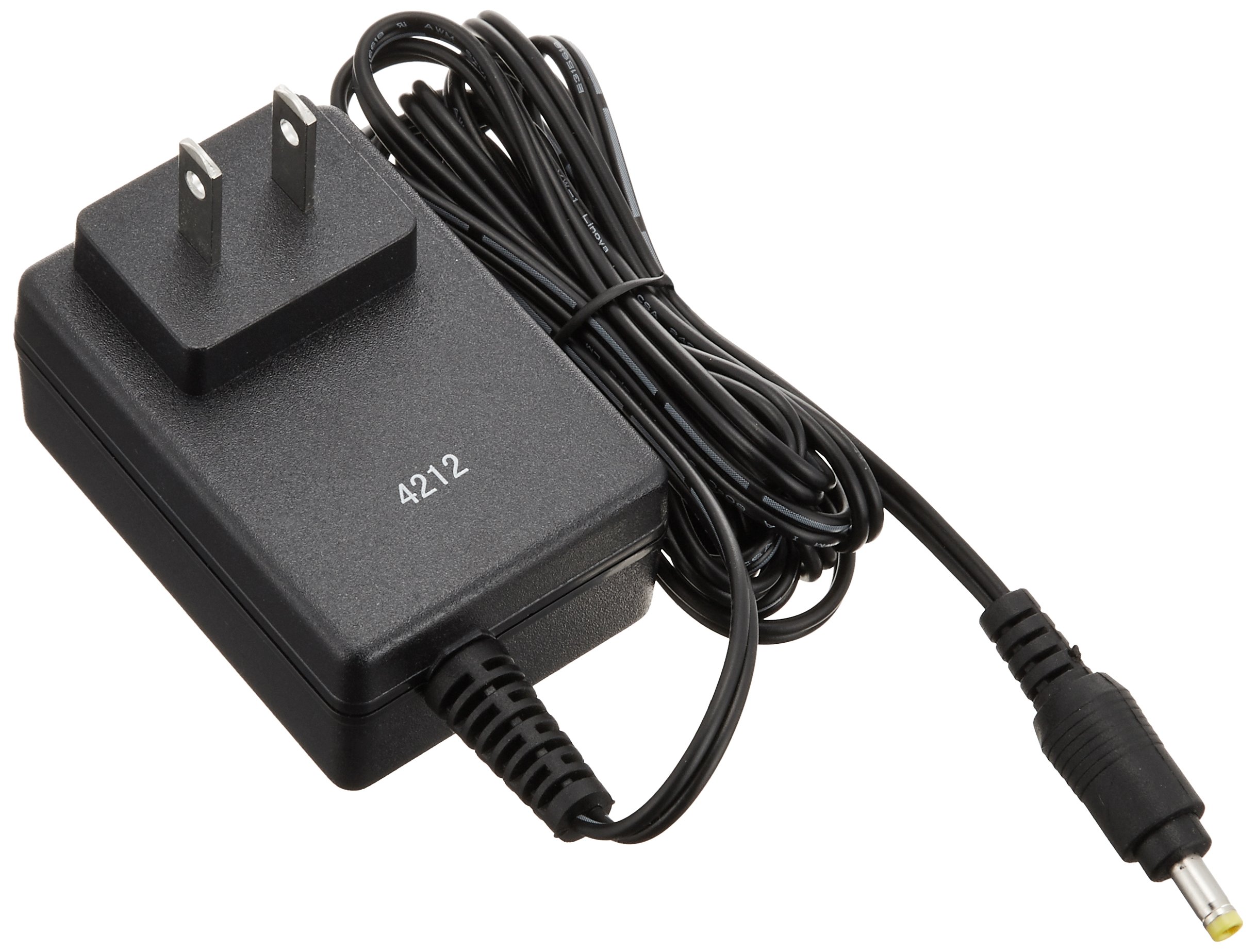

(4) Do not use other than the dedicated AC adapter.

Item specification etc.:

(1) Error in blood pressure measurement by clinical performance test:

Average error with auscultatory method; within ± 5 mmHg

Standard deviation within ± 8 mmHg

(2) Error in indication of cuff pressure; within ± 3 mmHg

(3) Rapid exhaust:

Time required to rapidly evacuate from 260 mmHg to 15 mmHg; 10 seconds or less

(4) Safety of cuff pressure indication:

Change in indication value of cuff pressure after simulation measurement of 10000 cycles: 3 mm Hg

Usage note:

(1) Please stop using it if you feel abnormal during measurement or feel sick.

(2) If you have severe blood circulation disorder or blood disorder, internal bleeding may occur temporarily due to pressure, so please use under the guidance of a doctor.

(3) When manual pressure is applied, internal bleeding may occur temporarily due to compression, so please do not apply pressure more than necessary referring to the instruction manual.

(4) Please adjust the angle so that the arms are at the same height as the heart.

(5) Keep at rest and measure in a relaxed state.

(6) Please do not measure after smoking, bathing, drinking.

(7) If the measurement is not performed normally, an error message will be displayed.

(8) When the battery replacement mark is displayed independently, replace four batteries at the same time with a new one.

(9) Do not use batteries except AA alkaline batteries.

(10) Do not use for purposes other than blood pressure measurement.

(11) Do not disassemble or remodel the sphygmomanometer's body or arms.

(12) Please do not use mobile phones around this product.

This product may malfunction.

(13) This sphygmomanometer can not be used with other medical equipment.

Be sure to use the sphygmomanometer body and armband included in the package.

Please do not connect with other medical equipment and instruments.

There is a fear of accident.

Information on Manufacturers and Manufacturers:

Manufacturing selling agency: Omron Healthcare Co., Ltd.

〒917-0002 Kyoto Town, Kagoshima-shi Tunado-cho 53 Kuninobori

Telephone: 0120-30-6606

Effect / indication:

To measure systolic blood pressure and diastolic blood pressure non-invasively for health management.

pressure

(1) Measurement range: 0 mm Hg to 299 mm Hg

(2) Scale: 1 mmHg

(3) Air supply: pressurization by automatic pressure pump

(4) Decompression: gradual decompression by control valve

(5) Exhaust: Automatic rapid exhaust

(6) Measurable arm circumference: 170 mm to 320 mm

pulse

(1) Measurement range: pulse rate 40 beats / minute to 180 beats / minute

(2) Scale: 1 beat / minute

(3) Accuracy: within ± 5% of the reading value

Features:

• External dimensions: width 230 × height 217 × depth 228 mm
• Body weight: Approximately 1.6 kg (battery not included)
• Adaptive arm circumference: 17 ~ 32 cm
• Early morning high blood pressure confirmation function
• Medical device certification number 218AGBZX00030000
• Management medical equipment
• Medical device certification number 218 AKBZX00106000

Product information:

Shipping Weight: 2240 g

Package Dimensions: 24.38 x 24.64 x 25.91 cm
