-. Brand : CNLW
-. EAN : 7705147766576
-. Feature : Type:MC4 Amorphous solar panel connector with diode 10A(Fuse) Color: Black / Rated Current:25A(2.5/4mm²),30A(4/6mm²) Withstanding Voltage:1000V DC(TUV),600V(UL) Contact Resistance:≤0.3mΩ Protection Class:Class II / Temperature Range:-40℃~+90℃ Protection Degree:IP2X,unmated;IP67,mated Wire Size Range:2.5/4/6mm²(14AWG,12AWG,10AWG) Unmating Force:200 Newton / Insulation Material:PC/PA Contact Material:Copper,silver plated Flame Class:UL94-V0 or UL94-5VA / Free shipping by ePacket
-. IsAutographed : 0
-. IsMemorabilia : 0
-. Label : LIAOWANG
-. Manufacturer : LIAOWANG
-. Model : MC4
-. MPN : LW000657
-. PackageQuantity : 1
-. PartNumber : LW000657
-. ProductGroup : Automotive Parts and Accessories
-. ProductTypeName : AUTO_PART
-. Publisher : LIAOWANG
-. Studio : LIAOWANG

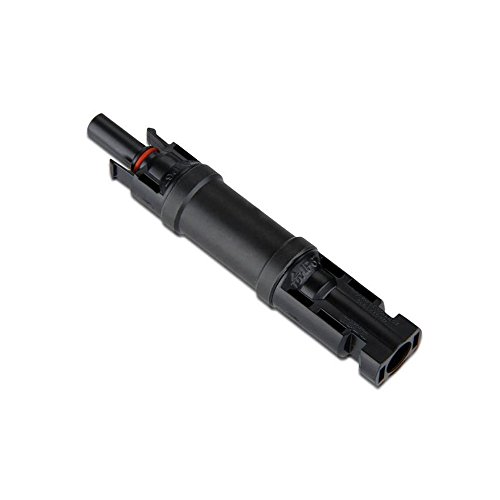

-. Title : MC4 Amorphous solar panel connector with diode 10A(Fuse),Male and Female Plug,Waterproof connectors,PV connector,TUV certification


DIMENSION INFOMATION
Product Dimensions : 0(Width) x 0(Length) x 0(Height)
Shipping Weight : 0.26 pounds
