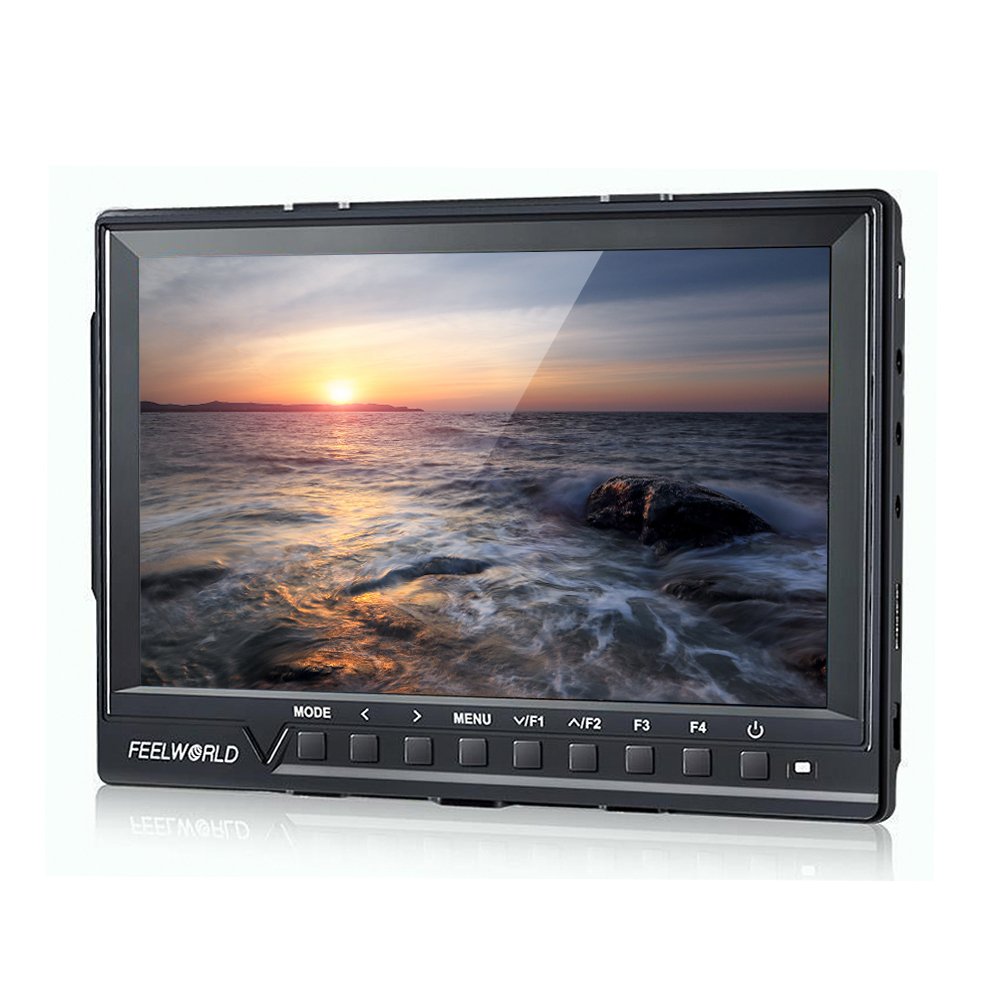

Feelworld FW 760 7 inch IPS full HD 1920 x 1200 on camera field monitor peak focus assist histogram zebra exposure-1200: 1 high contrast, 450 cd / m 2 high brightness, 160 wide viewing angle 4 K HDMI signal input supported

Item Descriptions:

Various product features:

1. Multiplication segmentation

2. Embedded audio meter

3. Camera mode

4. Scan mode (above, below)

5. Zoom (Auto, 4x, 9x, 16x)

6. Anamorphic mode (1.3 times, 2.0 times, 2.0 times MAG)

7. Pixel to pixel

8. Center marker

9. Safe area (70%, 80%, 90%)

10. Marker type (16: 9, 4: 3, 2.35: 1, 1.85: 1)

11. Marker color (red, green, blue, white, black, cyan, purple, yellow)

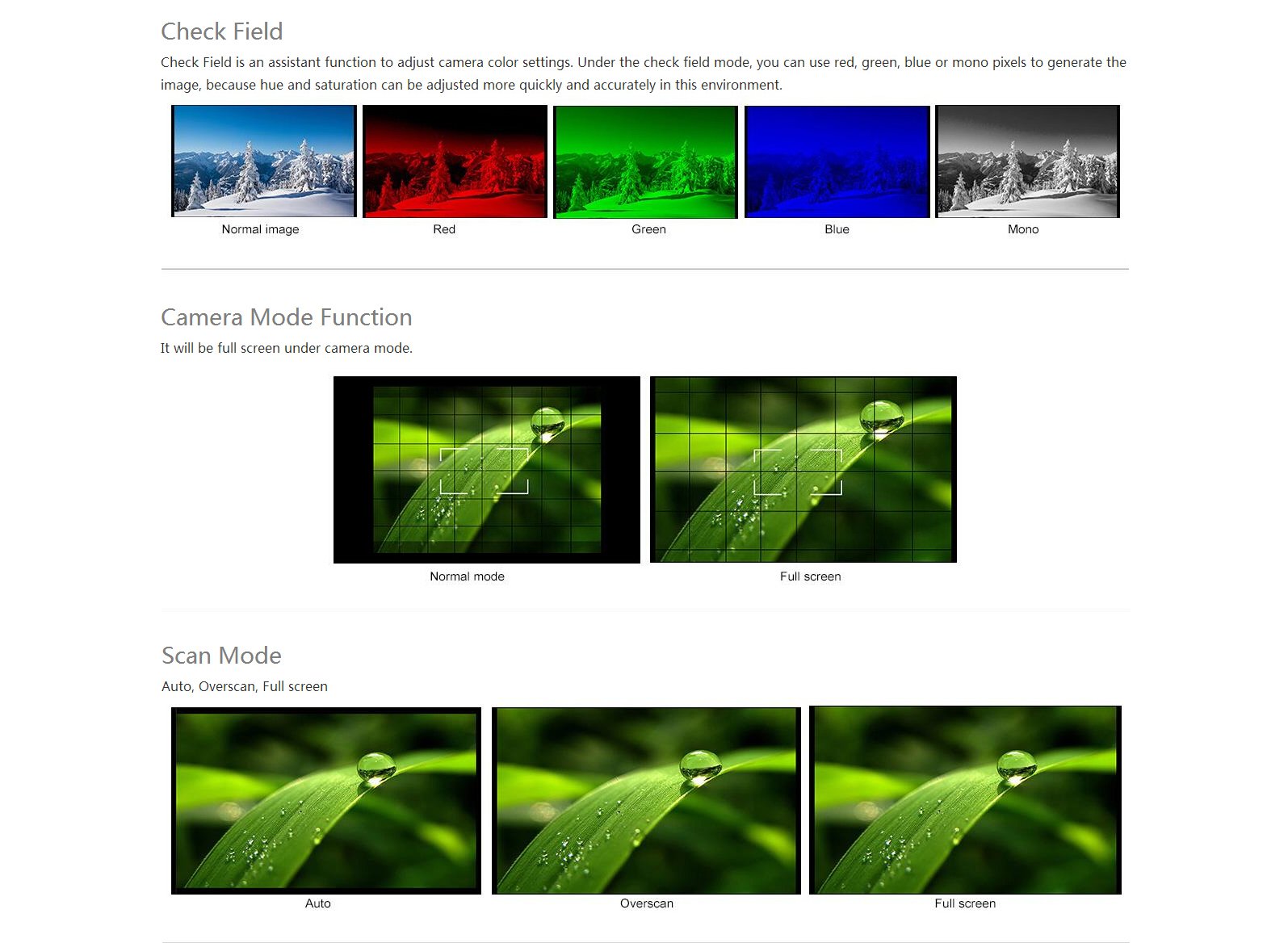

12. Check field (gray / red / green / blue)

13. Image Flip (H, V, H / V)

14. Image freeze

15. Color temperature adjustment

Product specification:

HDMI support mode: 480i / 480p / 576i / 576p; 720p (60 / 59.94 / 50/30/29/24 / 23.98); 1080i (60 / 59.94 / 50) 1080p (60 / 59.94 / 50/30 / 29.97

/ 25/24/24 fps / 23.98 / 23.98 fps); 4 K UHD 3840 * 2160 p (30 / 29.97 / 25/24 / 23.98)

Resolution: 1920 x 1200

Dot pitch: 0.07875 (H) x 0.07875 (W) (mm)

Aspect ratio: 16: 10

Brightness: 450 cd / m 2

Contrast: 1200: 1

Viewing angle: 80 ° / 80 ° (L / R) 80 ° / 80 ° (U / D)

Backlight: LED

Input: HDMI, AV

Output: OSD controller

Audio: Speaker, earphone slot

Power consumption: 5 W

Input voltage: 7V to 24V

Installation: 1/4 "-20 thread socket (1 bottom side)

Package Contents

1 X mini HDMI cable

1 x sunshade

1 X Hot shoe mount

1 x F 970 battery plate

1 XHDMI plug lock

1 X Owner's Manual (English)

1 X Pergear 12 V Power Adapter (with Technical Mark)

1 X Pergear Cleaning Kit

About warranty:

One year after purchase is the warranty period.

If it breaks down, please contact us from the purchase history of Amazon, you can exchange / repair the product at your request by detailed problem.

★ However, it will be out of warranty for breakage, remodeling or breakdown due to your own use.

Features:

  • Please enter model number Confirm this is compatible:
  • Full HD 1920 x 1200 high resolution, 323 PPI.
  • Sharp image, brings the optimal visual experience to you.
  • 160 ° wide viewing angle, 450 knit brightness and 1200: 1 contrast ratio, FW 760 provides richer, brighter and more dynamic color.
  • Along with exposure control functions such as histogram, false color, zebra marking etc.
  • Even in very bright sunny outdoors, you can capture the real image data.

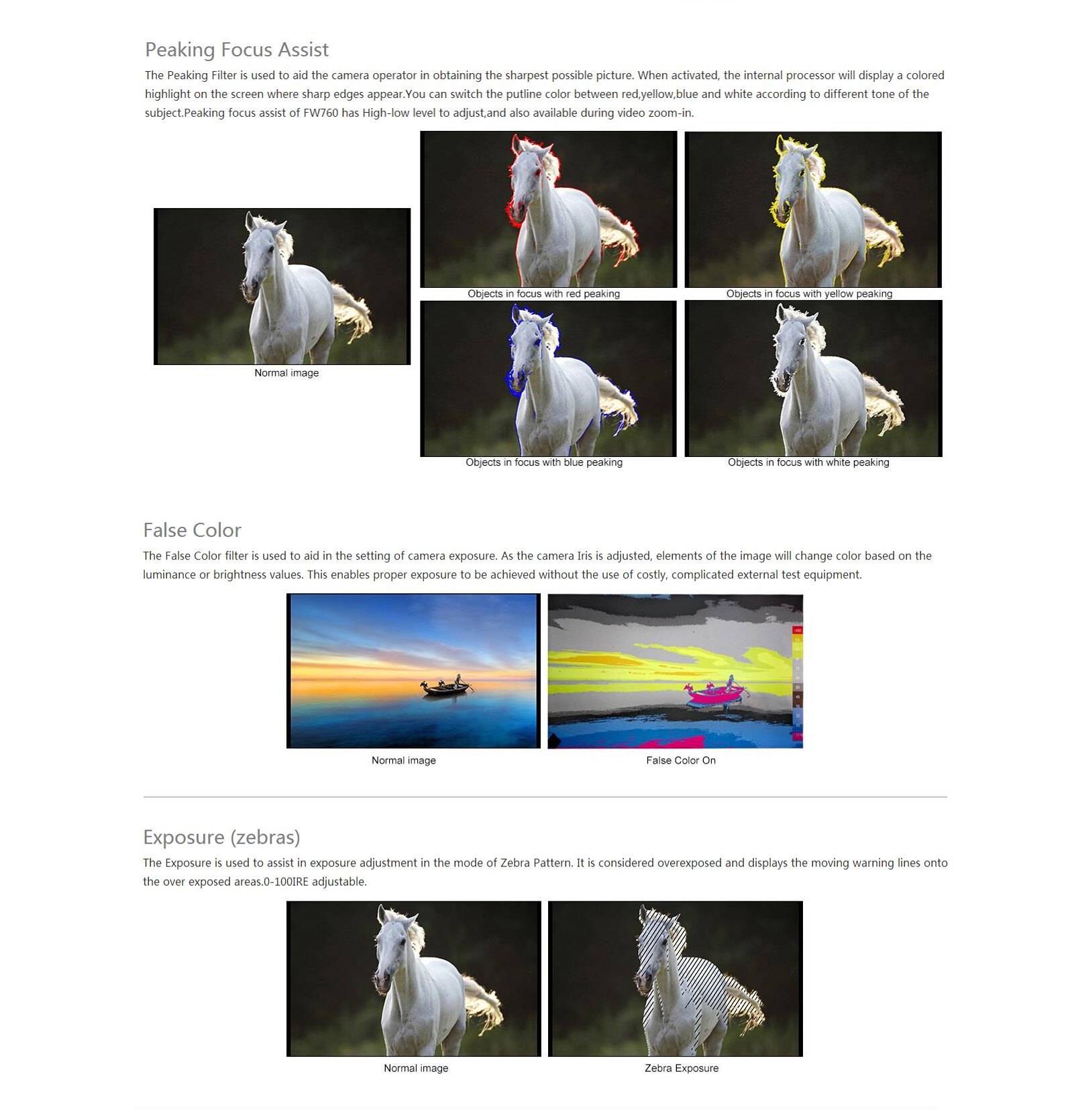

  • Peaking Focus Assist allows you to switch colors between red, yellow, blue and white depending on different tone of interest.
  • The peaking focus assist of FW 760 has high / low level, and it is also available when video zoom up.
  • Many interfaces such as HDMI / AV / USB upgrade input port, OSD controller / 3.5 mm earphone slot / built-in speaker output interface, HDMI format for HD signal transmission (0.67 "thick and 9.5 ounce)
  • When used, a specially designed HDMI lock connects the camera properly.

Product information:

Shipping Weight: 979 g

Package Dimensions: 7.01 x 21.21 x 23.39 cm

Customer reviews from Japan:

Low price and easy to use

I am using ADODE TECHNO CL 75 HOXN separately but it is convenient to use the AC adapter even with the battery attached. Function can be assigned to F1 ~ 4, so you can quickly call out the necessary functions. The image quality is very good IPS so it looks good from the side, but the color balance is all pink at the setting color temperature, but it does not produce a decent color so if you set RGB to 120 with free color temperature setting, the color balance has improved It was. Just when you paran the camera, the image flickers and it will be difficult to see it so fixed images do not matter. Since the price is less than half of CL74 HOXN, I think that it is good to use it without dividing it because there is no use for money that is not applied to the foundation circuit.

I used it as a preview monitor of Livewedge

I used it as a preview monitor of Livewedge for live distribution at the event venue. It was compact and it was very good to have FHD. The picture is also very beautiful and satisfying. Unlike monitors for cars, operation buttons are on the front and functions are also many, so I think that it is very good as a functional preview monitor. Because this alone is not self-sustaining, a small tripod etc. is required separately.

Cost performance is wonderful

I think that it is sufficient performance with this price. The tone and color tone of flowing stones is subtle, but I purchased it for the composition of astrophotograph and focus confirmation, so this is enough. Although the manual was missing, it was a wonderful response, sending a pdf file with haste.

Thin cheap and fullHD

Ultra thin type lightweight shade is big and easy to use Felt folding type It is cheap but not Eze It looks like you are using a full fullHD panel like this Where can you procure from this panel ... where to remove the battery fastener on the back side for general purpose Because it is connected by the connector for board mounting so you can divert back connector to reduce the bulge while connecting your favorite battery without using DC plug on the side 2.2 A output properly comes out 5v mobile battery is manageable It is a state (Specification is 6v ~ so be careful) It might be the best for maneuvering with drone etc

Cospa Good.

Full HD resolution is certainly well for visibility and is perfect for focus confirmation. The coloring and the reproduction of the contrast are still price, and there is no "texture" like SmllHD or black magic. To the last it is for confirmation. No matter what you do, the highlights are quick, and the shadow crush is also fast. It gives priority to beautiful appearance and raises the contrast. Because it is wonderfully light, I think that if you replace the battery plate for E6, DSLR handheld shooting will be effective as well. The only drawback is that if you mail it from mainland China for 150 dollars, even if you use B & H; from the United States or something like that, is it priced more than 40,000 yen only in Japan? I convinced it at 23,000 yen and changed it, but it was said that the price was raised right after the punch (lol)

I liked the Feelwaorld 7 "HDMI monitor

I thought that the price was also reasonable with better products I thought. Other points I noticed ① There is a hood ② There is a hanging bracket of the HDMI cable ③ AC adapter is attached ④ Center · Markers such as 90% can be put ⑤ Mounting bracket (can be adjusted freely) ⑥ With cleaning goods attached ⑥ It was good if Japanese manic was attached, but I managed to figure it out

this is good

This is necessary and sufficient for simple preview use. Image quality is also quite good. And it is light and thin, and the reaction of various buttons is also good.
