Product Description
Specification
Support Computer Systems: Windows 98SE, Windows7, Me, 2000, XP, Vista, MAC,Linux etc.
Connecting port: RJ45 LAN port
Transmission Rate:
11n: Up to 150Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11b: Up to 11Mbps (dynamic)
Frequency Range: 2.4-2.4835 GHz
Support WLAN Standards: IEEE802.11b/g/n
Modulation Mode: DBPSK, DQPSK, CCK, OPDM,16-QAM, 64QAM
Antenna: 2 dBi PCB Antenna
Product Size: 75mm*55mm*24.5mm
Theoretical Range Distance: 25-50m (indoor)

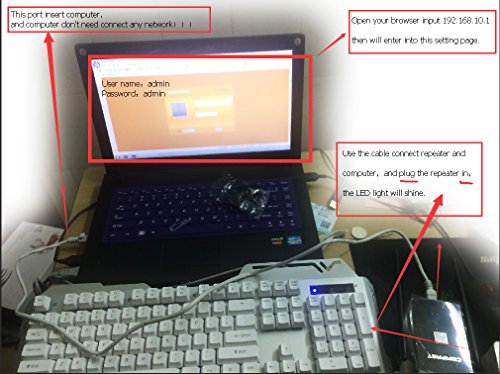

Repeater Mode setup steps:
First, plug it in, find it in the wifi list and connect to it with your computer.
Second, using a browser type 192.168.10.1. in the address field.
Third, login screen comes up, type admin for both user name and password.
Finally, You can setup our product depending on what mode you want to use.
NOTICE:
The wifi extender only extends the wifi coverage range, BUT please know that it couldn't
boost the speed of your original router or hold the same speed of the original router.
It means that it's wifi speed may be weakened compare with your router.
Packing List:
1* CF-WR150N wifi extender
1* 1M web line
1* Quick installation guide
1* Guarantee card
Feature
WiFi transmit speed up to 150Mbps
