Product Description

Feature:

100% brand new and high quality.
One ways of HDMI signal input and output， one ways ARC audio (Toslink) signal output
HDMI output port support ARC (audio return channel)
HDMI supports 4K. Support CEC function
Support input and output up to 5 meters AWG26 HDMI standard cable length
The device has ARC switch and indicator light to let you know if ARC is disabled or enabled

Specification:
HDMI Resolution:24/50/60fs/1080P/1080i/720p/576p/576i/480P/480i，24/30/2160P
Support audio format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
Support ARC audio output format (Relate with display devices):LPCM2.0/DTS/Dolby-AC3
Max bandwidth:340MHz
Maxtransmission bandwidth:10.2Gbps
Operating Temperature range:0 to +40C
Operating Humidity range:5 to 85％RH (No Condensation)
Storage Temperature range:-10 to +55C
Storage Humidity range:0 to 90％RH (No Condensation)
Dimension (Lx W x H):52x48x20 mm
Operating and Connecting:
To use the HDMI Cable to connect the HD sources with the HDMI Input port and uses the HDMI cable to connect the HD display with the HDMI Port.(This mode the HDMI port is pass-through channel， pls make sure the ARC is off).
To use one HDMI Cable to connect the Display that supported ARC with the HDMI output port of the device and use one optical cable to connect the AV receiver and the SPDIF output port.(At this mode， you can use ARC， pls make sure that the ARC of device and Display is on).
Connect DC 5.5mm cable to device DC 5V input port. And connect the USB port to standard USB(Type A) power interface.
Note: Please use HDMI v1.4 standard cable for the display device and ARC adapter connection

Package Content:

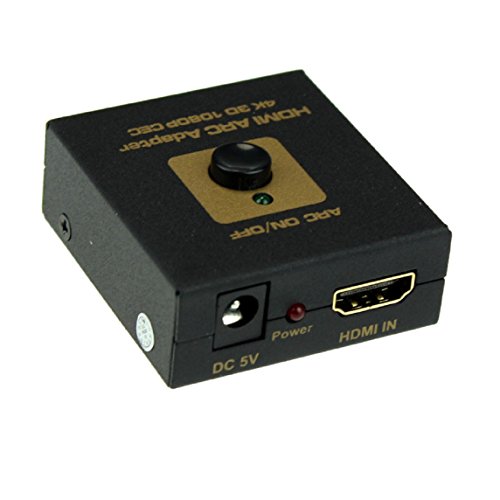

1PC HDMI ARC Adapter(without retail package)
1PC USB to DC 5.5mm Power Cable
1PC User Manual

Feature

Max working current:0.15A/5V DC
Input cable distance:≤5m AWG26 HDMI standard cable
Output cable distance:≤5m AWG26 HDMI standard cable
Optical fiber cable output distance:≤30m(Use the optical fiber cable loss less the 0.2dB/m)
Bessky（TM） is a registered trademark and the only authorized seller of coromose branded products.
Item model num : Bessky-R253-5214
