Item Descriptions:
specification:
Brand: FEELWORLD
Model: FW 74K
Panel type: 7.0 inch IPS liquid crystal
Resolution: 800 × 1280 pixels
Backlight: LED
Dot pitch: 0.11775 (W) × 0.11775 (H)
Aspect ratio: 16: 10
Brightness: 400 cd / m 2
Contrast ratio: 800: 1
Response time: 25 ms
Viewing angle: 89 ° / 89 ° (L / R) 89 ° / 89 ° (U / D)
Input signal: video, audio, HDMI
Output: Wire remote OSD controller, built-in speaker, 3.5 mm audio
Video color system: PAL - 4.43 / NTSC - 3.58 HDMI Support format: 480i / 480p / 576i / 576p 720p (60 / 59.94 / 50/30/29/25/24 / 23.98) 1080i (60 / 59.94 / 50)
60 / 59.94 / 50/30 / 29.97 / 25/24/24 fps / 23.98 / 23.98 fps) 4 K UHD 3840 * 2160 p (29.97 / 25 / 23.98)
Input voltage: DC: 7.5 to 35 V
Power consumption: ≤ 5 W
Installation method: 1/4 inch bracket screw hole can easily be connected to hot shoe mount, tripod fixation equipment
Working temperature: -20 ℃ ~ 50 ℃
Storage temperature: -30 ℃ to 60 ℃
Monitor size: 17.6 * 13 * 1.7 cm / 6.9 * 5.1 * 0.7 inch
Monitor Weight: 290 g / 10.2 oz Package Size: 22 * 19.3 * 6.5 cm / 8.7 * 7.6 * 2.6 inch
Package Weight: 890 g / 31.4 oz

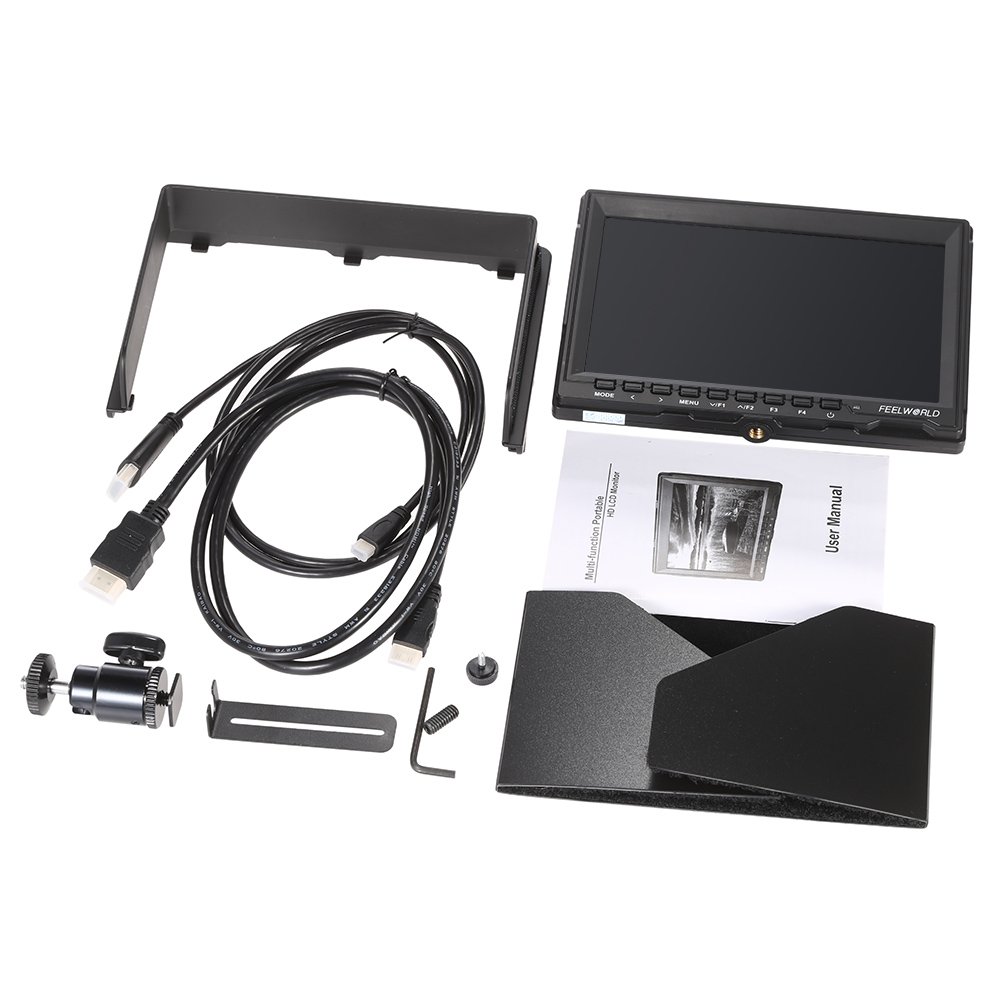

Package list:
1 * Monitor (with built-in F970 battery plate)
1 * Monitor frame
1 * Sunshade
1 * Micro HDMI - HDMI cable
1 * Mini HDMI - HDMI cable
1 * HDMI plug lock
1 * Hot shoe mount
1 * Hexagonal wrench 1 * Screw 1 * User manual (English)
Features:
- Please enter model number Confirm this is compatible:
- Ultra slim design of 17 mm only for FW 74K.
- Designed for professional HDV and HD single lens reflex users is a portable 7 "IPS LCD screen camera monitor.Wide viewing angle, IPS 1280 * 800 Professional peaking filter for outdoor shooting, it is more
- I can.
- The most noteworthy feature is that the monitor supports SONY A7S FS7 Panasonic GH 4, other 4K cameras in both HDMI interface and 4K resolution UHD 3840 * 2160p (29.97 / 25 / 23.98) output format
- is.

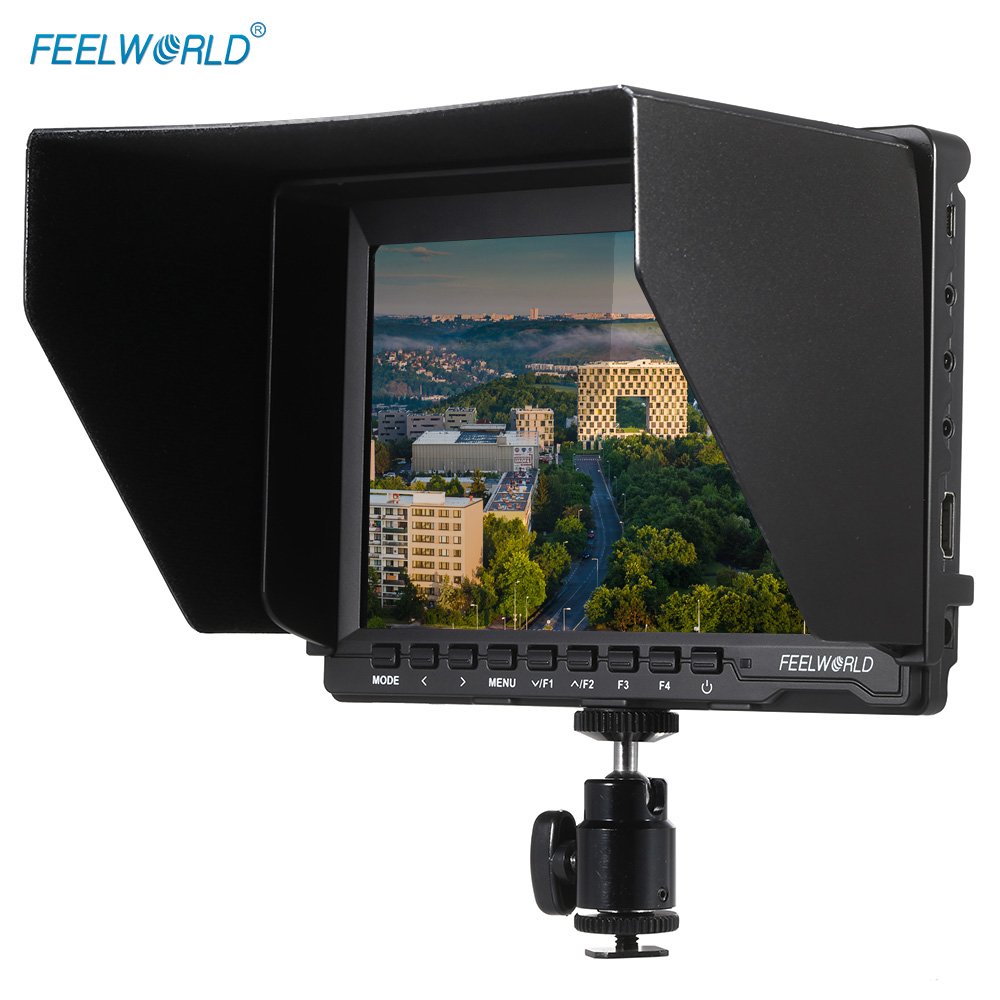

- Portable frame and sunshade and high brightness, contrast, high resolution, the monitor can be seen under the sun's light.

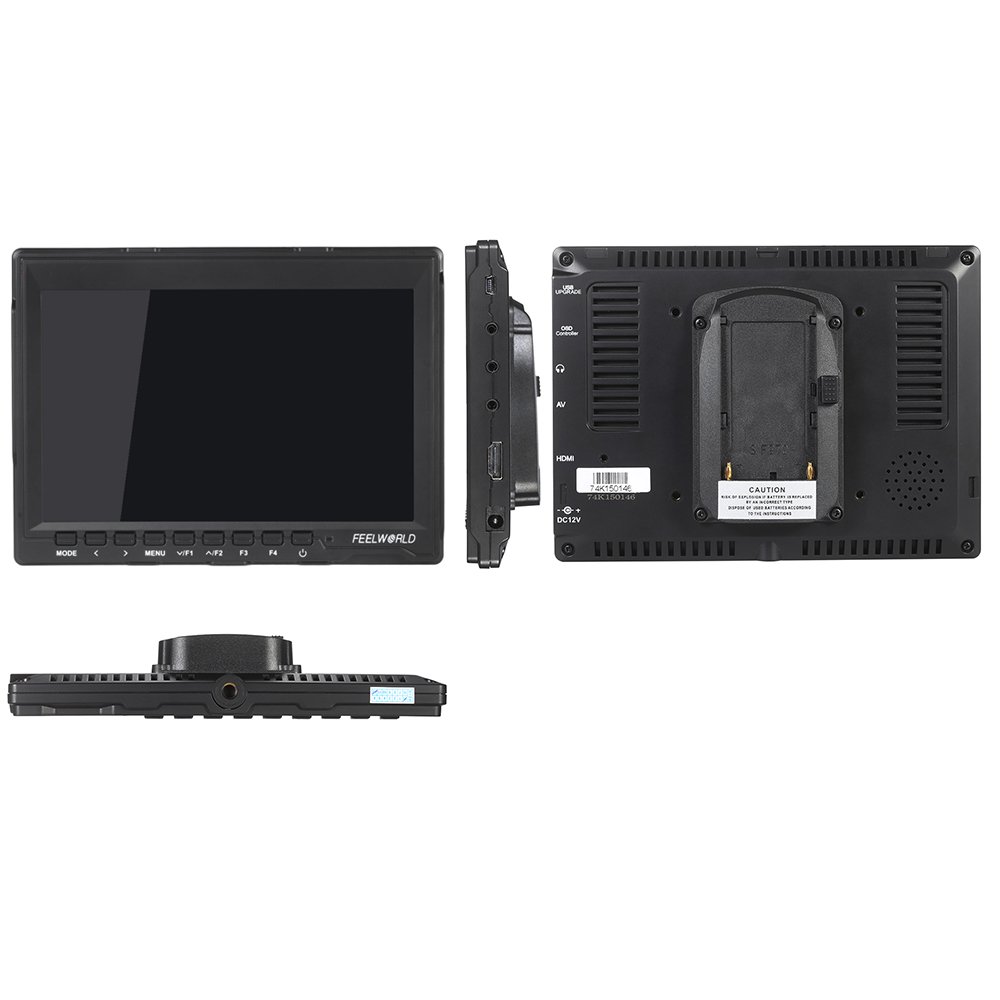

- On the back of the monitor there is a built-in F970 battery plate for fixing various batteries.
- Wide Viewing Angle: The monitor uses a 7 "IPS LCD screen that provides a wide viewing angle of 178 ° / 178 ° and brightness of up to 400 cd / m 2, so it is accurate from any point in the view
- IPS: wide color gamut LCD panel 1280 * 800 resolution ensures more precise color restoration than the monitor Exquisite image quality and more rich color.

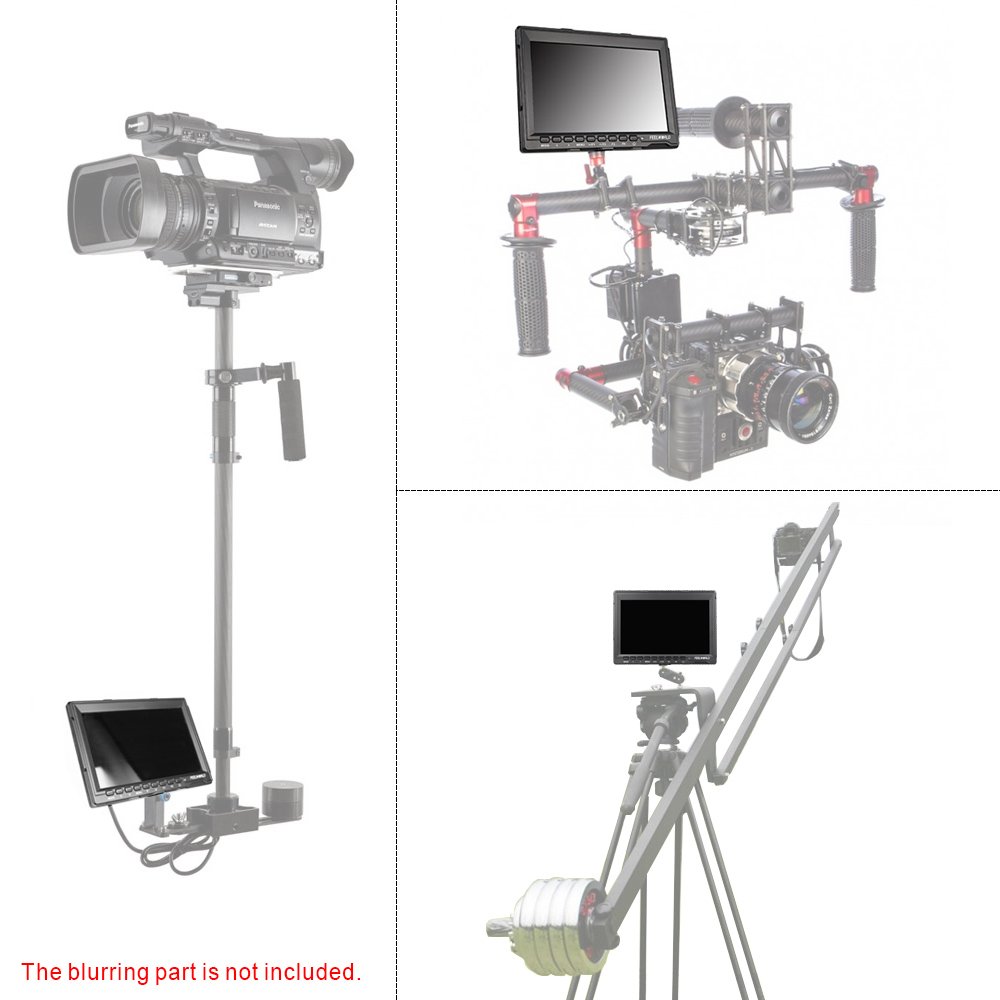

- Designed to merge special portability, compatibility for functionality, 17 mm slim design, steady cam, digital single lens reflex, video camera kit, handheld stabilizer, video camera crane: slim, lightweight design.
- We support a wide range of signal input.
- FW 74 K Multiple input options support most digital single lens reflex cameras and camcorders, including HDMI and AV.
- Assisted peaking focus (red crown of light above the focused monochrome image part).
- Camera 5D ‖ mode.
- Please check the fields (red, green, blue, monaural).
- Center markers for each pixel, safe markers (80%, 85%, 90%, 93%, 96%, 2.35: 1).
- Image reversal (horizontal, vertical, Hol & version); Image freeze.
- Used for HD signal transmission The HDMI format is to avoid the influence on the shooting of poor connection with HDMI lock.
Product information:
Shipping Weight: 839 g
Package Dimensions: 6.60 x 19.20 x 22.20 cm
