RobotDyn - 10 PCS - NANO V3 ATmega328, Pinheaders SOLDERED, CH340G, Micro USB, Compatible for Arduino Nano V3.0





1 PC - Nano V3 ATmega328. Pinheaders NOT SOLDERED

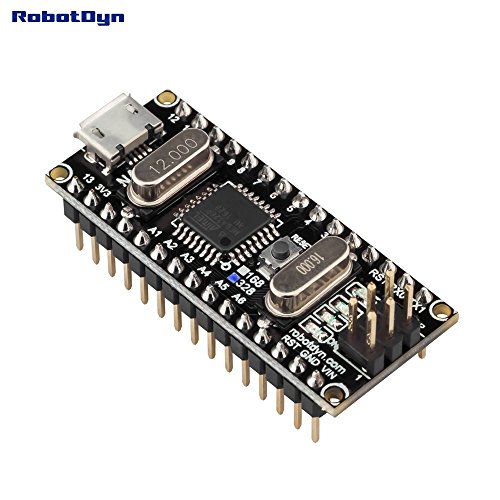

1 PC - Nano V3 ATmega328. Pinheaders SOLDERED

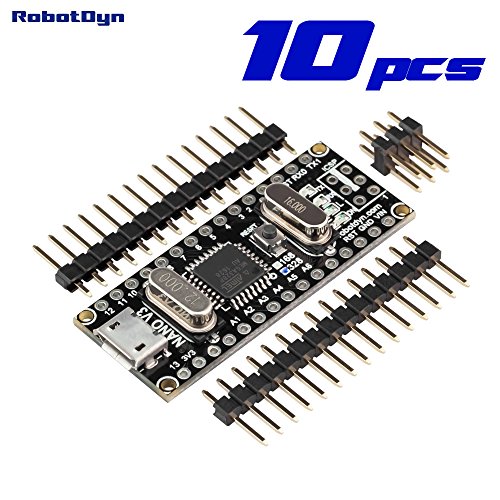

10 PCS - Nano V3 ATmega328. Pinheaders NOT SOLDERE

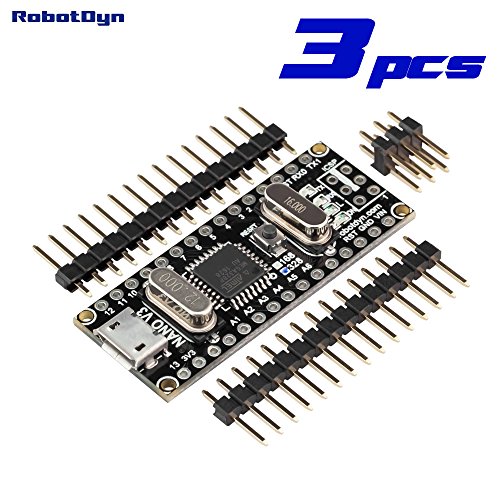

3 PCS - Nano V3 ATmega328. Pinheaders NOT SOLDERED

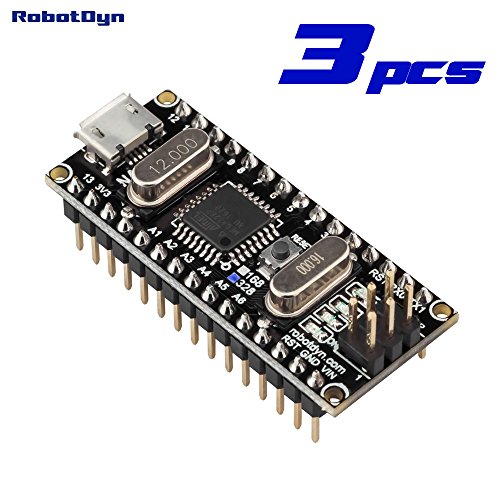

3 PCS - Nano V3 ATmega328. Pinheaders SOLDERED

Product Description

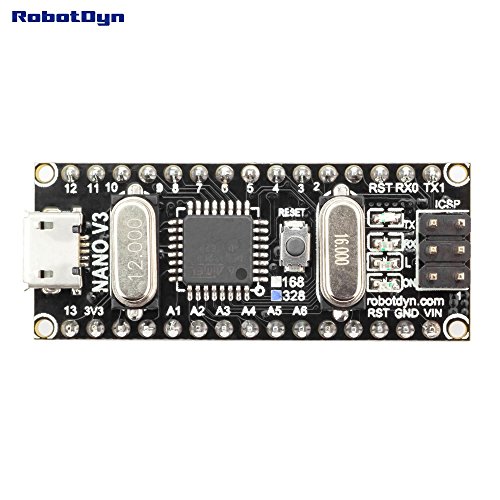

Nano V3.0 constructed on the ATmega microcontrollers has the small size and can be used together with model boards for solderless wiring (breadboard). It has similar structure with Arduino Uno/Diecimila/Duemilanove, but different size. To reduce the size, components are mounted on both sides of the PCB.

The board uses a chip CH340G as converter USB-TTL. Chip CH340G - is a budget solution. With an operation frequency in 12Mhz, yields stable result of a data interchange (for correct installation of drivers of CH340G on the computer follow the instruction).

Nano V3, can be powered via micro USB-port (up to 500mA). External power supply 6-12V unregulated to output VIN, or 5V external power source to a regulate output of 5V. The power supply is automatically selected with the maximum voltage value.

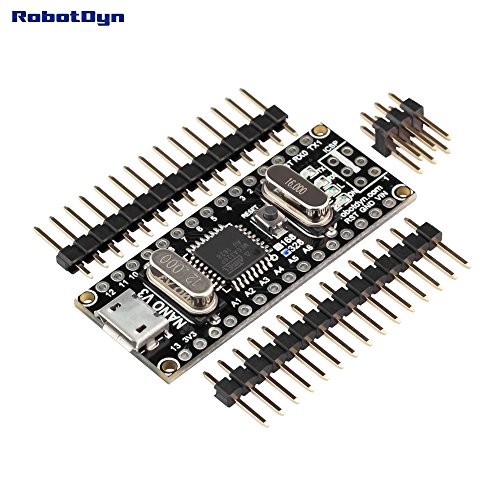

*Pinheaders not soldered. In set.

Feature:
- Standart quartz crystal: Long life time, stable work.
- MicroUSB: More common.
- Tantalum capacitor: More stable work and control power.

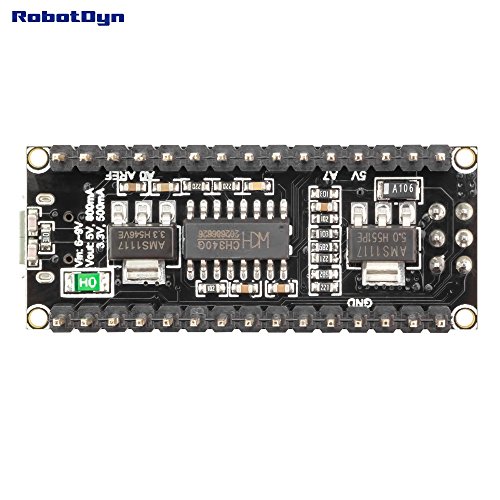

- LDO for 5V and 3.3V: Can get high power to 800mA. Unlike other boards that give 3.3V from CH340, we installed the powerful stabilizer LDO for 3.3V. You can get more power from board.
- Fuser for USB: Protect the board from high current from USB.


Product official page:
http://robotdyn.com/catalog/boards/nano_v3_ch340g_compatible_with_arduino_nano_v3/
* For get a detail information of product, instruction, schematic diagram, dimension diagram, guide and software, Pls visit to official page of product.

RobotDyn(R) - registered trademark in USA.
Zhuhai RobotDyn Technology Co.,Ltd - Developer and manufacture.

Feature

Bulk packing. Included 10 unit of Nano V3. Inside: Each one unit in independent anti static bag with label.
Pinout: Arduino Nano V3.0. USB: Micro USB
Microcontroller: ATmega168/328 (16MHz) / USB-TTL: CH340G (12MHz)
Power In: USB=5V(500mA), VIN=6-12V (recominde7-9V)
Power Out: 5V-800mA / 3.3V-800mA,
Logic Level: 5V
Brand : RobotDyn
MPN(PartNumber) : Arduino Nano V3
EAN : 6970622935438
Product Dimensions(LxWxH) : 16x11x6cm ; 45 g
Package Dimensions(LxWxH) : 22x16x3cm ; 45 g
