Item Descriptions:

Product description

<Specification>

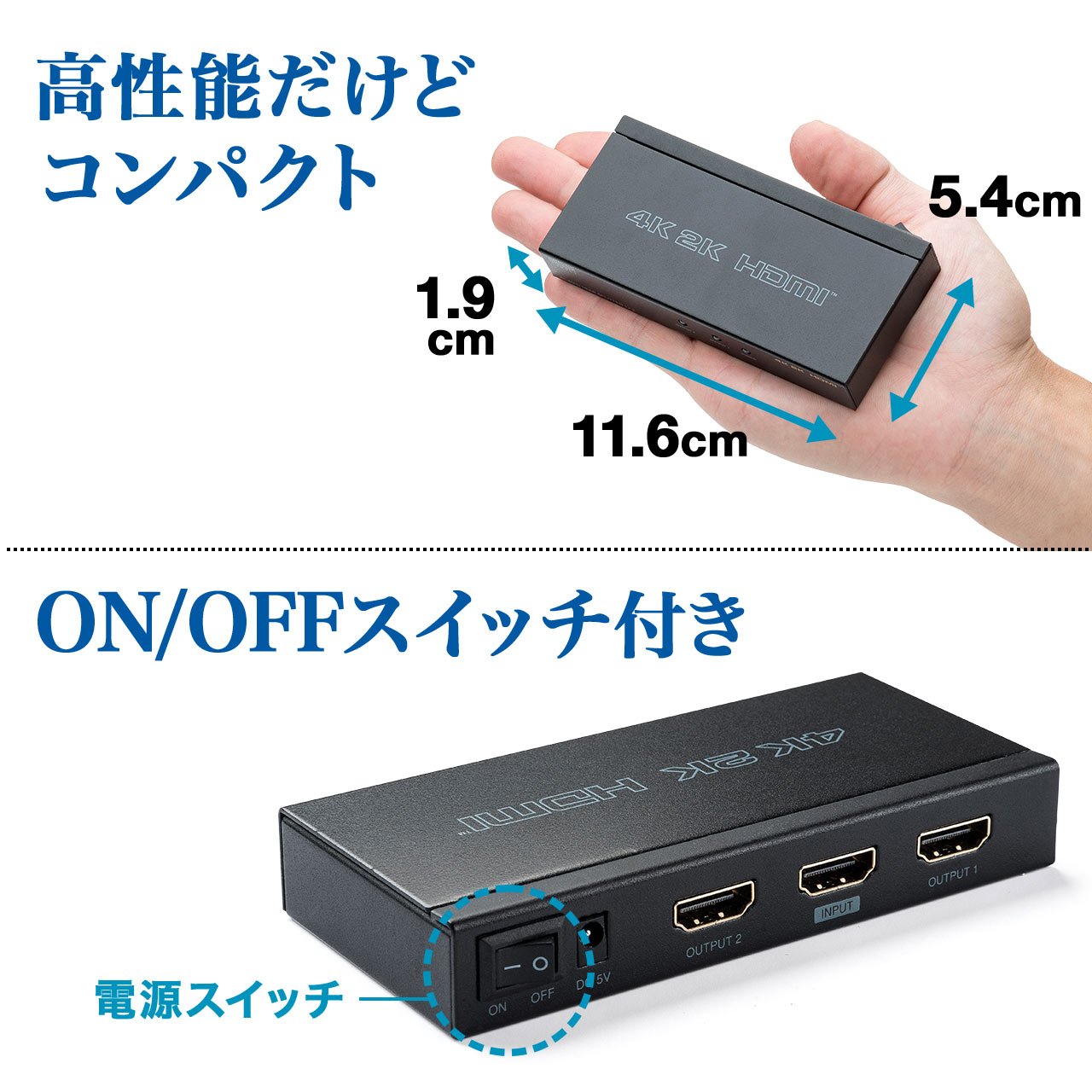

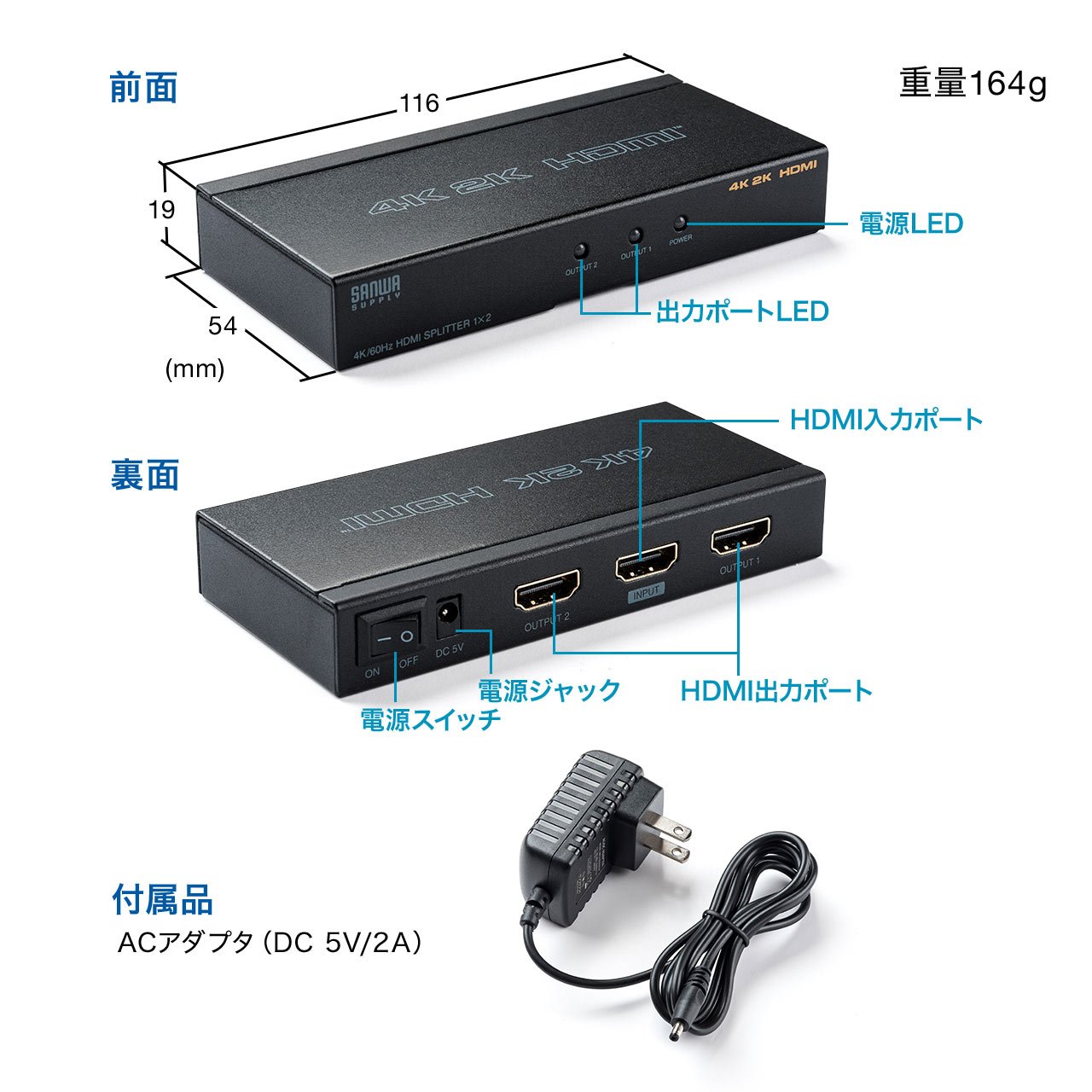

■ Size: W116 × D54 × H19 mm

Weight: 164 g

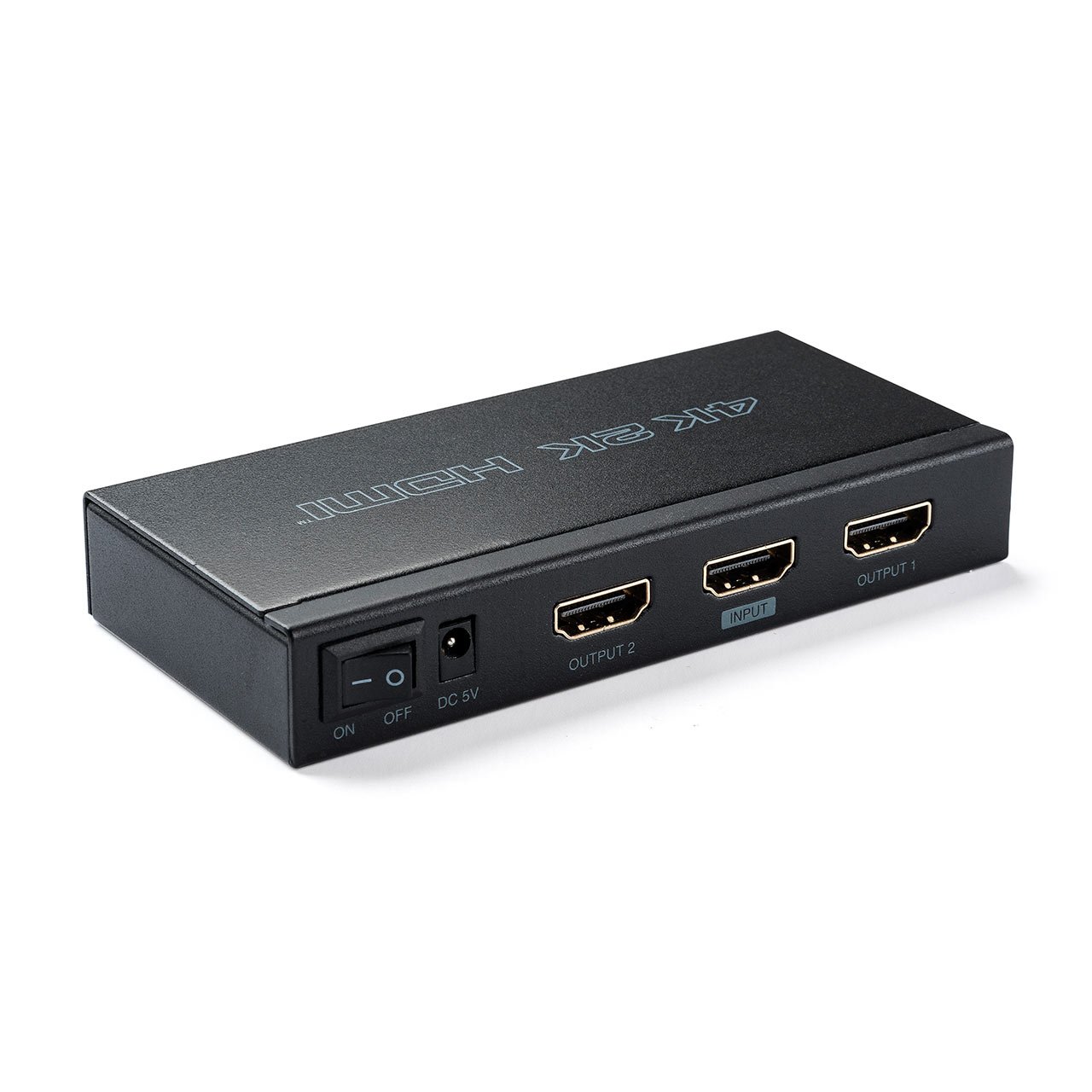

Interface

For input: HDMI type A (19 PIN) female × 1

For output: HDMI type A (19 PIN) female × 2

■ Data rate (maximum): 6.0 Gbps / 600 MHz per channel

■ Pixel clock: 25 MHz to 600 MHz

■ Maximum resolution: 4096 × 2160 @ 60 Hz (4: 4: 4)

Main Resolution:

4096 × 2160 @ 60 Hz (4: 4: 4)

4096 × 2160 @ 30 Hz (4: 4: 4)

3840 × 2160 @ 60 Hz (4: 4: 4)

3840 × 2160 @ 30 Hz (4: 4: 4)

1920 × 1200 @ 60 Hz

1920 × 1080 @ 60 Hz

Input DDC signal: 5 V

■ HDCP: Supports HDCP 2.2

■ Inter-device control (CEC): Correspondence (OUTPUT 1 only)

■ Power consumption: 5W

■ Operating temperature / humidity: Temperature 0 to 70 ° C Humidity 90% or less (without condensation)

■ Storage temperature / humidity: Temperature -10 ℃ ~ 80 ℃ Humidity 90% or less (without condensation)

■ Material: Steel

■ Accessory: AC adapter (DC 5V / 2A), instruction manual

Producing countries ■: China

■ Warranty period: 6 months from date of purchase

■ Instruction Manual: Japanese instruction manual available

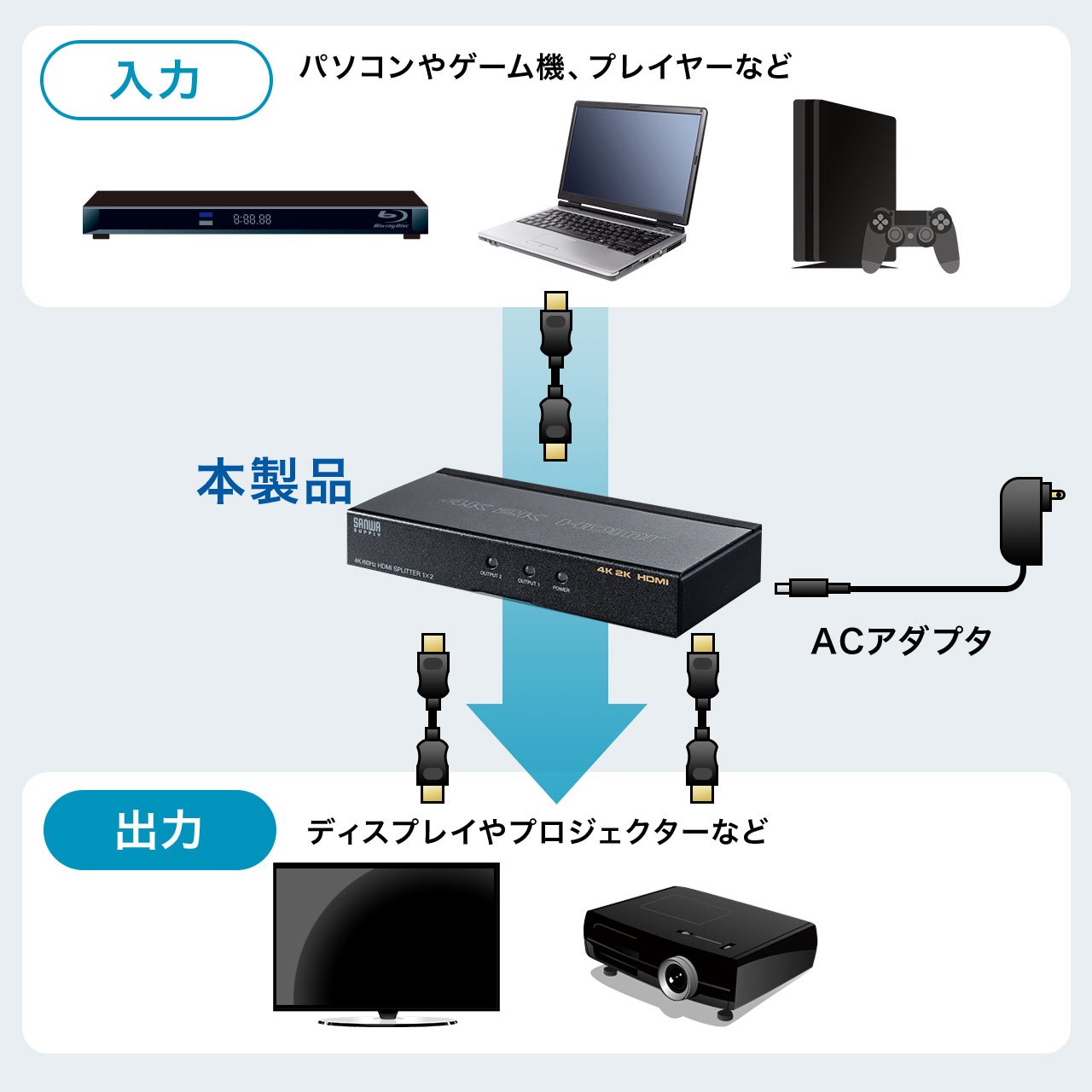

■ Compatible equipment: Video equipment with HDMI output terminal as standard equipment · Game console for home use · Personal computer

■ Supported output devices: TV and PC display standard equipped with HDMI input terminal etc.

* HDMI cable is sold separately

Brand introduction

About Sanwa Direct

You can see Sanwa Direct's recommended interior coordination

Established in 1923, PC personal computer maker "Sanwa Supply" founded in 1951.

Sanwa Direct is the brand that Sanwa Direct is developing on the Internet.

Because it is a long-established supply maker, we can improve and improve based on accumulated data · customer's voice, and we can deliver more convenient and high quality furniture.

Even now, we continue to launch new products every week, offering the latest furniture that meets the needs of the times.

From office to study and living, we will continue to do product development with full will to help you make your mobile environment comfortable.

Features:

• Please enter model number Confirm this is compatible:

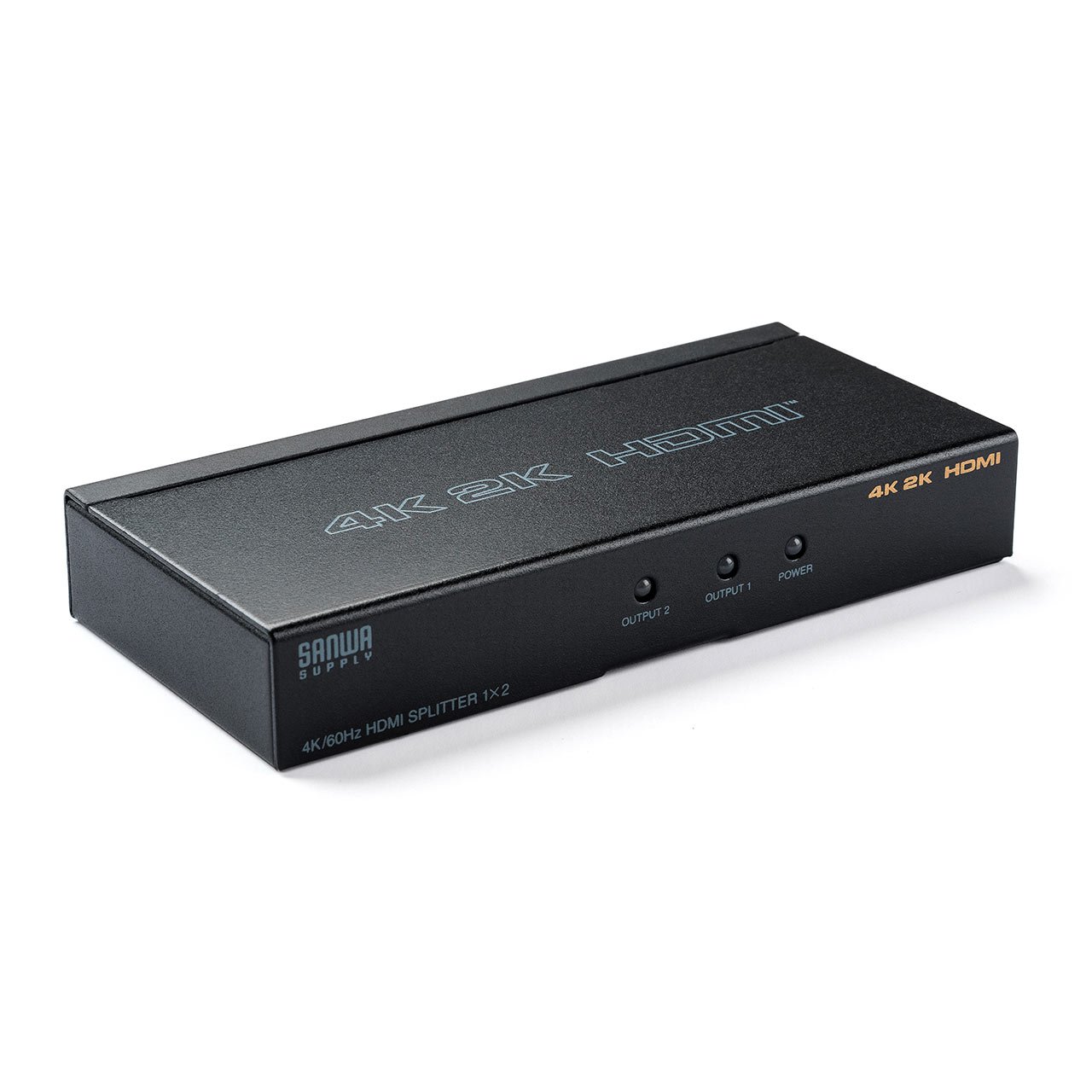

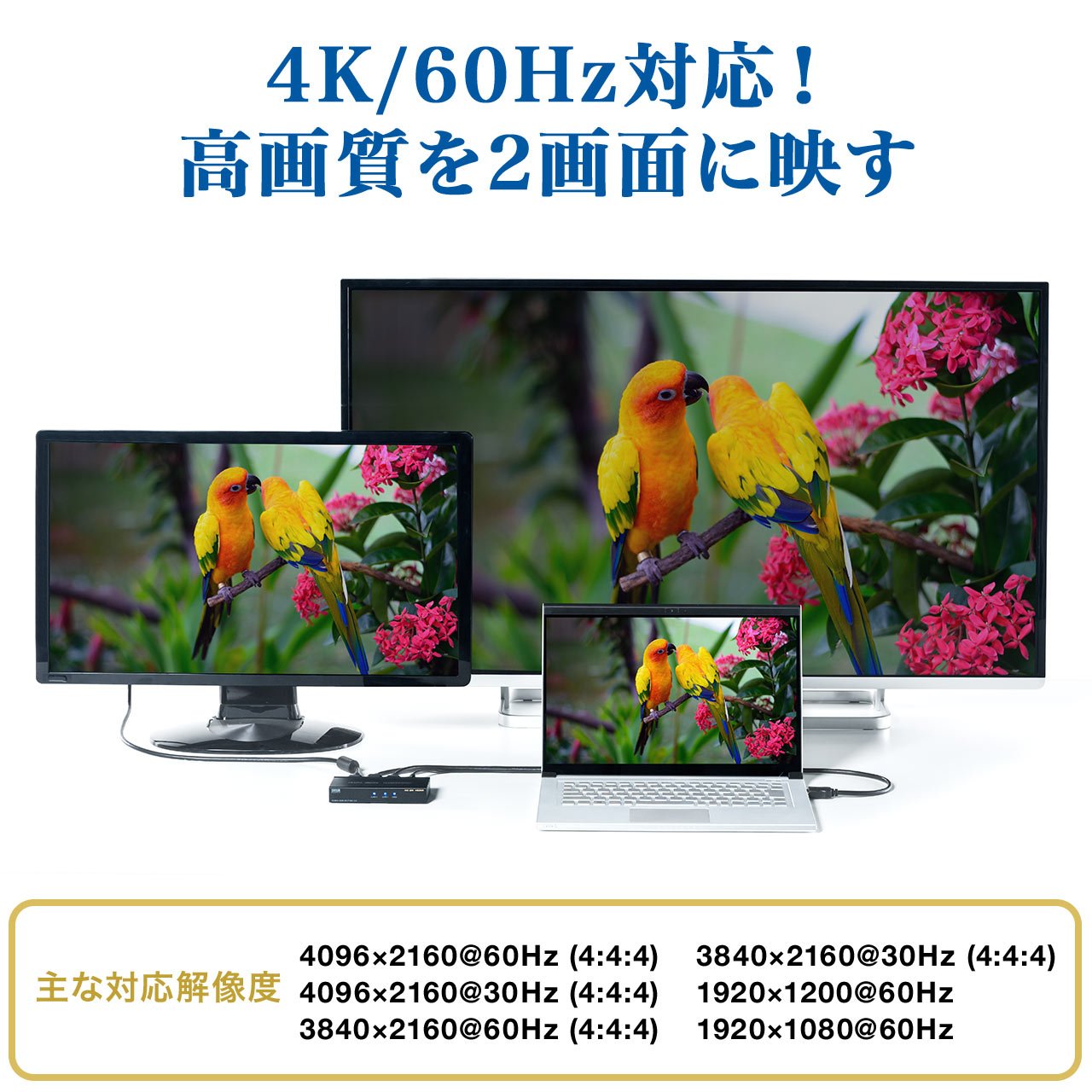

• It is an HDMI distributor that can output HDMI signals to two screens simultaneously.
• The enclosure is compact size and does not take up space.

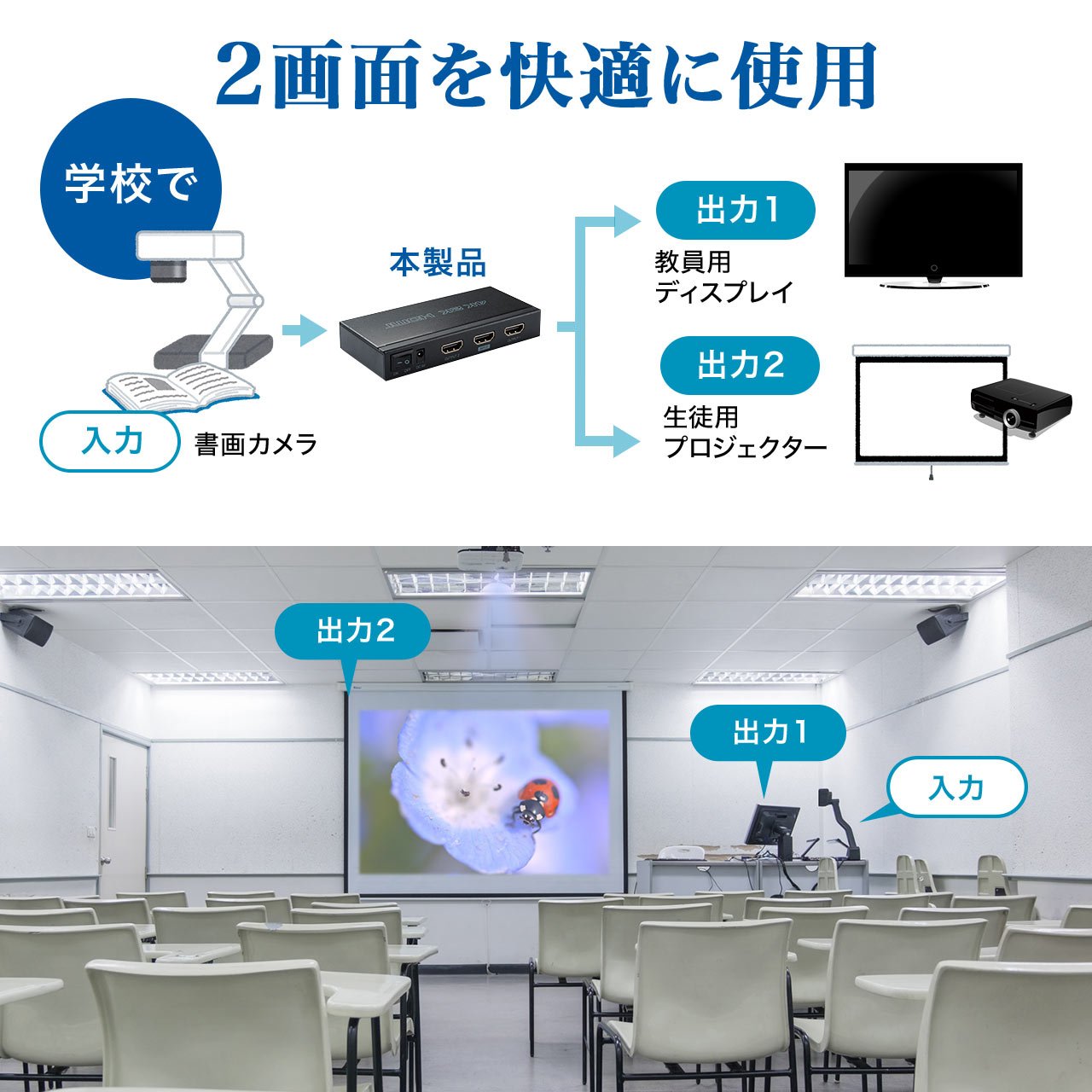

• It can be used in various scenes, such as 2 screen output in offices and schools.

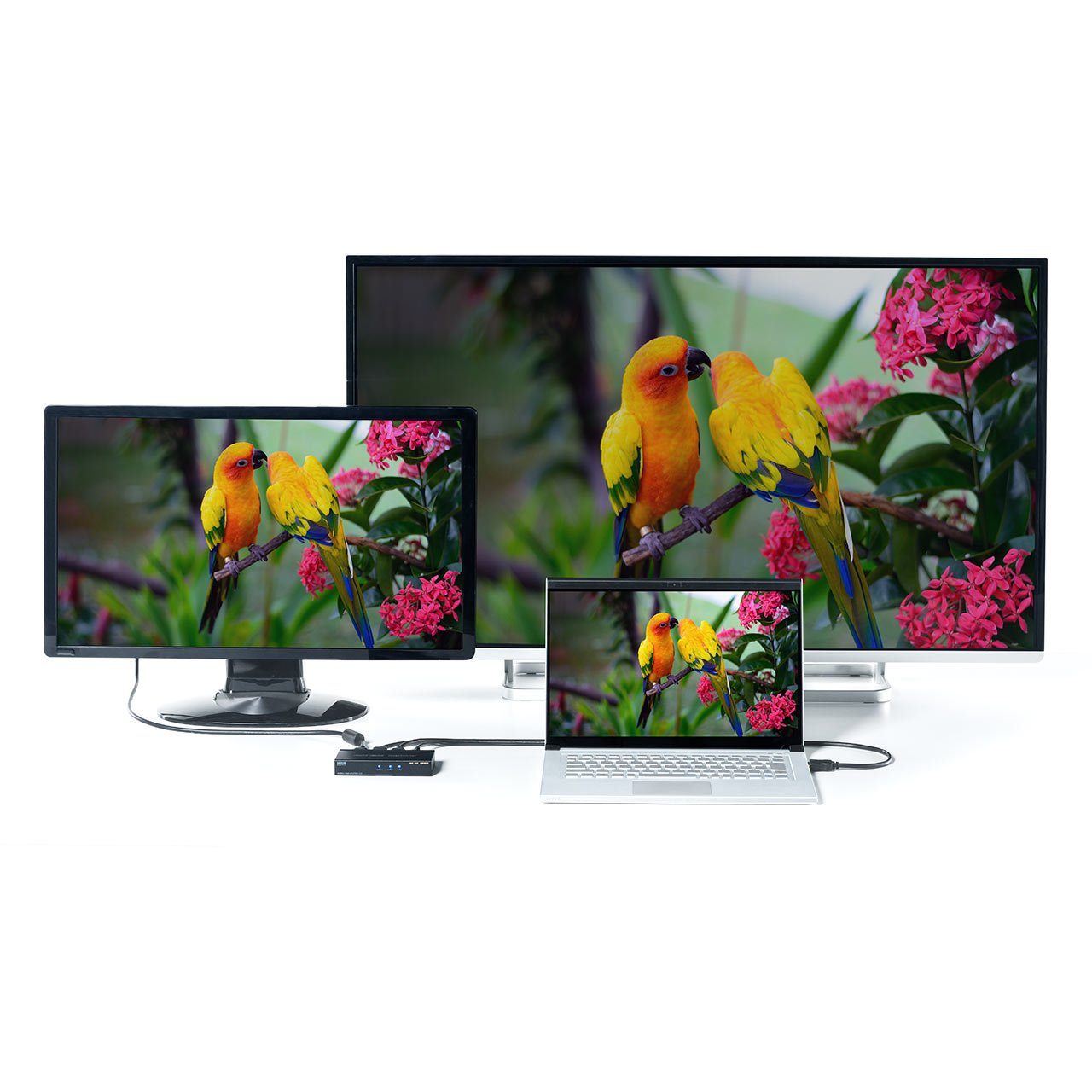

• Compatible with 4K 2K (4096 × 2160) @ 60 Hz (4: 4: 4) resolution, it can output beautifully high definition HDMI signal to two 4K monitors.
• It is a method of comparing the EDID information of the two connected displays, automatically determining the resolution corresponding to both, and communicating the EDID information to the input device (PC etc.).
• Dolby True HD and DTS HD Master Audio are also supported.

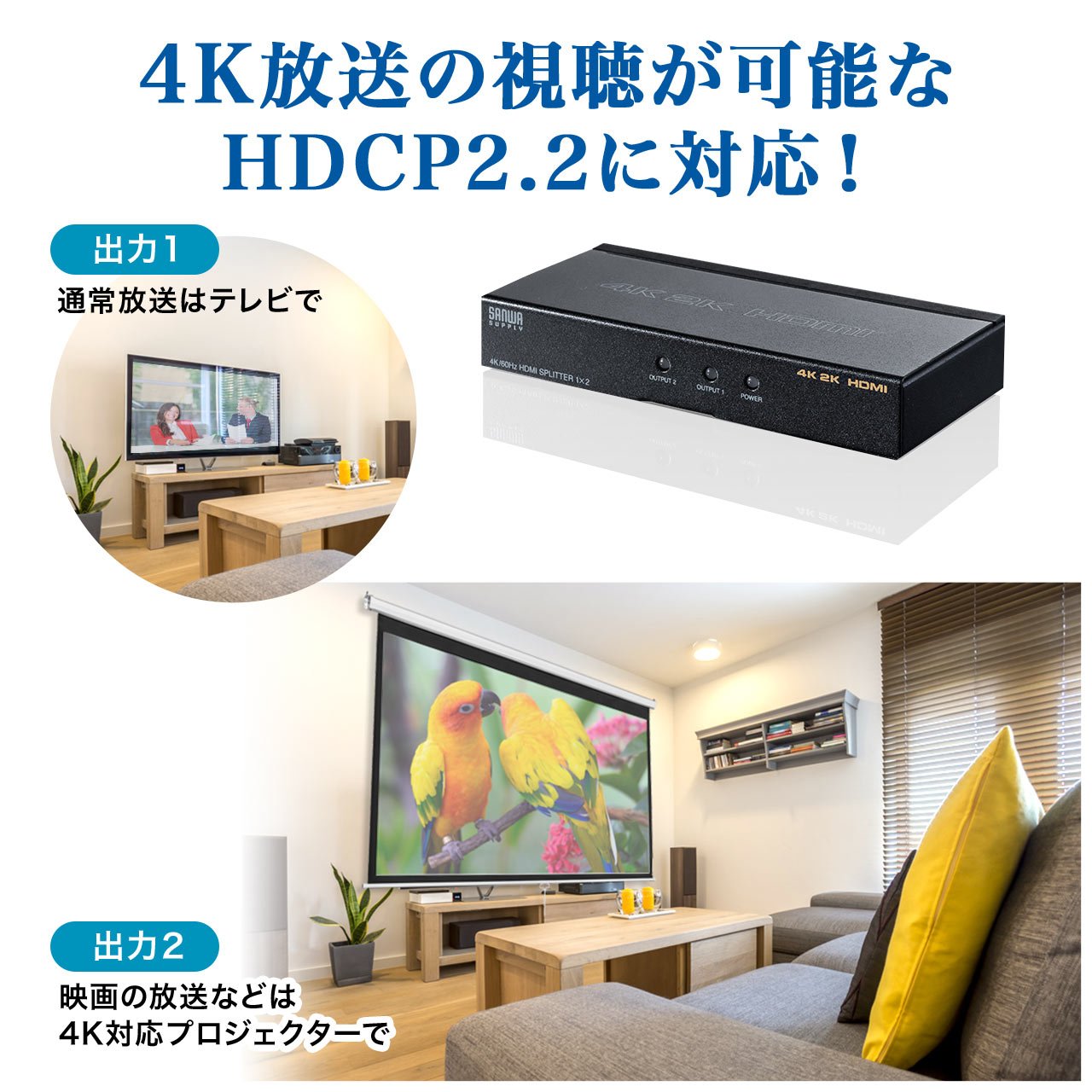

• It corresponds to the copyright protection standard "HDCP 2.2".

Product information:

Shipping Weight: 349 g

Package Dimensions: 6.20 x 15.09 x 19.30 cm
