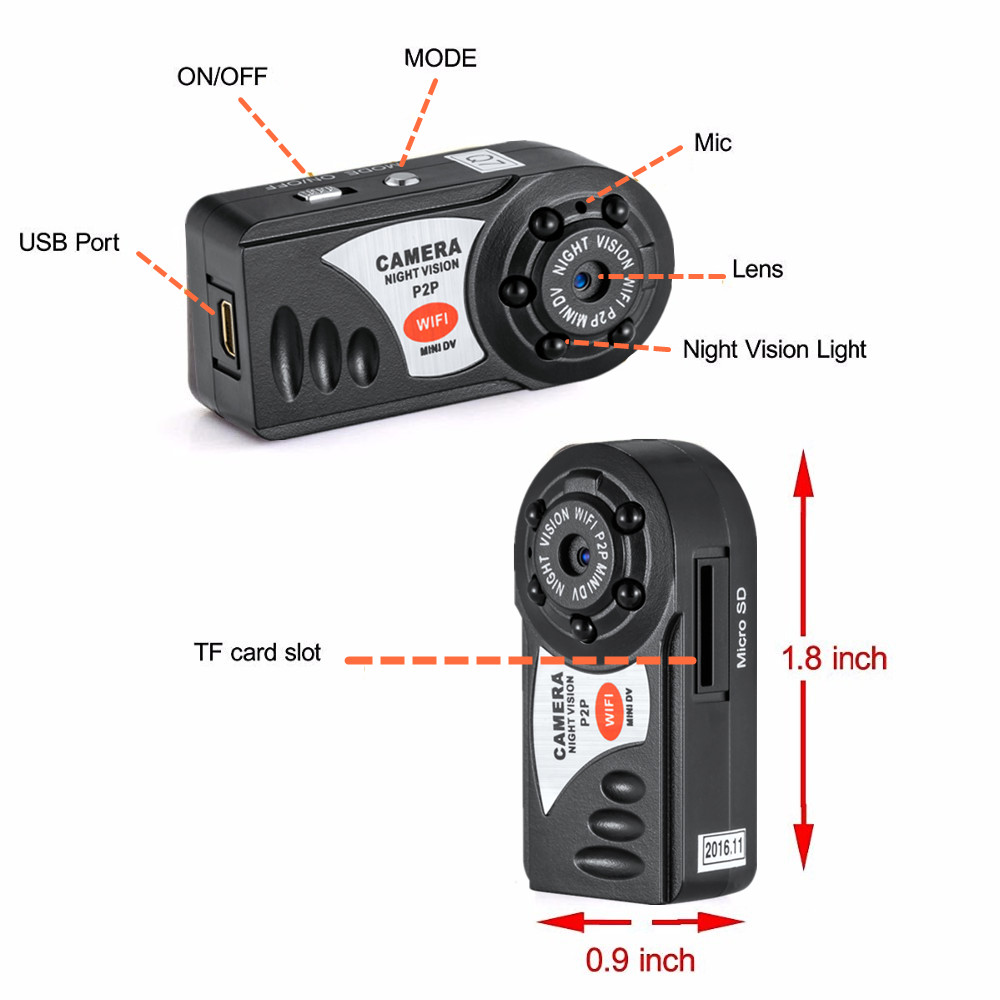

Q7 WIFI CAMERA u0026nbsp; Features u0026nbsp; u0026nbsp;

1. AP mode,u0026nbsp;

2. WiFi mode

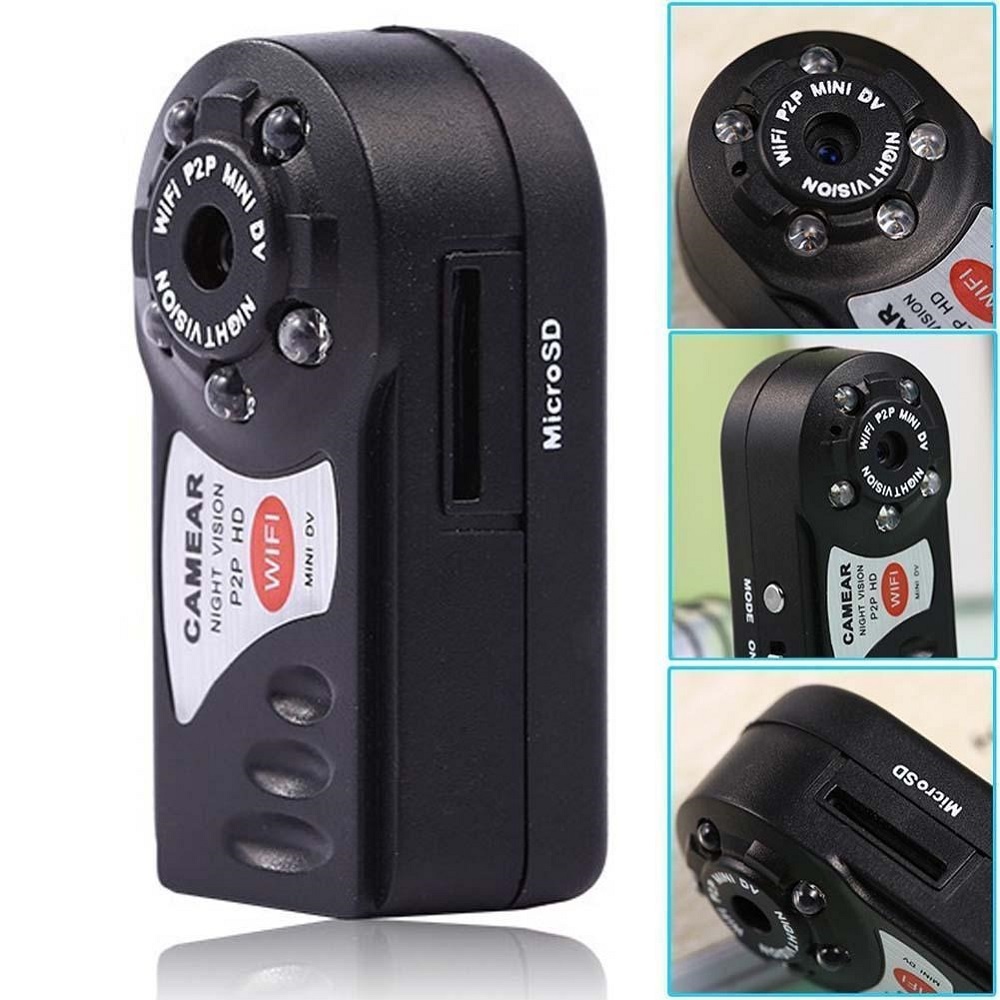

3. Mini size

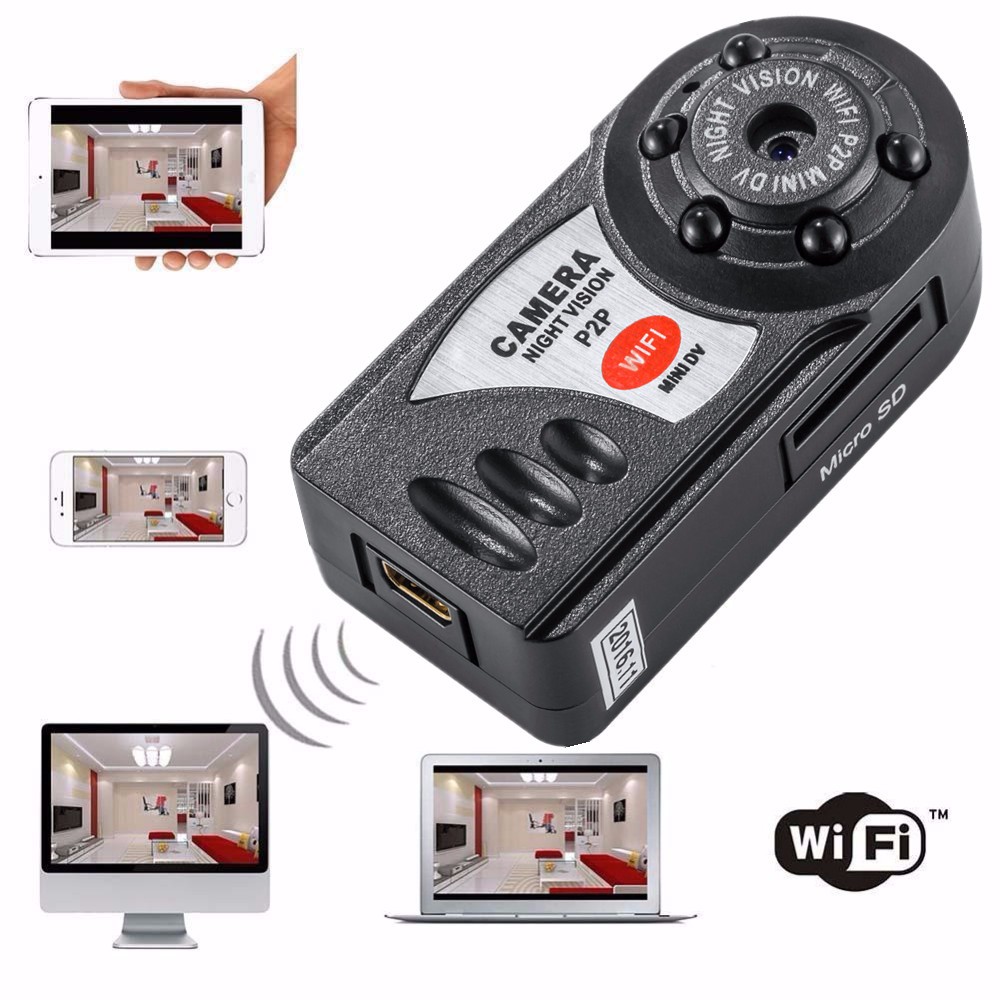

4. Support remote viewing online by pc, phone, u0026nbsp; u0026nbsp; pad and android phone

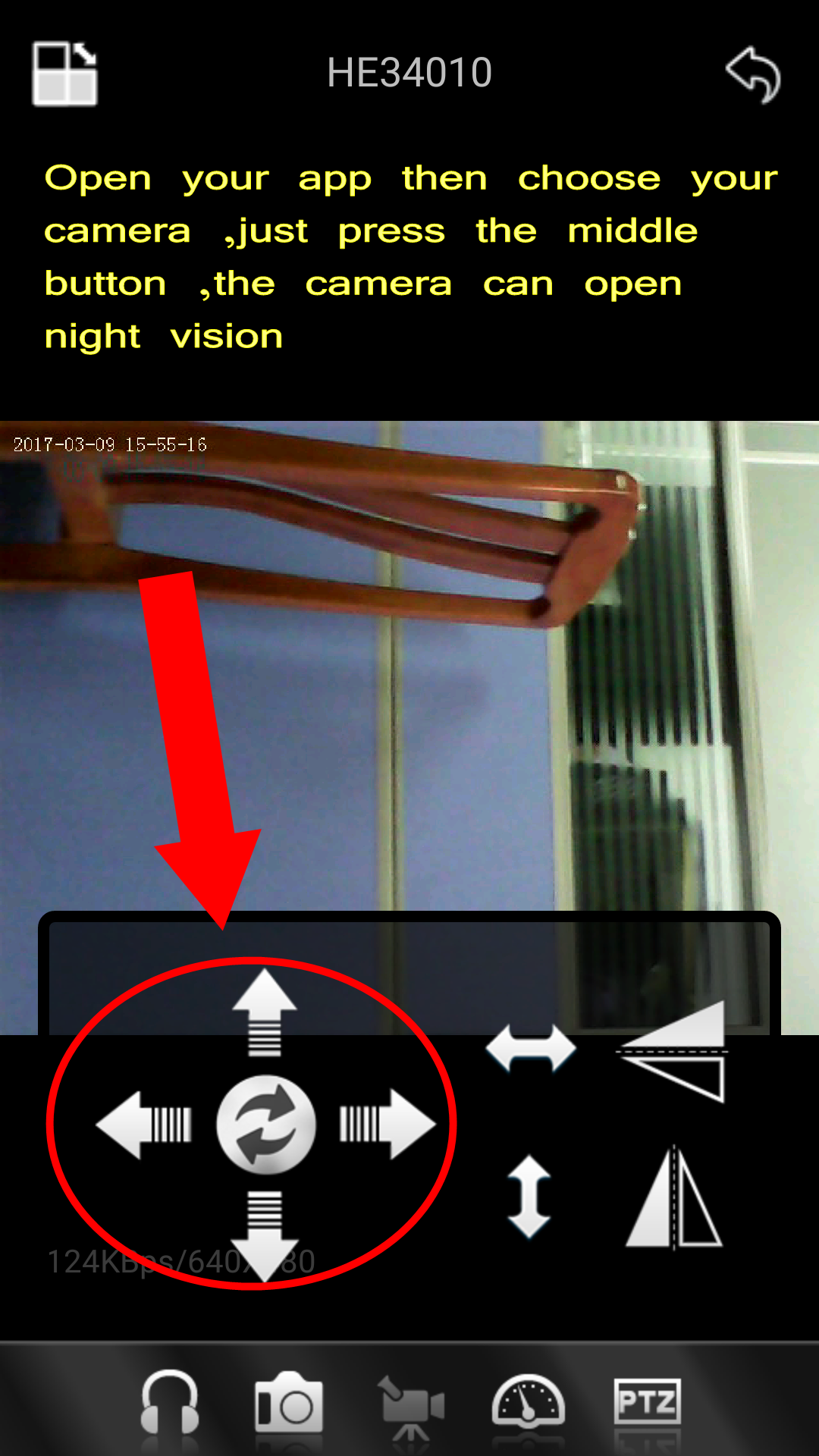

5. 5 LED IR night vision

6. Updatest point-to-point wifi technology.

7. Supports iOS/ Android phones point-to- u0026nbsp; u0026nbsp;point monitoring

8. Support iOS/ Android phones Internet u0026nbsp; u0026nbsp; monitoring

9. 24hours continuous recording with TF card 10. Support up to 32gb TF card

u0026nbsp;

u0026nbsp; u0026nbsp;specification u0026nbsp; u0026nbsp;

The name of the WIFI/P2P network camera

AVI video format

M- JPEG video coding

Remote video resolution 640*480 VGA

Network transmission resolution 320*240 QVGA

Video frame rate of 15fps + 1fps

1/3" color CMOS sensor;

Antenna 2.4G 802.11n WIFI built-in antenna

Storage support TF card, can be extended to 32G

Playing with or mainstream audio and video playback software operating system

Image ratio 4:3

Support system Windows ISO Android

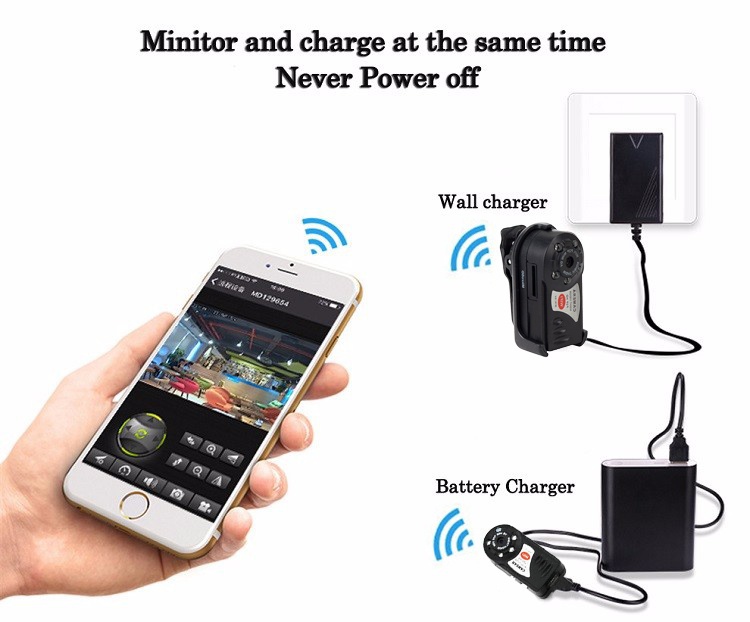

Charging voltage DC-5V

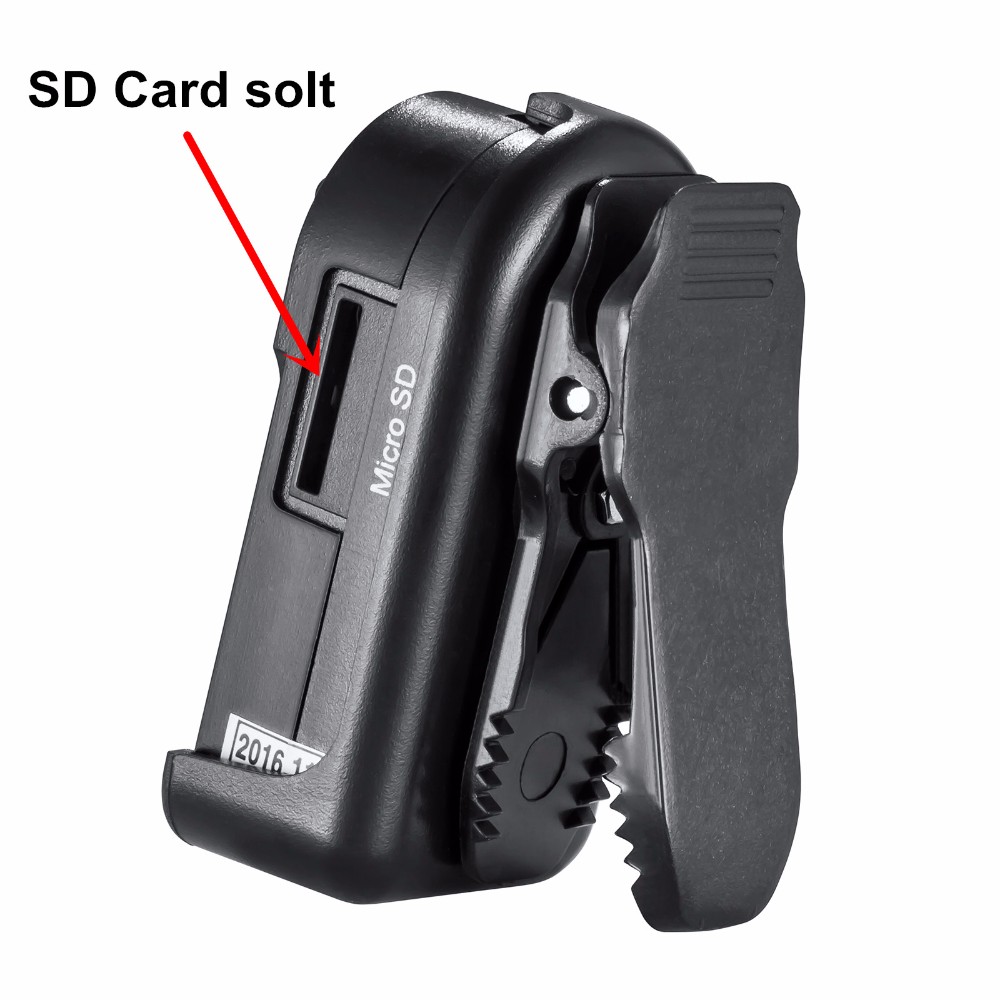

Micro SD Card memory support (TF Card)

Battery type high capacity polymer lithium battery

u0026nbsp;

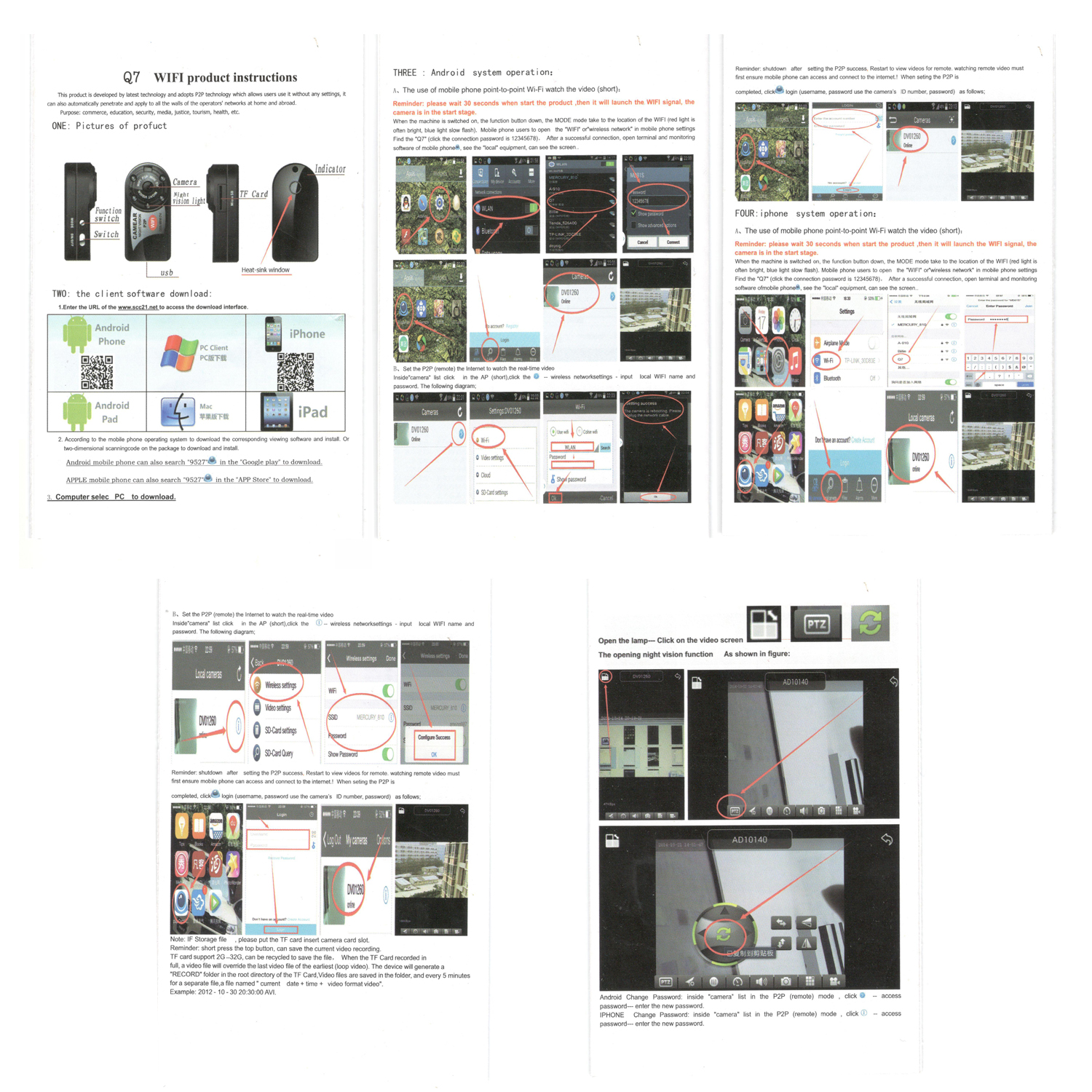

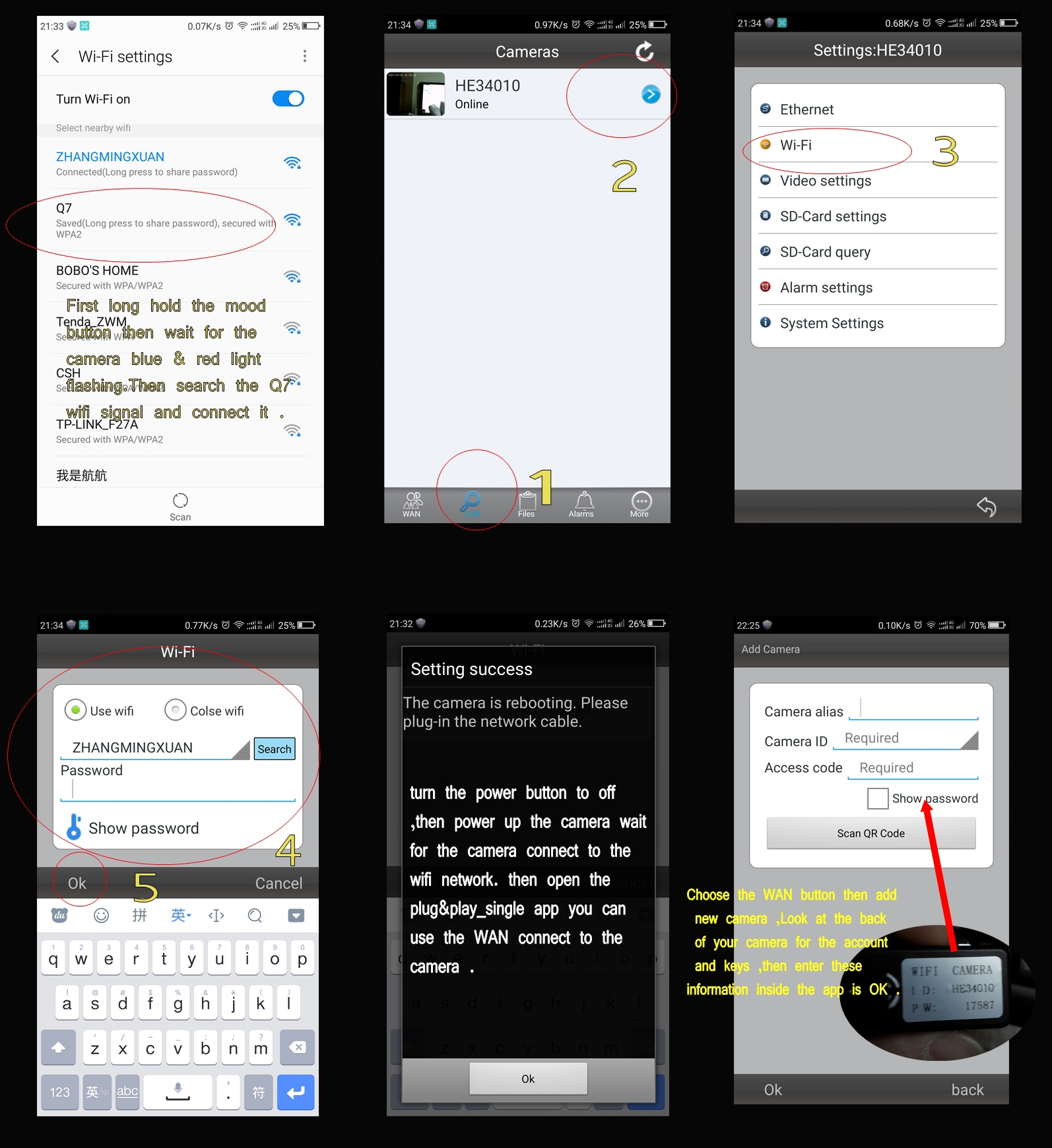

How to use the camera connect wifi and work ?

just follow the below steps you can do it .

1. First long hold the mood button then wait for the camera blue u0026amp; red light flashing.Then search the Q7 wifi signal and connect it .

2. choose the u0026nbsp;Lan button then setting of your camera

3. choose the wifi buttonu0026nbsp;

4. choose use the wifi choosen ,then enter your local wifi information and choose OK button .

5. turn the power button to off ,then power up the camera wait for the camera connect to the wifi network. then open the plugu0026amp;play_single app you can use the WAN connect to the camera .

6. Choose the WAN button then add new camera ,Look at the back of your camera for the account and keys ,then enter these information inside the app is OK .u0026nbsp;
