Item Descriptions:

Super

high resolution

Night vision, wide angle shooting, digital zooming is also possible

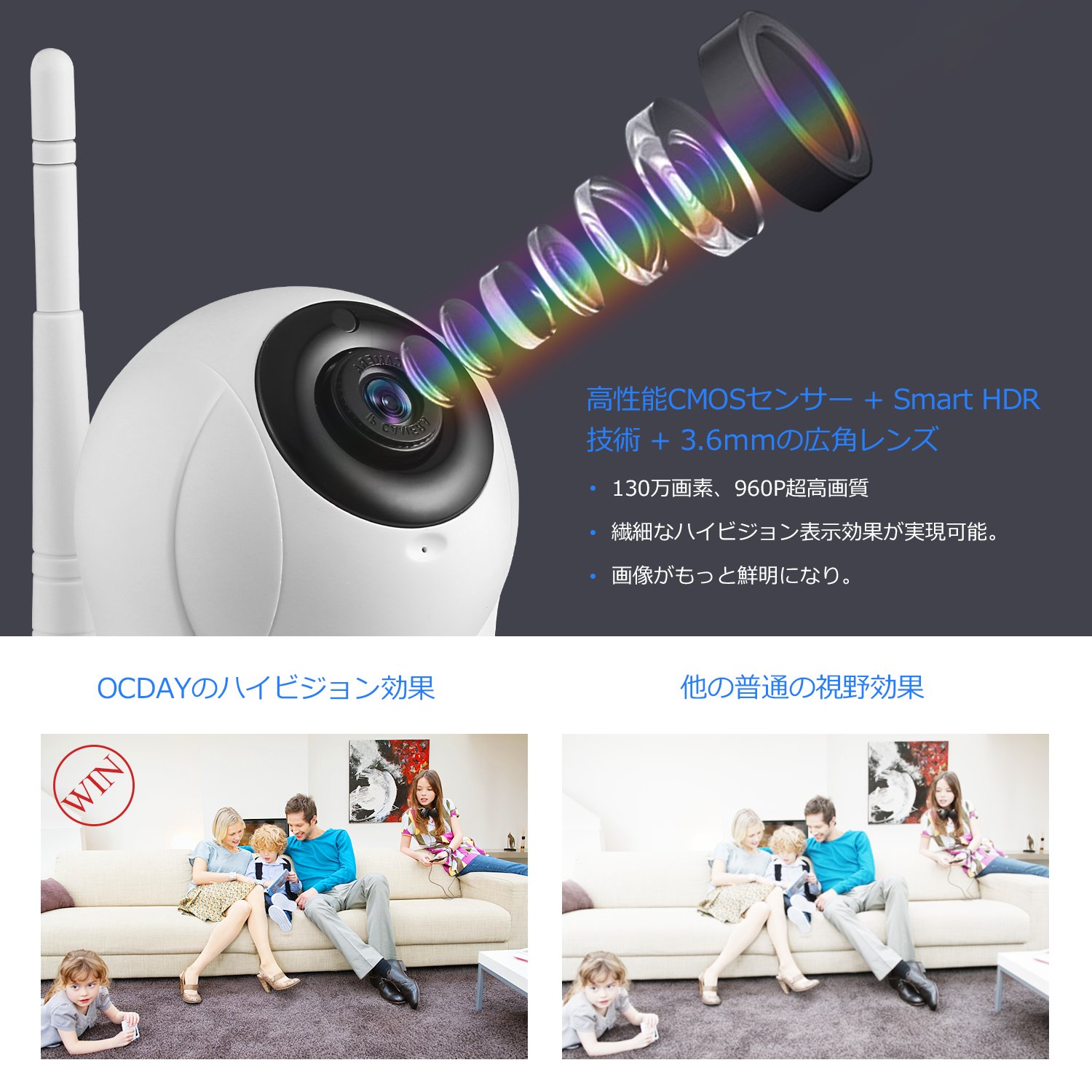

High-performance CMOS sensor with 1.3 million pixels

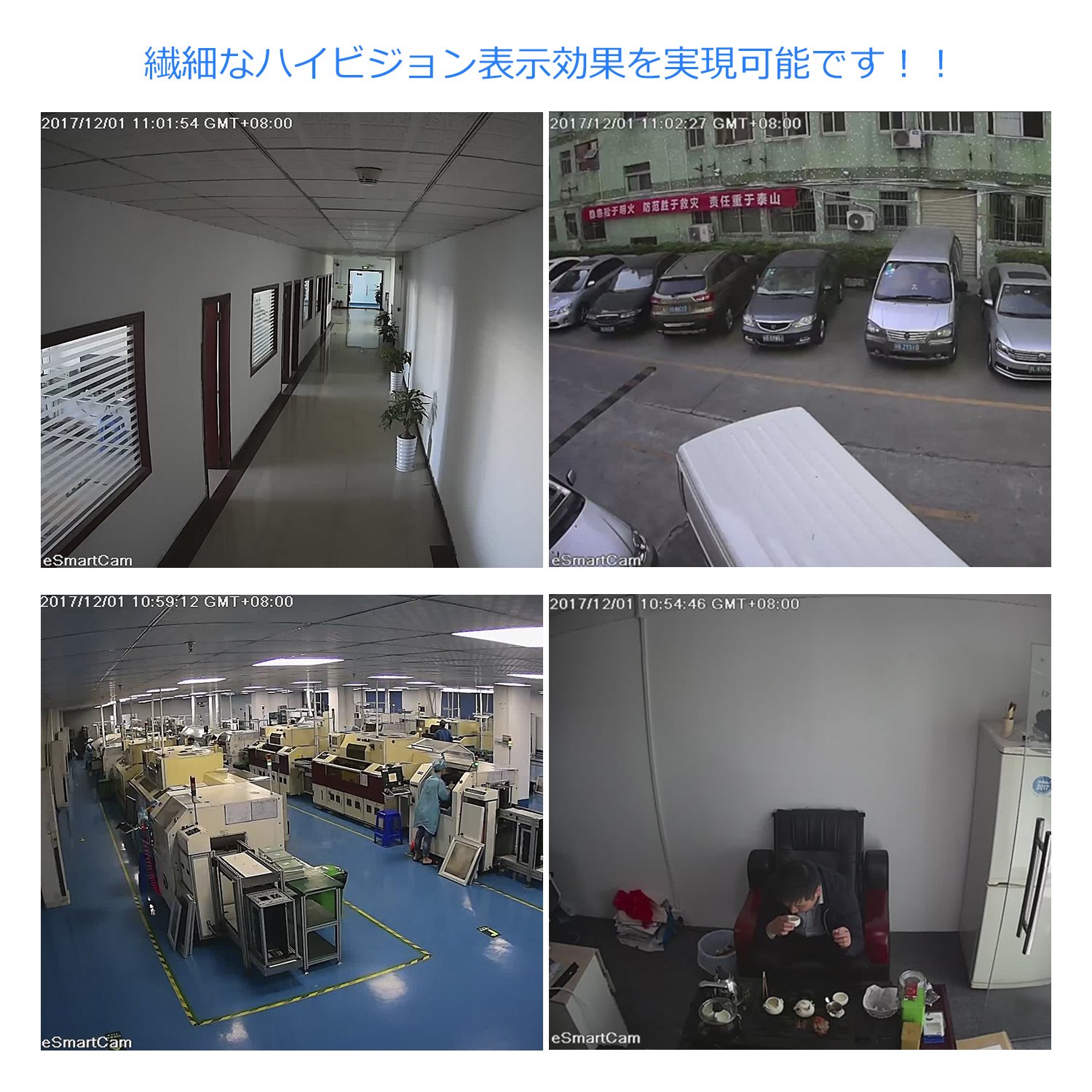

The LESHP network camera is equipped with a 960P camera and it is possible to provide 1920 x 960 P high image quality.

It is equipped with a high-performance CMOS sensor with effective 1.3 million pixels, adopt Smart HDR technology, and can realize delicate high-definition display effect.

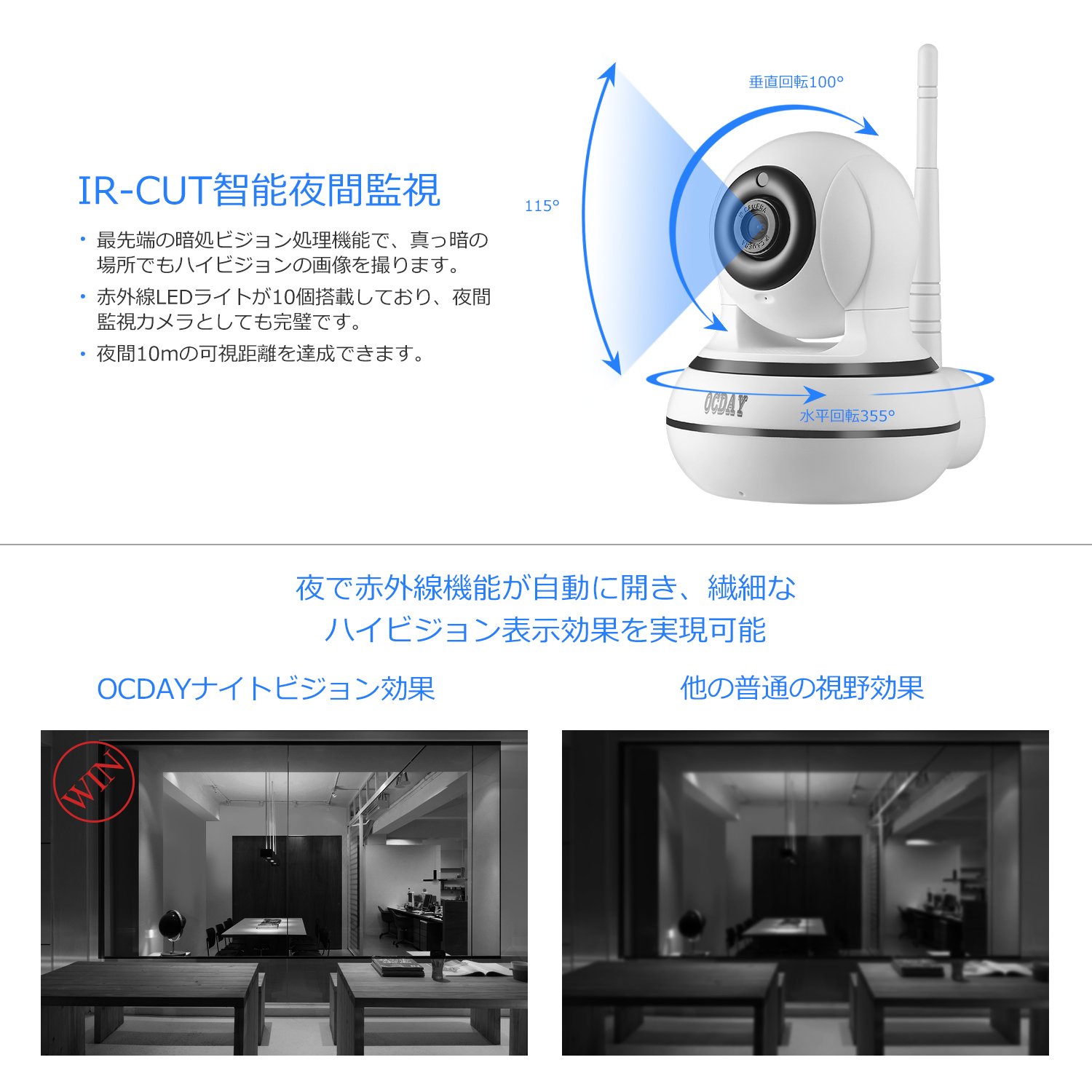

Night vision photography

The network camera adopts IR-CUT intelligent switching system, and quickly switches day and night.

Ten infrared LED lights are mounted, recognizing the ambient brightness, automatically switches to infrared shooting when it gets black.

Night vision distance: Visible distance of 10 m can be achieved.

Wide-angle shooting

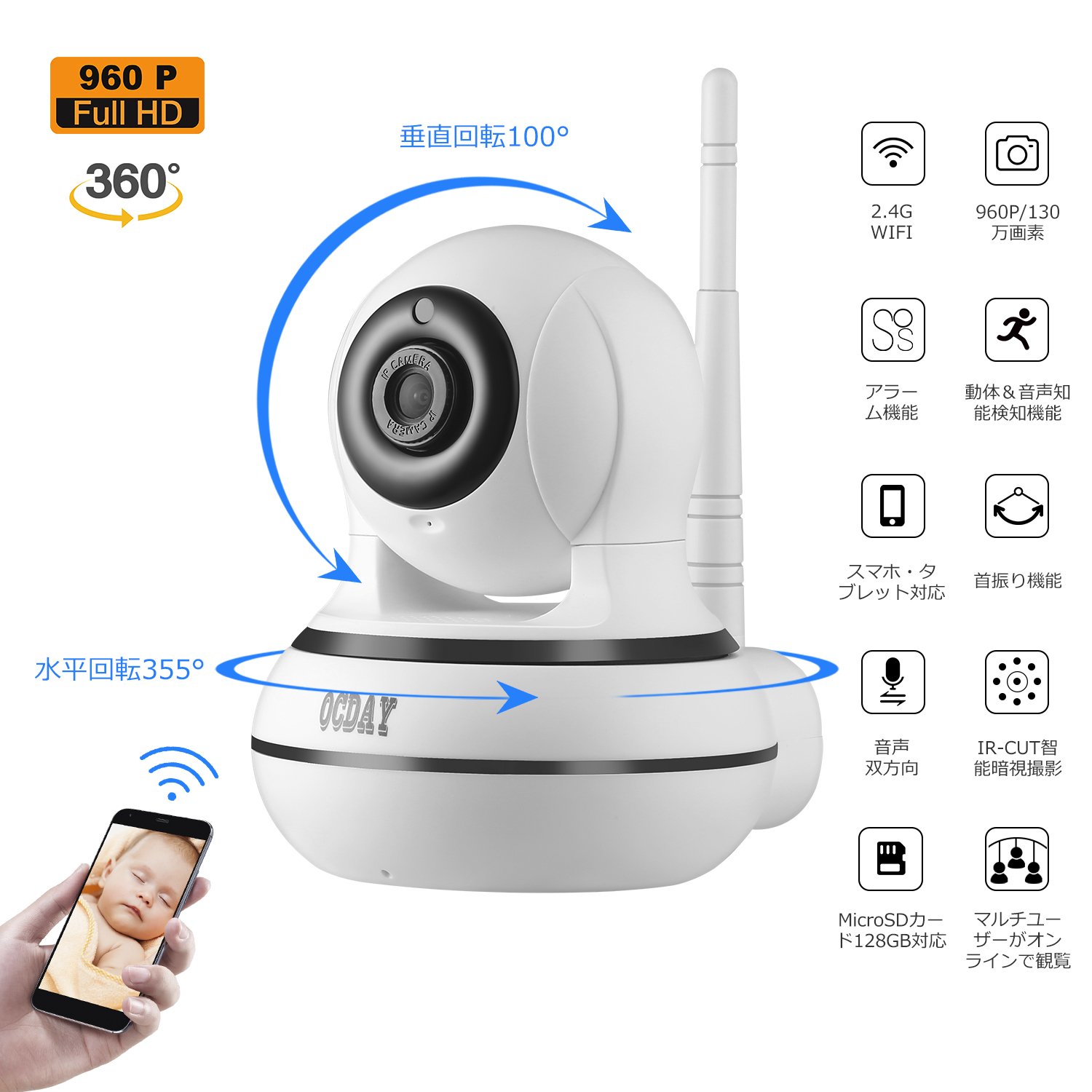

It is displayed in a perfect image with a super wide field of view of 100 ° vertical rotation and 355 ° horizontal rotation.

Digital zoom is also possible

The camera lens adopts wide-angle tights of 3.6 mm.

Since there is a swinging function, you can change the direction of the camera up, down, left and right.

You can easily change the orientation of the camera simply by tracing the screen of the smartphone up and down and left and right.

8 times HDTV digital zoom expansion

The zoom lens can expand the screen / image freely up to 8 times.

Or it will become visible more closely by enlarging the place a little far away.

[Cloud-based storage service]

Independent research Using the intelligent cloud transmission technology developed and developed, data can be transmitted up to 25 fps / sec, real 130 W pixels can be realized, and animation flows more smoothly.

Voice two way

·Remote control·

Moving body

voice

Intelligence

Detection function

Recorder

Noh

Voice two way

Since the microphone and the speaker are built in, you can listen to the spoken words as well as seeing the place you are watching.

Remote control:

Whatever distance you are, you can grasp all situations (house, parents, children, pets, work place) with smartphones, tablets, and personal computers.

Moving body

voice

Intelligence

Detection function

Unlike another IP camera, if some sound (children's crying) comes out, this product also activates an alarm warning.

In case

Three speech intelligence detection models can be set:

Low decibel model: If there are large screams, barks, etc., an alarm will be activated.

Middle decibel model: If a large speech or crumbling sound occurs, an alarm will be activated.

High decibel model: If there is an ordinary speech, an alarm will be activated.

Intelligent alarm can be informed immediately when there is clear movements and abnormal noises within the shooting range, and e-mail to smaho's application

(5 sec video taken)

Will be sent automatically.

We will inform you of your child's return home, visitors, invasion of suspicious individuals etc. by push notification with smartphone or mobile etc.

Alarm installation possible, when a suspicious person comes out Alarm warning activation, you can see the behavior of suspicious individuals in real time.

Recording

function

Recording model: manual recording, alarm recording, time recording

Data will be saved on an SD memory card with a maximum of 128 GB.

Whatever distance you are, you can grasp all situations (house, parents, children, pets, work place) with smartphones, tablets, and personal computers.

camera

Installation·

Connection method

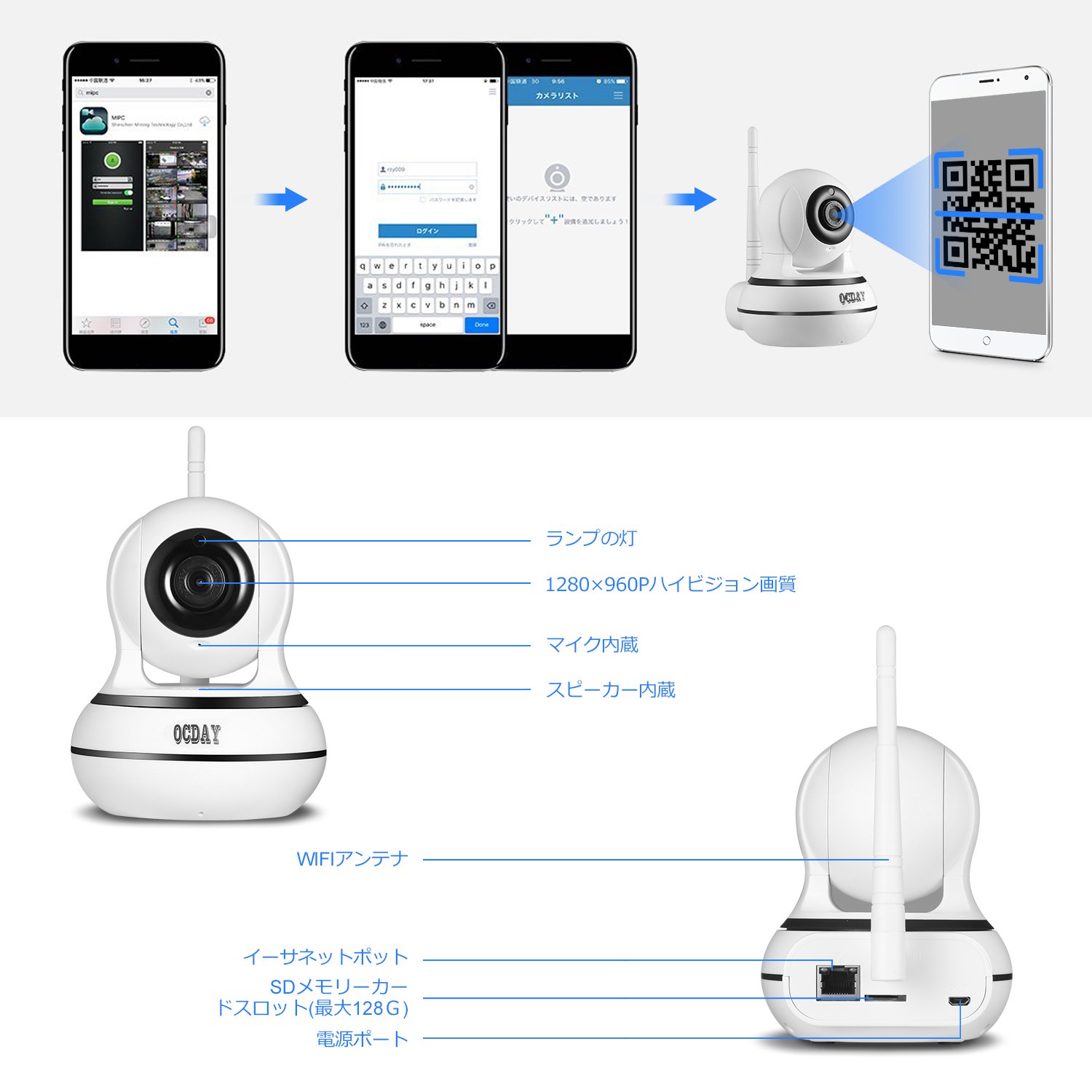

Easy installation

Easily start installation and setting by scanning 2D code or by searching "eSmartCam" with AppStore or GooglePlay and downloading the application.

* Before purchasing, it is also possible to use it for experimenting accents for reference.

Three

Connection method (smartphone)

One

Smart link

Please enter WIFI name and password.

When I heard the sound "Baby", the concatenation succeeded.

2 ·

UR code arrangement

After selecting UR code placement and entering the WIFI name and password, a new UR code will be created and displayed on the screen.

Please scan the camera at 20 - 30 cm intervals.

"Dynon" and

When I heard the sound "Baby", the concatenation succeeded.

3 ·

LAN arrangement

Please connect the LAN cable to the camera on the same network.

When you hear the sound "Dyndon"

Selected from the list, the concatenation succeeded.

Product specification:

Brand: OCDAY

Model: V200

Camera pixel: 1.3 million 960 P

Sensor: CMOS sensor

Chip: HI 3518 E - V 200

Lens: 3.6 mm

Video compression: H.264

Audio compression: AAC

Audio input: Built-in MIC

Audio output: Built-in speaker 1 CH BN

External dimensions: main body 126 * 100 * 160 mm

Power supply: DC 5V / 2A

Operating temperature: from -10 ° C to 55 ° C

Operating humidity: 10% - 80% (no condensation)

Visible angle: horizontal 355 °, vertical 100 °

Network interface: 2.4 G WIFI (IEEE 802.11 b / g / n) & 10/100 Mbps Ethernet interface

Alarm function: Move alarm / Voice alarm

Infrared LED light: 10 pieces

Night vision distance: maximum 10M

IR distance (meters): 5-10 M

Quality assurance: 12 months

set content:

1 x Network Camera

1 x USB charging cable

1 x Power Adapter

1 x Ethernet cable

1 x Fixing supporters

2 x screw cap

2 x screw

1 x Instruction Manual (with Japanese)

Features:

• 【1280 × 960P high image quality monitoring & IR-CUT; Tomoyune nighttime surveillance】 ★ OCDAY network camera is equipped with 960P camera and can provide 1280 × 960 high picture quality.
• You can easily check the status of the house clearly with a smartphone from the outside.
• This network camera adopts IR-CUT intelligent switching system, and quickly switches day and night.
• ★ We will take high-vision images even in dark places with cutting-edge dark care vision processing function.
• In addition, it has 10 infrared LED lights and it is perfect as a nighttime surveillance camera.
• Visible distance of 10 m at night can be achieved.
• [Motion & sound intelligence detection function] With motion detection function.
• ★ Unlike another IP camera, if some sound (child's crying) comes out, this product also activates an alarm warning.
• When clear movement and abnormal noise exist within the shooting range, intelligent alarm can be informed immediately, and e-mail ★ (video of 5 seconds taken) is automatically sent to the application of the smartphone.
• We will inform you of your child's return home, visitors, invasion of suspicious individuals etc. by push notification with smartphone or mobile etc.
• Alarm installation possible, when a suspicious person comes out Alarm warning activation, you can see the behavior of suspicious individuals in real time.
• 【High Intelligence Intelligent Cloud Transmission Technology & 130W Pixel】 ★ Self-reliance Research using the intelligent cloud transmission technology developed and developed, it is possible to transmit data up to 25 fps / sec, real genuine 130 W pixel can be realized, movies will flow more smoothly
• I will.
• 【Wide Shooting Range & Remote Operation & 128 GB Recording Function】: ★ It can manipulate the direction of the lens in the range of 355 ° horizontally and 100 ° vertically, there is almost no blind spot spreading.
• If you attach an SD memory card (optional) to the camera, you can save the image to the memory card.
• ★ The data will be saved on the SD memory card with a maximum of 128 GB.
• Whatever distance you are, you can grasp all situations (house, parents, children, pets, work place) with smartphones, tablets, and personal computers.
• 【Voice Bidirectional Function & Multiple Screen Display Function】 You can use the network camera installed at a remote place to talk and communicate.
• ★ If you install multiple OCDAY security cameras in different places, you can display multiple monitoring screens simultaneously on a smartphone or tablet.

Product information:

Shipping Weight: 539 g

Package Dimensions: 11.40 x 13.69 x 16.69 cm
