Item Descriptions:

Product introduction

Comfortable high speed internet with Giga & USB 3.0 compatibility.

Compact design convenient to carry.

Easy set up with peace of mind for the first time.

From Amazon

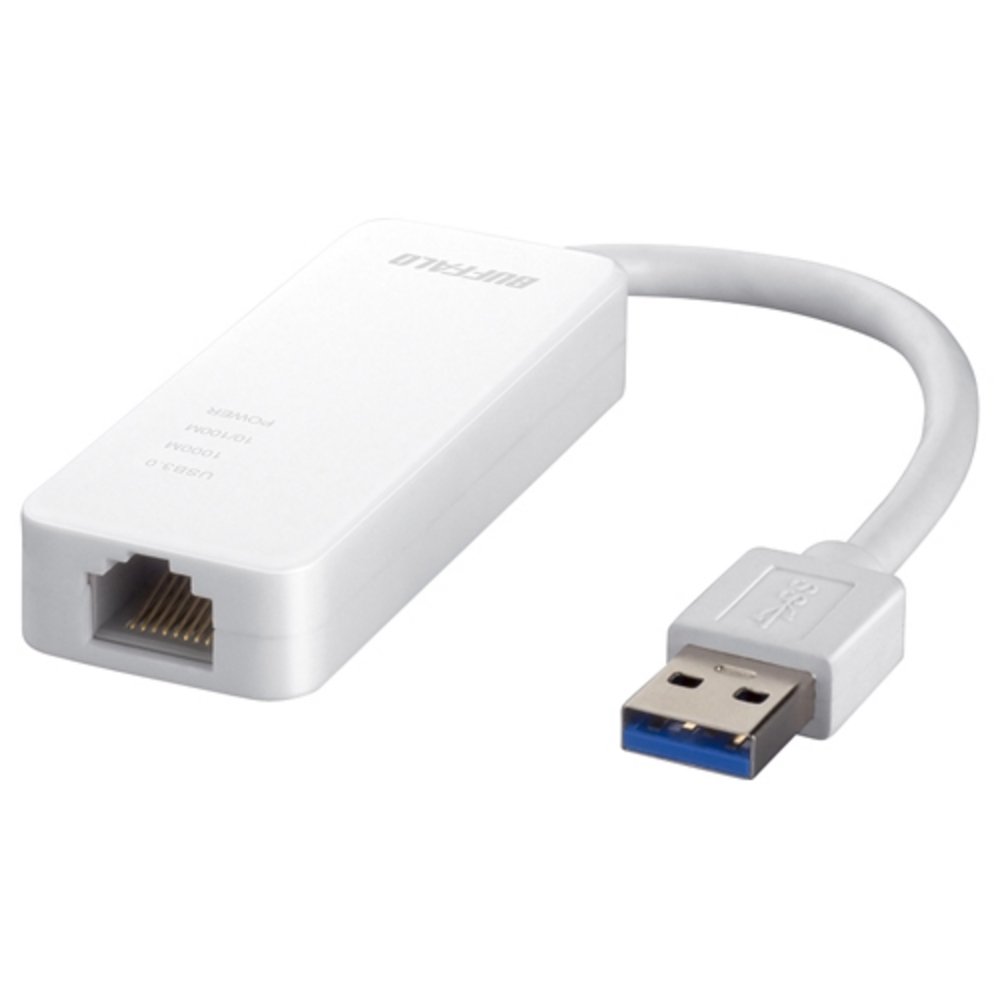

BUFFALO Giga USB 3.0 compatible wired LAN adapter LUA 4 - U 3 - AGT

Giga & USB 3.0 for high-speed communication

Comfortable high speed internet with Giga & USB 3.0 compatibility

Personal computer without LAN port also wired LAN environment

This product is a wired LAN adapter compatible with Giga and USB 3.0.

By connecting a computer without a LAN port (MacBook Air, Ultrabook, Tablet PC *) to the USB terminal,

Wired LAN communication with up to approximately 940.7 Mbps (measured value * 1) will be possible.

You can enjoy comfortable high speed internet even at hotels and accommodation where there is only wired LAN environment.

* It is limited to tablet PC compatible with Windows 8.1.

I will show Giga's power without leaving it with USB 3.0 compatibility

For the conventional product (LUA 3 - U 2 - AGT), the LAN port was compatible with "Giga" with the maximum transfer rate of 1 Gbps (standard value)

The USB 2.0 interface with the maximum transfer rate of 480 Mbps (standard value) became the bottleneck, making it impossible to exploit the performance of the Giga port.

With this product, by incorporating the USB 3.0 interface with the maximum transfer rate of 5 Gbps (standard value), we will make maximum use of the performance of the Giga port,

Compared with the conventional product (LUA 3 - U 2 - AGT), high - speed transfer of about 3 times * 1 has become possible.

* In Windows XP, it operates with USB 2.0 connection.

※ 1 【Measurement environment】

Wired LAN adapter (this product): LUA 4 - U 3 - AGT

Wired LAN adapter (conventional product): LUA 3 - U 2 - AGT

PC 1: Sony VAIO SVE 14 A 3 AJ Chariot Endpoint / Windows 8 Pro (64 bit) / CPU: Core i 7 2.2 GHz, Memory: 4 GB

PC 2: DELL PRECISION M4600 / IxChariot Console / Windows 7 Ultimate SP 1 (64 bit) / CPU: Core i 7 2.4 GHz, Memory: 8 GB

【Measuring method】

This product connects the LAN port of PC 1 and the USB 3.0 port of PC 2.

Measure the throughput between PC1 and PC2 with IxChariot.

(As of 2014/6, investigated by Buffalo)

* Effective throughput varies depending on the environment.

Compact design convenient to carry

Compared to the conventional product (LUA 3 - U 2 - AGT), it weighs approximately 43% and weighs only about 26 g.

Furthermore, it is a compact design that fits in the palm of your hand, so it will not get in the way when traveling or on a business trip.

Easy setup for peace of mind even for the first time

Attached by LUA Navigator which can be used easily even for the first time.

Since it follows only the guide, you can use it safely without hesing the installation of the driver.

Even PCs without a CD drive can be downloaded from the WEB page and used.

Simple body that matches any equipment

Adopting a simple but calm design that harmonizes with various personal computers.

Body color is white with cleanliness, it matches any equipment.

Product Specifications

Corresponding specification

Compatible models

PC with USB 3.0 / 2.0 / 1.1 interface (Windows, Intel CPU-equipped Mac)

※ USB Hub is not supported.

Supported OS

Windows 8.1, 8, 7, Vista (64/32 bit)

Windows XP (32 bit)

Mac OS X * 10.9, 10.8, 10.7, 10.6

* We support only Mac with Intel CPU.

LAN interface section

standard

IEEE802.3ab-compliant (1000BASE-T), IEEE802.3u-compliant (100BASE-TX), IEEE802.3 (10BASE-T)

Supported protocol

TCP / IP

Transmission path encoding method

8B1Q4 / PAM5 (1000BASE-T), 4B5B / MLT-3 (100BASE-TX), Manchester coding (10BASE-T)

Transmission speed

1000/100/10 Mbps

Access method

CSMA / CD

Number of ports

1 port (AUTO-MDIX compatible)

Connector shape

RJ - 45 type 8 - pole connector

JumboFrame

Maximum 4 KB (Including Header 14 Bytes + FCS 4 By)

* JumboFrame is compatible only with Windows 8.1 / 8/7 / Vista / XP.

It does not correspond to MacOS.

* Depending on the network environment, the effect of JumboFrame may not be obtained.

* JumboFrame is disabled in the shipping state.

Please make the setting when enabling it.

Body specification

USB standard

USB Revision 3.0 / 2.0 / 1.1 or later

USB terminal

A type

Power supply

AC 100 V 50/60 Hz

Maximum power consumption

1.35 W

Maximum current consumption

270 mA

External dimensions

28 × 74 × 14 mm

mass

Approximately 26 g

Operating environment

Temperature 0 ~ 40 ℃

Humidity 10 - 85%

※ There is no condensation

Main accessories

Instruction manual, warranty card, driver CD (LUA Navigator)

Features:

• Please enter model number Confirm this is compatible:
• Mac and Windows compatible.
• Wired LAN can be used with Mac Book etc. without LAN port.
• With Giga & USB 3.0; fast
• Main accessories: Instruction manual, warranty card, driver CD (LUA Navigator)
• Comfortable high speed internet with Giga & USB 3.0 compatibility
• Make Giga's power work without compromise with USB 3.0 compatibility
• Compact design convenient to carry
• Easy setup for peace of mind even for the first time
• Simple body that matches any equipment

Product information:

Shipping Weight: 99 g

Package Dimensions: 2.90 x 12.60 x 17.80 cm
