Item Descriptions:

Product introduction

● Linear PCM recorder with 24bit 96kHz ● Up to 128GB microSDXC card can be used ● Sound pressure 120 dB SPL ● Peak reduction function automatically setting the optimum level ● Variable playback speed ● Playback equalizer ● Wi - Fi remote control,

File transfer, monitoring support ● XY style stereo microphone installation ● Touchless recording ● After recording, from the spot to the SNS ● Overdubbing ● Reverb effect

From Amazon

Handy recording more freely.

Linear PCM recorder with X - Y style stereo microphone with simple operation corresponding to full remote control on Wi - Fi and file transfer.

A next-generation model that realized full remote control, playback monitoring, file transfer by Wi-Fi has appeared on the linear PCM recorder DR series which has been very popular since its launch.

Together with the user interface that is pursued for ease of use and renewed, it overturns common sense of Handy Recording.

DR-22WL is a simple model pursuing an easy-to-use user interface so that anyone can easily enjoy high-quality linear PCM recording.

It is the best model for music recording mainly of acoustic instruments such as orchestral instruments, pianos, acoustic guitars.

High sound quality recording with only the main unit - Full-featured X-Y system stereo microphone mounted -

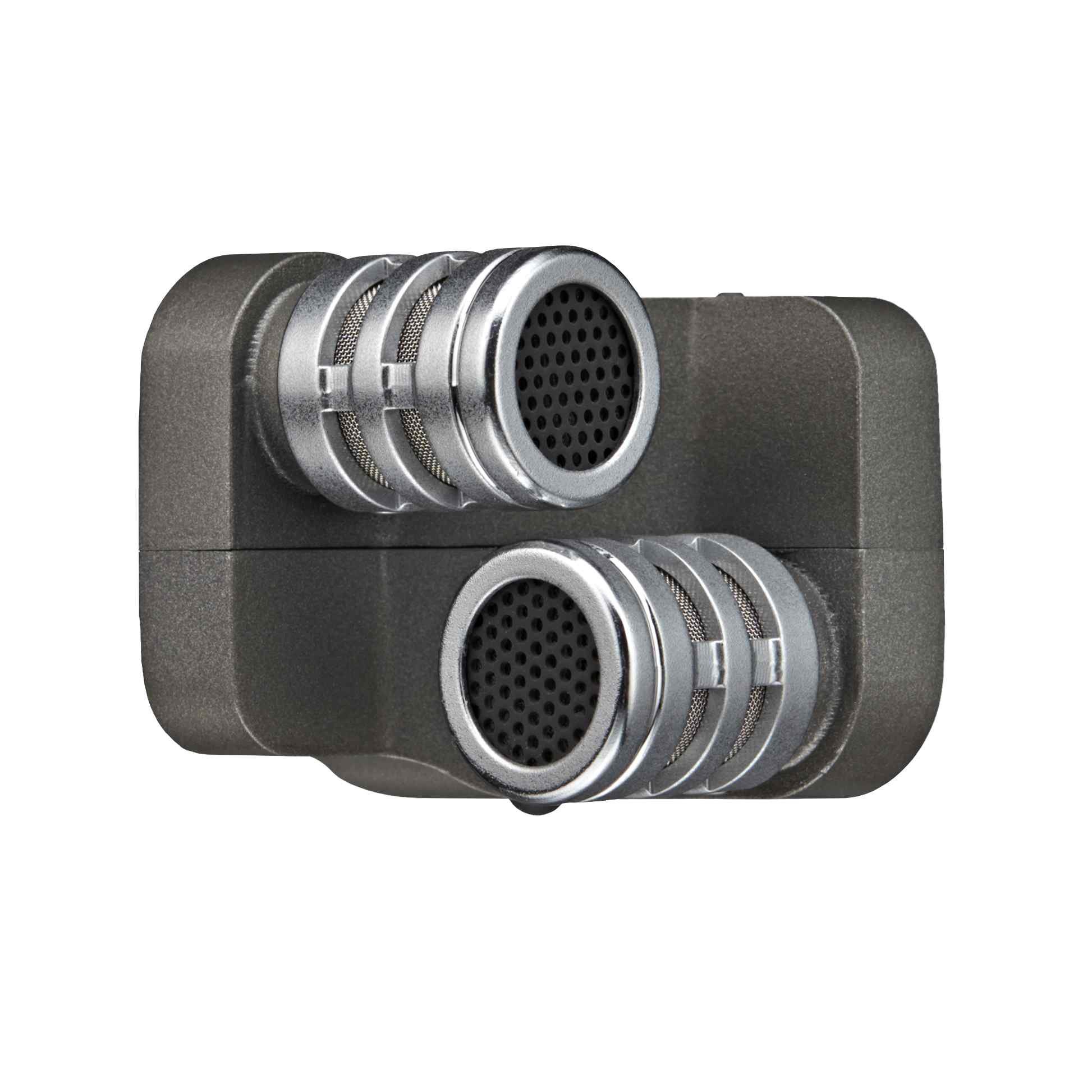

X-Y method unidirectional stereo condenser microphone realizing aimed recording

Expanding

Mount a unidirectional condenser microphone in a microphone capsule designed taking acoustic characteristics into account.

Mike unit was selected through listening evaluation, while taking the sound quality of the popular equipment as a standard.

It adopts the X - Y method which can obtain a sound with a stereo feeling while having it.

Sound pressure 120 dB Reliable for high volume sound recording with soundproof high pressure resistant to reliably capture large volume of SPL

Recording at rehearsal studio, recording of rock concert, airplane, train etc. It is designed to be able to record without distortion even with loud sound source.

120 dB SPL is a loud volume that exceeds 20 times the maximum sound pressure of 105 dB SPL of a general cinema.

Low noise is realized by adopting high performance audio codec

Expanding

Audio codec adopts the famous CIRRUS LOGIC high sound quality codec, CS 42L 52.

Body microphone and external input both go through this low noise audio input circuit.

Simple and intuitive interface with large LCD and scene dial

Scene dial that can instantly call up the setting according to the scene

Expanding

With scene dial like a single lens reflex camera, it is now possible to set up easily according to situations.

Of course, we also have a [M: Manual] scene to manually operate all the functions manually.

EASY

: If you get lost in the scene, please use EASY.

Auto level, Prereck, 40 Hz low cut filter is set.

LOUD

: It is a scene suitable for recording at a loud volume, such as recording at a live house or rehearsal recording.

Peak reduction, Prereck, 40 Hz low cut filter is set.

The initial recording level is set lower.

MUSIC

: It is a scene suitable for concert recording of volume not using PA / SR system such as acoustic live and classical concert.

Peak reduction, Prereck, 40 Hz low cut filter is set.

INSTRUMENT

: This is the scene suitable for recording single instrument.

The limiter is set.

INTERVIEW

: It is a scene suitable for recording voice which is not music use, such as interview.

It became monophonic recording, auto level, low cut filter of 120 Hz is set.

MANUAL

: This is a scene where all functions can be set manually.

It is suitable when you need detailed settings such as environmental sounds and DSLR shooting.

OVERDUB / AIRDUB

: This is a scene for overdub recording using the overdubbing function.

There is an overdub function that superimposes sound only with the main body and an air dub function that superimposes sounds by outputting sound from external speakers.

Air dub is useful for recording such as chorus.

PLAY FUNCTION

: It is a convenient scene for practicing instruments, which can use the variable playback speed function etc.

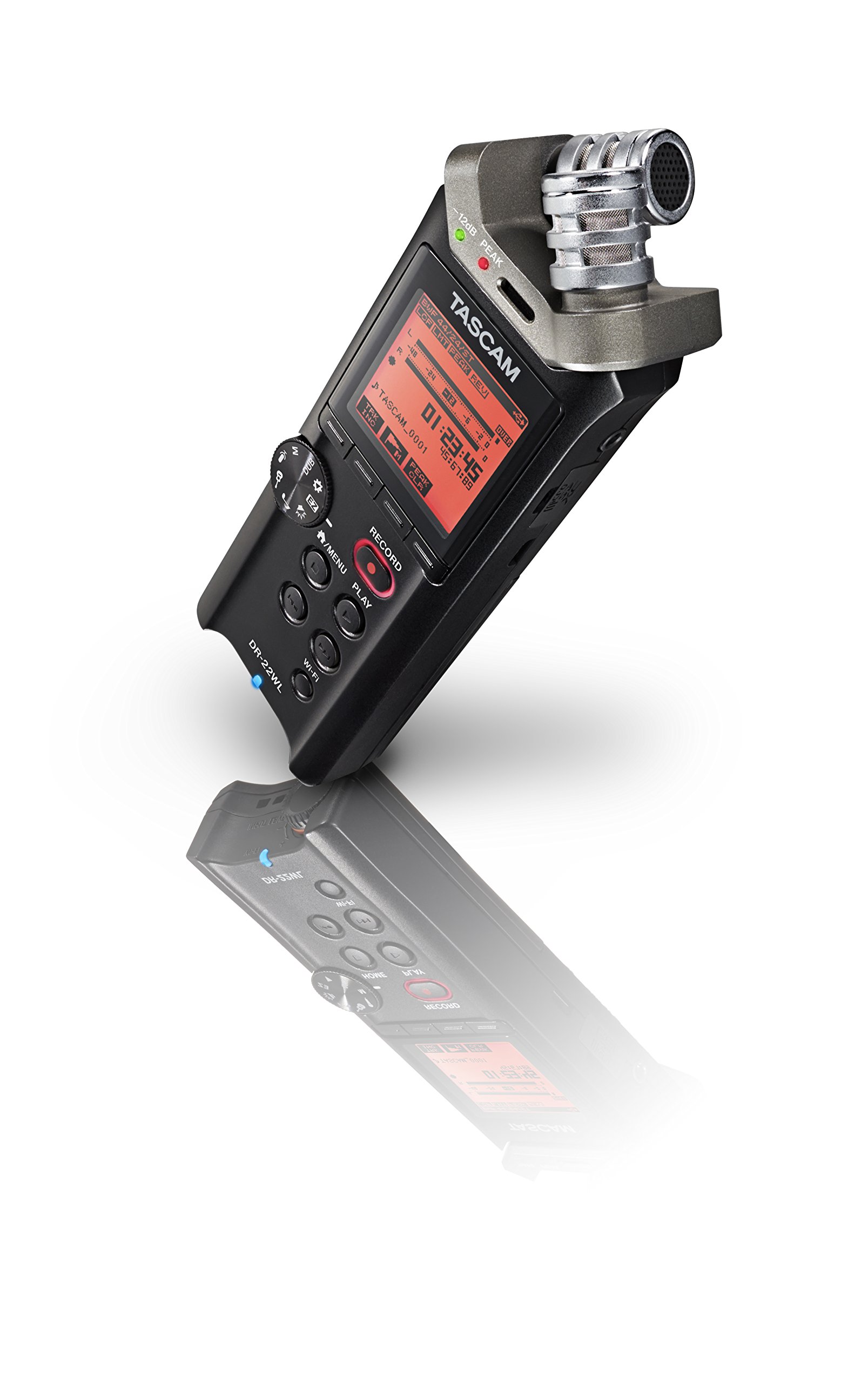

Simple operation with 128 x 128 large LCD and 4 function keys

Expanding

On the 128 x 128 LCD, which is larger than the conventional model, information such as meter and setting information is displayed, and the next required operation is displayed in icon form at the bottom.

Use the four function keys at the bottom of the screen to select from among the displayed operations.

Since necessary operations are displayed, it is possible to operate without opening the menu screen.

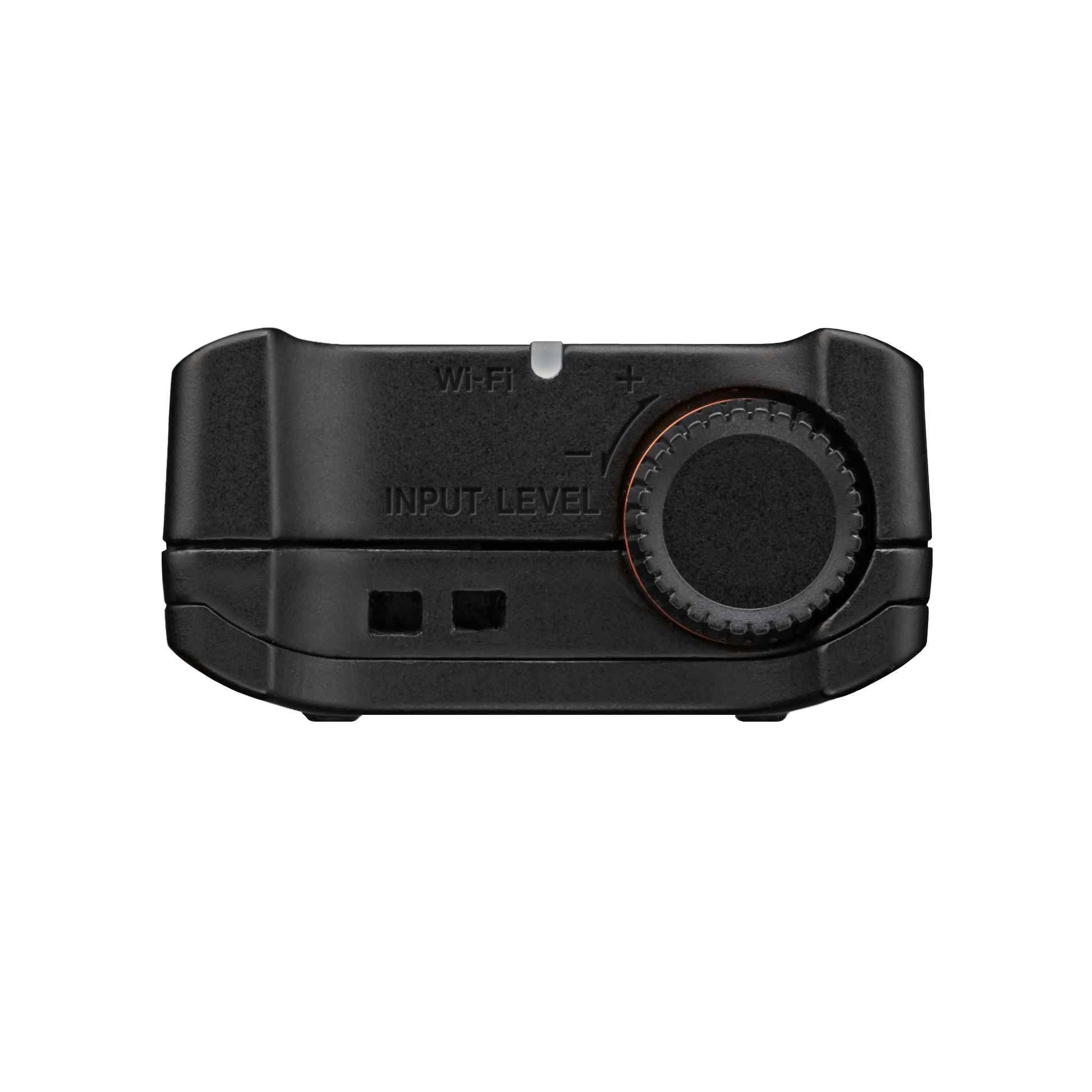

Input level adjustment dial considering operability

Expanding

For recording equipment, it is very important to set the appropriate input level.

Dedicated dial is provided for input level adjustment, you can quickly adjust the level at any time.

To make it easy to operate in any situations, the input level adjustment dial is placed on the front side.

In the case of hand, it is designed to be able to focus on the operation of the main body with one hand and adjust the recording level on the other hand.

Low noise recording without touch noise

Access pointless, one-to-one Wi-Fi connection

Expanding

The Wi - Fi connection connects a Wi - Fi device such as a smartphone to the DR - 22WL one - to - one, so you do not need an external Wi - Fi access point.

Simply enter the information displayed on the screen to make Wi-Fi connection probability.

You can check the connection status on the main unit LED, application display screen.

Even if the connection is blocked, the recording will not stop.

Full remote control with free application (iOS / Andoroid)

Expanding

Touch noise during operation is regarded as an unavoidable problem in handy recording.

To eliminate this, the only solution is to not touch the main body.

Since DR-22WL can control wirelessly from the application, touch noise can be eliminated.

Not only transport controls such as recording and playback, you can operate wirelessly up to the input level adjustment and low cut filter setting.

It also features a power saving mode to reduce battery consumption by Wi-Fi transmission / reception.

* Functions that affect radio operability undesirably are excluded from control subjects.

Voice confirmation also wireless, wireless playback monitoring function *

With conventional remote control, voice can not be confirmed even if operation can be done.

The DR-22WL realizes wireless playback monitoring that allows you to record recorded sound via Wi-Fi and hear it from a smartphone.

Just like connecting earphones to the DR-22WL, you can check the voice while setting it in a place that you can not reach.

* Wireless playback monitoring function is a function assuming sound confirmation after recording.

It does not support real-time monitoring of input sound.

After recording, go to the SNS from the place via smartphone

Dual format recording function that can simultaneously record WAV / MP3 files

It is a function to record uncompressed WAV file and MP3 file at the same time.

You can get uncompressed sound source and compressed sound source without converting work.

* It is limited to the combination of WAV 16 bit 44.1 / 48 kHz and MP3 due to the specification of MP3 files.

It can not be used for 24 bit file, 96 kHz WAV / BWF file.

Audio file sharing service From SoundCloud to SNS

Expanding

After recording, select the file saved in the main body from the dedicated application and wirelessly transfer it to the smart phone.

You can upload directly to SoundCloud from the application after transfer.

In SoundCloud you can share it on facebook, twitter, Google + timeline by one button.

A SoundCloud account can be created for free and you can upload up to 2 hours of playback time.

* Smart phones must be compatible with Wi-Fi connection.

You can not connect to other Wi-Fi networks because it is a one-to-one connection while connected.

* When uploading to SoundCloud, smartphone needs to be connected to the Internet.

Wireless transfer of files to PC

Expanding

Wireless transfer not only to the smart phone but also to the personal computer.

You can transfer the specified file using the free dedicated transfer application "DR FILE TRANSFER".

Of course, Windows and Mac applications are available.

You can download from the TASCAM website.

* The PC must be compatible with Wi-Fi connection.

You can not connect to other Wi-Fi networks because it is a one-to-one connection while connected.

Multiple automation functions that can simplify operations

Level adjustment function (peak reduction, limiter) to automatically set the optimum level

The level is automatically controlled according to the situation of the input sound.

The peak reduction function that automatically lowers the level when an excessive input is detected is ideal for music recording.

The limiter suppresses excessive input without changing the input level.

Various auto track increment (file update) function that can be set according to the application

Automatically update the file at the specified level or elapsed time and continue recording.

When setting to [5 minutes], file updating (splitting) is performed automatically every 5 minutes, which is convenient for long-time recording.

Of course, each file can be reproduced seamlessly even when integrated with waveform editing software etc.

Manual file update is also possible.

Auto Rec function to detect audio input level and start recording automatically

If you set it before the concert starts, recording starts automatically with sound detection.

Auto mark function that marks automatically according to the set conditions *

When the specified level is detected, or you can manually mark a file (mark) on the file.

If you set it to level, you can mark it automatically for each place where the song ended.

Automatic divide function to automatically split files at mark location * Auto divide function *

It is a function to divide files at places marked.

By using it together with the auto mark function, you can automatically divide files that have been recorded for a long time for each song.

Of course it is also possible to split manually.

Utilization of overdubbing and reverb effects for music production

Non destructive overdubbing function enabling overwrite recording

Expanding

Equipped with an overdubbing function that allows you to record over recorded while playing recorded files.

Recorded at the rehearsal studio

Features:

• Please enter model number Confirm this is compatible:
• Manufacturer model number: DR-22 WL

Product information:

Shipping Weight: 317 g

Package Dimensions: 7.19 x 12.50 x 19.20 cm
