Item Descriptions:

color:

White PCB non waterproof

parameter

· Input voltage: DC 5V

· Number of LEDSMD: 144 stations RGB SMD 5050 / M

Wavelength (NM): R, 650 nm; G 520 nm; B 460 nm

· Power supply: 43 W / M

· Signal: 5050 SMD with built-in WS 2812 B chip

Viewing angle: 120 °

· Lifespan: 50,000 hours or more

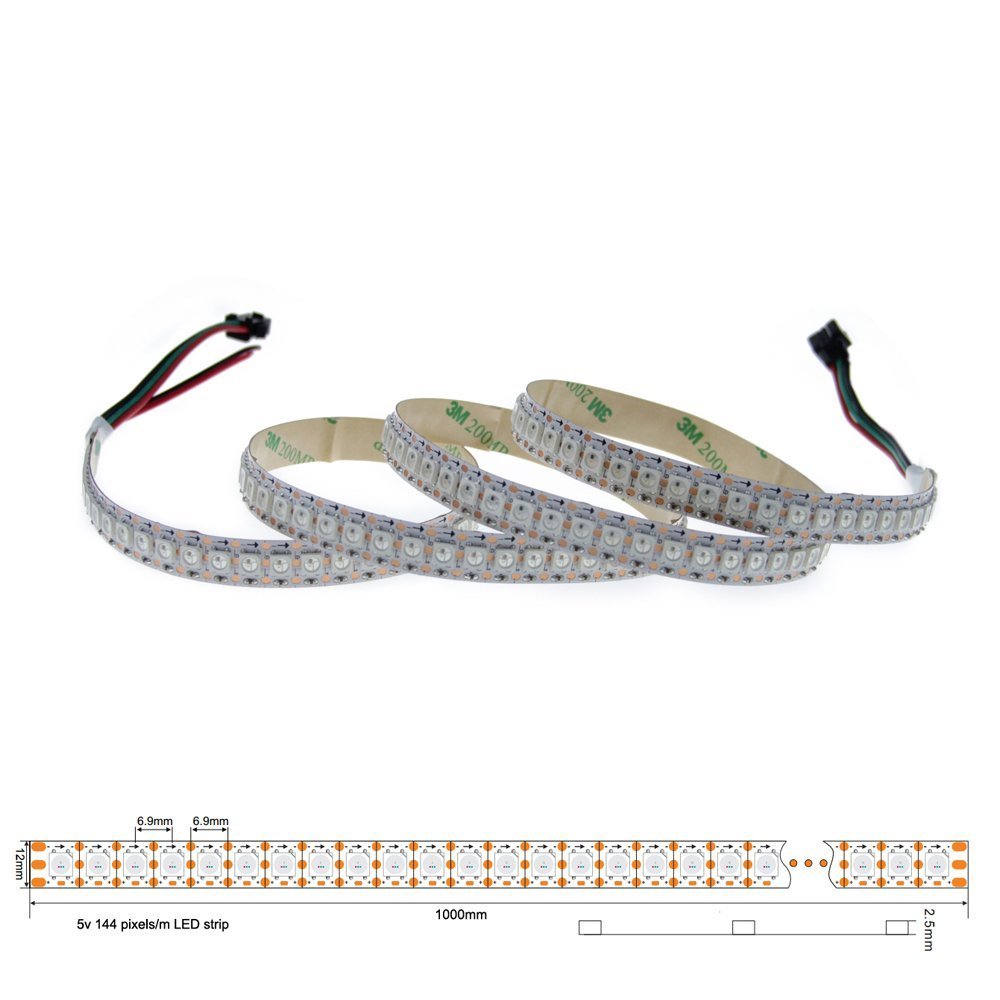

· External dimensions: 1000 * 12 * 2.5 mm

· Tube waterproof: IP20

· White PCB

Characteristic

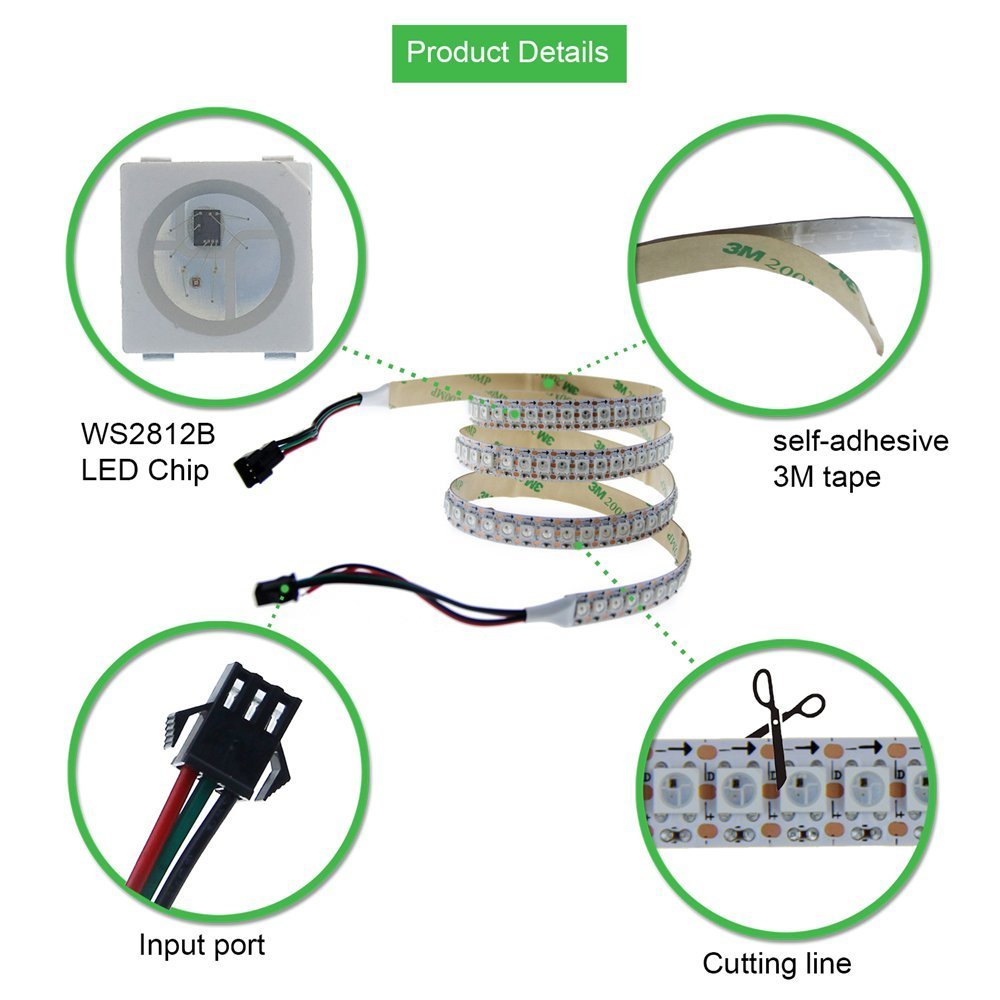

The WS 2812 B LED strip has a single WS 2812 BIC chip built in every 5050 RG BSMD.

Individual addressability can be realized and LED lighting effect in everything can be controlled.

Each LED is individually addressable, red, green and blue 8-bit data is shifted to 24-bit color, LED tape light takes data in order of green, red and blue.

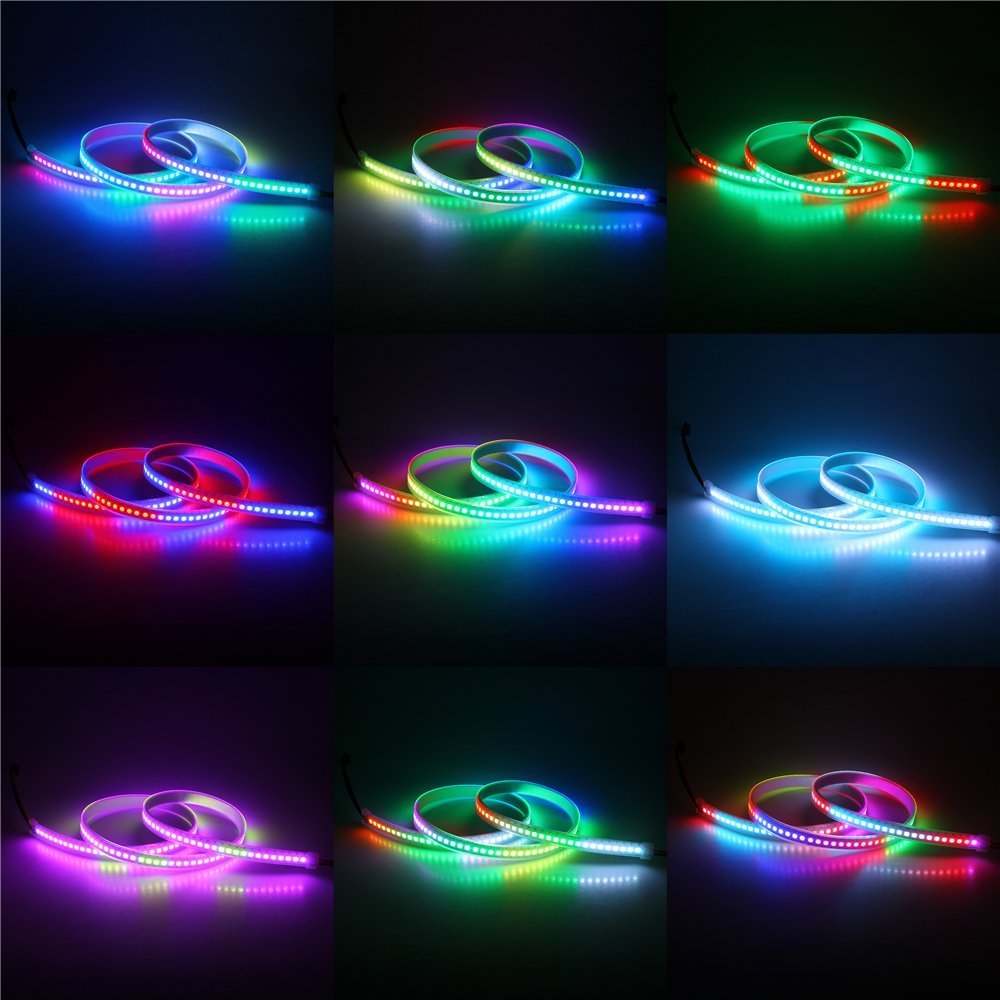

You can display hundreds of lighting effects with colorful curtain up / flow water / raindrops or flash jump etc., according to the controller.

You can also edit animation effects with Coreldraw / Flash / LEDEdit software.

Working under DC 5V, low power consumption, energy saving Super low temperature operation with super bright.

All the light spreads, it is completely smooth, and it is emitting light.

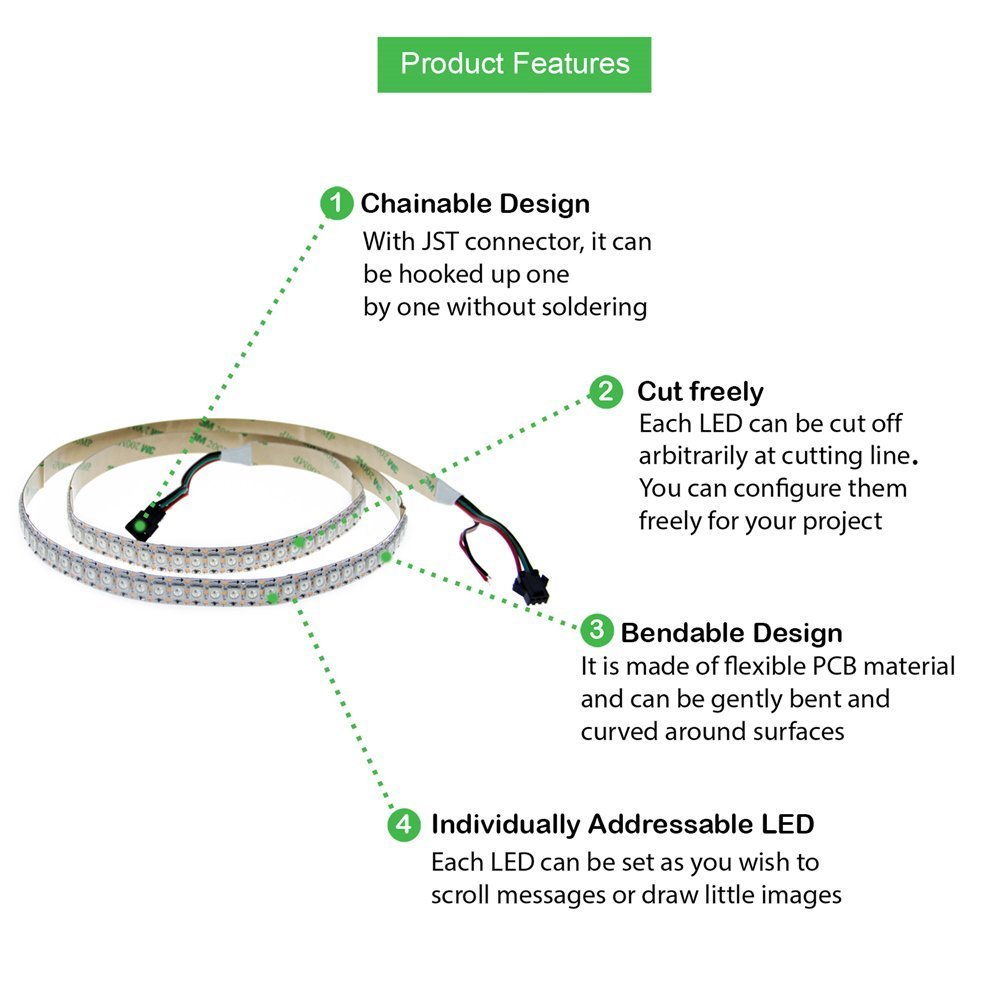

All LED lamps can be cut arbitrarily.

Good flexibility can bend arbitrarily to your request.

LED tape: High quality 5050SMD High strength and reliability Long life 50,000 hours or more

Package included:

1 x 1 M WS 2812 B LED strip

SP103E mini wireless 14 key 300 color mode controller WS 2812 B WS 2811 applied to LED tape DC 5 V:

https://www.amazon.co.jp/dp/B06XSDNCYZ

Features:

• "Single Address" All pixels have their own color and brightness.
• You can control by yourself, and you can set colors and animations you want.
• 256 luminance display and 24-bit color display.

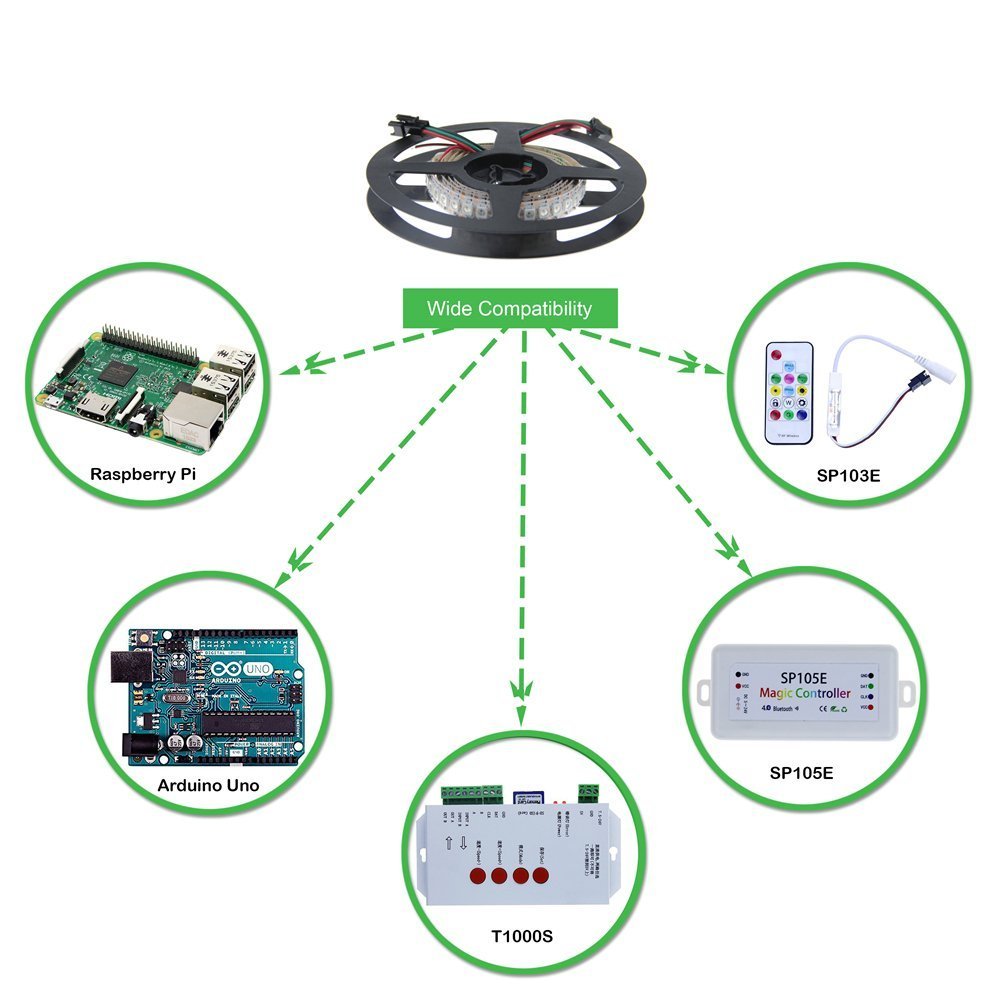

• 【Easy program】 WS 2812 B LED tapes can be programmed using Arduino, FastLED library, Raspberry Pi, FadeCandy, T1000S etc.
• In addition, SP105E, SP103E (ASIN: B06XSDNCYZ), HC008 and other preliminary programming ws2811 controller can be controlled.
• 【Waterproof】 Since it is covered with a waterproof tube, it is easy to protect it well and to clean it well.
• Silicone clip and screw are attached, it can be used according to the place you want to install.
• [Suitable for DIY] 3 pin JST - SM connector is attached, power / ground wiring is attached to both ends.
• You can easily cut with scissors.
• Adjustable to your favorite length.
• Since it is a soft tape specification, it's flat and curved freely
• Applicable range: Suitable for lighting of jewelry shops, bars, hotels, karaoke, entertainment and leisure places, and also widely used as cars, interior, building contours, bridge decoration etc.

Product information:

Shipping Weight: 68 g

Package Dimensions: 2.21 x 15.80 x 18.59 cm
