Studio : DT Swiss

Publisher : DT Swiss

Binding : Misc.

Product Description

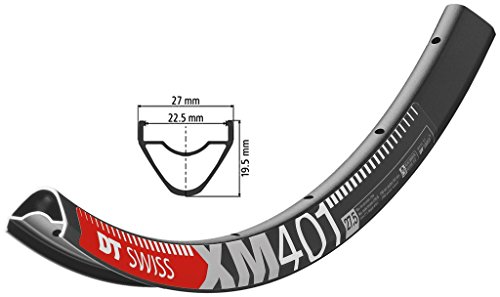

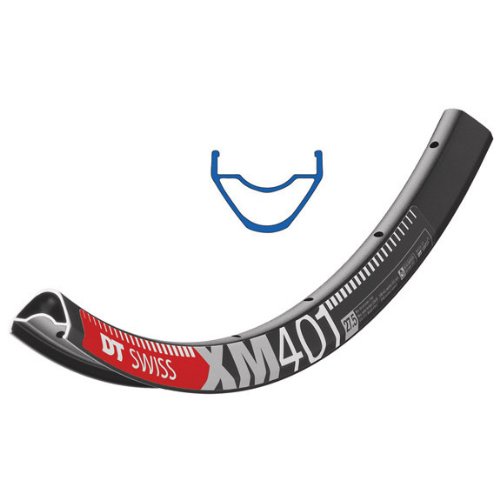

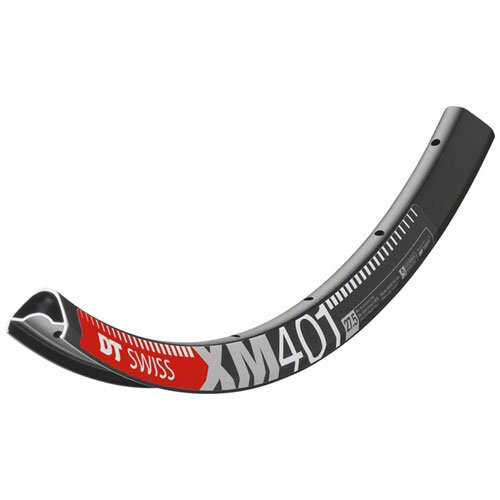

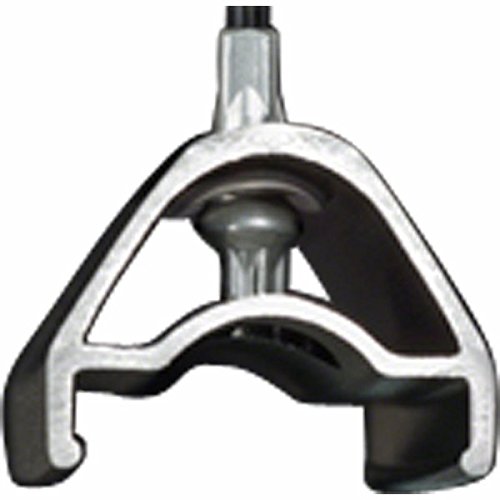

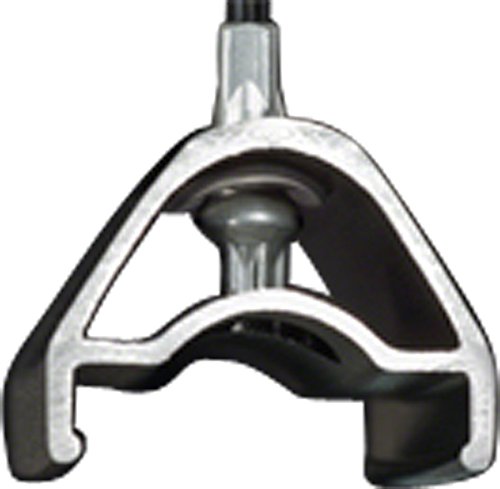

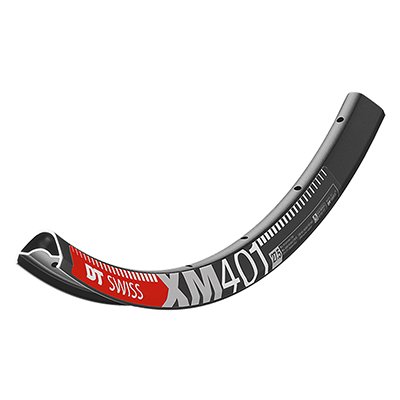

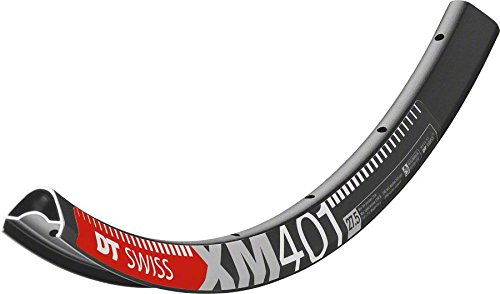

Same rim as used on XM 1501 Spline One wheelsets Intended use is XC, Trail and All-Mountain riding 2.0 silver alloy Prolock Squorx Pro Head nipples and PHR washers included Pro Head Reinforcement System (PHR) has a larger and more spherical contact area and is designed to balance loads transferred to the rim. The PHR system acts like a ball and socket interface allowing the spoke to pivot and follow the perfect trajectory from hub to rim ERD and weights shown include PHR washers Recommended tire size: 1.9" - 2.5" The wheel must be built with the supplied PHR washers and Pro Head nipples. The PHR washer must be positioned between the nipple and rim and fit correctly within the radius of the rim. DT Swiss recommends that the contact area between the nipple and PHR washer is greased Max pressure is 3.5 bar (50 psi) Item Specifications Color Black Weight 430 Width 27 Material Alloy Hub Drilling 32 Rim Depth 19.5 Brake Compatibility Disc Only Manufacturer Spec ERD 565 Valve Presta ISO Diameter 584 / 650b / 27.5 Valve Length Short Wheel Size 27.5 Tire Type Clincher Tire Type Tubeless Compatible Rim Center Offset 0 Rim Joint Welded Brake Track N/A Defined Color Black Internal Rim Width 22.5
