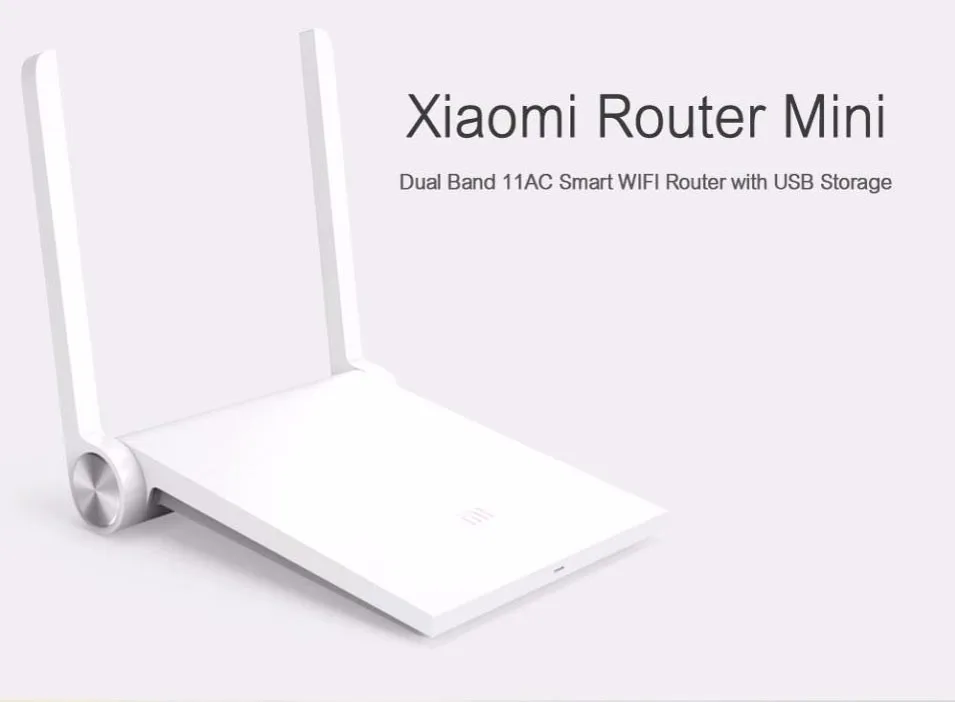

Xiaomi Router Mini

Dual Band 11AC Smart WIFI Router with USB Storage

1_01

Slow speed?Unstable WIFI signal?Complicated setup?WIFI deal spot?

It`s about time to change your router to Xiaomi 1200Mbps Dual Band smart router.

It`s 3X faster than normal router，easy setup with APP control，

Universal repeater mode，WIFI security function，guest network，USB storage，and more

Smooth transfer of 4K video，file，photos， 802.11ac is 3X faster than last generation routers，

Great improvement in WIFI speed， no more pain from data transfer.Dual band speed up to 1167Mbps

all smart devices are supported with Xiaomi Mini for a better home WIFI experience.

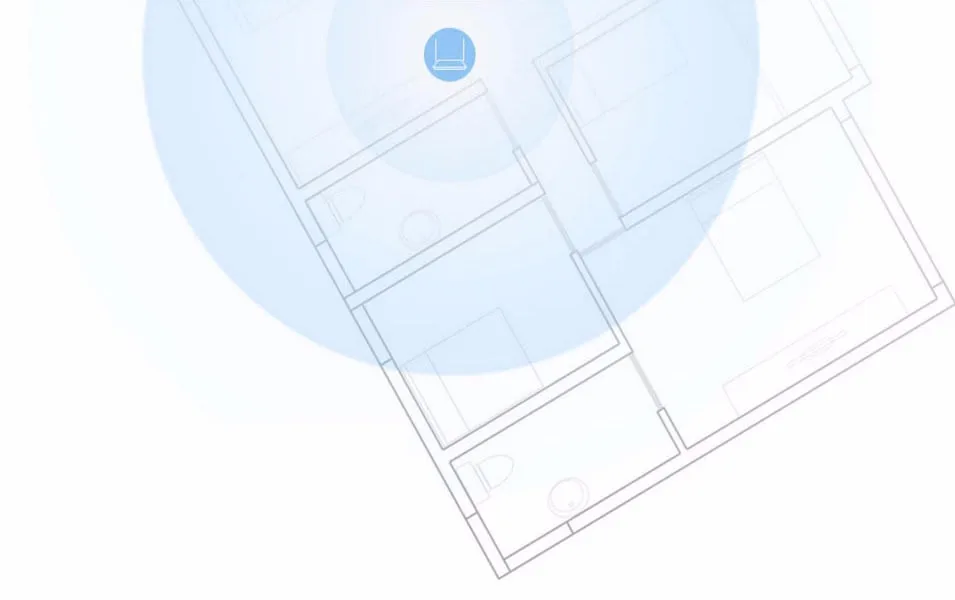

Real 2X2 dual band antennas Wall penetrate mode supported

Mini is built with 2x2 AC antennas，both antennas receive and send file at same tion，

speed is doubled compare with 1X1 antennas，It improves signal strength and coverage.

High speed downloading and HD video Chat is enhanced by 2X2 technology

Offline downloading，movie play on multiple devices and much more

Use your imagination to extend router storage benefit.Offline downloading，movie play，photo share，

file share and storage and so on，You can play movie and music on any TV

Simple setup of Xiaomi Mini， even a schoolgirl can do it

No more trouble from router setup with our Mi-WIFI system and Mi Router APP，download APP from

internet and folow setup guide，3 steps will guide you through first installation of Xiaomi Mini

ROM	16MB SPI Flash
Memory	128MB DDR2
Hard drive memory	NO
2.4G WiFi	2X2 ( the highest rate of up to 300Mbps)
5G WiFi	2X2 (the highest rate of up to 867Mbps)
Antenna	an omnidirectional dual-frequency antenna 2

Wireless Channel	2.4GHz Channel: 1，2，3，4，5，6，7，8，9，10，11，12，13
	5GHz Channel: 149，153，157，161，165
	5GHz DFS Channel: 36，40，44，48，52，56，60，64
Modulation Mode	11b: DSSS: DBPSK(1Mbps)， DQPSK(2Mbps)， CCK(5.5/11Mbps)
	11a/g: OFDM:BPSK(6/9Mbps)， QPSK(12/18Mbps)，16QAM(24/36Mbps)， 64QAM(48/54Mbps)
	11n: MIMO-OFDM:BPSK，QPSK，16QAM，64QAM.
	Rate: MCS0~MCS15
	11ac: MIMO-OFDM:BPSK， QPSK， 16QAM，64QAM，256QAM.
	Rate: MCS0~MCS9 (support 2 streams)
Receiving sensitivity	11Mbps:≤-90dBm，54 Mbps:≤-72dBm，
	HT20 QMCS7:≤-69dBm，
	HT40 MCS7:≤-66dBm，
	VHT20 MCS8:≤-65dBm，
	VHT40 MCS9:≤-60dBm，
	VHT80 MCS9:≤-58 dBm

operating system	OpenWRT customized intelligent router operating system MiWiFi ROM
Support language	Simplified Chinese (English Only Android and IOS APP)
senior management	For advanced users / developers to provide root access router and provide native toolchain and SDK
Wireless security	WPA-PSK/WPA2-PSK encryption， wireless access control (black list)， SSID hide.
Open platform	Support thunder plug-in
Management Applications	support Web\ Windows \ Android \ MacOS \ iOS
