Item Descriptions:

Best choice for large size TV

LG, Sony, Samsung, Sanyo, Sharp, Panasonic, Toshiba, Toshiba, Sony, Sony, Sony, Sony, Sony,

Hitachi, Medion®, Toshiba®, Philips, ViewSonic, Mercury, ANT, Magnavox, Insignia, RCA, HP, Loewe and others.

You can also watch from various angles

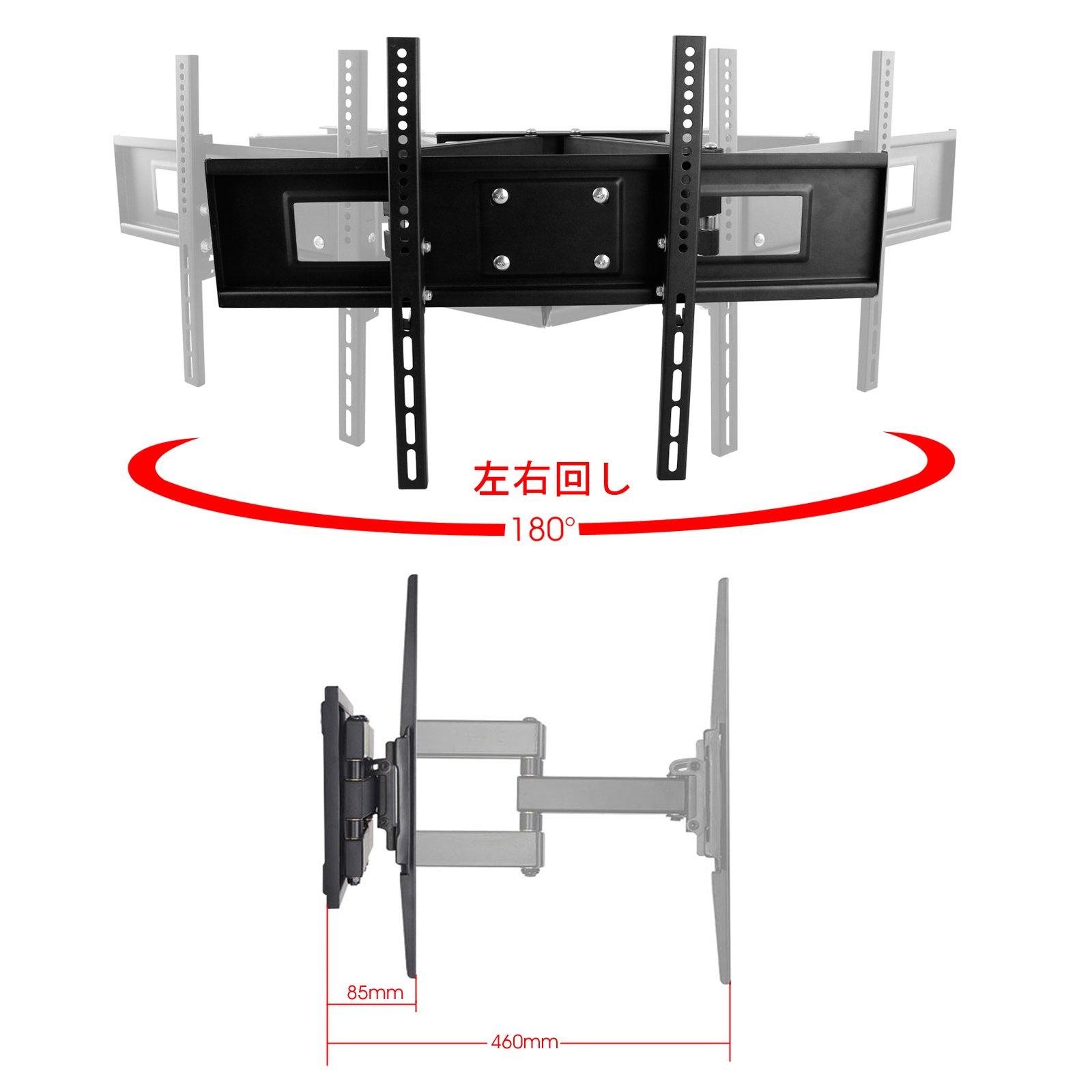

It adopts a stretching design of 85-460 mm, it can be moved widely to the right and left to each 180 ° system, it can also adjust up and down diagonal + 10 ° / -5.

Let's provide the perfect viewing angle for you anywhere in the bar, conference room, guest room, kitchen, veranda, restaurant and so on.

Applicable size

Applicable size (width x length) VESA NORMEN: 100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm 400 x 300 mm, 400 x 400 mm, 600 x 400 mm, Applicable to television with VESA standard pitch owned by most television manufacturers.

Installation instructions

Installation Procedure 1-A: Concrete fence, brick fence

Please drill a hole in the marked area

Drive the anchor bolt into the hole, pass the stent through the screw, fix it

Installation procedure 1 - B: Wooden fence

Please drill a hole in the marked area

Please pass the stent through the screw and fix it

Before attaching the display board, please keep the state of power disconnection of the TV.

Supplied parts are solid brick, cinder block, wood stud wall only, this bracket is used.

If your wall is covered with other finish, special hardware is required.

I firmly screw the screw mounting, but it is not good to tighten the screw too much.

Tightening the screw too much will reduce load bearing capacity.

Please periodically check all mounting parts once every two months.

If you have any questions, please contact an authorized distributor.

Features:

• Please enter model number Confirm this is compatible:
• BAYTTER LCD / LED LCD TV Wall mount bracket can be adjusted to 180 ° on each side, up and down diagonally + 10 ° / -5, front and back 85 mm - 460 mm.
• We provide the most comfortable viewing environment from every position.
• Steel of cold rolling treatment is adopted, multilayer surface coating treatment is carried out, and it has considerable antiseptic properties.

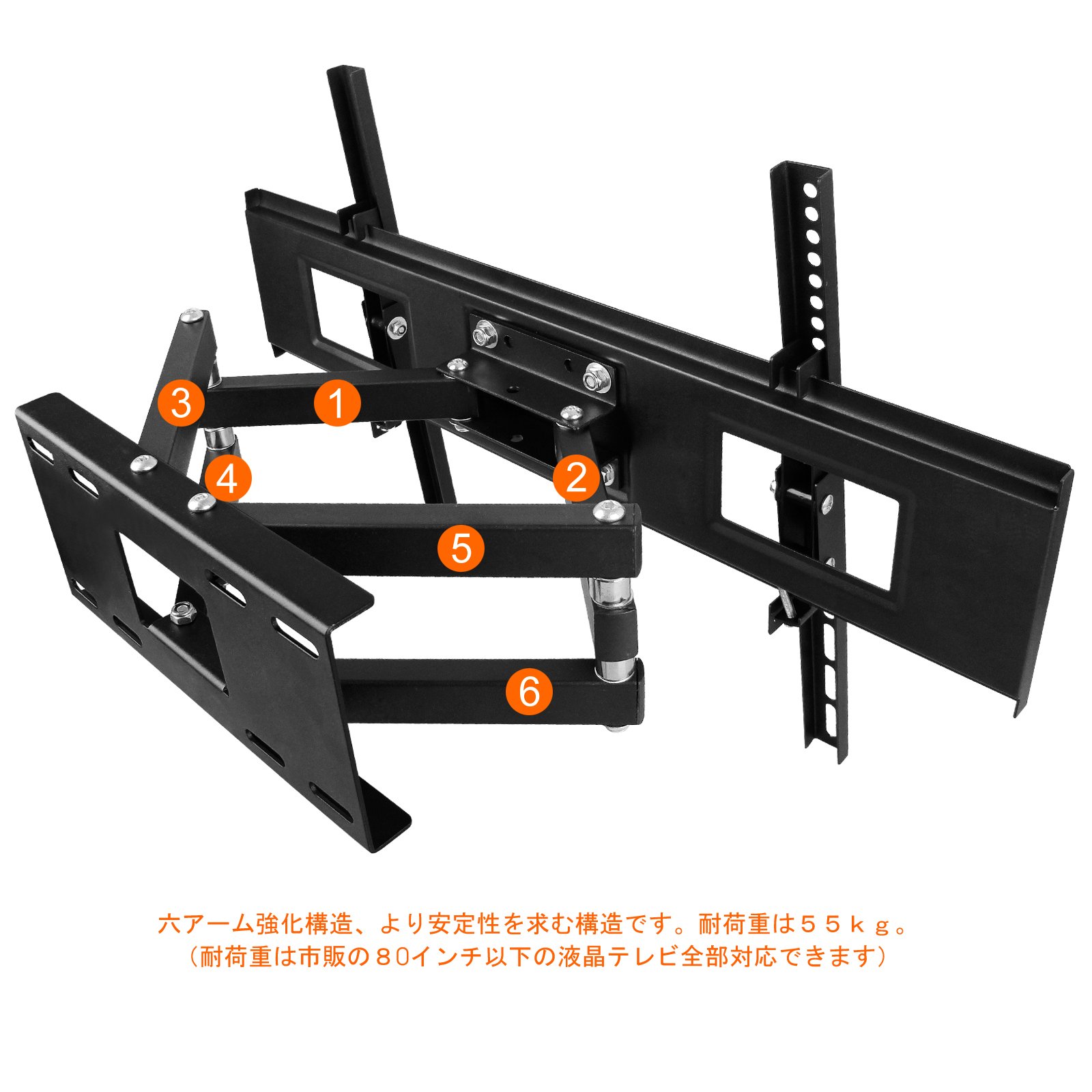

• It consists of six arms, the stability rises much more than a single arm.
• The load capacity is 55 kg (load capacity is heavier than the commercially available 80 inch or less liquid crystal television).
• We offer a safer television viewing with a solid structure.
• Corresponds to many commercially available TV sizes such as 30 '/ 32' / 39 '/ 40' / 42 '/ 46' / 47 '/ 48' / 50 '/ 55' / 65 '/ 70'.
• Applicable size (width x length) VESA NORMEN: 100 x 100 mm, 200 x 100 mm, 200 x 200 mm, 300 x 200 mm, 300 x 300 mm 400 x 300 mm, 400 x 400 mm, 600 x 400 mm, Applicable to television with VESA standard pitch owned by most television manufacturers.
• All BAYTTER products have cleared the fatigue load test, and the mass security is 10 years.

Product information:

Shipping Weight: 5538 g

Package Dimensions: 9.50 x 16.99 x 70.51 cm
