Item Descriptions:

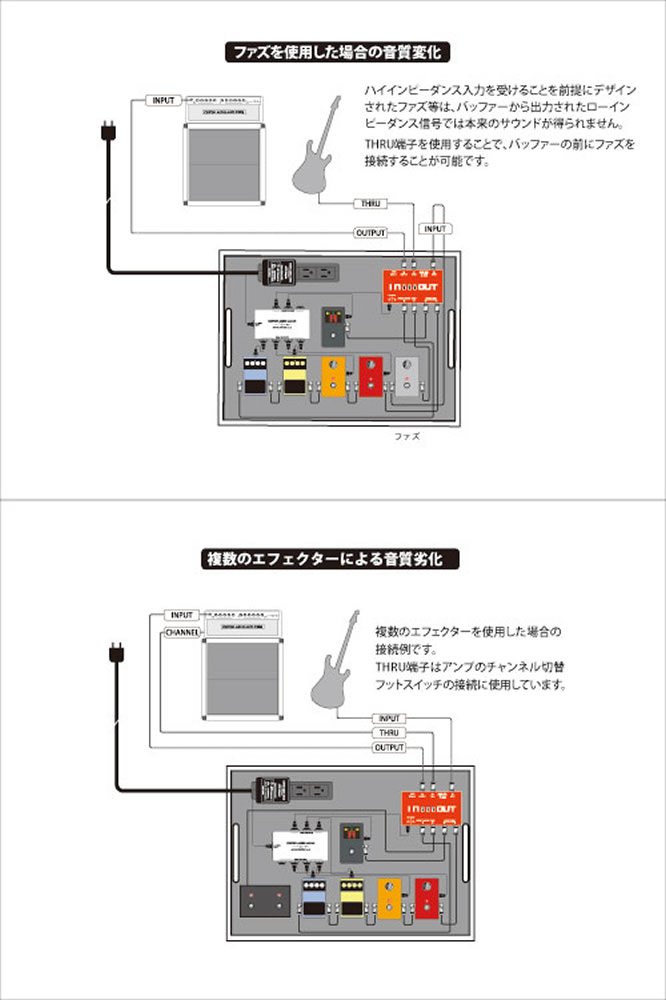

No matter how wonderful guitar sounds are, the original tones will be lost by using multiple effectors and long cables.
IN and OUT are equipped with "real buffer" to enhance the trunk without changing the sound quality.
It prevents sound quality degradation and noise interference, and it provides a clear and comfortable sound within the effects system.
※ What is buffer
Buffer is an electronic circuit that converts high impedance output to low impedance without changing tone color.

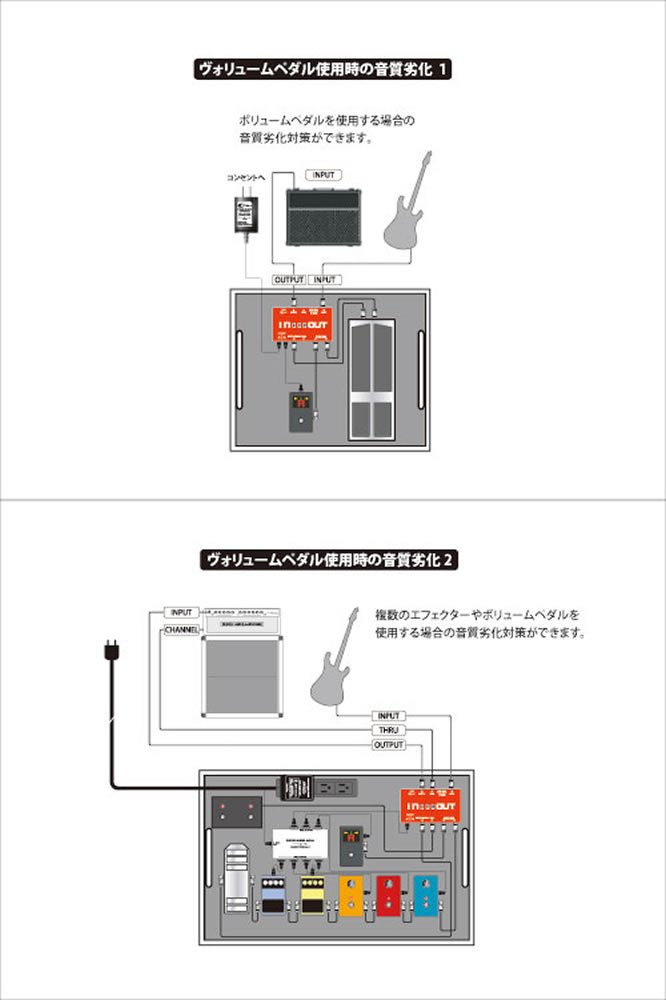

The high impedance signal outputted from the passive pickup of the guitar firmly guards the original sound from signal deterioration and noise caused by the use of the effector and the volume pedal.
JUNCTION BOX function

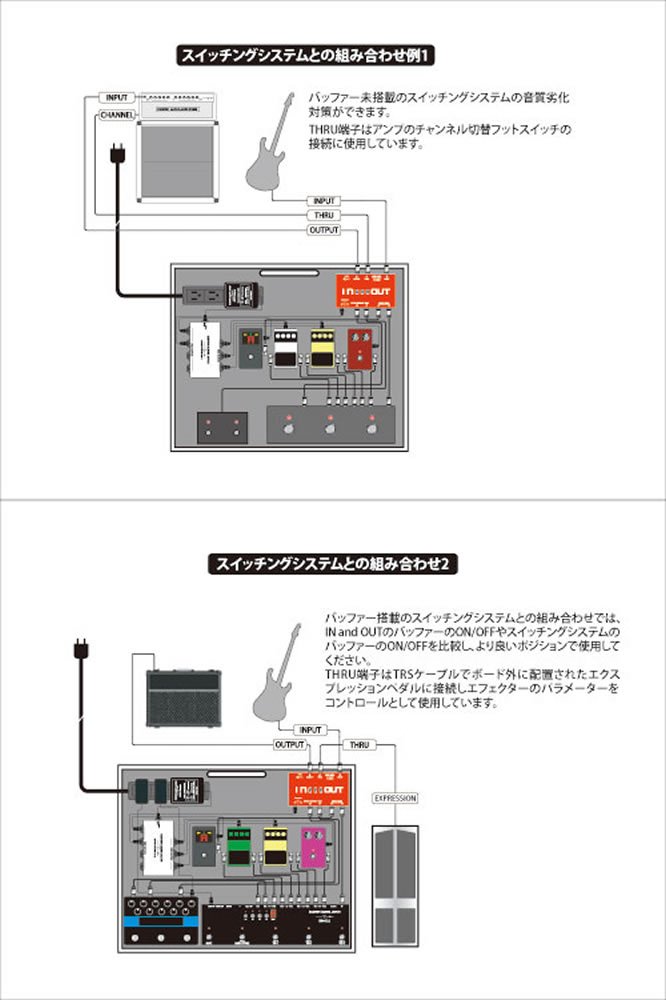

IN and OUT also have a function as a junction box.

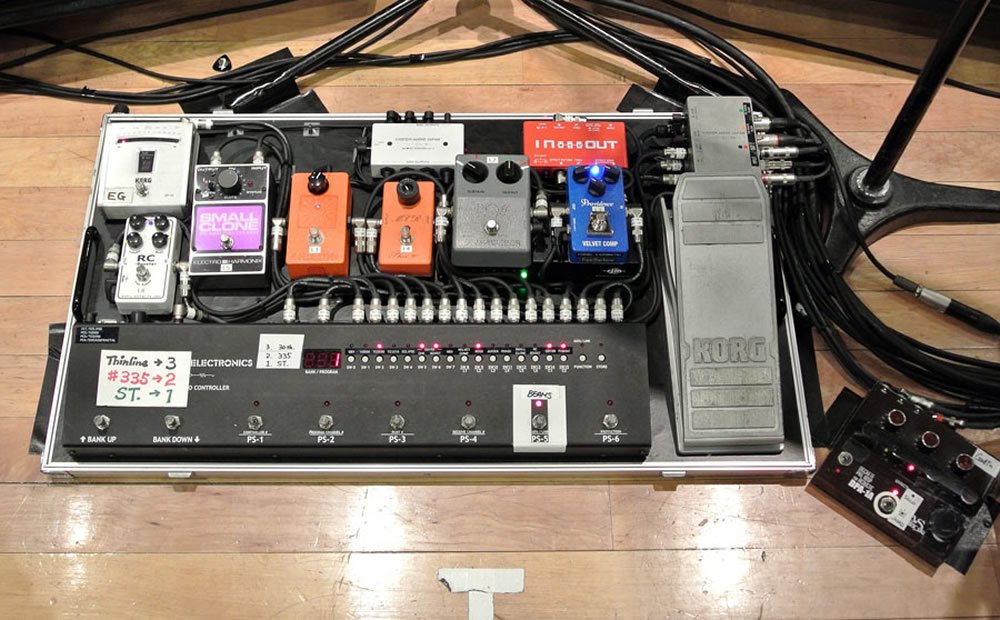

By using IN and OUT, the guitar and the terminals to be connected to the amplifier are gathered together in one place, and the effect board which can do the smooth setting without trouble by inserting and pulling plug is completed.

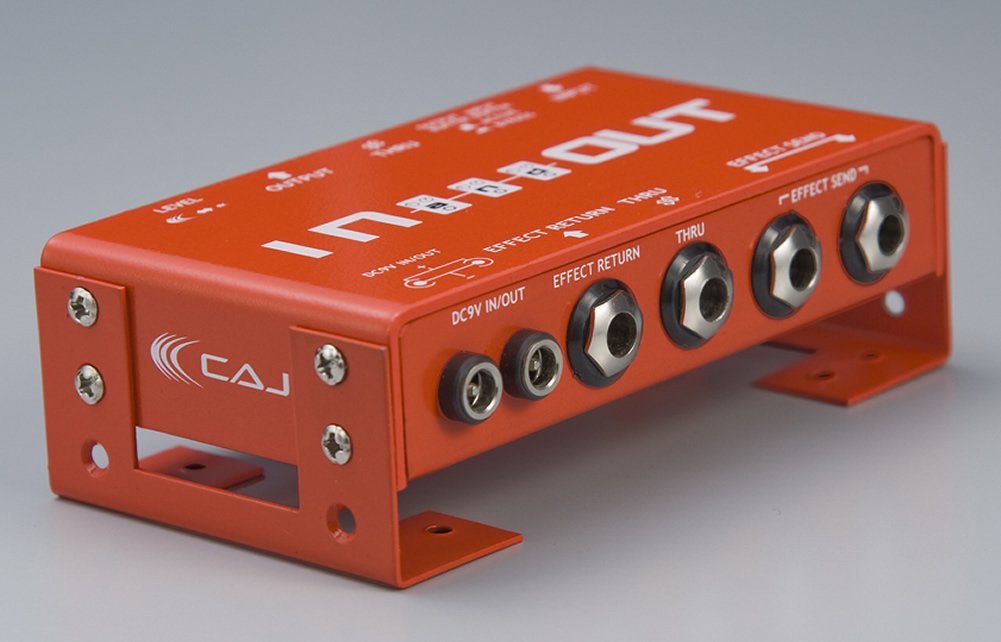

Also included is a support angle that can be adjusted in two levels.
Even with an edge effect board, you can plug in and disconnect cables.
Specifications
· Input: Input Buffer - Unity Gain (Non Boost)
· Output: Output Buffer - 0 to 10 dB Boost
· THRU terminal: TRS 1/4 "- TRS 1/4" TRS Phone Jack

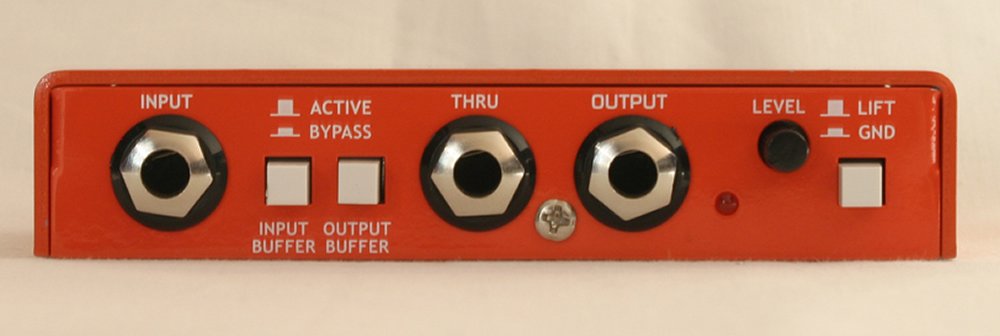

· Control: Input Buffer Bypass, Output Buffer Bypass, Gnd Lift (Effect Return), Boost Level
· Power supply: DC 9 V 2.1 mm Center (-) 110 mA
· Consumption current: 110 mA
· Accessory: 9 VDC adapter (CAJ PB 12 DC 9 - 2.1), support angle x 2, support angle fixing screw x 4
· Dimensions (W x D x H): 125 x 79 x 25 mm
Weight: 390 g
Features:
- Please enter model number Confirm this is compatible:
- Equipped with dedicated buffer for effect pedal in junction box
- It prevents sound quality degradation and noise interference, and it provides a clear, missing sound within the effects system
- Dimensions (W x D x H): 125 x 79 x 25 mm / Weight: 390 g
- Accessories: 9 VDC adapter (CAJ PB 12 DC 9 - 2.1), support angle x 2, support angle fixing screw x 4
- By design changes on the manufacturer side, design and color etc. on the appearance may change without notice.
- Please note.
Product information:
Shipping Weight: 571 g
Package Dimensions: 5.51 x 13.41 x 16.31 cm
