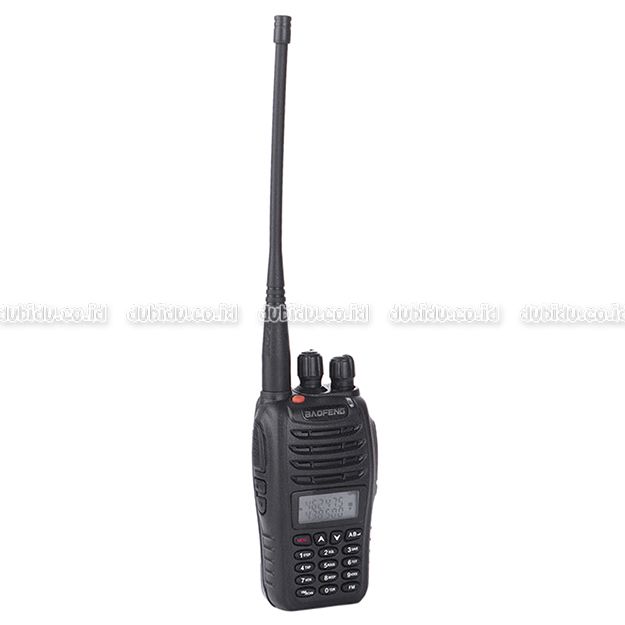

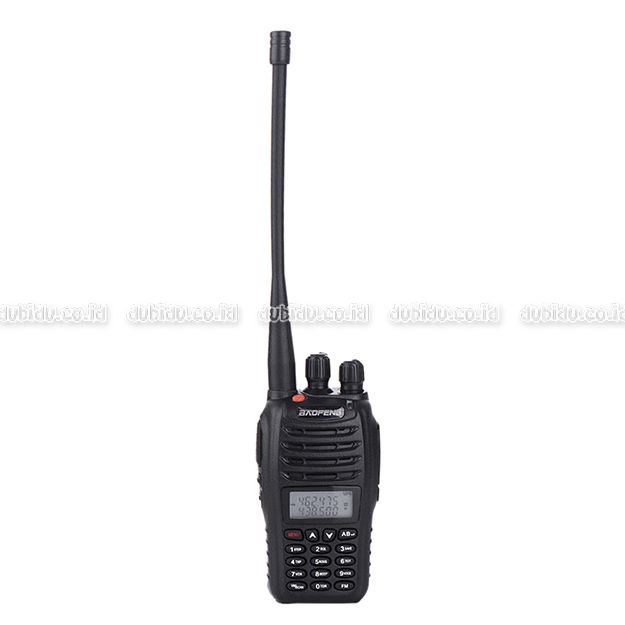

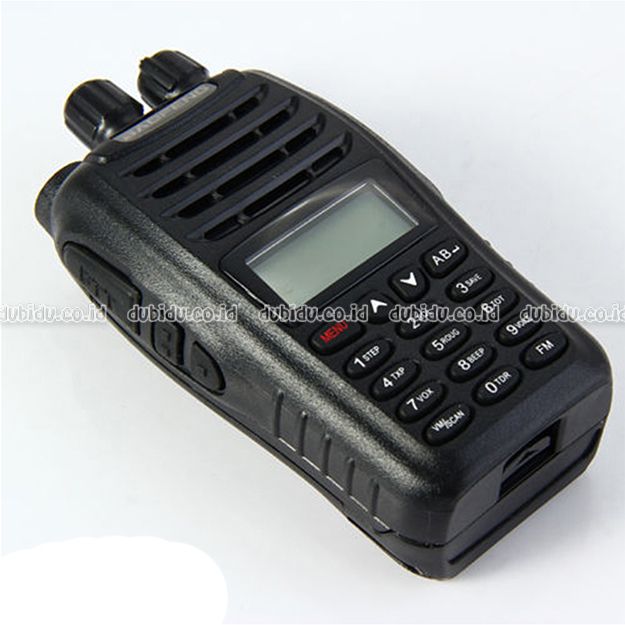

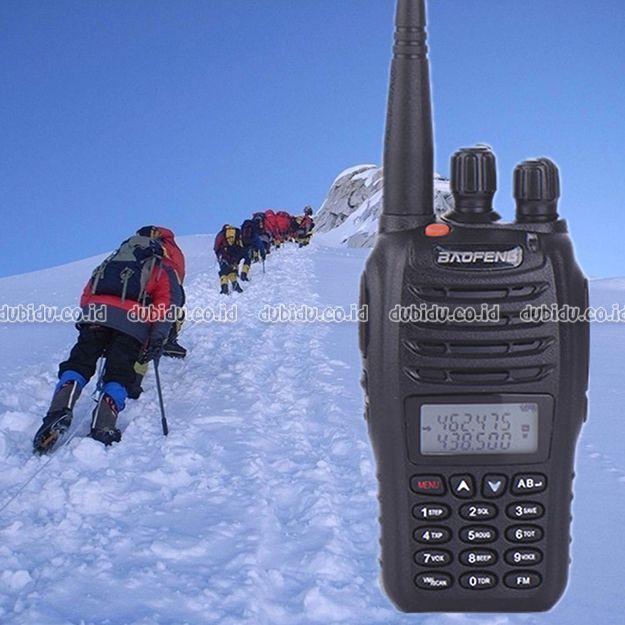

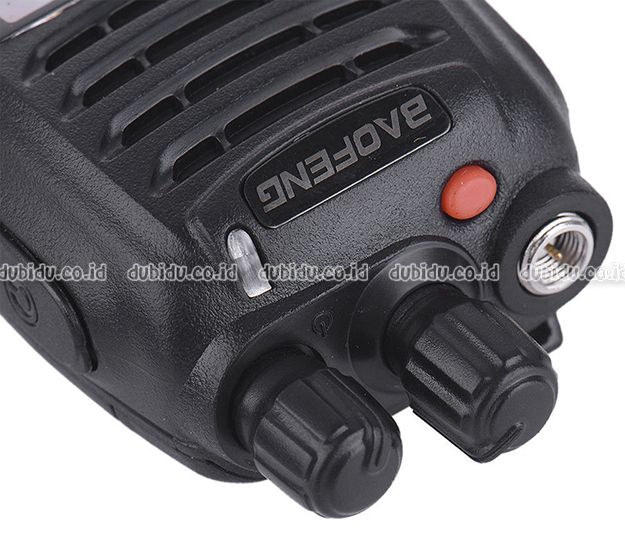

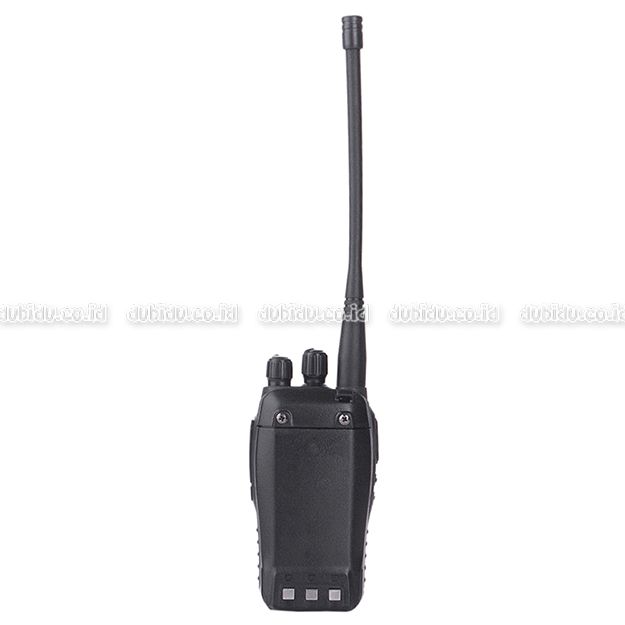

DESKRIPSI Baofeng Walkie Handy Talkie HT UV-B5/UVB5 DualBand merupakan HT Baofeng UV Series B5 dengan berbagai fitur seperti FM radio, PTT (Push To Talk), Scrambling function, Emergency Alarm, Built In Monochrome LED, Torch LED Light. Handy Talkie ini didesain menarik.. Baofeng UV-B5 siap menemani aktivitas outdoor Anda. Cocok untuk Anda yang bekerja di lapangan.
FEATURE 1. Computer to write the frequency / Manual operation to write frequency 2. Radio function 3. Voice reports number 4. DTMF encoding 5. 50 groups encoding of CTCSS and 104 groups encoding of DCS 6. TOT timeout timer 7. Step frequency (5,6.25,10,12.5,20,25KHz) 8. Power Saving Function 9. VOX VOX Transmission 10. BCL busy channel lock function 11. The low power warning 12. The dual frequency, dual display, dual-band 13. Automatic backlight 14. The three scanning mode (time, carrier, search) 15. PTT-ID recognition (Optionally press the PTT code sending, release PTT code sending, press and release code sending) 16. The frequency difference setting function 17. Directly elected menu functions of Digital keyboard 18. Scrambling function 19. Emergency alarm 20. The high and low power switching 21. Priority scan function 22. Broadband / Narrowband 23. ANI identity code editor 24. 1750KHz relayed confirmed 25. Voice diffuser 26. U / V Span reception 27. Material: ABS 28.Weight: 209g 29 . Product Size (cm): L * W * H 11.5 * 5.5 * 3.2 cm / 4.53 * 2.17 * 1.26 i n Antenna length: 15 cm / 5.91 in Chargers:10*8*4 cm / 3.94 * 3.15 * 1.54 in Cable length: 100 cm / 39.37 in Frequency Range: 136-174 / 400-480MHz Dual-Band Display, Dual Freq. Display, Dual-Standby Output Power: 5/1Watts Priority Channel Scanning DTMF Encoded FM Radio Built=in Emergency Alarm Noise Reduction 1750HZ Relay Forwarding Confirmed
SPESIFICATIONS Frequency Range : 65-108MHz(only commercial FM radio reception) VHF : 136-174MHZ, UHF 400-480HZ (TX/RX) Memory channels : Up to 99 channels Frequency Stability : 2.5ppm Frequency Step : 5kHz/6.25kHz/10kHz/12.5kHz/20kHz/25kHz Antenna Impedance 50O Operating Temperature : -20 to +60 C Supply voltage : Rechargeable Lithium-lon mAh 7.4V/1800 Mode of operation : Simple or semi-duplex Dimension (W x H x D) : 116.2 x 57.9 x 35.7 mm Weight : 553g (including battery, antenna) Transmitter : Output power 5W / 1W Modulation Mode : F3E Maximum deviation : <5kHz(Wide) / <2.5kHz(Narrow) Spurious Radiation : <7.5W Adjacent Ch. power : =-65dB / =-60dB Receiver : Receiver sensitivity 0.2 v (at 12 Db SINAD) Intermediation : 65dB Audio output : 1W Adjacent channel selectivity : 65dB Spurious response : 65dB Receiving current : =380mA

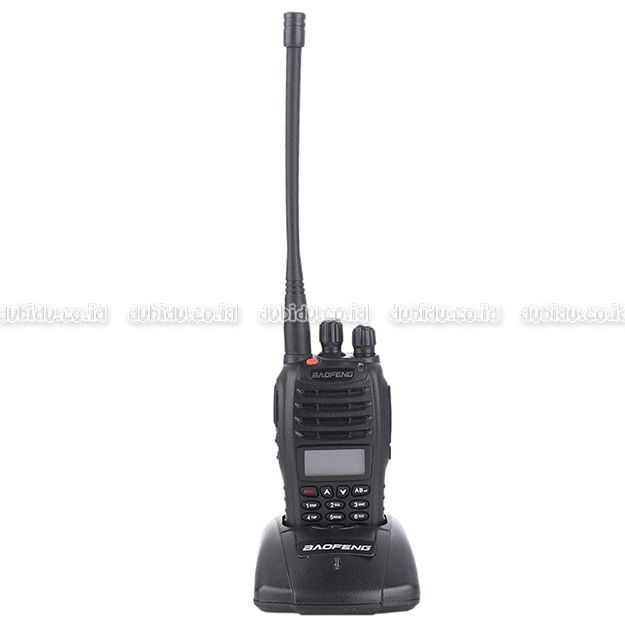

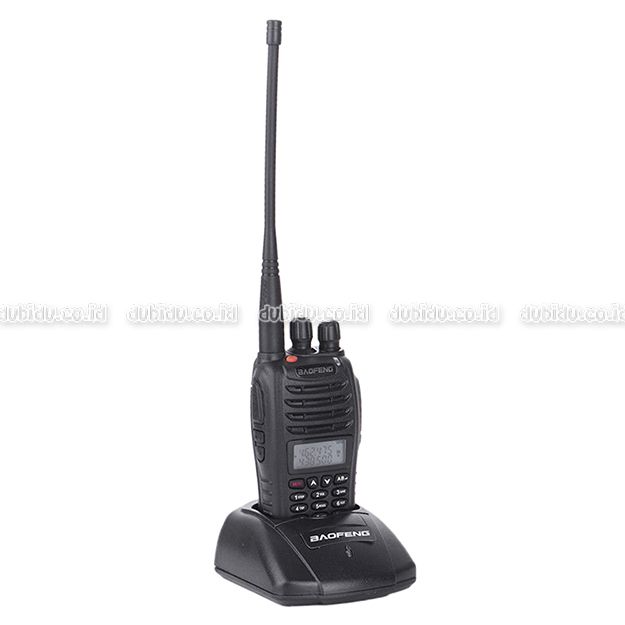

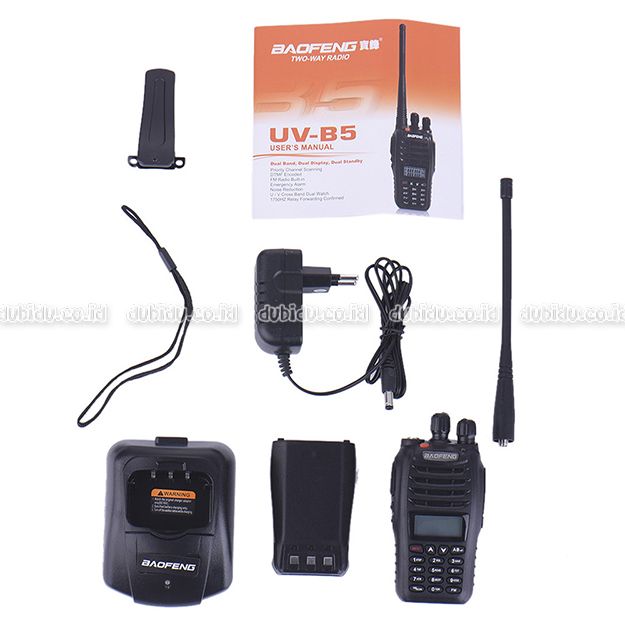

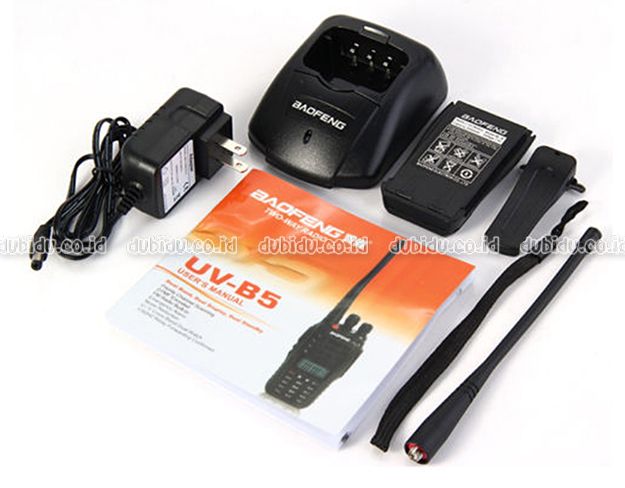

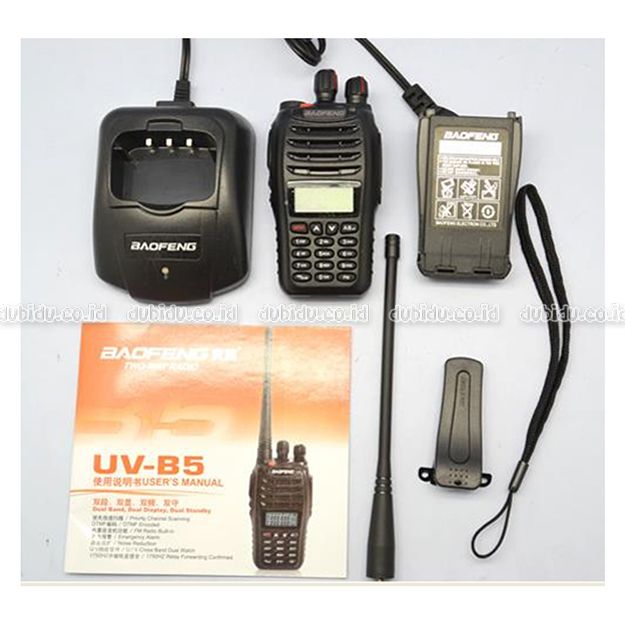

PACKAGE INCLUDE 1 x BAOFENG UV-B5 Dual Band Radio (VHF136-174Mhz UHF 400-480Mhz) 1 x 7.4V 2000 mAh Li-ion Battery Pack 1 x SMA-F Antenna 1 x Belt Sling Clip 1 x Handstrap 1 x ENG Manual 1 x Desktop Charger 1 x PTT Earpiece
