Item Descriptions:

color:

gray

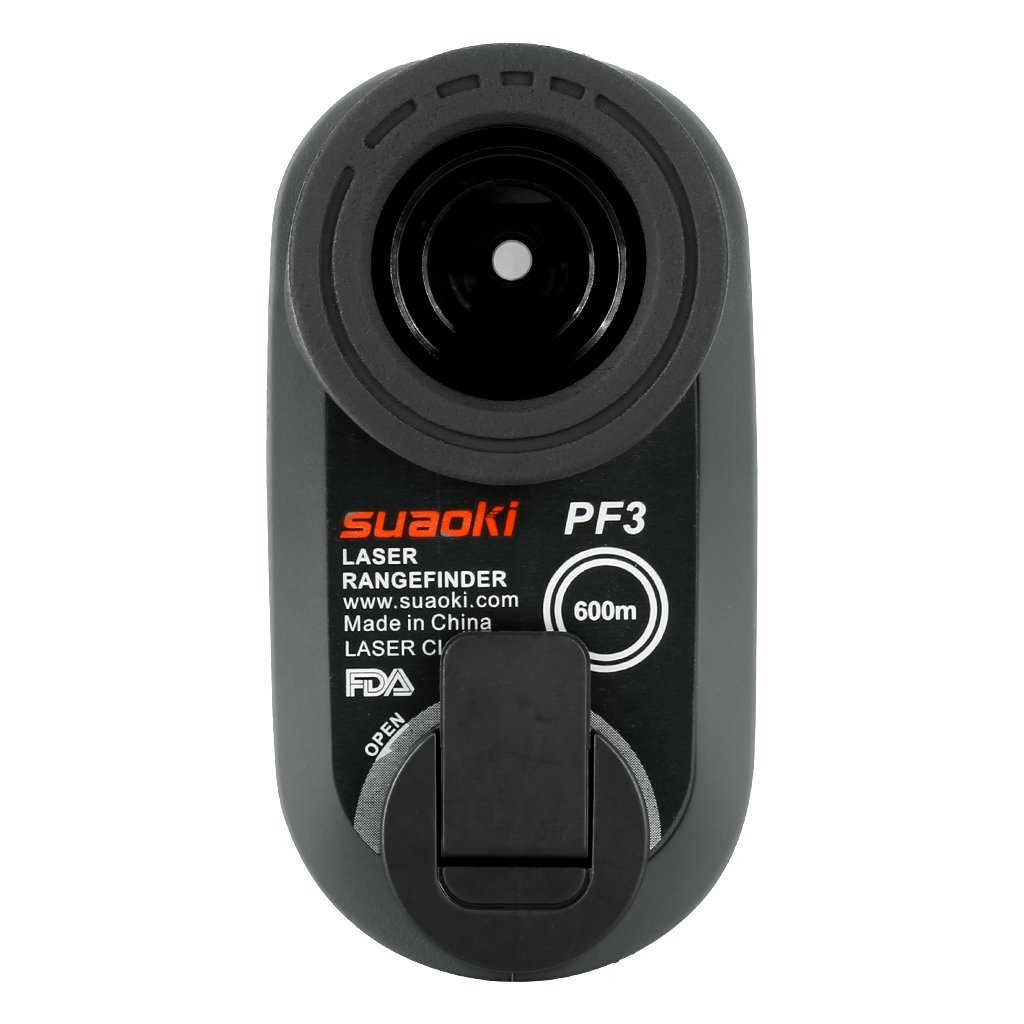

Measure the distance to the object using a laser beam!

Suaoki handy laser range finder with multiple functions such as distance, height, angle measurement, speed measurement, golf ballistic correction, pin flag lock, 2 point height difference measurement, etc.!

Continuous measurement function and automatic power off function are also attached.

If no operation lasts for a certain period of time, it will automatically turn off and prevent battery drain.

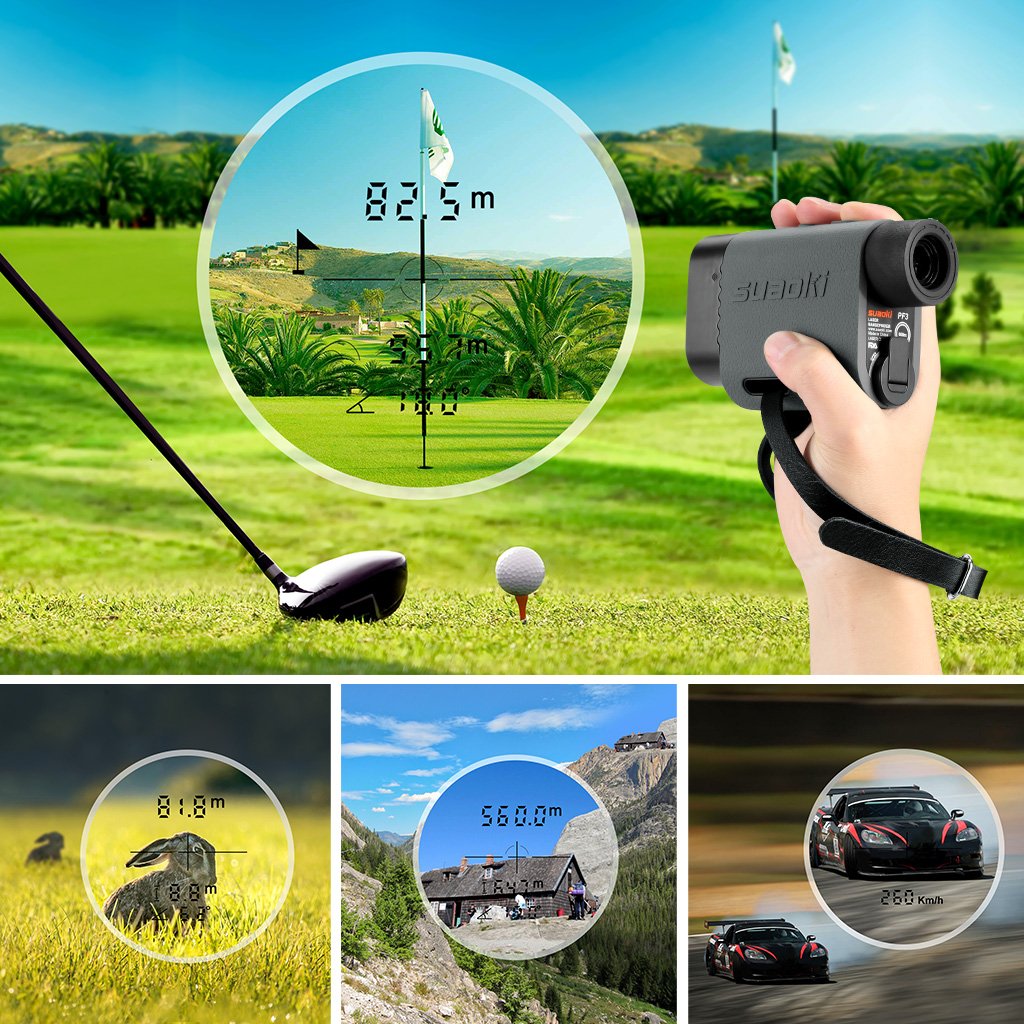

Five measurement modes

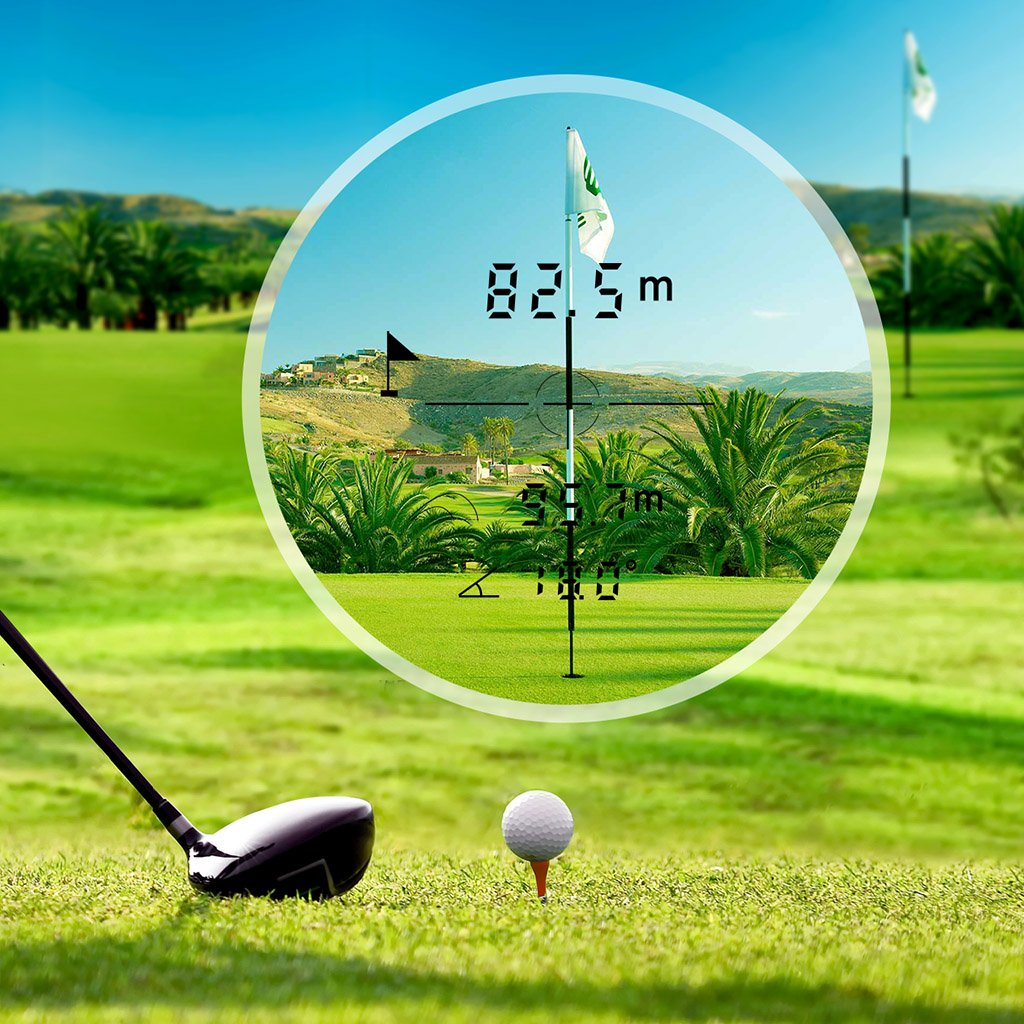

◆ Golf ballistic correction mode:

In addition to the linear distance to the object, you can also display a measure of the distance to be hit considering the height difference from the measurement position to the pin.

Measure straight distance, trajectory distance, angle.

◆ Golf ballistic (scan) mode:

It is also called pin lock function.

Enter this mode and the pin flag mark will appear.

Identify objects such as pin flags and forests behind, priority can be given to the distance to the pins in front and accurately measure the distance to the pins.

For the operation method, after pressing the power button once to aim the pin flag, the pin flag mark begins to blink, then slowly scan the left and right of the pin flag, the blinking stops after 1.5 seconds, the distance to the pin is accurate

It will be displayed in.

◆ Distance · height · angle mode:

Measure straight distance, height, angle.

◆ 2 point height difference measurement mode:

Measure the distance up to 2 points, vertical height difference

◆ Speed ​​measurement mode:

Speed ​​measurement

High performance 6x optical zoom lens installed!

The suaoki golf scope, which has a high resolution of 6 × zoom lens, can be used for various purposes such as sports competition, climbing, climbing, hunting, surveying and surveying.

It is a lightweight, compact size body that can be easily operated with one hand.

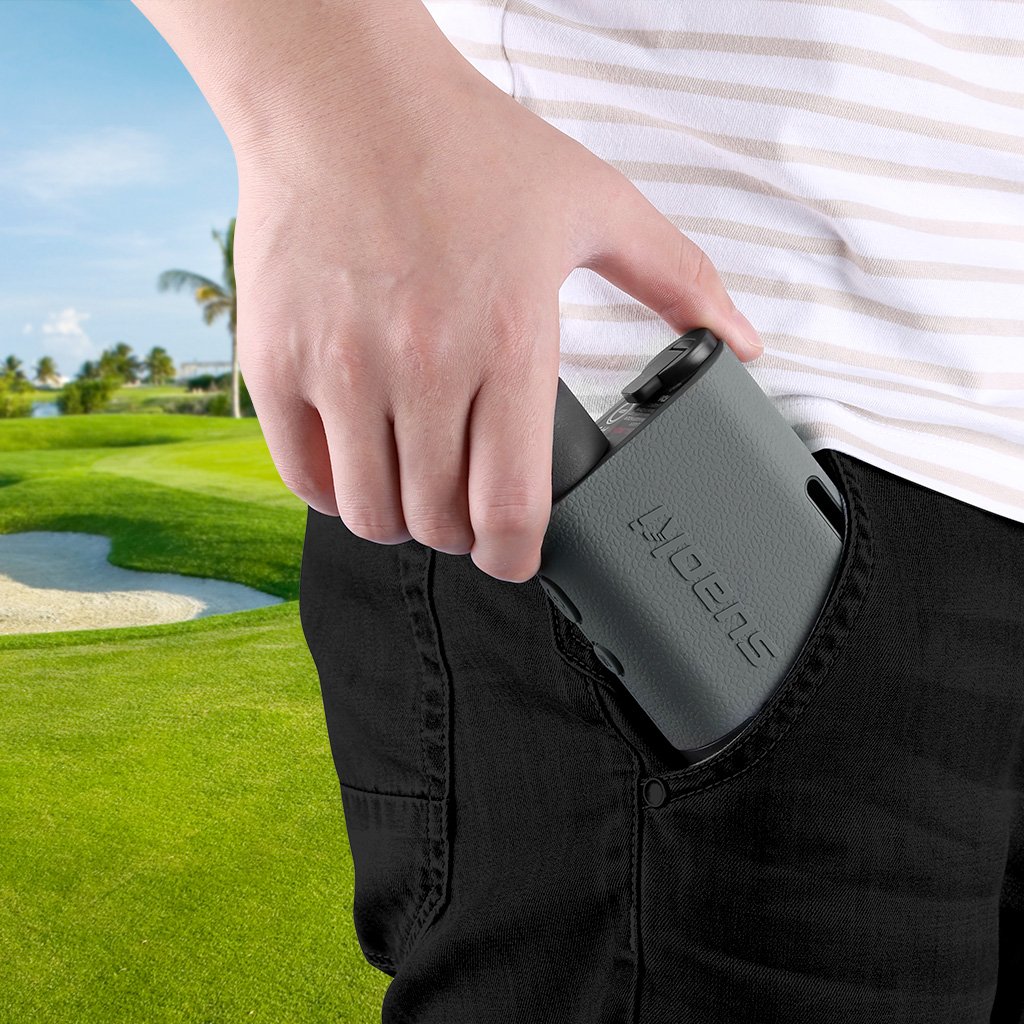

The strap and exclusive storage bag are also attached, it is convenient to carry in putting in a pocket or putting on a waist belt.

Product Specifications:

Weight: 273 g

Size: 118 x 77 x 41 mm

Measurable distance: 5 to 600 m

Measurement accuracy: ± 1 m

Angular accuracy: ± 1 °

Wavelength: 905 nm

Objective lens diameter: 22 mm

Eyepiece diameter: 16 mm

Viewing angle: 7 °

Telephoto magnification: 6 times

Speed ​​measurement range: 18 to 300 km / h

Angle measurement range: -90 ° to 90 °

Ballistic correction angle range: -20 ° to 20 °

Operating temperature: 0 ° C to + 40 ° C

set content:

1 x Suaoki laser range finder

1 x CR2 battery

1 x Strap

1 x Japanese Instruction Manual

1 x Lens Cleaner (Fabric)

1 x Special case

Features:

• Please enter model number Confirm this is compatible:
• Measurable distance: 5 to 600 m Measurement accuracy: ± 1 m Angular accuracy: ± 1 ° Laser class: Class 1
• Speed measurement range: 18 to 300 km / h Angle measurement range: -90 ° to 90 ° Ballistic correction angle range: -20 ° to 20 °
• Suaoki handy laser range finder with multiple functions such as golf ballistic correction, flag lock, distance, height, angle measurement, 2 point height difference measurement, speed measurement, etc.!

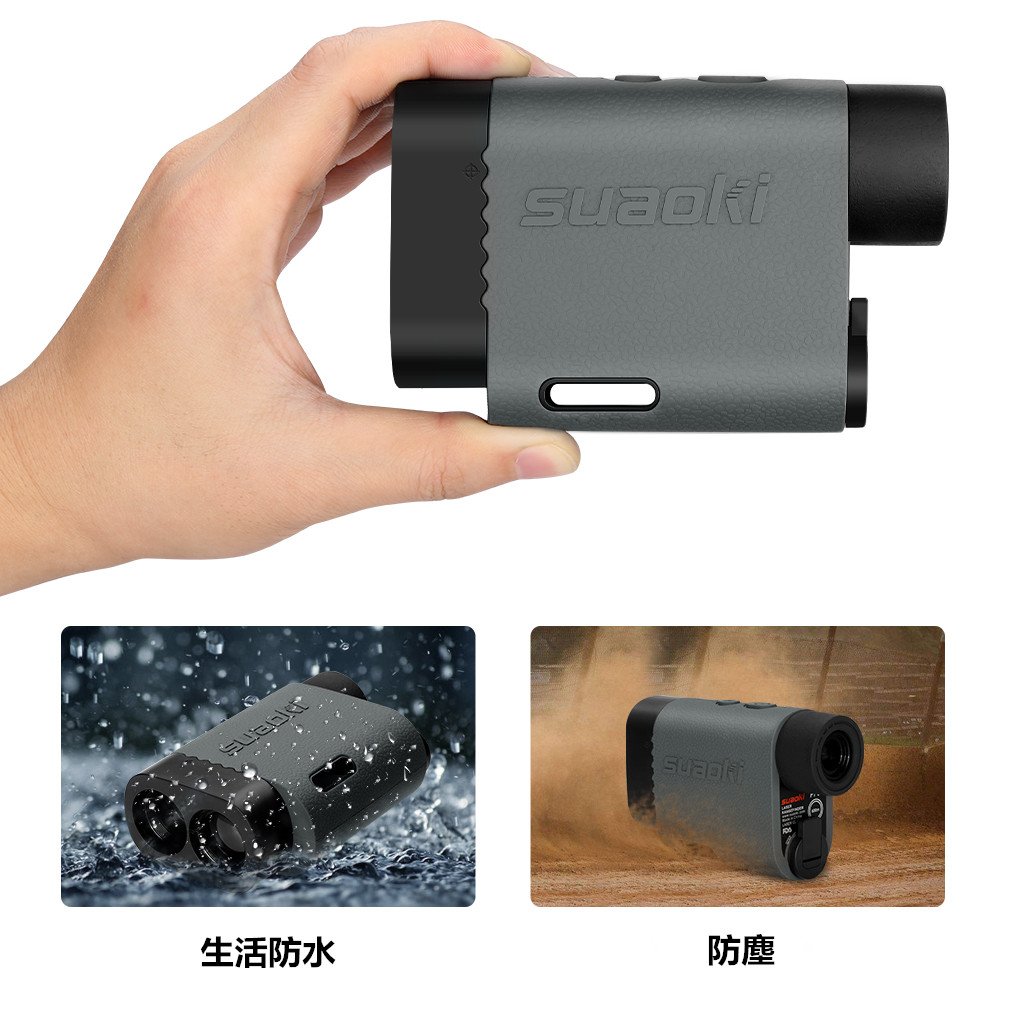

• Objective lens diameter: 22 mm Telephoto magnification: 6 times Viewing angle: 7 ° Protection function: life waterproof, dustproof
• Weight: Approx 273 g Size: 118 x 77 x 41 mm Power supply: CR 2 lithium ion battery 1 piece Accessory: special case, strap, lens cleaner (cloth), battery, instruction manual, thanks card

Product information:

Shipping Weight: 408 g

Package Dimensions: 7.39 x 14.91 x 24.79 cm
