太阳能喷泉是利用太阳能光伏发电来驱动水泵喷水，不需要市电。喷泉新潮、环保又安全、节能、增氧、过滤鱼池，还能减少雾霾。特别提示：水泵不能进泥沙与固态杂物，如果水质不好，请选择加过滤装置的。
太阳能电池板与正午太阳光线垂直时电力最佳。
本款太阳能喷泉有四种规格：
1、无蓄电池直喷型:由30W太阳能光伏板、18W水泵（1260）、水泵控制器、喷头套件、胶管组成，有太阳则喷水，太阳强则喷泉强，阴雨天与夜晚则休息，完美地与太阳共舞。杨程可达6米，流量可达每小时560升。
配置图片如下：
Solar fountain is the use of solar photovoltaic power generation to drive the water pump, do not need electricity. Fountain trendy, environmentally friendly and safe, energy saving, oxygen, filter fish pond, but also reduce the haze. Special Note: the pump can not enter the sediment and solid debris, if the water quality is not good, please select the filter device.
Solar panels are the best when the solar panels are perpendicular to the sun.
This section of the solar fountain has four specifications:
1, no battery Direct injection: 30W solar photovoltaic panels, 18W water pump (1260), water pump controller, nozzle kit, hose composition, the sun is sprayed, the sun is strong fountain, rainy days and rest at night, perfect Dancing with the sun. Yang Cheng up to 6 meters, the flow of up to 560 liters per hour.
The configuration image is as follows:
太阳能电池板与正午太阳光线垂直时电力最佳。
Solar panels are the best when the solar panels are perpendicular to the sun.
特别注意：此型号只适用于无沙无固体杂物的水体中，若是有沙及固体杂物的水体请选择带前置过滤器的型号。
整套图片如下 ：
Special Note: This model is only applicable to water without sand without solid debris, if there is sand and solid debris

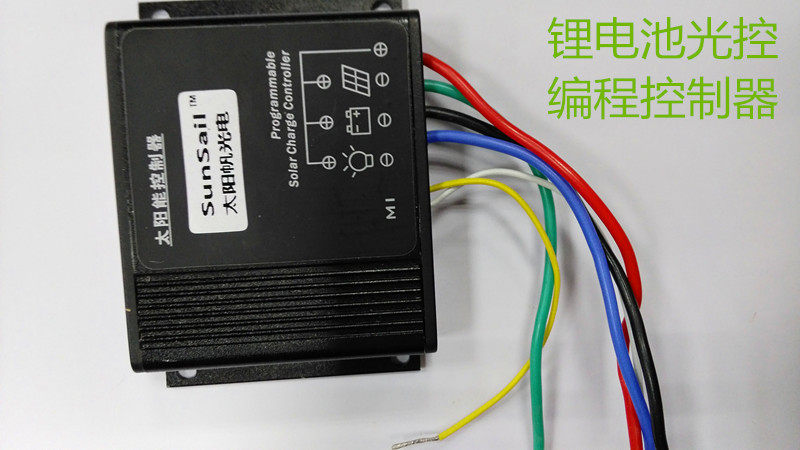

2、配锂电池光控型：由太阳能光伏板、12W水泵（1240）、8.8AH锂电池、光伏控制器、喷头套件、胶管组成，有太阳则有喷泉，带光控程序，每天能持续喷8小时左右，喷泉强劲而稳定，阴雨天与夜晚则休息。锂电寿命比胶体电池长数倍，无铅无酸更加环保，免维护、体积更小，重量也更轻。杨程可达4米，流量可达每小时560升。
图片配置如下：
2, with lithium battery light control: by the solar photovoltaic panels, 12W water pump (1240), 8.8AH lithium battery, photovoltaic controller, nozzle kit, hose composition, the sun is a fountain, with light control procedures, 8 hours or so, the fountain is strong and stable, rainy days and rest at night. Lithium battery life several times longer than the colloidal battery, lead-free acid is more environmentally friendly, maintenance-free, smaller, lighter weight. Yang Cheng up to 4 meters, the flow of up to 560 liters per hour.
Image configuration is as follows:
电池组做成了防水的了，如下图（参考图片，主要是防水盒有几种）
Battery pack made of waterproof, as shown below (reference picture, there are several kinds of waterproof box)
安装图片参考如下：
特别注意：此型号只适用于无沙无固体杂物的水体中，若是有沙及固体杂物的水体请选择带前置过滤器的型号。
3、配锂电池带过滤光控型： 由太阳能光伏板、12W水泵（1240）、8.8AH锂电池、光伏控制器、前置生化过滤桶、喷头套件、胶管组成，有太阳则有喷泉，带光控程序，每天能持续喷8小时左右，带生化过滤，保持水体清洁，喷泉强劲而稳定，阴雨天与夜晚则休息。锂电寿命比胶体电池长数倍，无铅无酸更加环保，免维护、体积更小，重量也更轻。杨程可达4米，流量可达每小时560升。
主要图片如下：（水管及配件略）
3, with lithium battery with filter light control: by the solar photovoltaic panels, 12W water pump (1240), 8.8AH lithium battery, photovoltaic controller, front biochemical filter barrels, nozzle sets, hose composition, the sun is fountain, Light control procedures, can continue to spray 8 hours a day or so, with biochemical filtration, to keep the water clean, fountain strong and stable, rainy days and rest at night. Lithium battery life several times longer than the colloidal battery, lead-free acid is more environmentally friendly, maintenance-free, smaller, lighter weight. Yang Cheng up to 4 meters, the flow of up to 560 liters per hour.
The main picture is as follows: (water pipes and accessories slightly)
4、无蓄电池带过滤装置直喷型:由30W太阳能光伏板、18W水泵（1260）、水泵控制器、喷头套件、胶管组成及过滤桶、水管、连接头等配件全套装置，有太阳则喷水，太阳强则喷泉强，阴雨天与夜晚则休息，完美地与太阳共舞。杨程可达6米，流量可达每小时560升。如果水质不好，有泥沙和花草，建议配前置过滤，可以延长水泵使用寿命，防止水泵堵塞，还能改善水质。配置图片如下：
4, no battery with filter device Direct injection: 30W solar photovoltaic panels, 18W water pump (1260), water pump controller, nozzle kit, hose composition and filter barrels, water pipes, connectors and other accessories a full set of equipment, the sun is water, The sun is strong, the fountain is strong, rainy days and the night is the rest, perfect dance with the sun. Yang Cheng up to 6 meters, the flow of up to 560 liters per hour. If the water quality is not good, there are sediment and flowers, it is recommended with pre-filter, you can extend the pump life, to prevent the pump blockage, but also improve water quality. The configuration image is as follows:
附注：

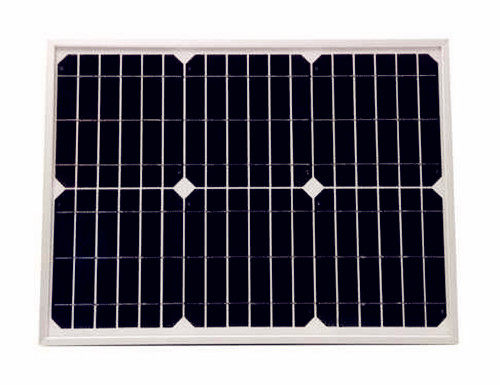

1、太阳能板为12V30W单晶或多晶高效认证板，配有5米主电览线；太阳能板大小参考尺寸：650*350*35
2、水泵为12V直流无刷长寿超静音潜水泵，配有3米电览线，喷头三个，如果不配喷头，可配2米的管子，如果需要配水管，请留言注明。
使用范围
本款太阳能喷泉可以组成不同的水景。可以制作别墅、办公、家庭水景，灌溉浇花，应急小电源，喷泉，鱼池增氧过滤，水景循环、风水景观等。
温馨提示
正确的安装：太阳能电池板与正午太阳光线垂直时电力最佳，太阳能电池板与水泵一定要安固好，北方地区冬天要防水泵与水管冰冻。
若是客户有特别需求，也可跟据要求量身定制，并承接批量加工订单。
本报价为不含税价格。本公司可开具17%增值税发票，但要加17%的税点，请注意。
通常走国通或申通快递，如国通或申通快递不到之处请与客户联系。
安装注意事项，安装时请先阅读下：
1、太阳能板放置要点：太阳能光伏板与正午太阳光线垂直时电力最佳。太阳能光伏板要从早到晚都能晒到太阳且无遮挡。太阳能光伏板要安固好，经得起狂风暴雨，确保安全，并定期清洁落尘与污垢。

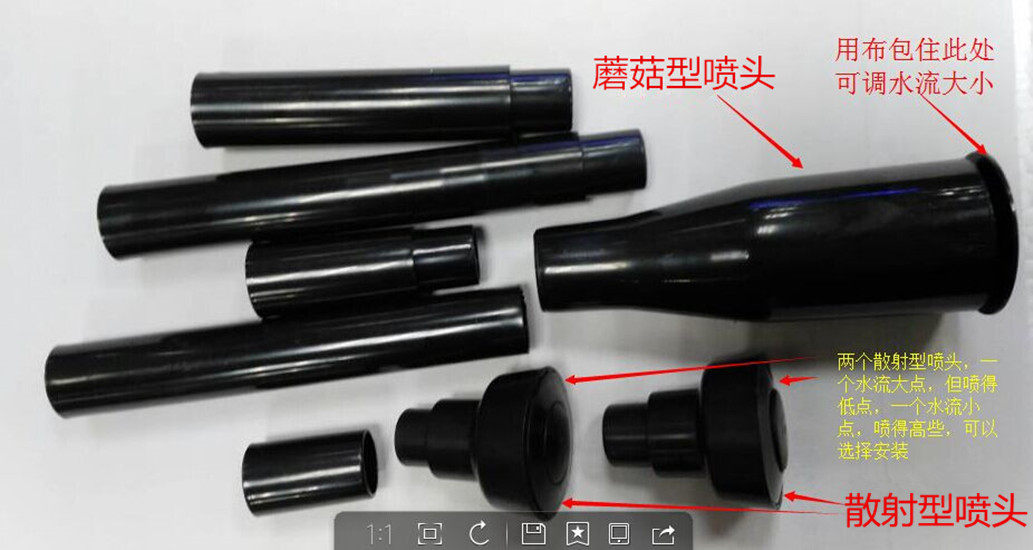

2、喷头喷管连接：由5根管子和两个喷头组成，喷头分为蘑菇喷和散射喷，蘑菇喷可以调大小，用布包着碗状盘轻轻拉扭，以调节宽度，水薄盘面大，反之则小。散射喷带两个，喷射大小不同，可选配，喷管有两节不带卡（两头看上去一样大的）连接喷头，其他三节带卡的可以自由连接水泵出水口，喷管因为是易损品，低温时易脆，连接时要注意轻重,最好先用开水浸一下热接就不易裂了。
3、带电池带过滤的连接说明：控制器与电池组及太阳能光伏连接线、水泵连接上的DC接头黄色的圈圈，圈圈上均标有数字，相同数字相连接，“9”为电池相连接，“7”连接太阳能光伏板，“2”连接水泵；水泵为潜水泵，过滤为前置过滤，要把过滤桶和水泵全部侵入水里，过滤桶与水泵之间的管子不能进空气，否则水泵不出水，切记:水泵不能空转，一定要放侵入水里再接电；所有连接好后，水泵30秒钟启动，请耐心等待一会儿。
下面是效果图片
Note:
1, the solar panel for the 12V30W single crystal or polycrystalline high efficiency certification board, with a 5 m main power line; solar panel size reference size: 650 * 350 * 35
2, the pump is 12V DC brushless longevity ultra-quiet submersible pump, with 3 meters electric line, nozzle three, if not equipped with nozzle, can be equipped with 2 meters of pipe, if you need water pipes, please note.
Use range
This section of the solar fountain can be composed of different water features. Can produce villas, office, family water features, irrigation watering, emergency small power, fountain, pond aerobic filtration, water cycle, feng shui landscape.
Tips
The correct installation: solar panels and noon solar light when the best power, solar panels and pumps must be fixed, the northern winter to water pumps and water pipes frozen.
If the customer has special needs, but also according to the requirements tailored, and to undertake batch processing orders.
This quote is tax-free. The company can issue 17% VAT invoice, but add 17% of the tax, please note.
Usually go through the country or STO, such as the country or STO less than please contact the customer.
Installation precautions, please read the following installation:
1, solar panels to place points: solar photovoltaic panels with noon sunlight vertical power when the best. Solar photovoltaic panels from morning to night can be sun to the sun and no shelter. Solar photovoltaic panels to be fixed, can withstand storms, to ensure safety, and regular cleaning dust and dirt.
2, the nozzle nozzle connection: composed of five tubes and two nozzles, the nozzle is divided into mushroom spray and spray spray, mushroom spray can be transferred size, with a cloth wrapped bowl plate gently pull to twist to adjust the width of the water Thin plate surface, and vice versa. Scattered spray with two, the size of the jet is different, optional, no two cards with no card (two looks the same big) to connect the nozzle, the other three with a card can be free to connect the water pump outlet, nozzle is easy Loss, low temperature when brittle, the connection should pay attention to the severity, it is best to use the first hot water is not easy to split the heat.
3, with a battery with a filter connection Description: controller and battery pack and solar photovoltaic cable, water pump connected to the DC link yellow circle, the circle are marked with numbers, the same number connected, "9" for the battery Connected to the "7" to connect the solar photovoltaic panels, "2" to connect the pump; pump for the submersible pump, filter for the front filter, the filter barrel and water pump all into the water, the filter barrel and the pipe between the pump can not enter the air , Otherwise the pump is not water, remember: the pump can not be idle, must be put into the water and then connected to electricity; all connected, the pump 30 seconds to start, please be patient for a while.
