Product Description

Here's some handy specs! Measures 2.0" x 0.9" x 0.28" (51mm x 23mm x 8mm) without headers soldered in Light as a (large?) feather - 4.8 grams ATmega32u4 @ 8MHz with 3.3V logic/power 3.3V regulator with 500mA peak current output USB native support, comes with USB bootloader and serial port debugging You also get tons of pins - 20 GPIO pins Hardware Serial, hardware I2C, hardware SPI support 8 x PWM pins 10 x analog inputs (one is used to measure the battery voltage) Built in 100mA lipoly charger with charging status indicator LED Pin #13 red LED for general purpose blinking Power/enable pin 4 mounting holes Reset button

Feature

Feather is the new development board from Adafruit, and like it's namesake it is thin, light, and lets you fly! Adafruit designed Feather to be a new standard for portable microcontroller cores.
At the Feather 32u4's heart is at ATmega32u4 clocked at 8 MHz and at 3.3V logic. This chip has 32K of flash and 2K of RAM, with built in USB so not only does it have a USB-to-Serial program & debug capability built in with no need for an FTDI-like chip, it can also act like a mouse, keyboard, USB MIDI device, etc. This chip is well supported in the Arduino IDE and can run just about every sensor/library out there.

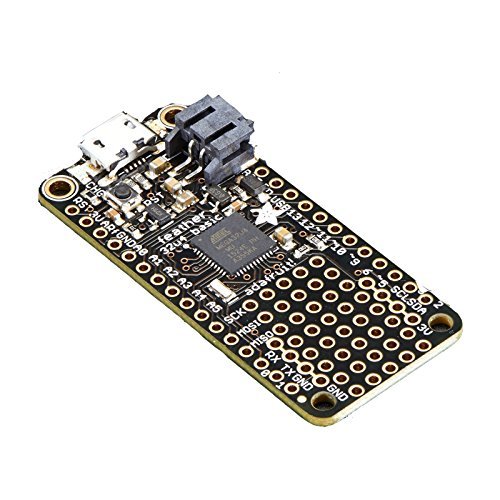

The Feather 32u4 Basic Proto has some extra space left over, so we give you a tiny little prototyping area. If you just need to attach a button or sensor, you may be able to skip out on a breadboard and wire it directly on there.
Comes fully assembled and tested, with a USB bootloader that lets you quickly use it with the Arduino IDE. We also toss in some header so you can solder it in and plug into a solderless breadboard. Lipoly battery and USB cable not included.
Brand : Adafruit
Item model num : ADA-2771
MPN(PartNumber) : 2771
EAN : 0702658304133
Product Dimensions(LxWxH) : 6x3x1cm ; 18 g
Package Dimensions(LxWxH) : 10x7x1cm ; 18 g
