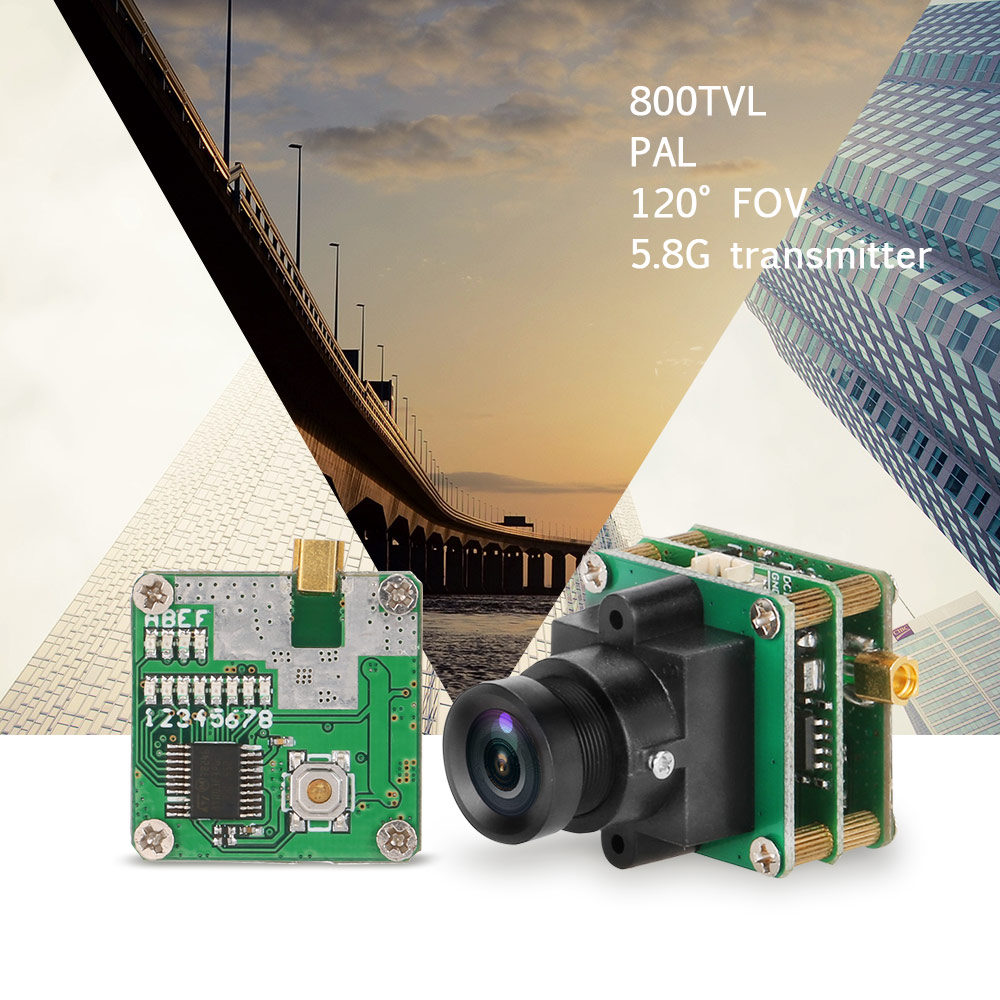

800tvl camera and 5.8g transmitter in a signal unit. Perfect for 250 280 size racing quadcopter. Installation is easy and can be done in seconds. No soldering or special skills are required. You simply attach it to your model and plug in a LiPo battery.
Features:
No 2.4GHz RC interference
800TVL camera comes with 5.8G transmitter
Enough signal range for racing quadcopter
Excellent image clarity in all lighting conditions
Easy installation， don't need soldering or special skills
Specifications:
Resolution lines: 800TVL
Video format: PAL
FOV: 120°
Supply voltage: 7.4-12.6V (suggest using 3S LiPo Battery)
Power consumption: 300mA @ 12V
Shutter speed: 1/60-1/100000 sec
Operating temperature: -20º to 60ºC
Frequency: 5.8G
Transmitter output power: 400mW
Channel: 32CH
Size: 35 * 25 * 25mm
Weight: 16g
Frequency:
A: 5865， 5845， 5825， 5805， 5785， 5765， 5745， 5725
B: 5733， 5752， 5771， 5790， 5809， 5828， 5847， 5866
C: 5705， 5685， 5665， 5645， 5885， 5905， 5925， 5945
D: 5740， 5760， 5780， 5800， 5820， 5840， 5860， 5880
Package Information:
Package size: 5.5 * 5.5 * 5.5cm / 2.2 * 2.2 * 2.2in
Package weight: 43g / 1.5oz
Gift box package
Package List:
1 * 800TVL Camera Transmitter Combo Set
1 * Power Cable
$$
$$
$$
$$
$$
$$
$$
$$
$$
