Product Description

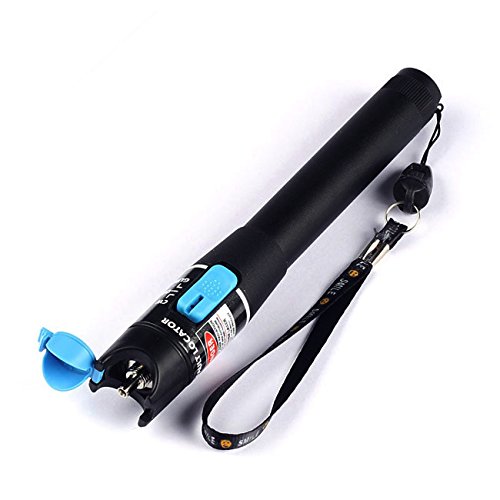

The Visual Fault Locator is specially designed for field personnel who need an efficient and economical tool for fiber tracing,fiber routing and continuity checking in an optical network during and after installation. It includes:Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.Finding the faults of OTDR.

Feature:

*2.5mm universal connector
*Operates either in CW or Pulsed
*Constant output power
*Lower Battery warning
*Long battery life (up to 60 hours)
*Crash-proof and dust-proof design for laser head
*Laser case ground design prevents ESD damage
*Burning testing to ensure the reliability.
*Portable and rugged, easy to use

Specification:

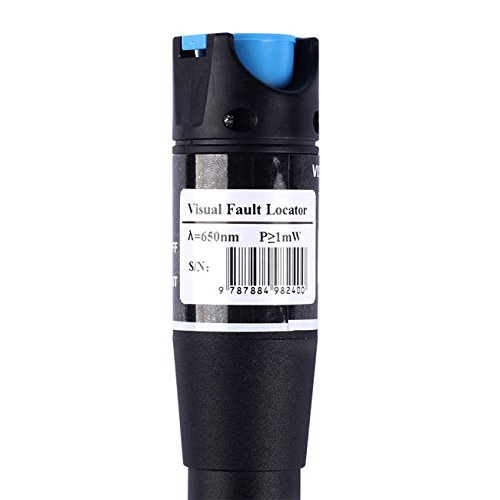

Type: TL532 Pen-type Visual Fault Finder
Central Wavelength: 650nm -10nm (635nm can be required on request)
Emitter Type: FP-LD
Output Power: 1mW
Optical Connector: 2.5mm universal connector for test different ST, SC, FC interferes
Operating Model: Both CW and Pulse available
Pulse Frequency: 2~3Hz
Power Supply: 2x AA alkaline batteries
Operating Temperature: -10~ 45 (oC)
Storage Temperature: -40~ 70 (oC)
Dimension (mm): 168*27mm
Weight: 125g(Without battery)
Package Content:

1 x 25mW Pen-type Visual Fault Finder
1 x Carrying Bag
