Product Description
BPHA2814-6 A2814-6 Brushless Outrunner Motor

-No. of Cells: 2 - 3 Li-Poly
-7 - 10 NiCd/NiMH
-Kv: 1410 RPM/V
-Max Efficiency: 80 percent
-Max Efficiency Current: 18 - 30A
-No Load Current: 2.1A at 10V
-Resistance: 0.050 ohms
-Max Current: 40A for 60S
-Max Watts: 440W
-Weight: 102.8 g / 3.62 oz
-Size: 35 mm x 36 mm
-Shaft Diameter: 4mm
-Poles: 14
-Model Weight: 1000 - 1900 g / 35 - 67 oz

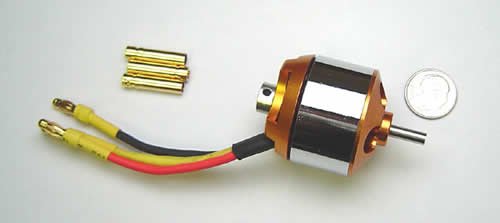

Use this motor with 2-3 cell Li-Poly packs and 9-10 inch props on planes up to 67 oz flying weight. Manufacturer recommends a 9.5x5 prop on 3-cells. The motor features a 4mm hardened steel shaft, dual ball bearings for the shaft and has 4.0mm gold spring male connectors already attached with 3 female connectors included for your speed control. Also includes accessory package with the pictured aluminum radial cross mount set with 8mm prop adapter. Mounting holes are spaced 19mm on center and are tapped for 3mm (M3) screws.
