Product Description
1.Description

The HDMI extender provides extension of HDMI signals long distances over a single CAT5e/6 cable, it supports high resolution up to 1920*1080@60Hz and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

2.Features

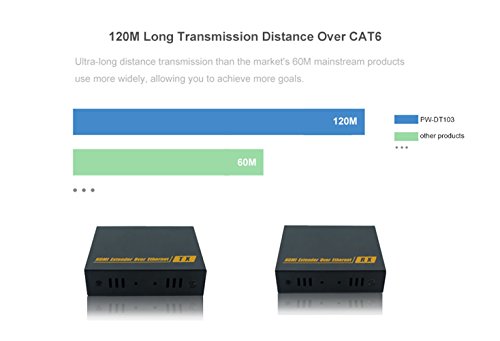

Transmits HDMI video and audio signals up to 120m over a single CAT5e/6 cable;
Support video resolution up to 1920*1080@60Hz;

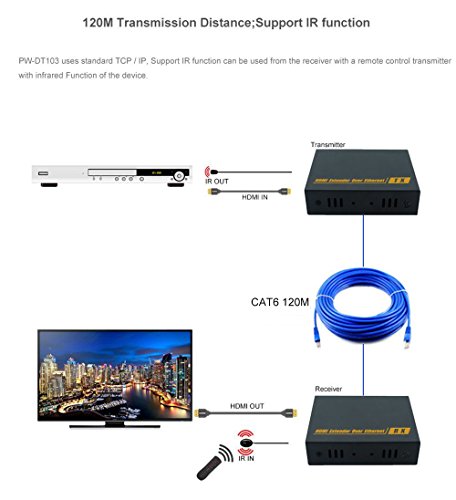

Support IR signal transmission;

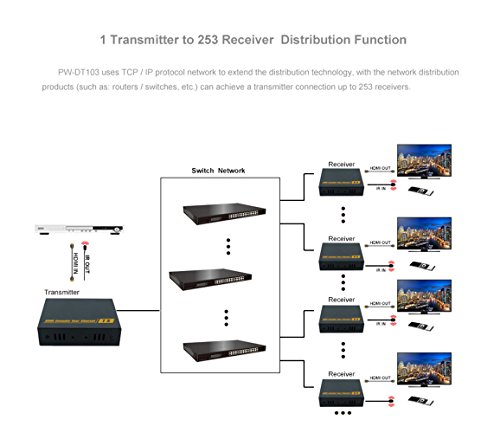

Support over TCP/IP, one to many application with Ethernet switch;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

3.Specifications

Video
Standards-----------------HDMI 1.3; HDCP 1.2
Maximum pixel clock-------165MHz
Maximum data rate---------6.75Gbps
Resolution----------------1920X1080@60Hz

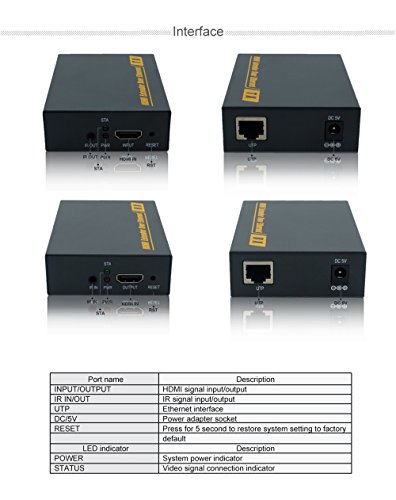

Connector-----------------HDMI-A

IR
Interface-----------------3.5mm earphone seat
Signal direction----------Unidirectional
Signal type---------------Digital
IR frequency--------------38khz(standard) ; 20-60KHz (Can be customized)

Ethernet
Interface-----------------RJ45
Transmission distance-----CAT5e/6 - 120m

Other
Power supply--------------The power adapter: DC 5V/1A
Power dissipation---------MAX 3W
Temperature---------------Operating: -5℃ ~ 70℃
Humidity------------------Operating: 5% ~ 90%

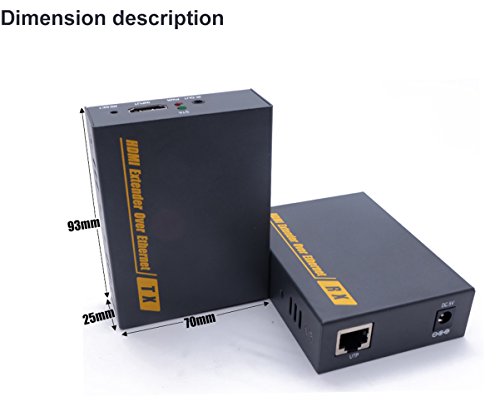

Dimension-----------------100*60*25mm
The warranty--------------1 year free warranty

4.Package list

HDMI transmitter ...... 1 pcs
HDMI receiver ............1 pcs
Power adapter ............2 pcs
IR TX/RX Cable ......... 1 set
User manual ...............1 pcs
