3528 LED Strip Connector 8mm 2 Pin (5 PCS Terminal) With 20 Gauge Extension Wire 2 Conductor UL Listed (9.8 Feet/3 Meter), DIY Both Strip to Power Lead or Board to Board Jumper,NON-WATERPROOF









NON-WATERPROOF strip to strip/wire-Black


For 10mm-Dual Color (CCT) NON-WATERPROOF 10mm


For 10mm-RGB NON-WATERPROOF 10mm


For 8 mm-3528 WATERPROOF 8mm


For 10mm-5050 NON-WATERPROOF 10mm


For 10mm-5050 WATERPROOF 10mm


For 10mm-RGB WATERPROOF 10mm

Product Description

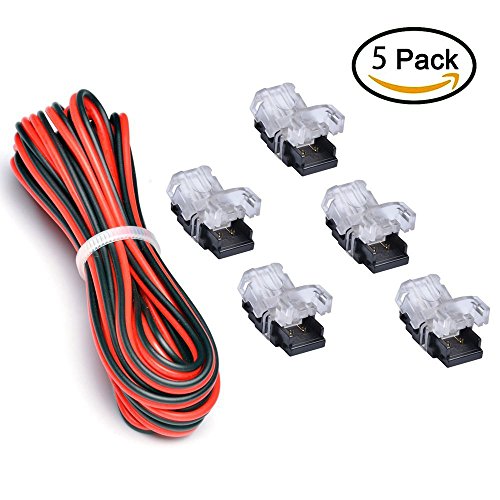

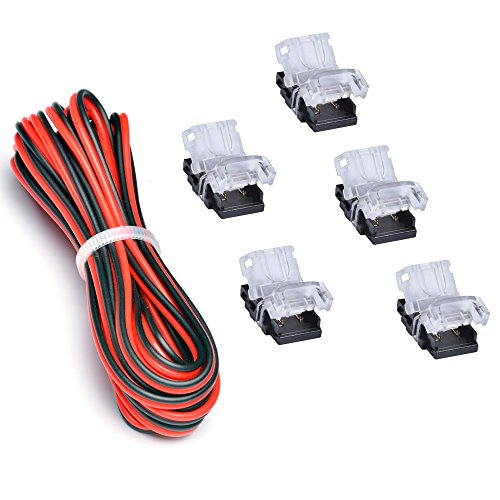

1.Package Include

5 PCS LED Strip Connector Terminal 8mm 2 pin non-waterproof

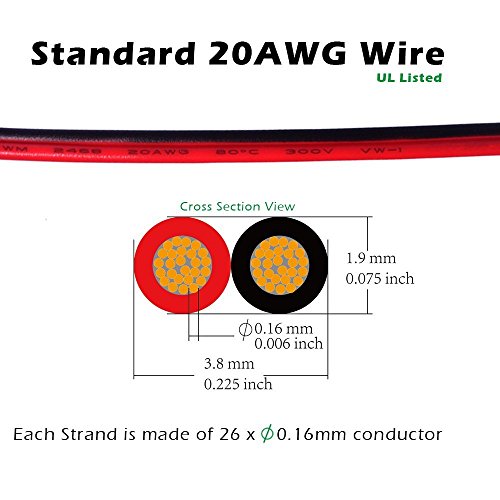

9.84 Feet / 3 Meter 20 Gauge 2 Conductor Extension Wire UL Listed

2.Special Benefit you can get with it.

You will be no more limited by distance between strip light to power supply or dimmer. This connector allow you to cut any length wire according to project's actual requirement, then attach wire to connector easily without stripping insulation.

With 2 connector and a wire, you are able to diy a strip-to-strip-jumper wire in order to extend strip light with any angle or direction. The length of this jumper wire can be decided by you fully.

No more worry strip light moving out of connector, the connector's teeth will pierce and grip the PCB tightly.

3.Tools needed to use

A pliers only

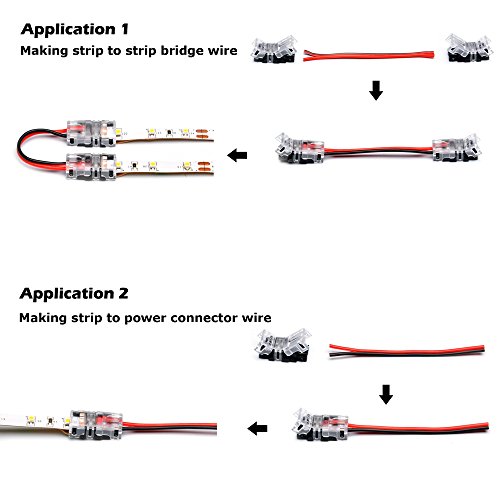

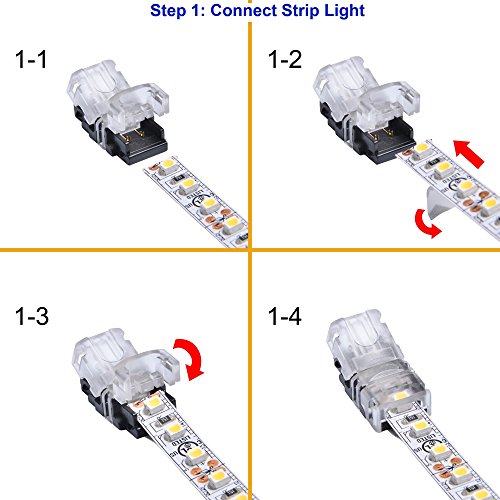

4.How to use (2 mode)

4-1 How to make a Strip-To-Strip-Bridge connector ?

  1. Cut a wire for the length you want
  2. Insert wire into connector's wire end
  3. Clamp cap down
  4. repeat step 1-3 to add another connector to the wire

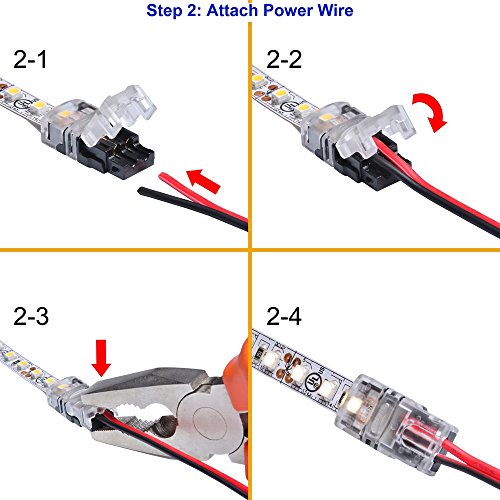

4-2 How to make a Strip-To-Power connector

  1. Cut a wire for the length you want
  2. Insert wire into connector's wire end
  3. Clamp cap down
5.Technical Data

Working Voltage: <=24V
Max Current of Pin: 5A
Pin Quantity: 2 pin
Workable Strip Light Width: 8mm
Workable PCB Thickness:0.2~0.35 mm
Working Ambient TEMP.: -20~50℃
Heat Resistance:105℃


Feature

Allow you to DIY both strip-to-strip-bridge and strip-to-power-lead connector wire that is up to 3 meter long
Clear Cap connector that will not mask light of first LED. Will not leave dark area in your lighting space, make your lighting effect uniform
No need stripping wire insulation before connection (pierce-to-contact), really allow user to insert & press to connect with a 'CLICK'sound. Connect your led strip to power or dimmer without any soldering, just a pliers needed.

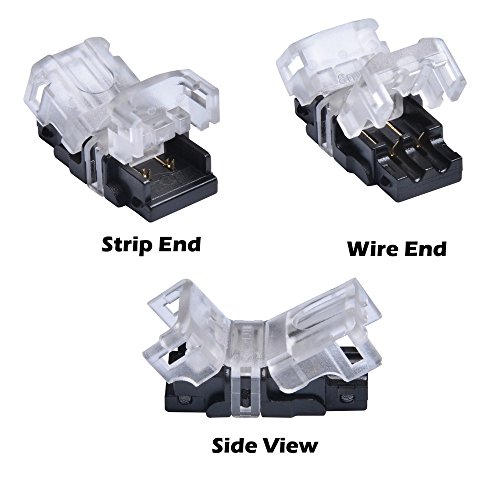

Innovative fixing bar and piercing contact design will grip strip light tightly,never worry strip light or wire moving out of connector.
Applicable for SMD3528 / SMD3014 / SMD2835 / SMD2016 strip light in different LED density ranging 30~120 LEDs per meter.And workable to strip light with 3M VHB red adhesive tape.
Brand : nicelux
Item model num : NLCSEN8XB2W3-5
MPN(PartNumber) : QJ-SE-N8XB-2
EAN : 0710619657914
Product Dimensions(LxWxH) : 20x12x3cm ; 45 g
Package Dimensions(LxWxH) : 18x7x3cm ; 45 g
