Description:

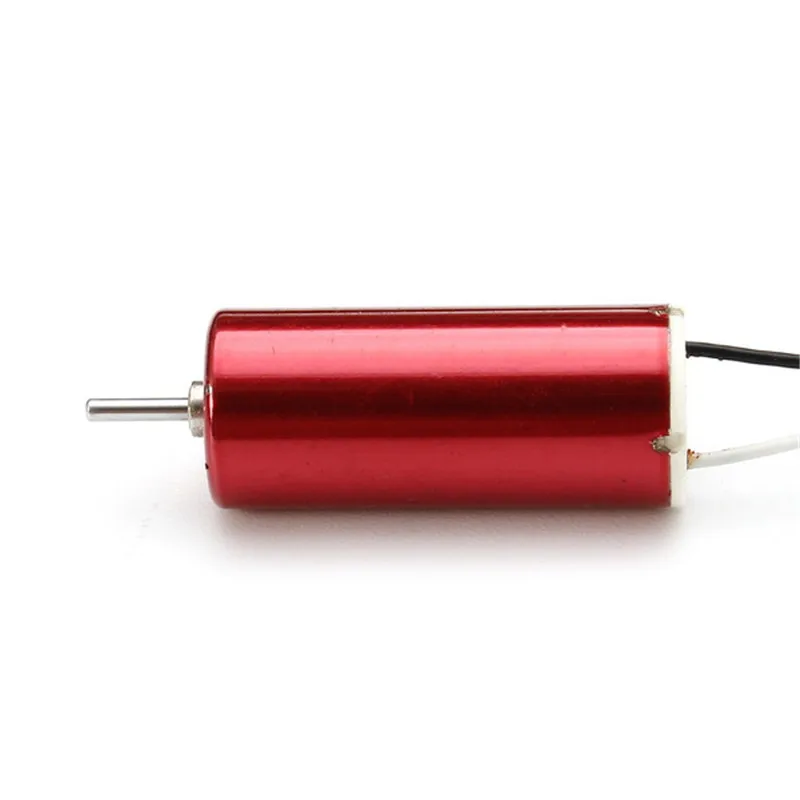

Motor Diameter: 8.5mm
Motor Length: 20mm
Shaft Diameter: 0.05-0.3mm
Cable Length: 80mm
Weight: 5.1g

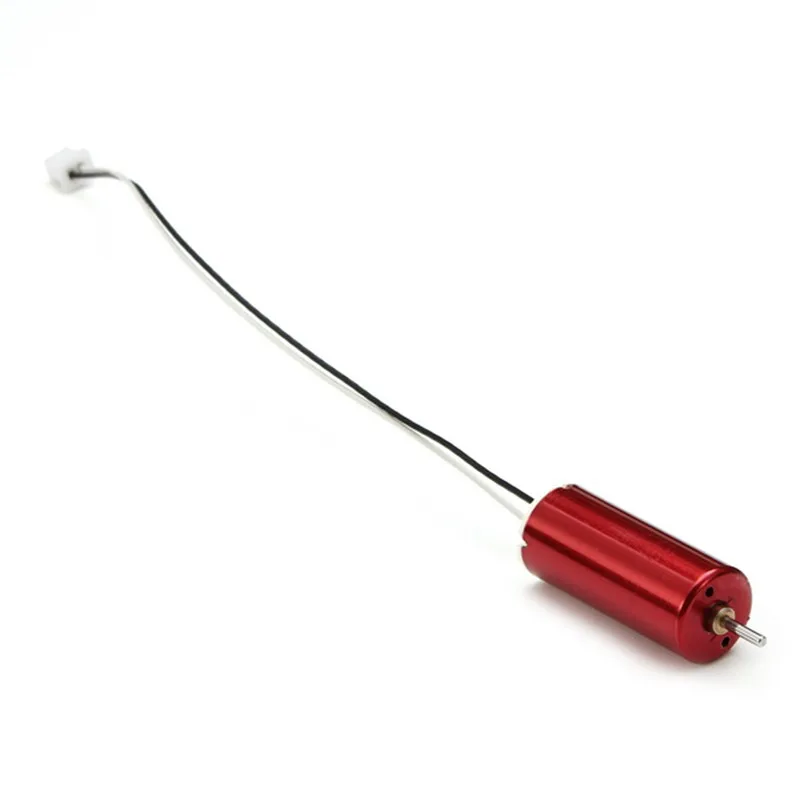

Option: Clockwise Motor(With Red Blue Wire) Anti-clockwise Motor(With Black White Wire)

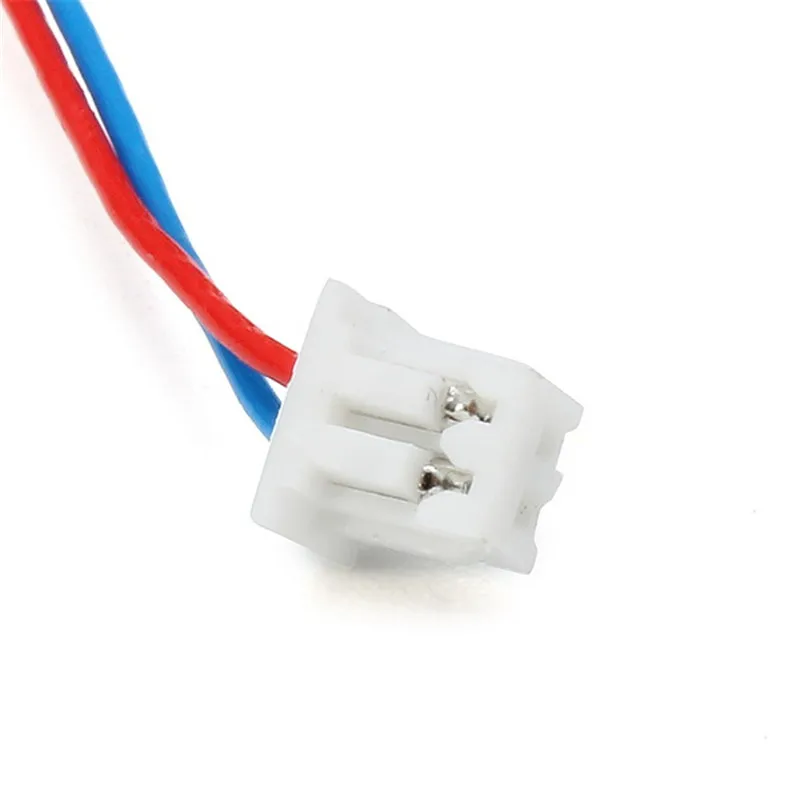

Option: With 1.25mm JST Plug
Quantity: 4 pcs
1.Operating condition
| Rated voltage | 3.7V DC |
| Direction of rotation | CW and CCW |
| Operating voltage range | DC2.0--4.5V DC |
| perating temperature range | -10-50°C |
| Motor position | all position |
2.Mearsuring condition
| Motor position | horizontal or vertical |
| Power supply | regulated DC power supply assuring unquestionable measuring |
| regulated DC power supply assuring unquestionable measuring | 10-30°C 30-95% If the judgment is questionable Measurent is to be made based on JIS Standard Testing Condition(20+2°C 65+5% ) |
| Direction of rotation | viewed from output shaft side |
3.Electrical characteristics
| Items | Specification | Standard value |
| No Load speed | 53500rpm±12% | 53500 rpm |
| No Load current | 280mA max | 200mA |
| Starting voltage | 0.8V max | 0.5V DC |
| Stall current | 10570mA±5% mA | 10570mA |
| Terminal resistance | 0.4Ω ±5% | 0.4Ω |
| Insulation resistance | 10M? min | AT 250V DC between motor terminal and case |
| Stall torque | 64.0±3g.cm | 64g.cm |
Cautions:
1) Please use the motor in this technology index range for the performance of the motor is affected by environmental temperature seriously.
2) It is not allowed to operate in the high temperature with high humidity and not allowed to contact with corrosive liquid and corrosive gas should not to be stored and without running Continuously for more than six months.
3) Do not lock the motor shaft while the electric is on. The motor will be burnt out after the motor shaft was locked for more then 1 second.
4) Do not hit the motor directly.

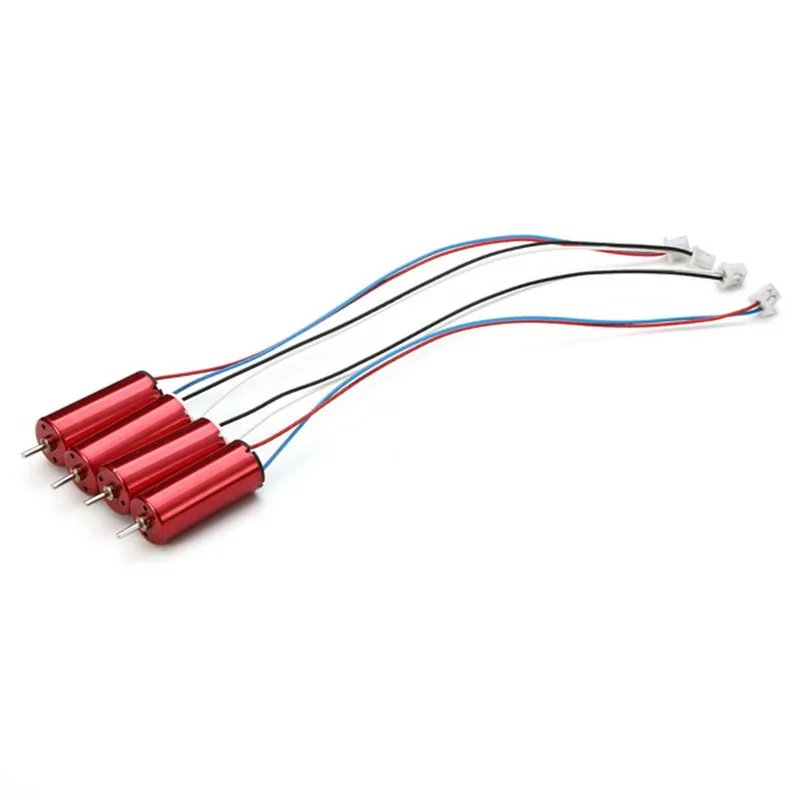

Package included:
2 x CW motor
2 x CCW motor
Return:
If item DOA(Dead of Arrival) Buyers Can return it in 14 Days We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back
Warranty:
All item Comes with Basic 3 Month Sellers Warranty if item defective in 3 Month We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month Buyers can still send it back We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.
