Product Name

Rear View Back Up Camera Ccd For Subaru Forester/Outback/Impreza

Product Code: PROD120105646

Product Information

원본상품명: Rear View Back Up Camera Ccd For Subaru Forester/Outback/Impreza
Rear view back up camera ccd for subaru forester/outback/impreza
Ship from United States of America
This item is sent to Japan


Technical Details

Width : 0.75 cm
Height : 0.75 cm

Product Details


ASIN : B077WLL1VR


Product Description

plate light at the back of your car.
2. Fix the camera to where the stock license plate light was.
3. Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power.
4. Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative.
5. Connect the video cable of the camera to the extension cord.
6. Connect the extension cord to your car monitor.
7. You will see the images when your car is in reverse shift.
Note:
1.We provide clear pictures, measurements where possible.
Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
3.The color of the actual items may slightly different from the
listing images due to different computer screen, thanks for your understanding.
4.Instruction is not included.Professional Installation Is Highly Recommended!

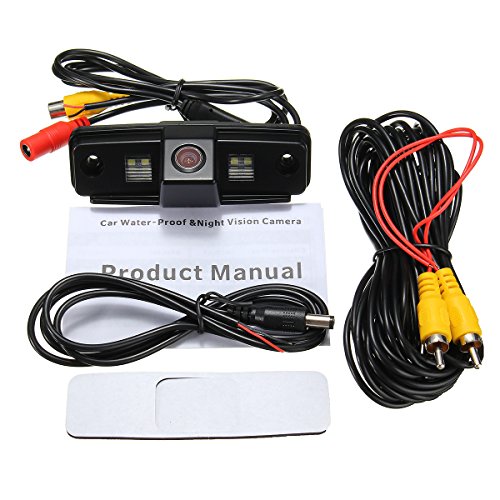

Package Included:
1 X CCD Car Rear View Camera
1 X Power Cable
1 X Extension Cable
1 X User Manual


Specification:
Color
Black
Video Color
Colorful
Camera Dimension
100*13*30mm
Sensor
CCD
Effective Pixels
720*540
Resolution
520TV lines
Lens Angle
170
Working Power (DCV)
12V
Operation Temperature
-20 C+60 C RH95% Max
Storage Temperature
-30 C+60 C RH95% Max
Current Consumption
No more 300mA
TV System
NTSC 60HZ/PAL 50HZ
Night Vision View
Support
Waterproof
IP67-68
Fitment
SUBARU FORESTER/IMPREZA(Sedan 3 Carriages)
SUBARU Outback (2007-2012) / Tribeca 2007-2012
(FOR REFERENCE)
