Product Description

NOTE: DO NOT USE FOR LENOVO/THINKPAD AND HP LAPTOP.
**WB222 **
45% lower RBOM cost compared to Qualcomm combo solutions with discrete chips for WLAN and BT Standard Half Mini Card form factor
Driver support for Windows 7, Windows 8 Vista, XP and Linux (including Chrome OS)
Support for AR9462 chip on board
Worldwide regulatory compliance
AR9462 Specifications
WLAN Frequency Band 2.4/5 GHz
Bluetooth Frequency Band 2.4000 - 2.4835 GHz
Network Standard Compliant with IEEE 802.11n,
802.11g, 802.11b, 802.11d, 802.11e,
802.11j and 802.11i
Modulation Technology OFDM with BPSK, QPSK, 16 QAM,
64 QAM; DQPSK, CCK, G-FSK,
π/4-DQPSK, 8-DPSK
FEC Coding Convolution Code
Low-Density Parity Check (LDPC)
Hardware Encryption AES, TKIP, WEP
Quality of Service 802.11e

Communications Interface PCIe for WLAN and USB for BT
Peripheral Interface GPIO
Supported Data Rates IEEE 802.11a 6 - 54 Mbps
IEEE 802.11b 1 - 11 Mbps
IEEE 802.11g 6 - 54 Mbps
IEEE 802.11n 6.5 - 300 Mbps
Auxiliary Memory Interface EEPROM
Technology Node 55 nm
Package Dimensions 88-pin QFN 10 mm x 10 mm

Package Includes:
1 x AR9462 (ATHEROS AR5B22) Wifi Bluetooth Card

Feature

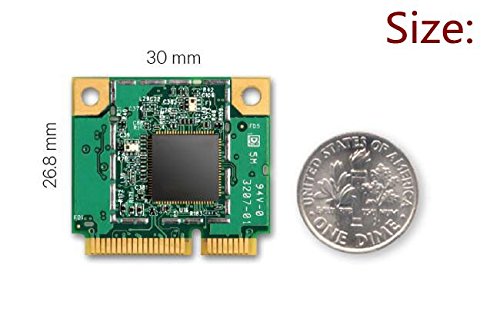

Single Combo Wireless + BT 4.0 coexistence Chip, Half Size Mini PCIe / USB Module
Two antenna connectors for MIMO 2Tx2R (2 Transmit & 2 Receive) technology
Dual Band (DB) 2.4Ghz + 5 Ghz wireless connection up to 300Mbps
Lowest (best-in-class) power consumption & Support for DirectConnect (WiFi-Directƒ_½ )
NOTE: DO NOT USE FOR LENOVO/THINKPAD AND HP LAPTOP.
Brand : Ar
EAN : 4897042874777
