Product Description

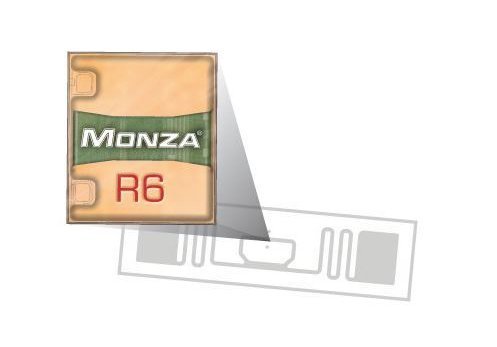

The SMARTRAC R6 Dogbone RFID Inlay is compliant with Wal-Mart, Department of Defense (DoD), and METRO Group standards and protocols. Likewise, the inlays are compliant with international standards ISO 18000-63 and EPCglobal Gen2v2, so the SMARTRAC Dogbone RFID Wet Inlay will work with all equipment and systems adhering to the proper standards. All UHF transponders from SMARTRAC undergo three different testing methods to ensure the reliability of all their RFID tags. They test RFID inlay performance across various temperatures, humidities, and combinations of the former and latter. The SMARTRAC Dogbone Wet Inlay uses the Impinj Monza R6 IC (integrated circuit) providing an extra layer of reliability from another respected industry leader. Featuring two "dogbone" shaped antennas, the SMARTRAC DogBone RFID Wet Inlay transmits in an omni-directional pattern eliminating blind spots. The high-performance feature means the orientation of the tag and reader will be less of a factor in the success of your systems. SPECIFICATIONS ELECTRICAL: Air Interface Protocol: EPCglobal and ISO 18000-63 compliant, Gen2v2 compliant Operating Frequency: Global 860-960 MHz IC Type: Impinj Monza R6 Memory: EPC 96 bits EPC Memory Content: Unique, auto-serialized Max Read Distance: > 6.1 m (20 ft) Applicable Surface Materials: Plastic, cardboard, glass MECHANICAL: Tag Form Factor: Wet inlay Tag Materials: PET Attachment Method: RA-5, Acrylic water borne adhesive Dimensions: 3.82 x 1.06 in ( 97 x 27 mm) Weight: 1 g ENVIRONMENT: Operating Temperature: -40° to 85°C
